The 380C air compressor can operate continuously for 30min at 200 PSI without exceeding a 23-amp power draw. It features a 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

380C Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Driven

Unmatched Testing

Aims for 0% failure rate

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.75 lbs.

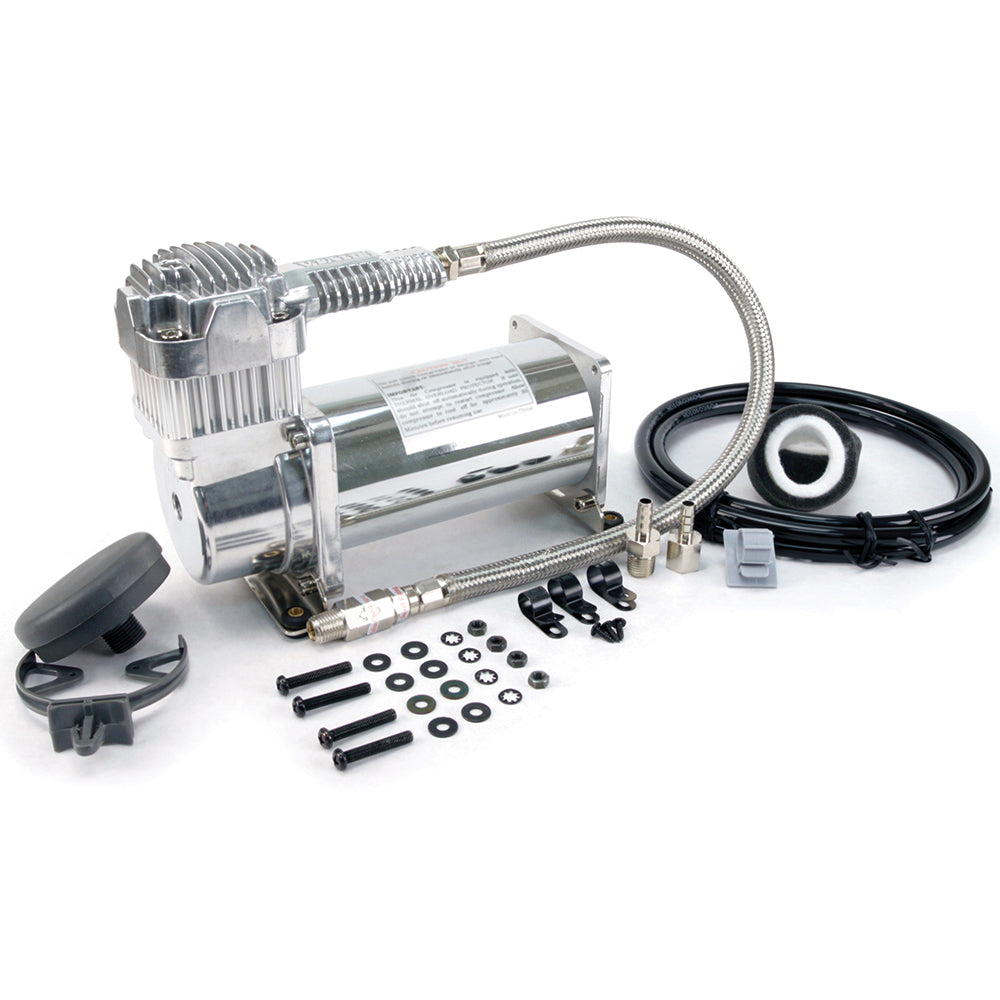

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
