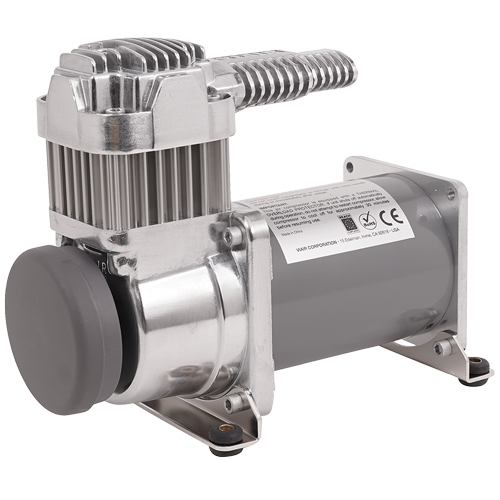

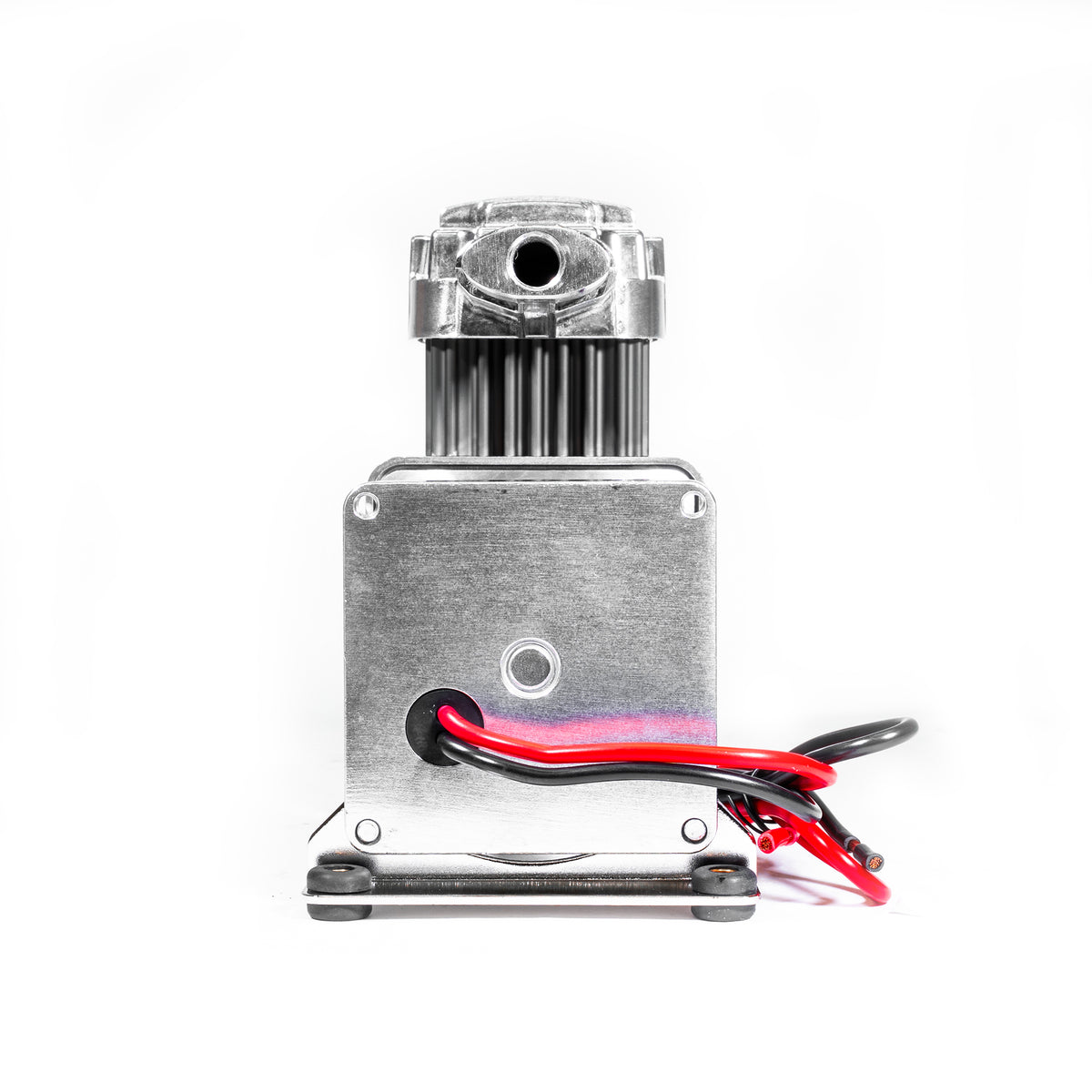

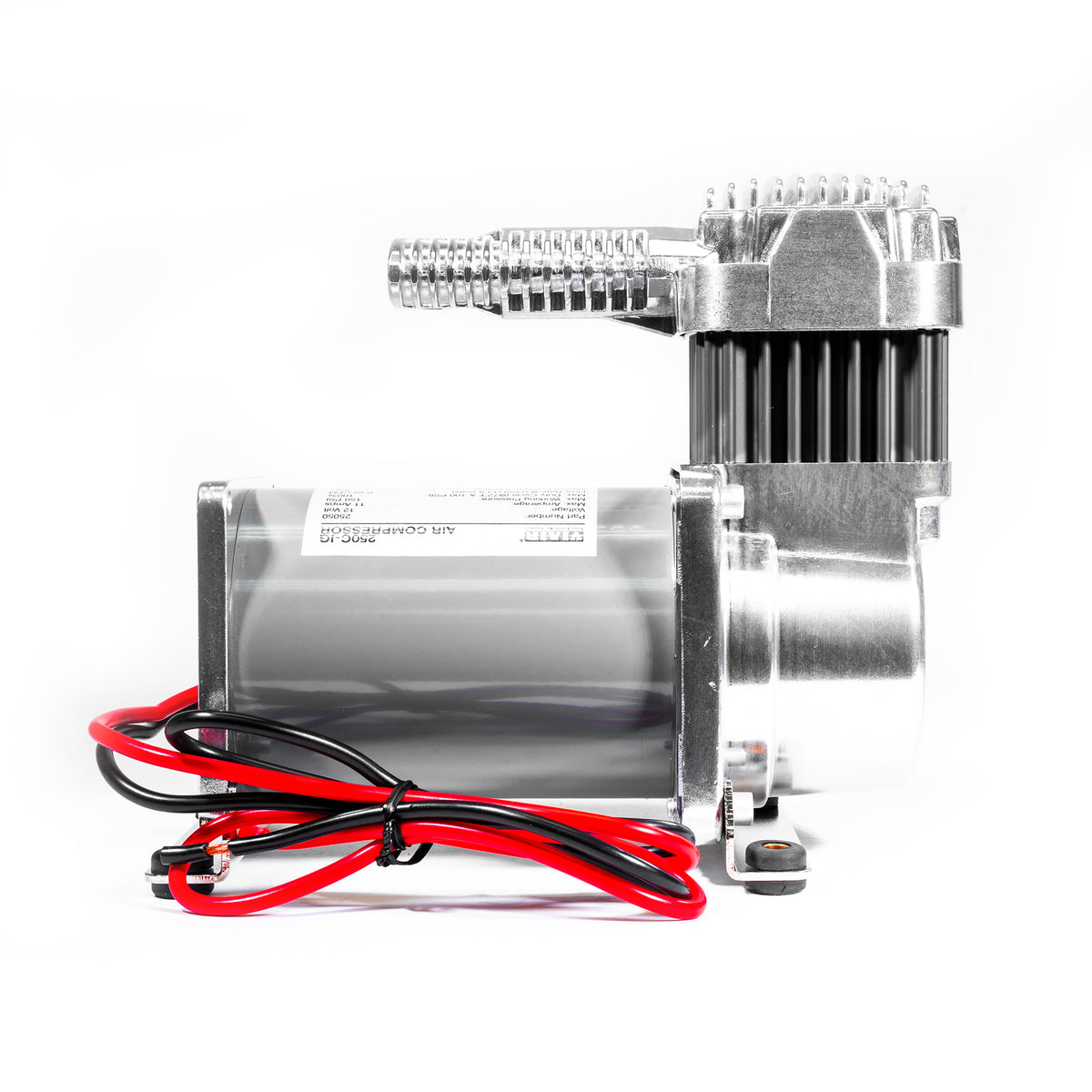

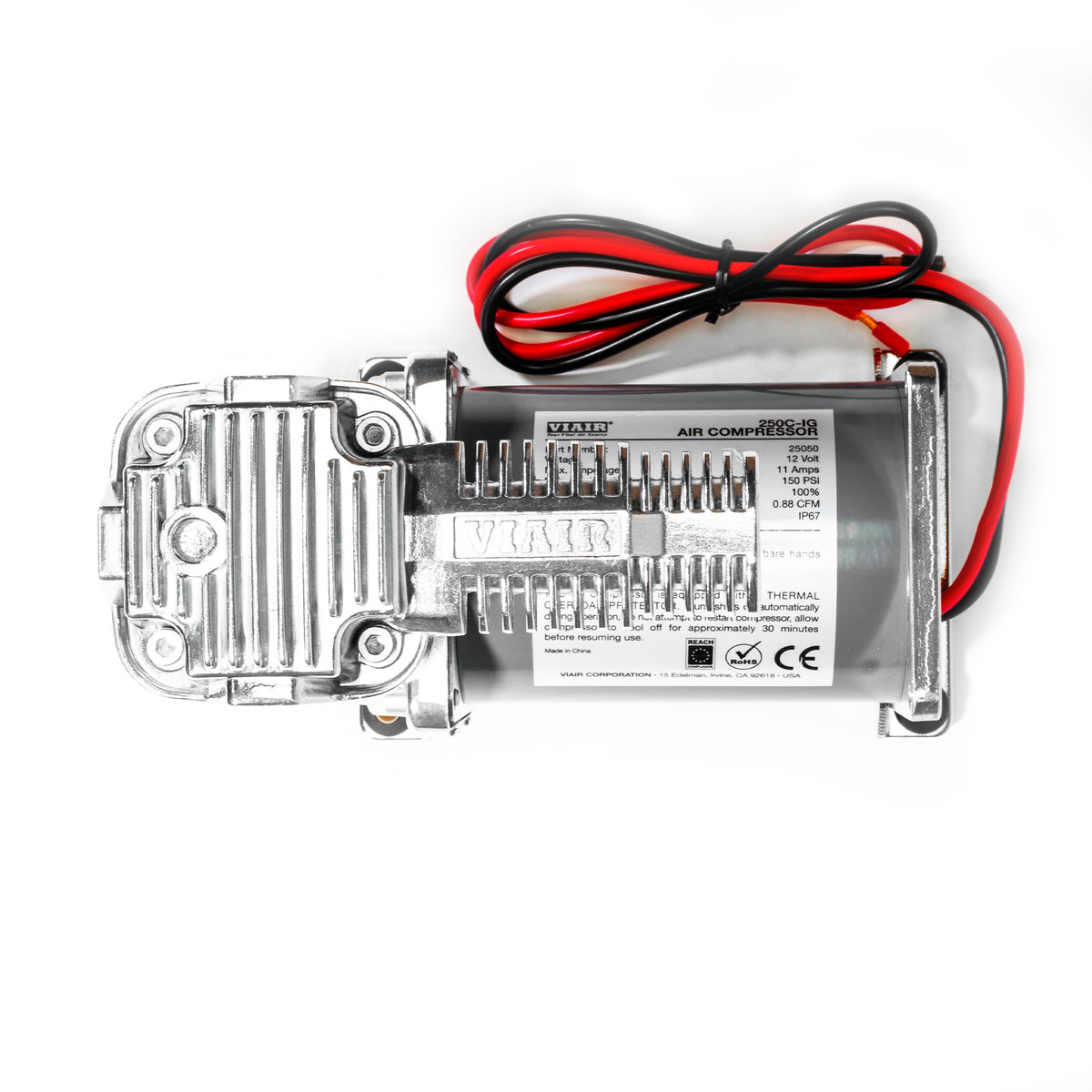

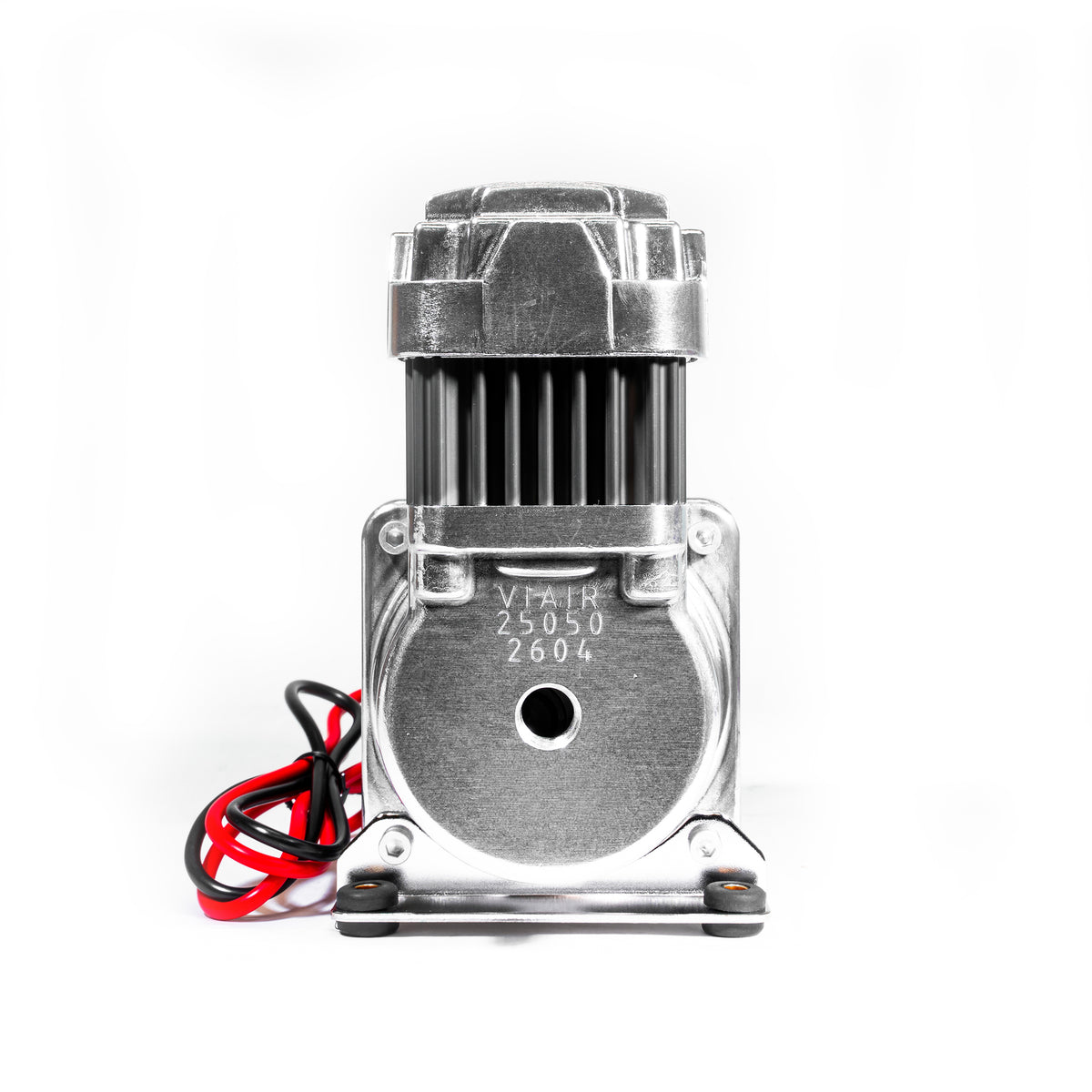

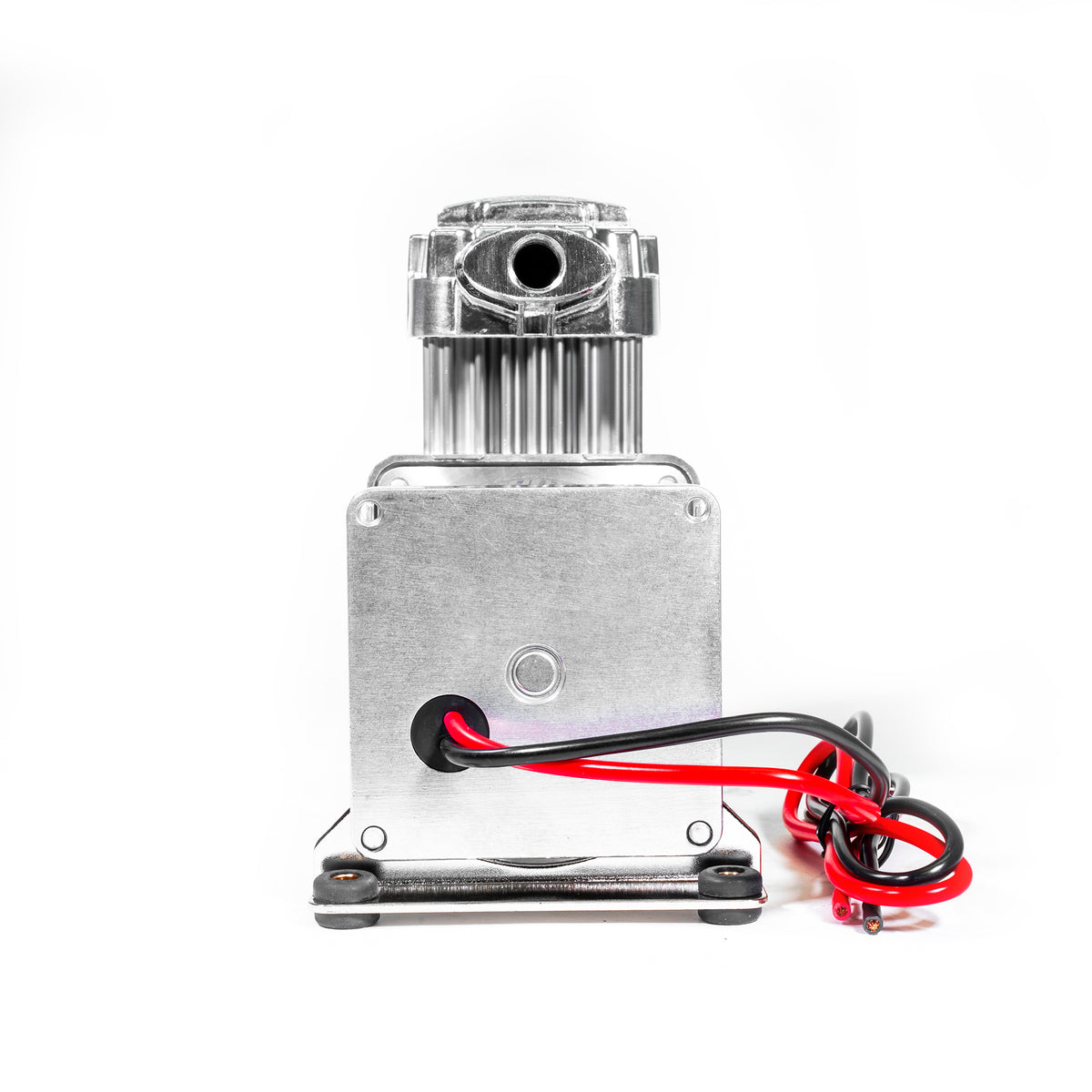

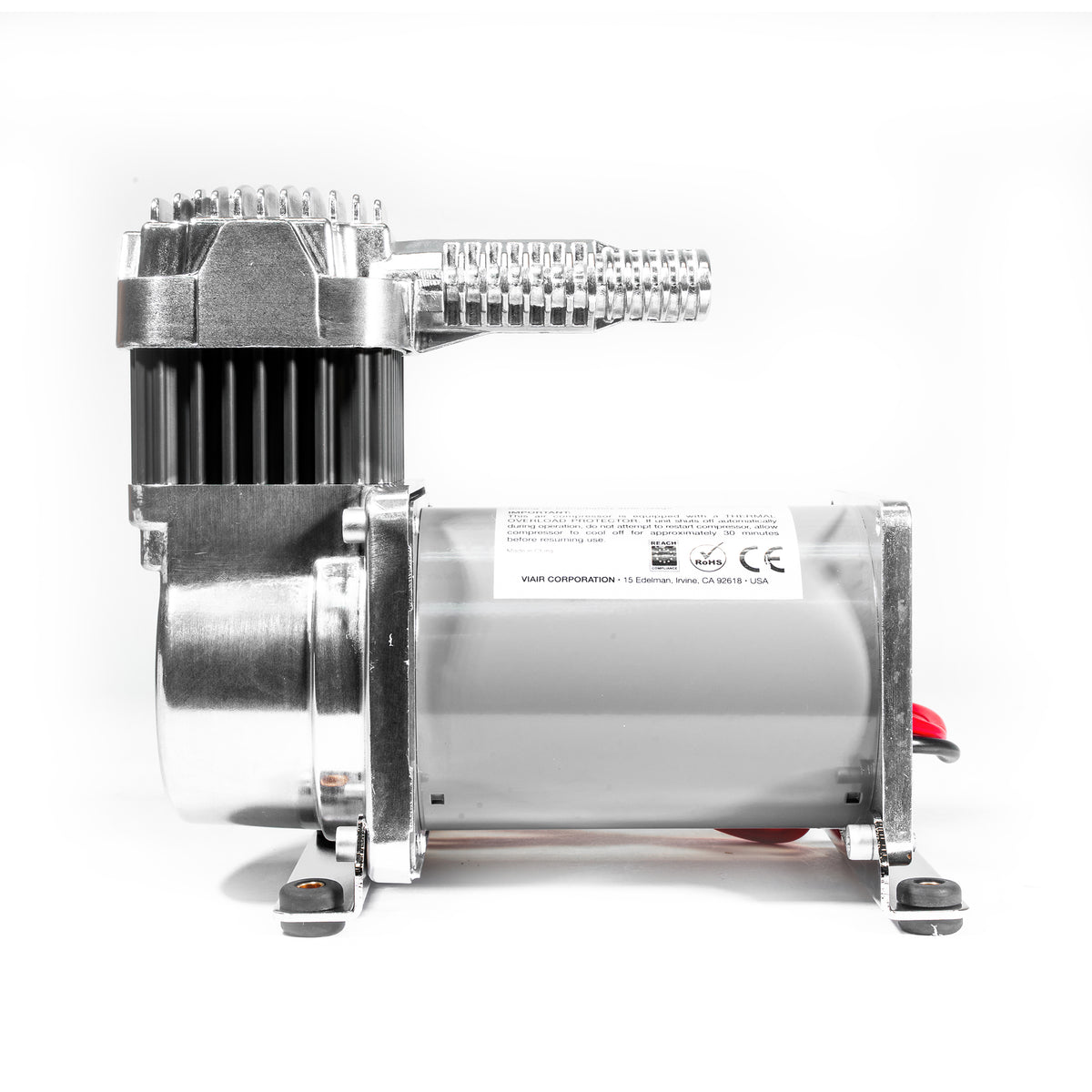

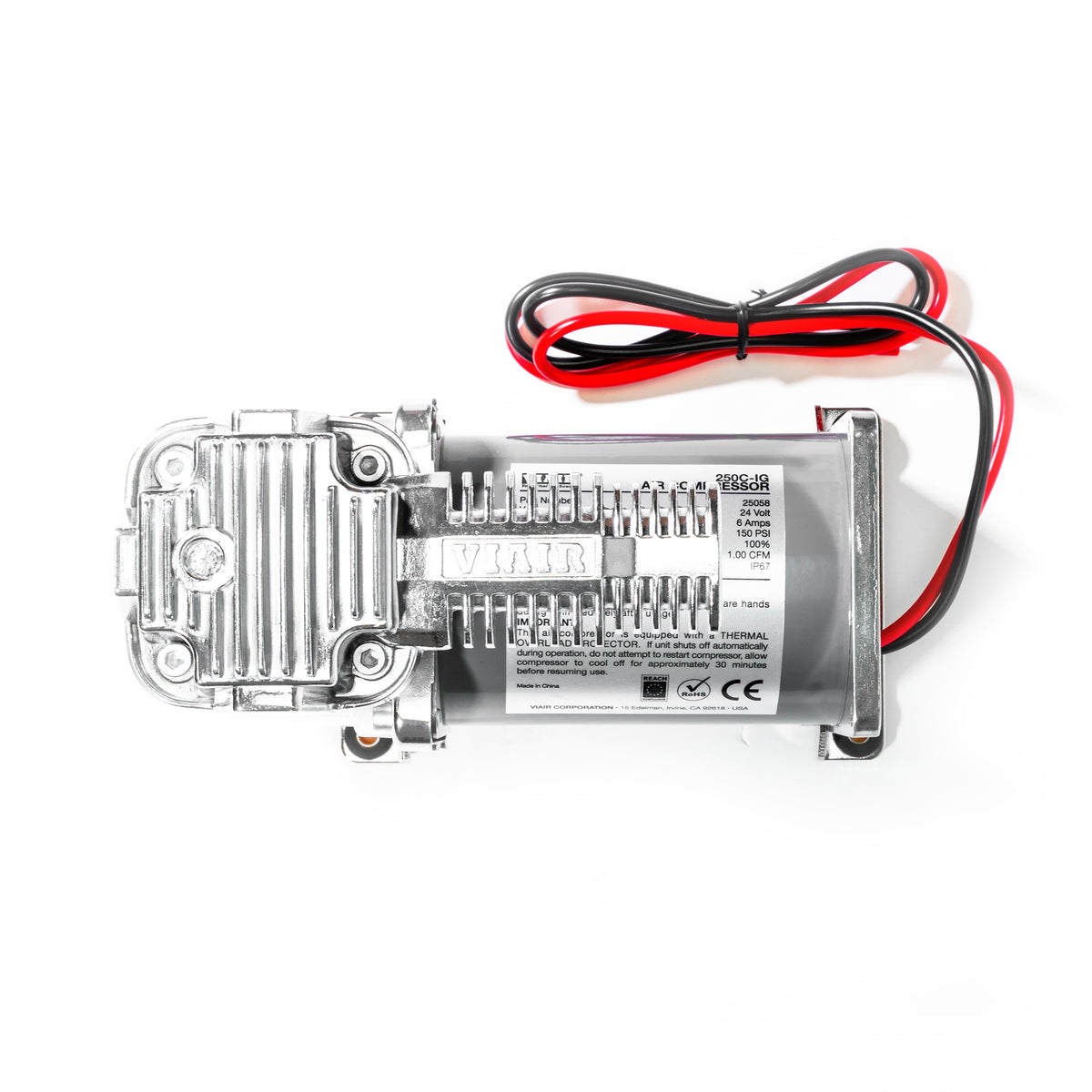

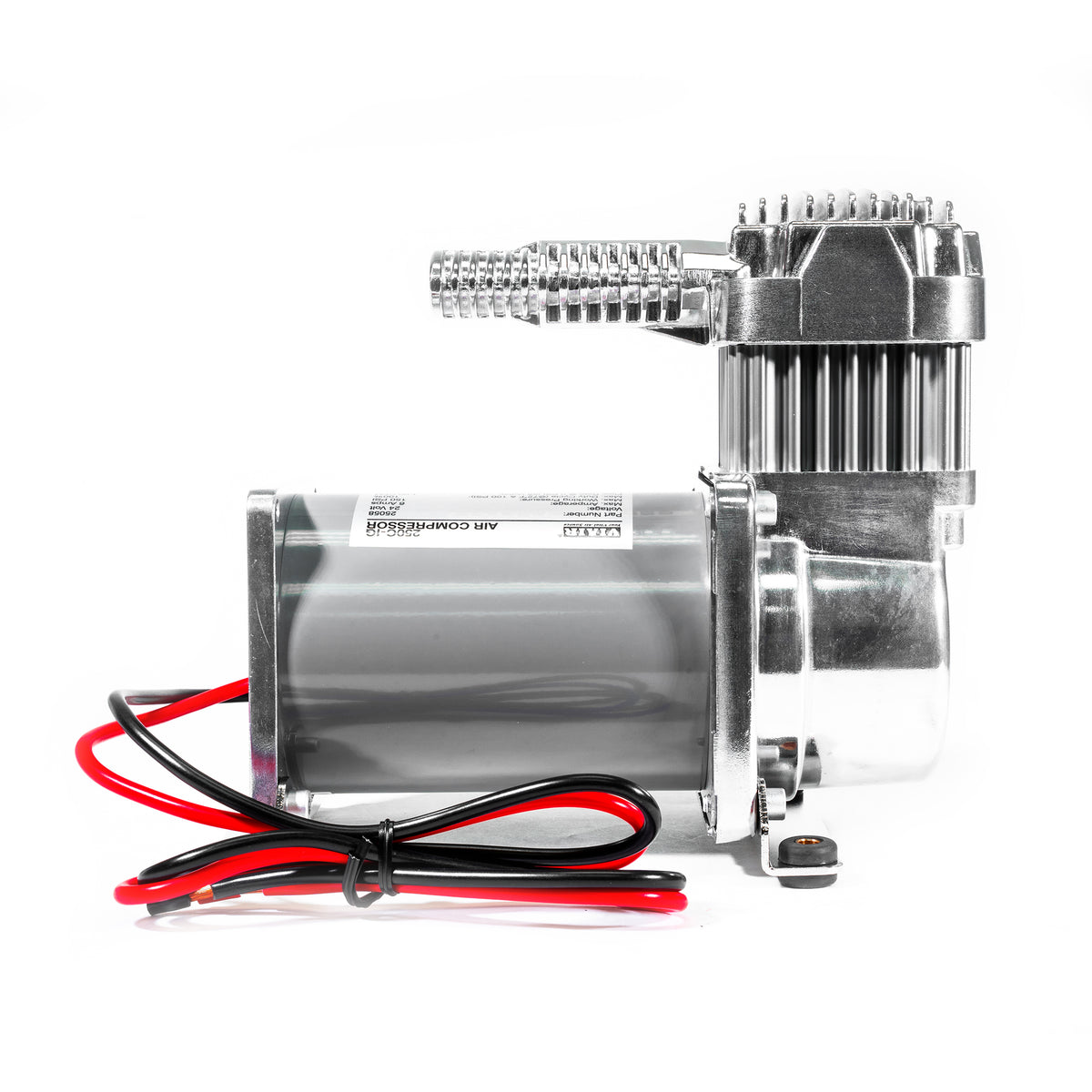

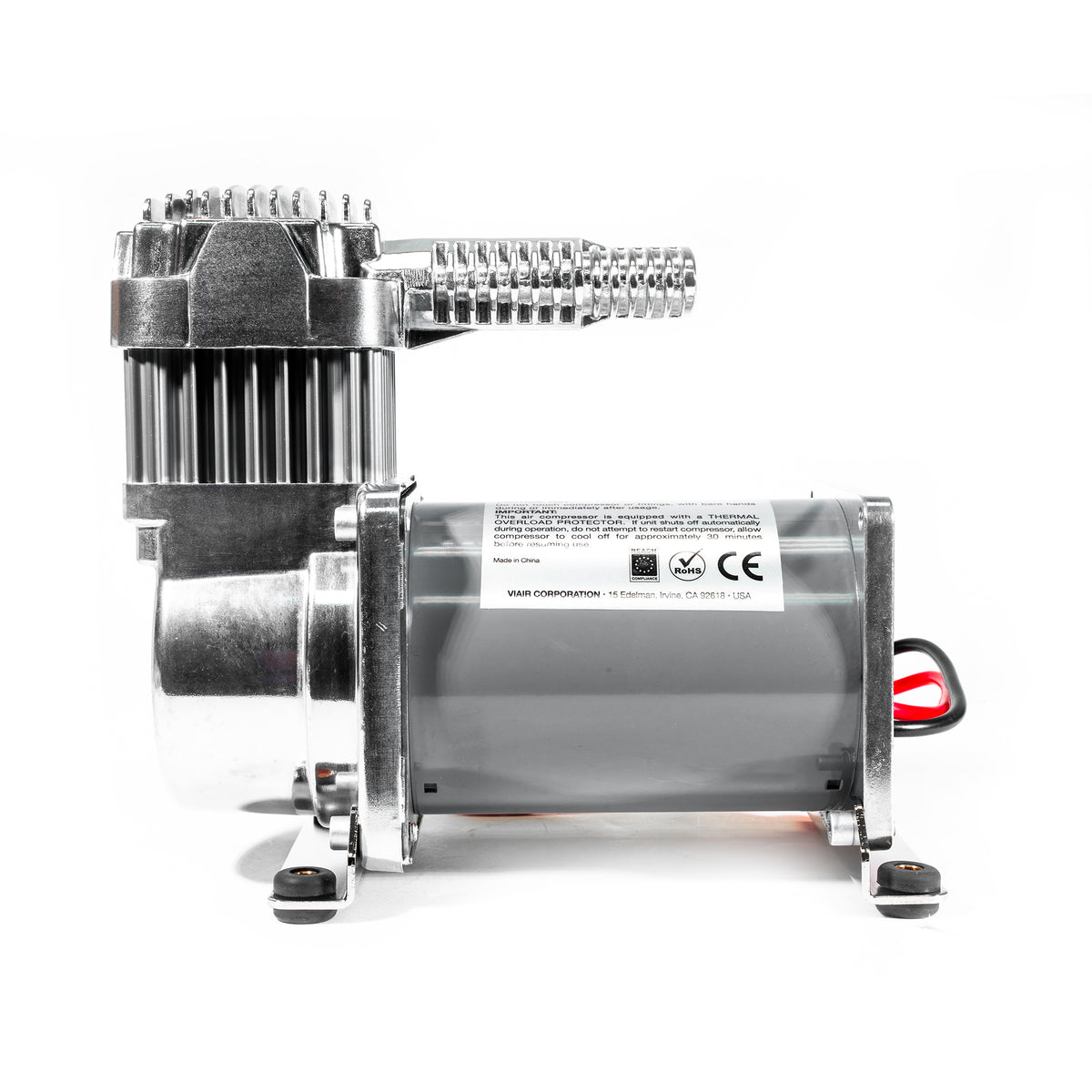

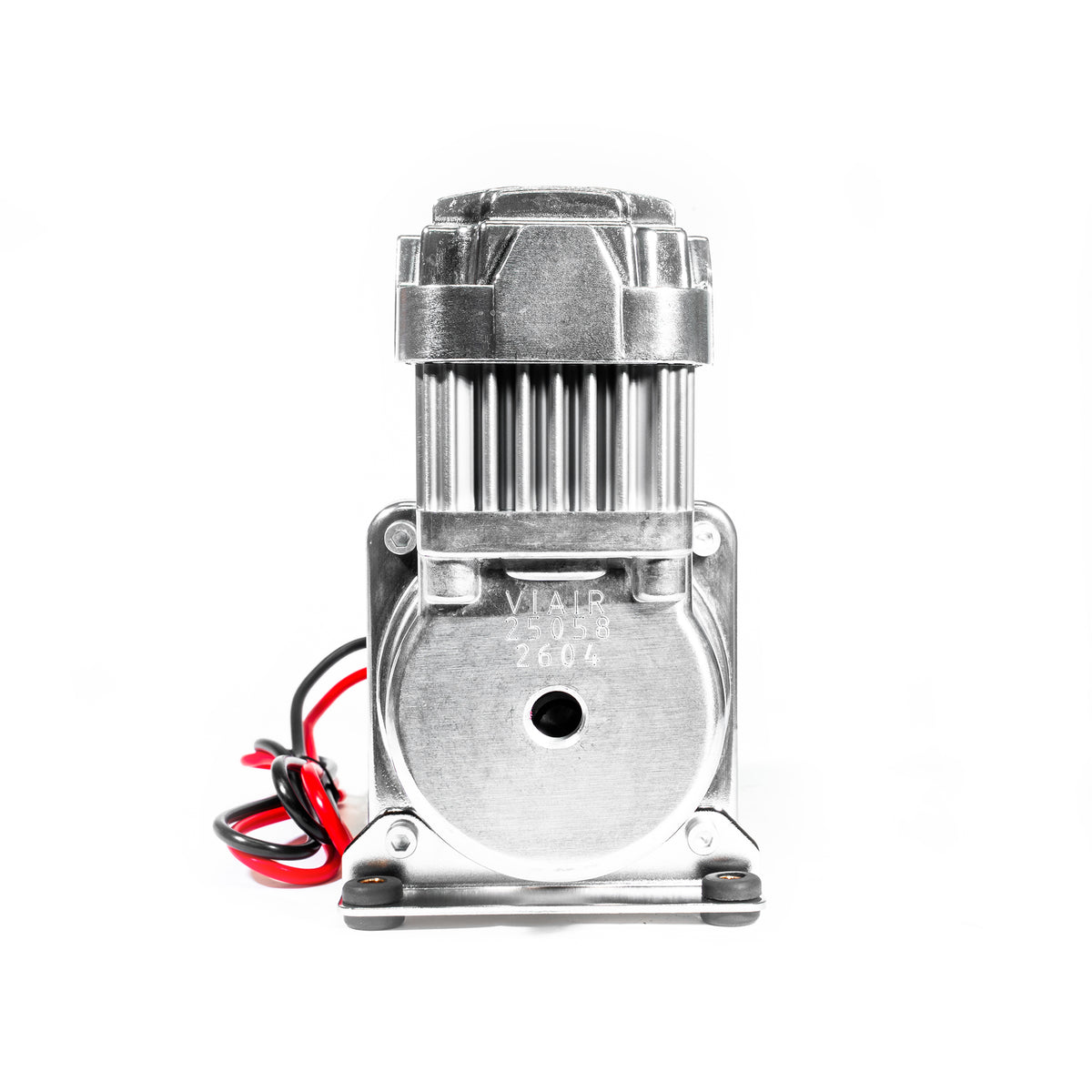

250C Industrial-Grade Compressor

Part Number: 25050
Regular price $261.95
Regular price Sale price $261.95
250C Industrial-Grade Compressor
250C Industrial-Grade Compressor

250C Industrial-Grade Compressor

Part Number: 25050
Regular price $261.95
Regular price Sale price $261.95

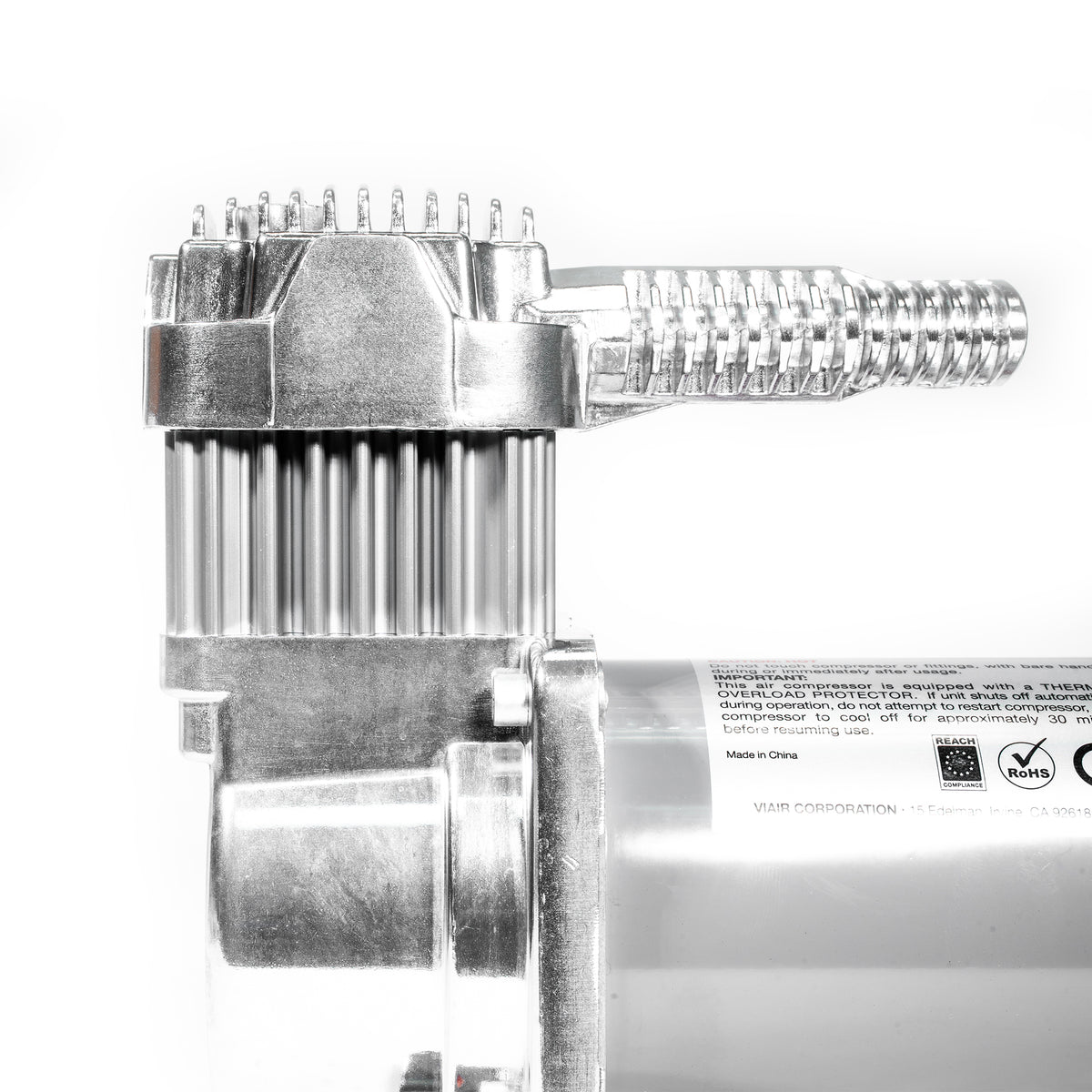

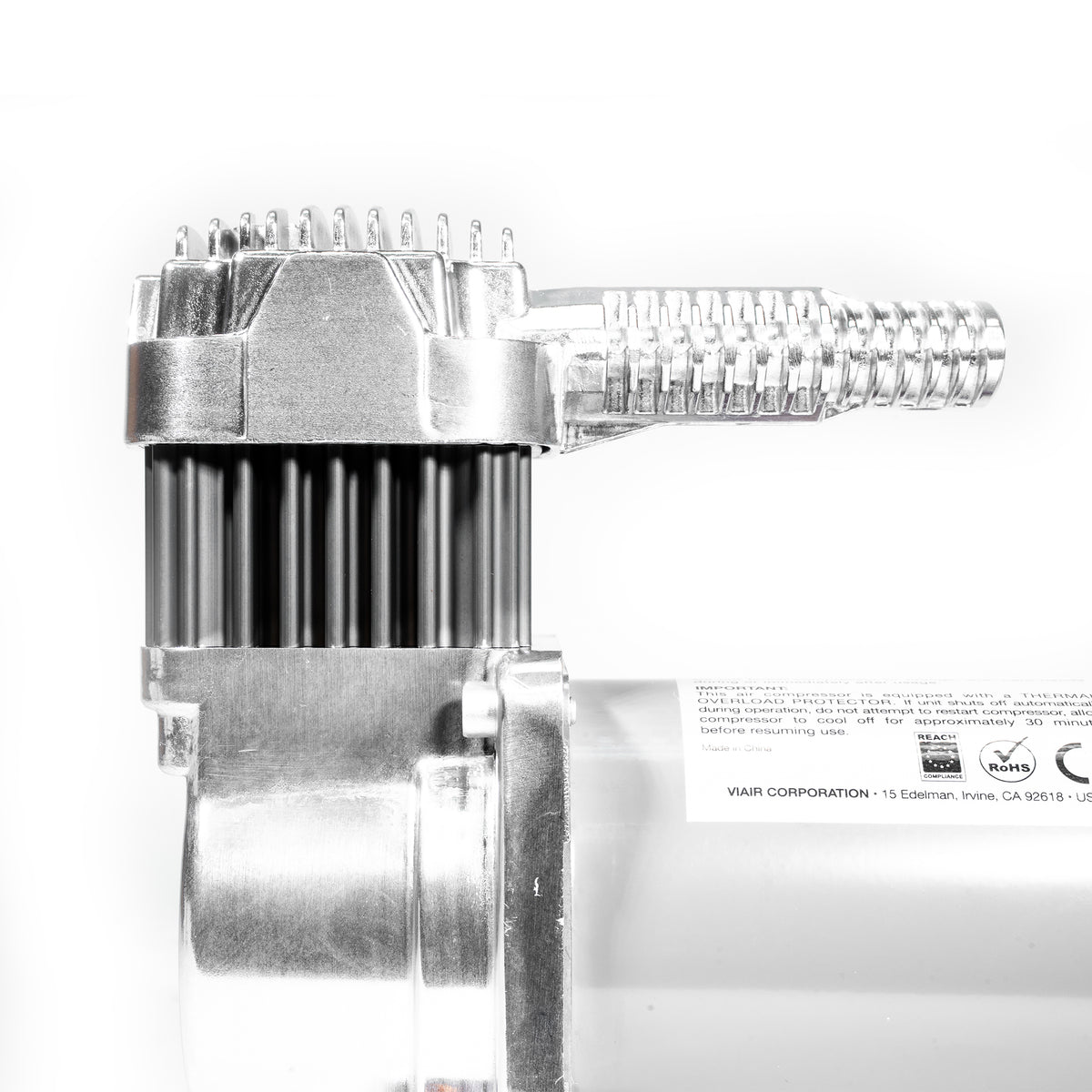

The 250 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

12V
24V

250C Industrial-Grade Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Driven

Unmatched Testing

Aims for 0% failure rate

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 0.88 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 2.5 Gallon
  • Max. 12V Amp Draw: 11-Amps
  • Max. 24V Amp Draw: 6-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 7.4″L x 3.9″W x 6.75″H
  • Net Weight: 6.75 lbs.

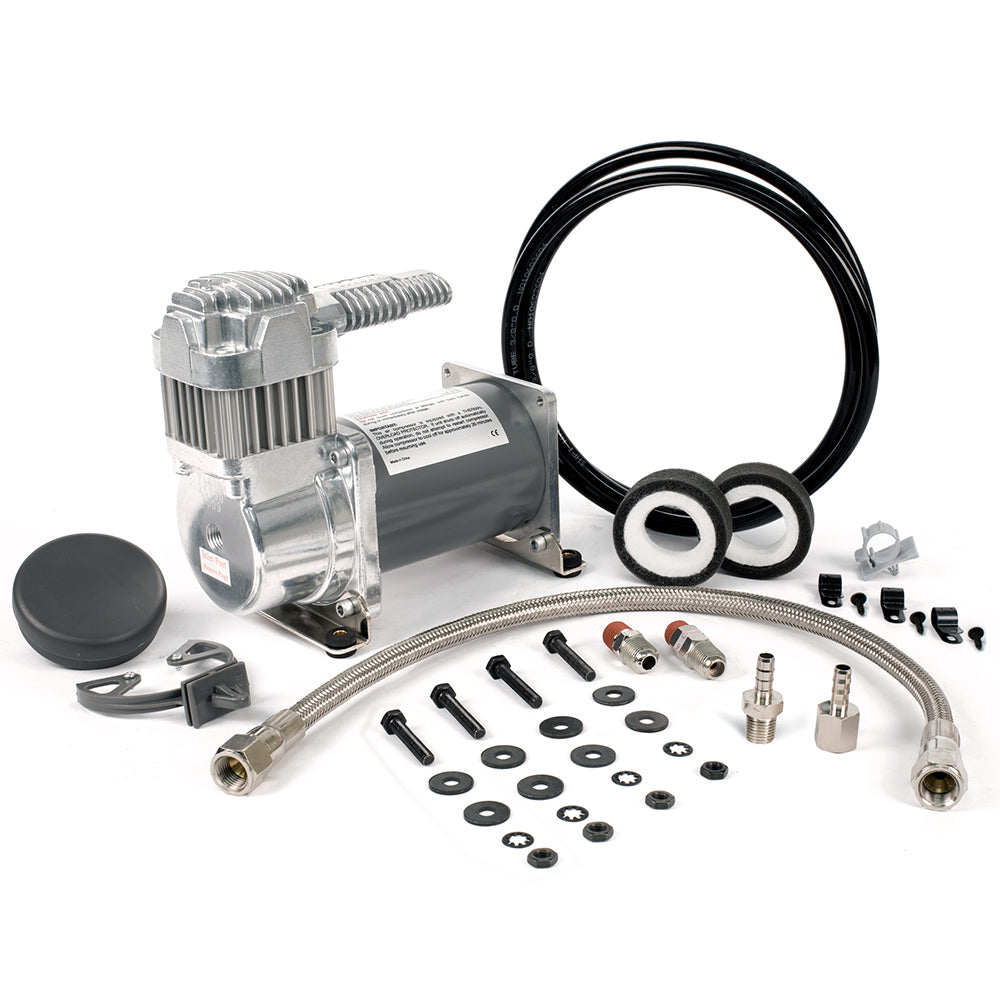

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

12-VOLT COMPRESSOR

24-VOLT COMPRESSOR
