150C Industrial-Grade Compressor

Part Number: 15010
Regular price $175.95
Regular price Sale price $175.95
150C Industrial-Grade Compressor
150C Industrial-Grade Compressor
Pre-Order

150C Industrial-Grade Compressor

Part Number: 15010
Regular price $175.95
Regular price Sale price $175.95

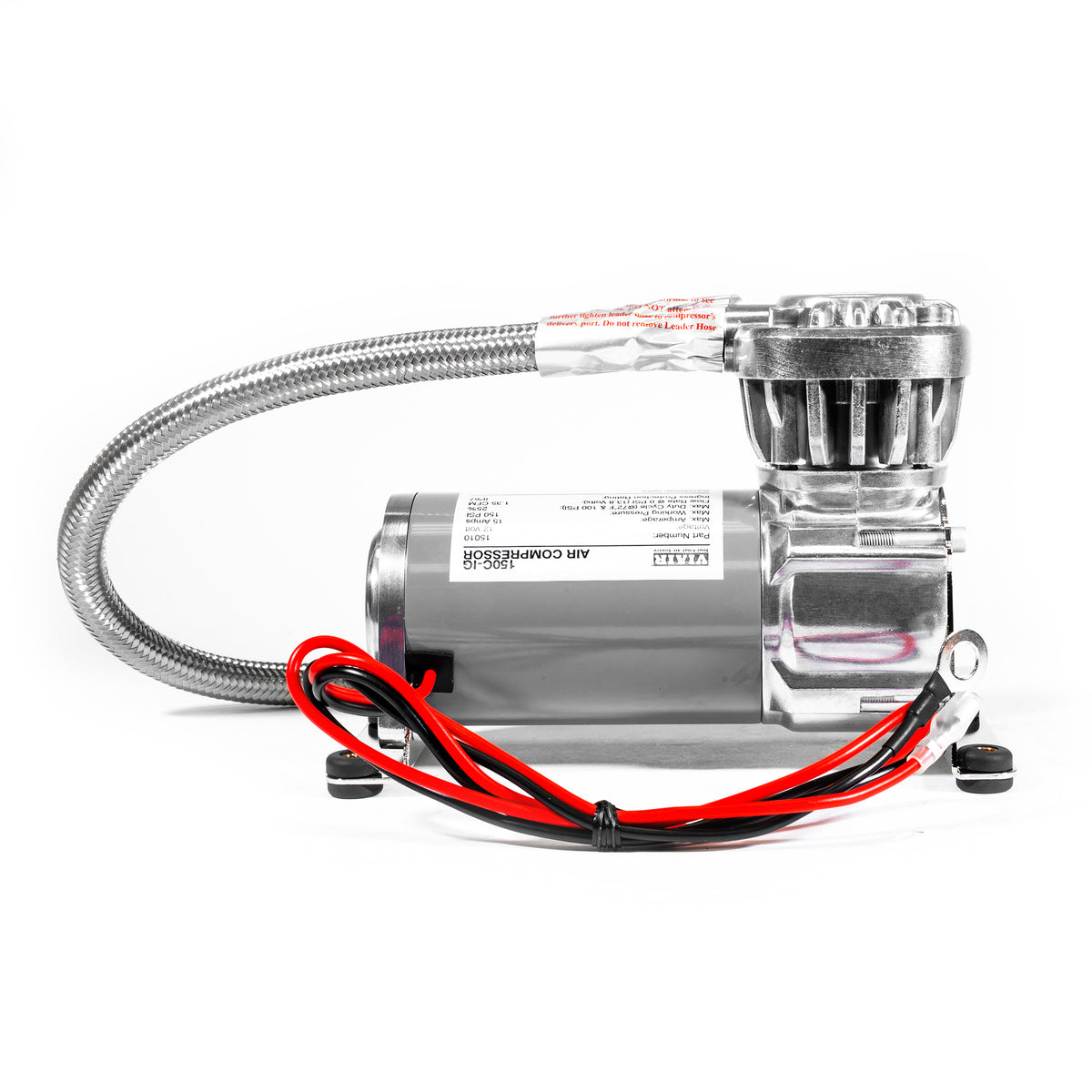

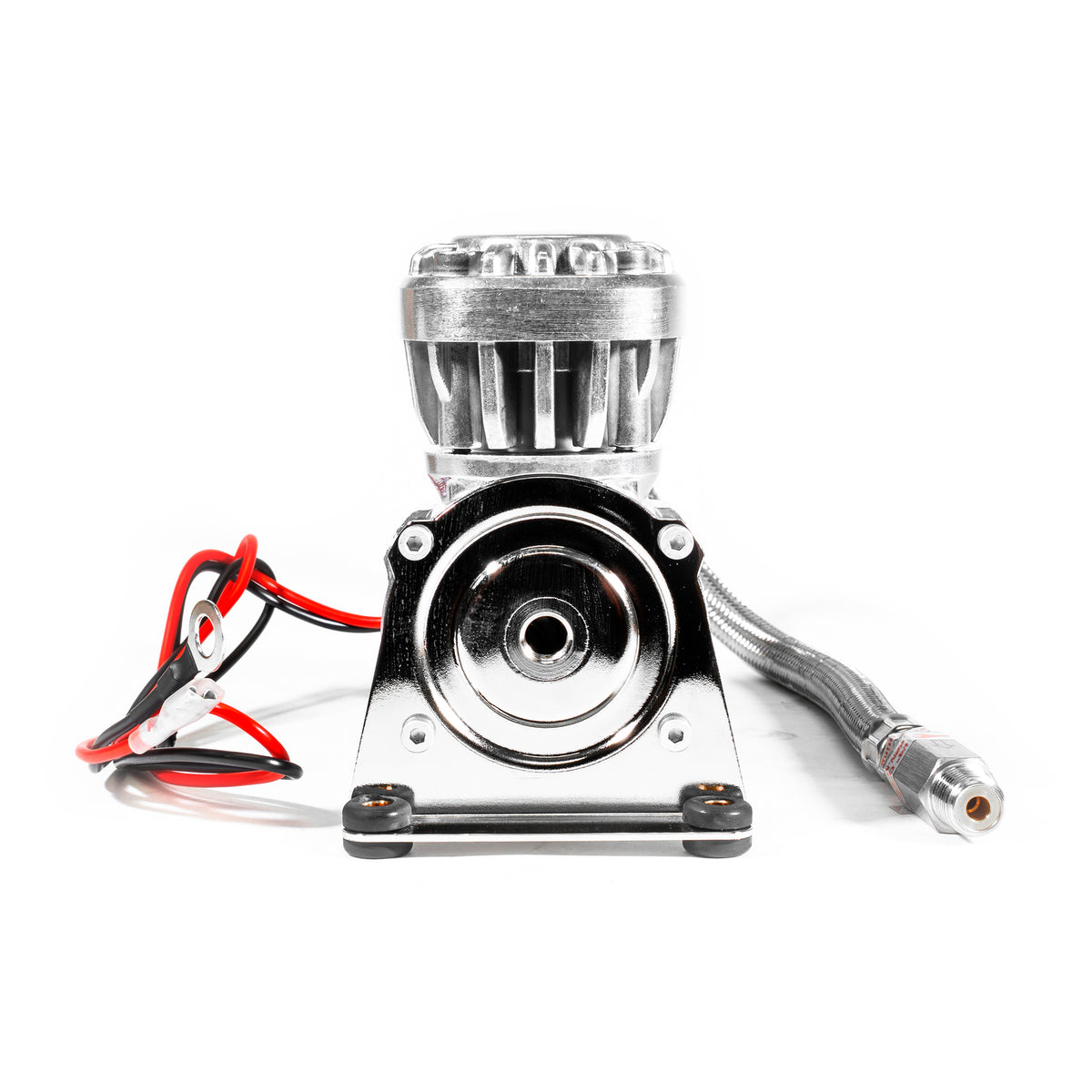

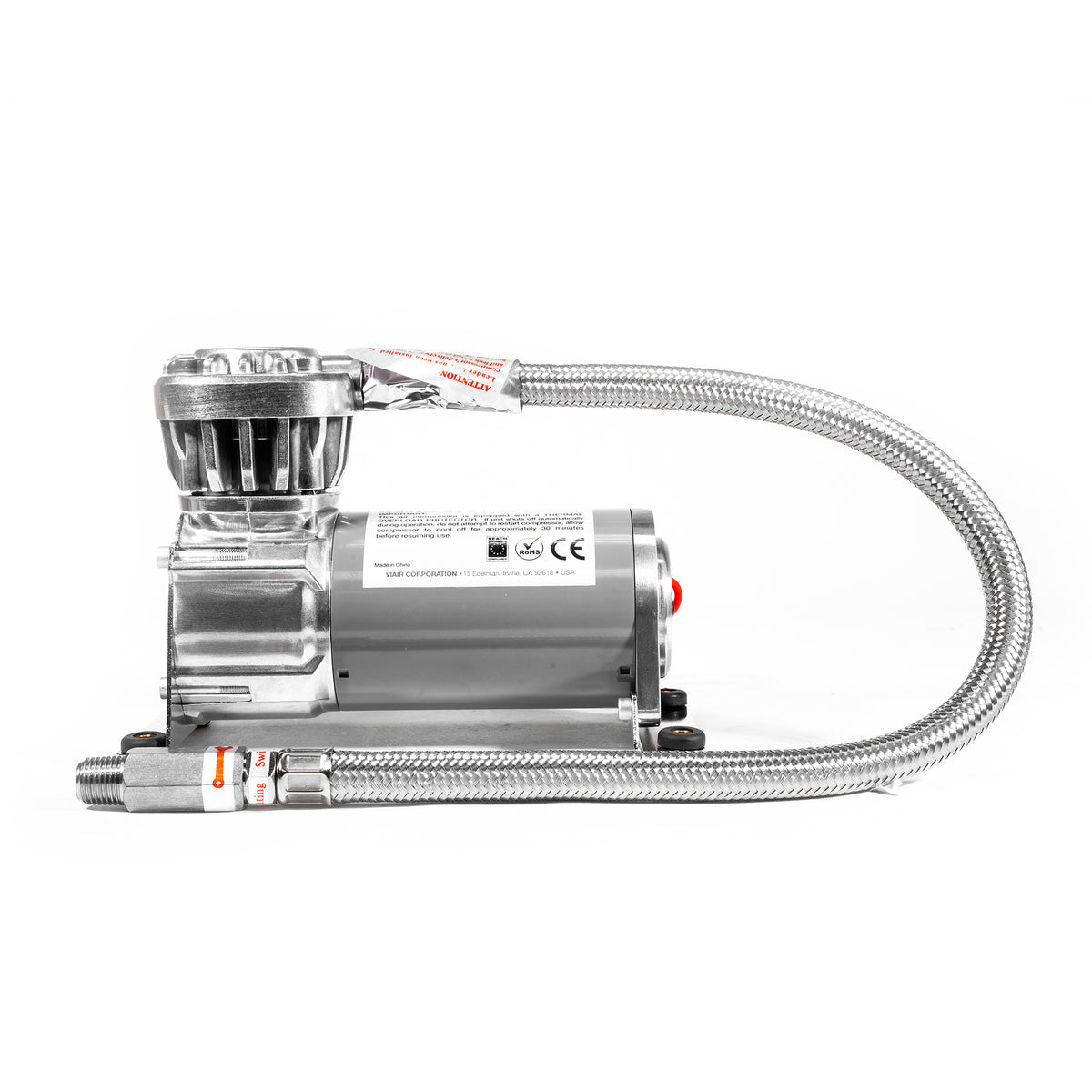

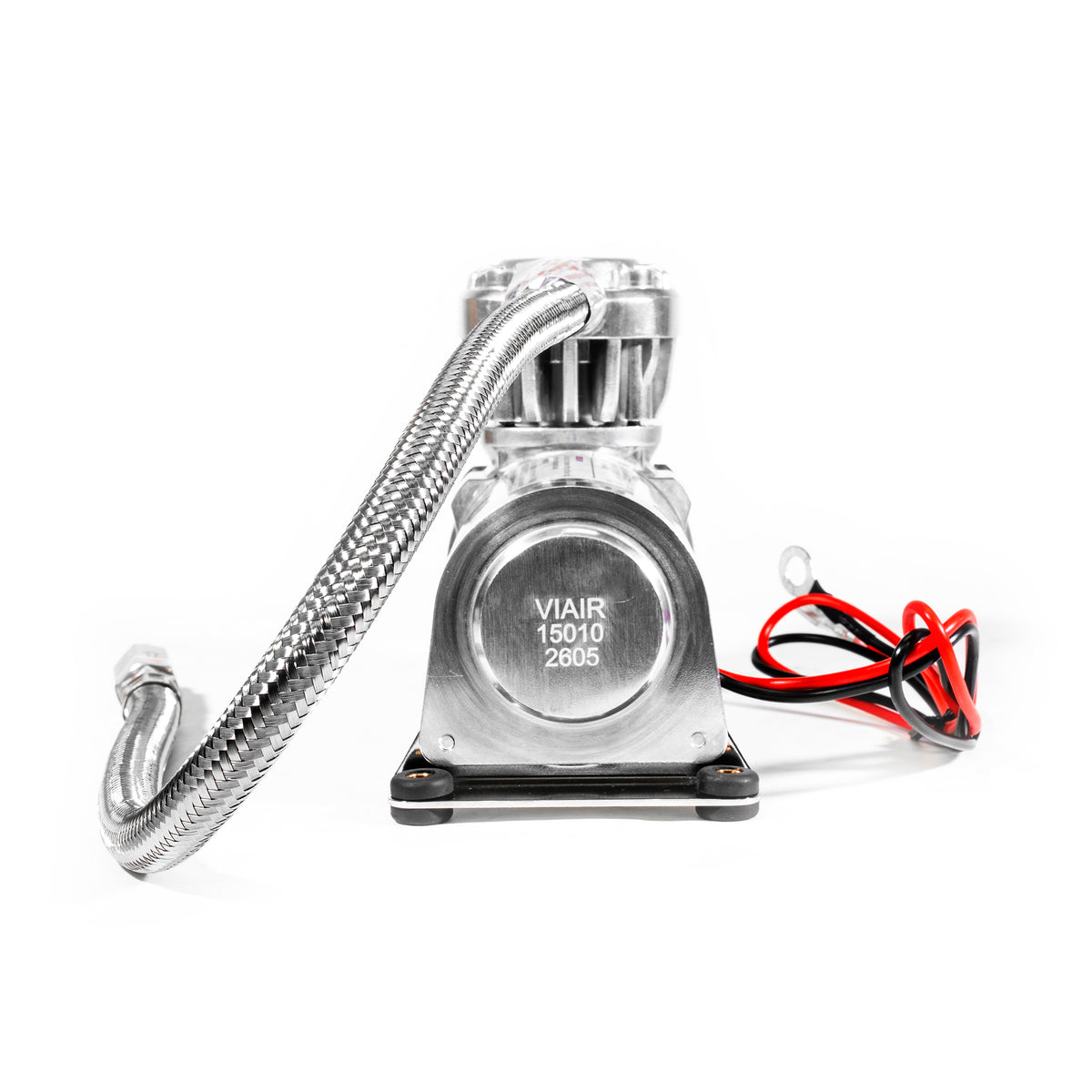

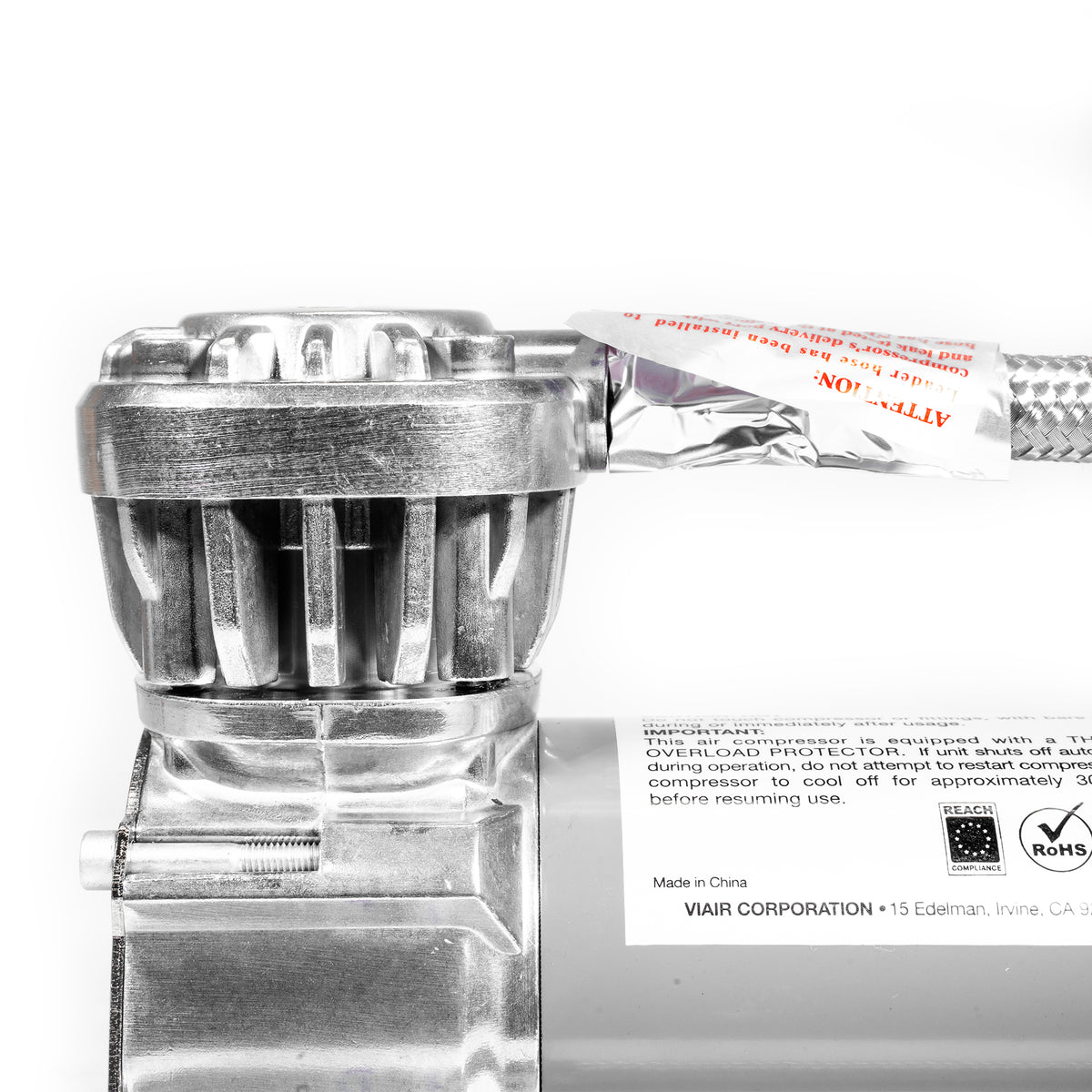

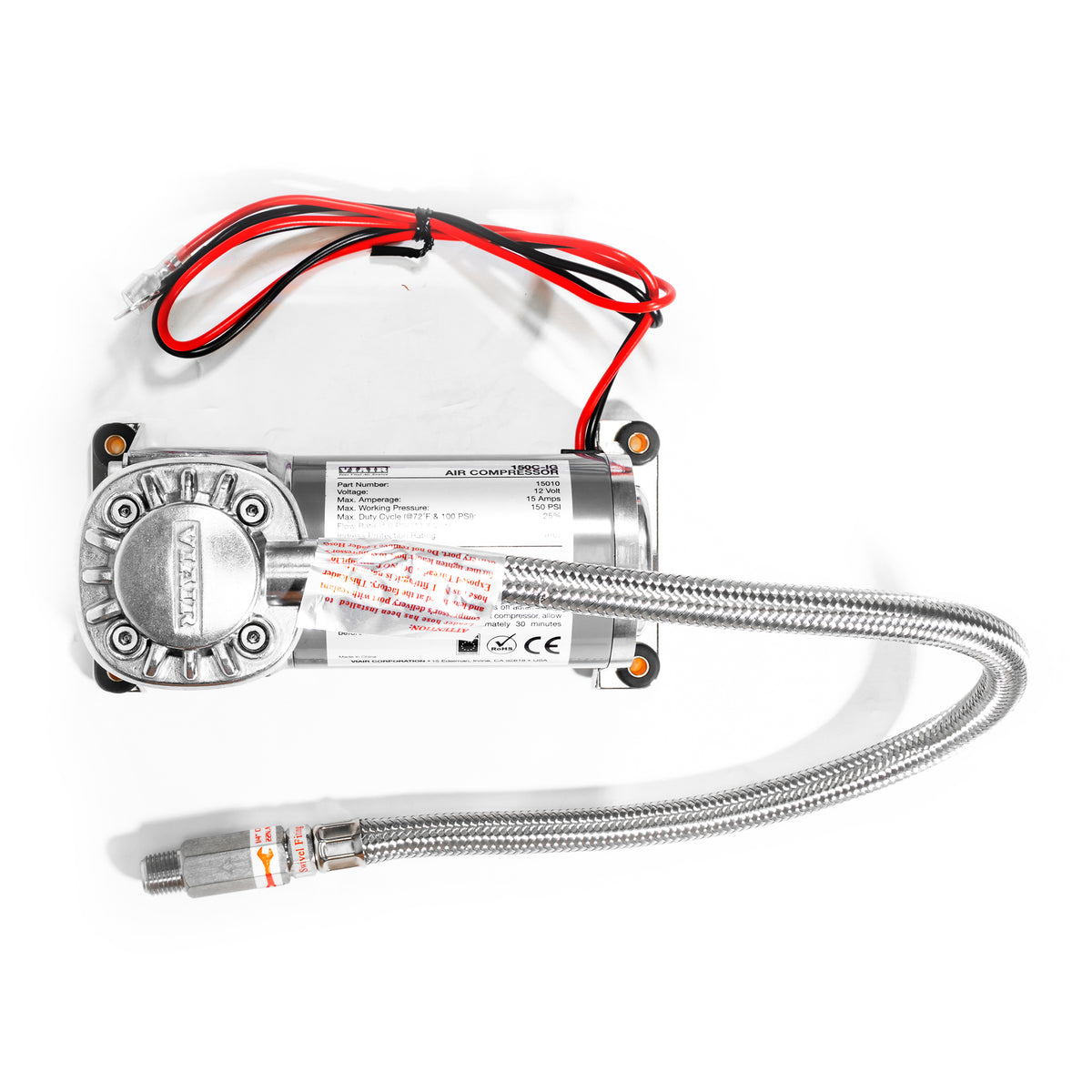

VIAIR’s 150 Industrial Grade compressor produces 1.37 CFM (12V) & 1.55 CFM (24V) with a 20% duty cycle and has a max operating pressure of 150 PSI, making it an ideal choice for those looking for a compact solution for light-duty applications. RoHS and REACH compliant and CE certified, the 150C IG is equipped with a stainless steel braided leader hose and check valve assembly that eliminates the possibility of high amperage starts.

*24V version is on backorder.  Ships on 12/6 (P/N: 15018)



12V
24V

150C Industrial-Grade Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Driven

Unmatched Testing

Aims for 0% failure rate

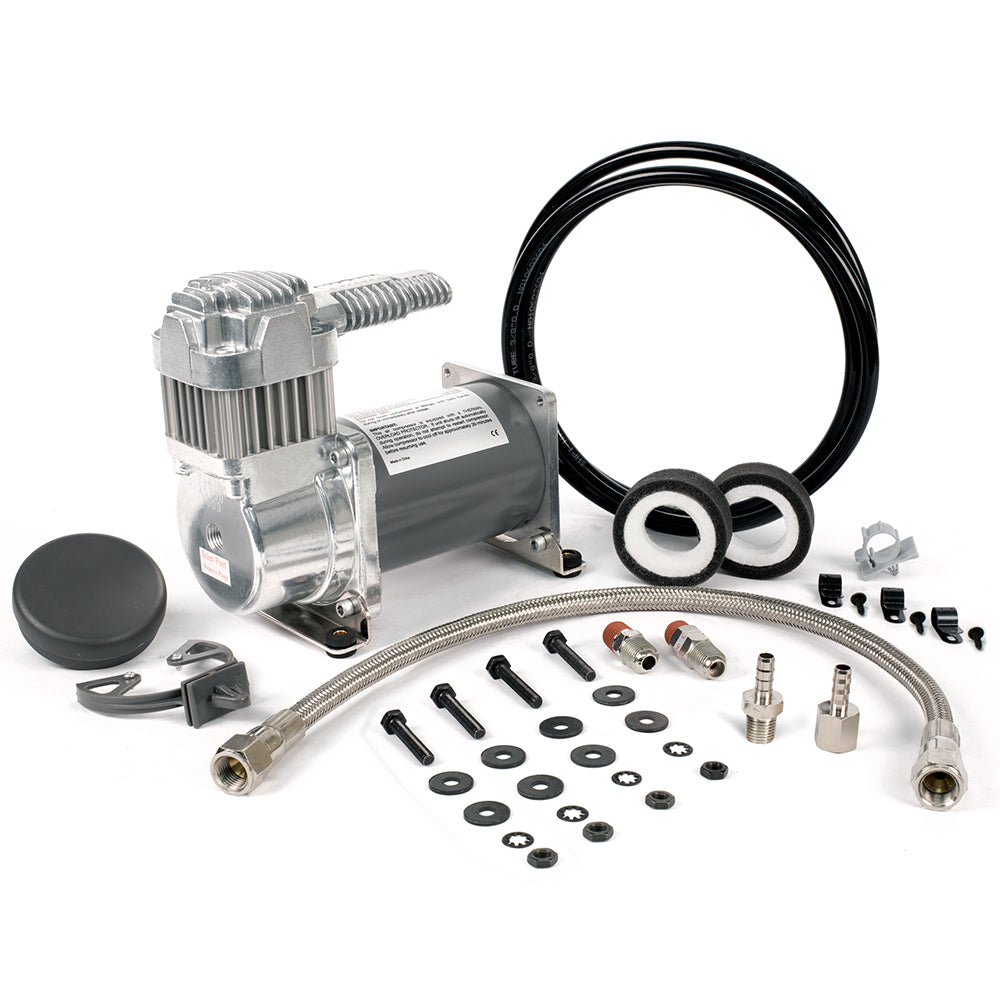

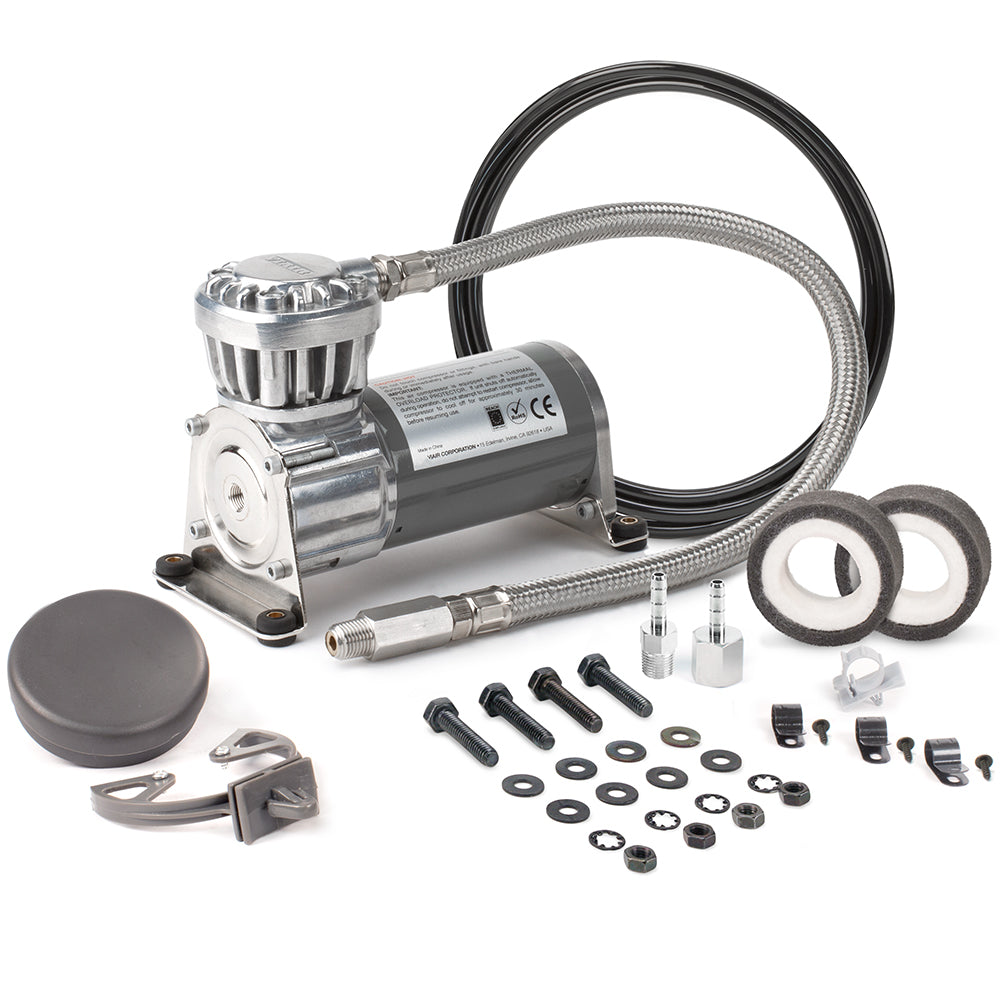

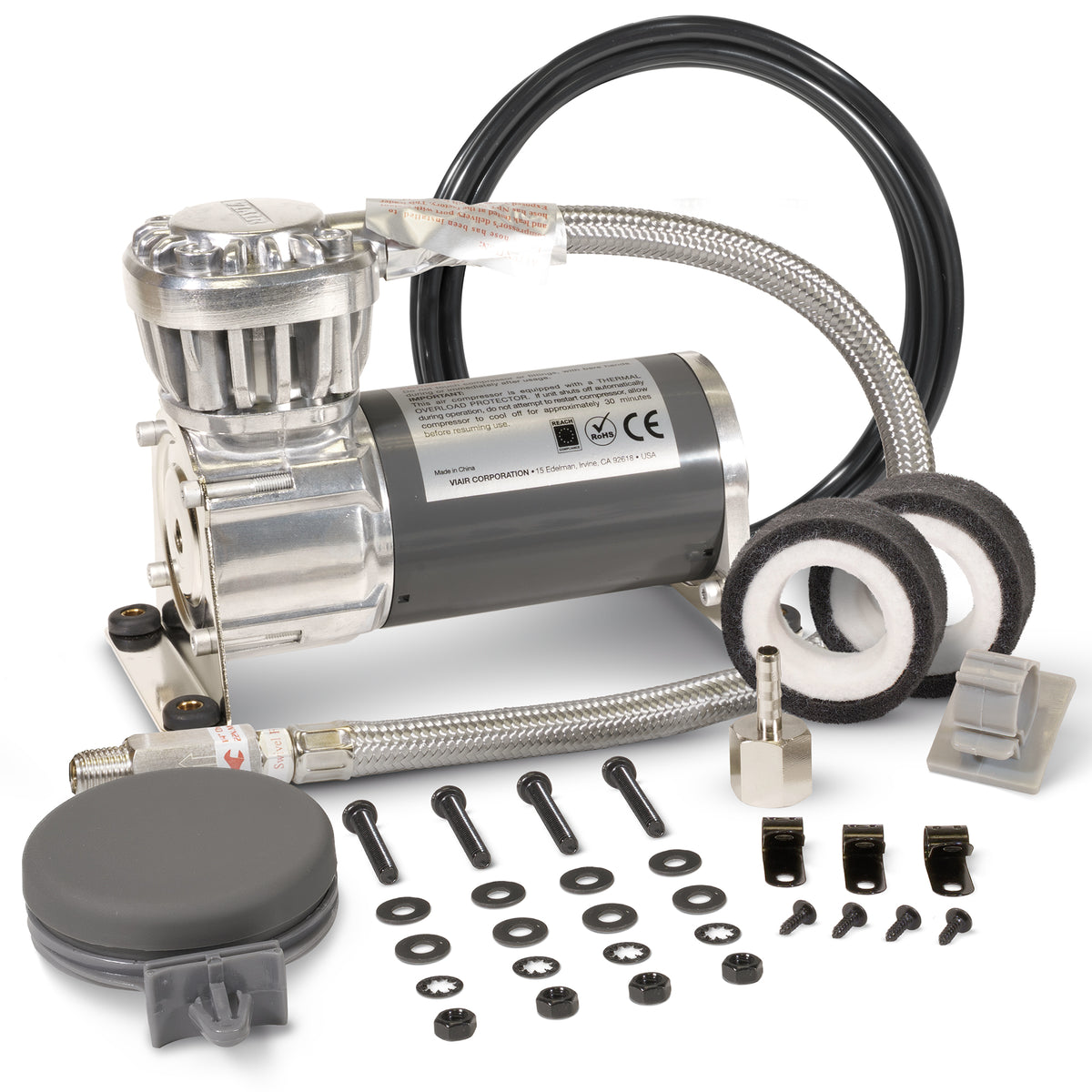

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 1.37 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 20% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 15-Amps
  • Max. 24V Amp Draw: 8-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 6.9″L x 3.3″W x 5.0″H
  • Net Weight: 4.10 lbs.

FEATURES:

  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR

24-VOLT COMPRESSOR

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
