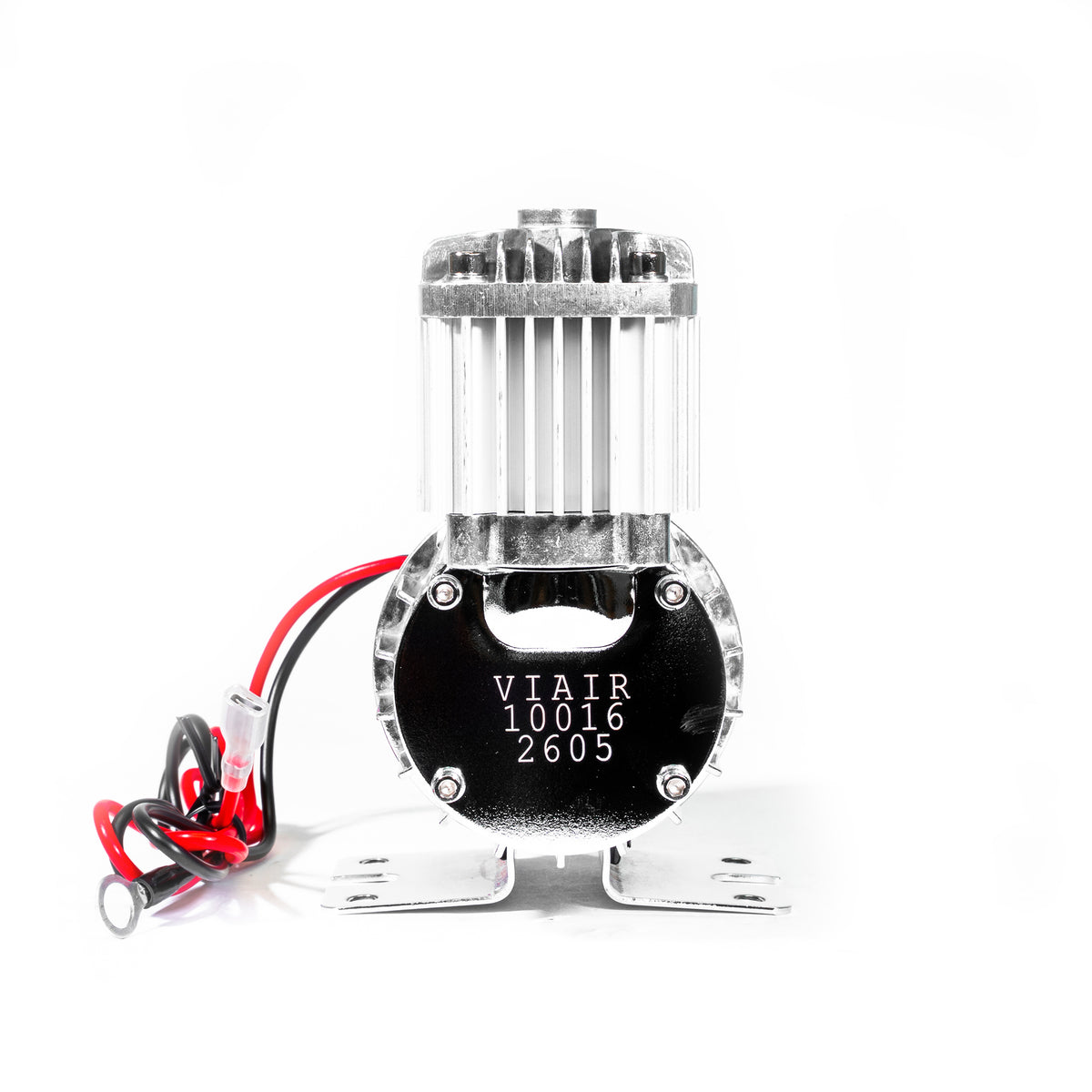

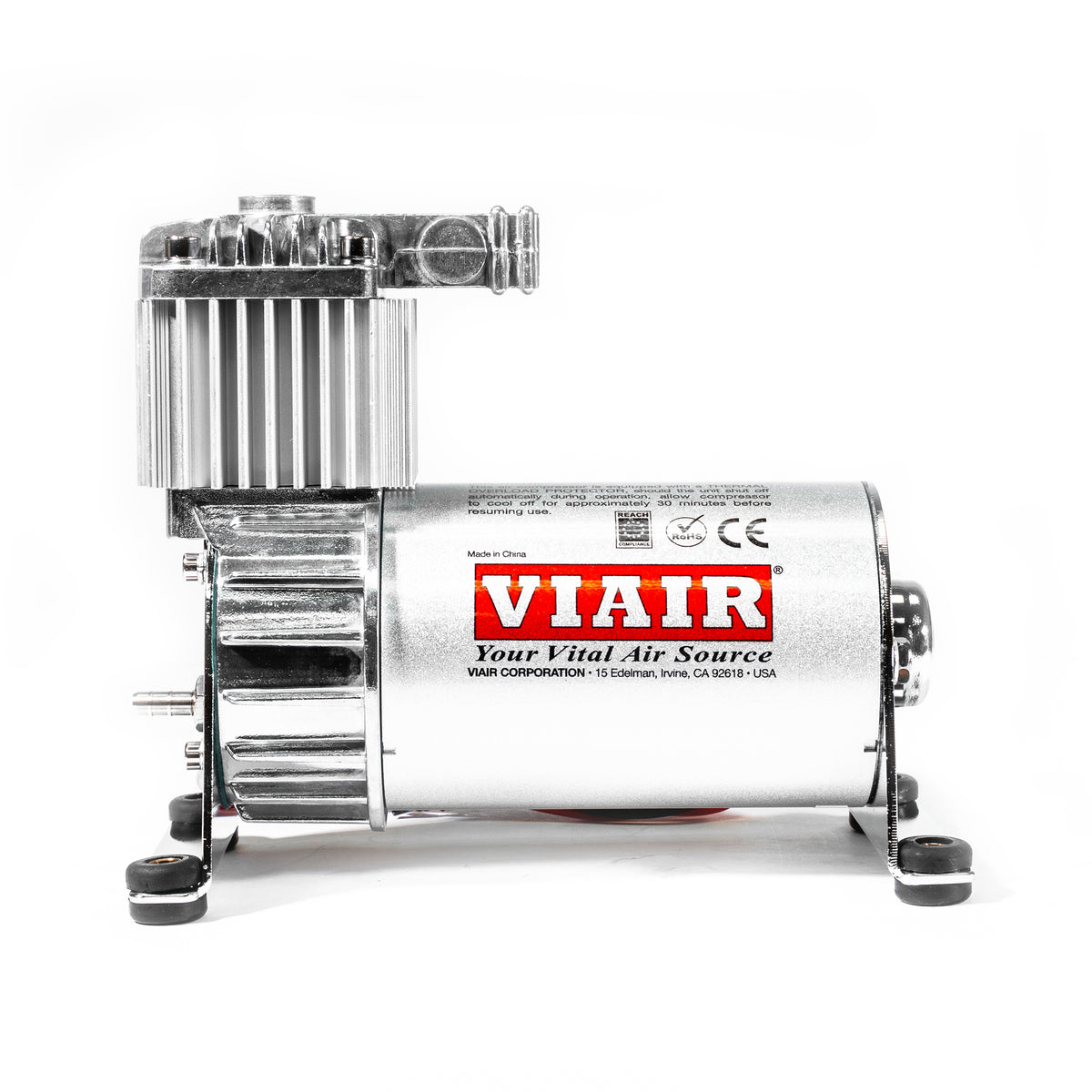

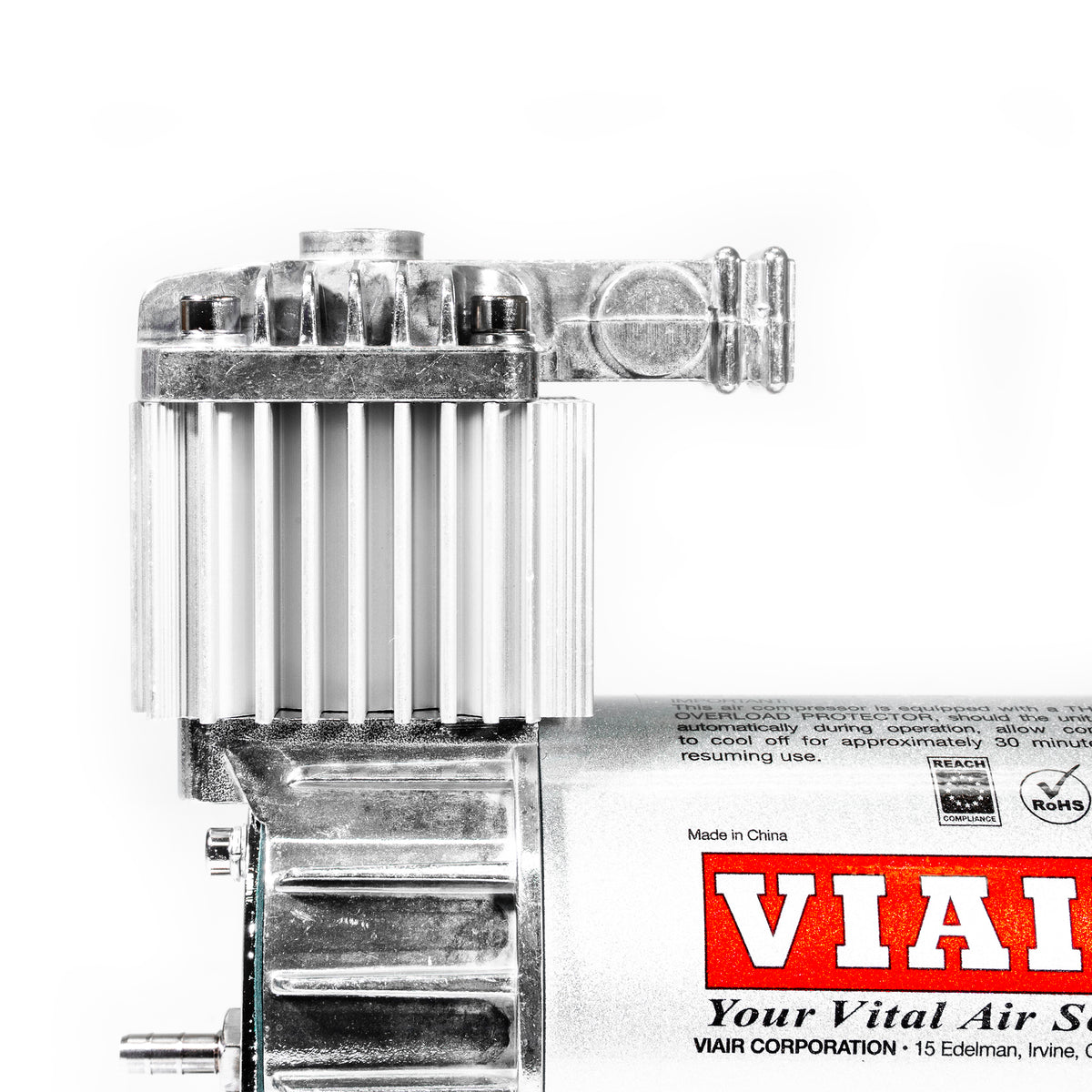

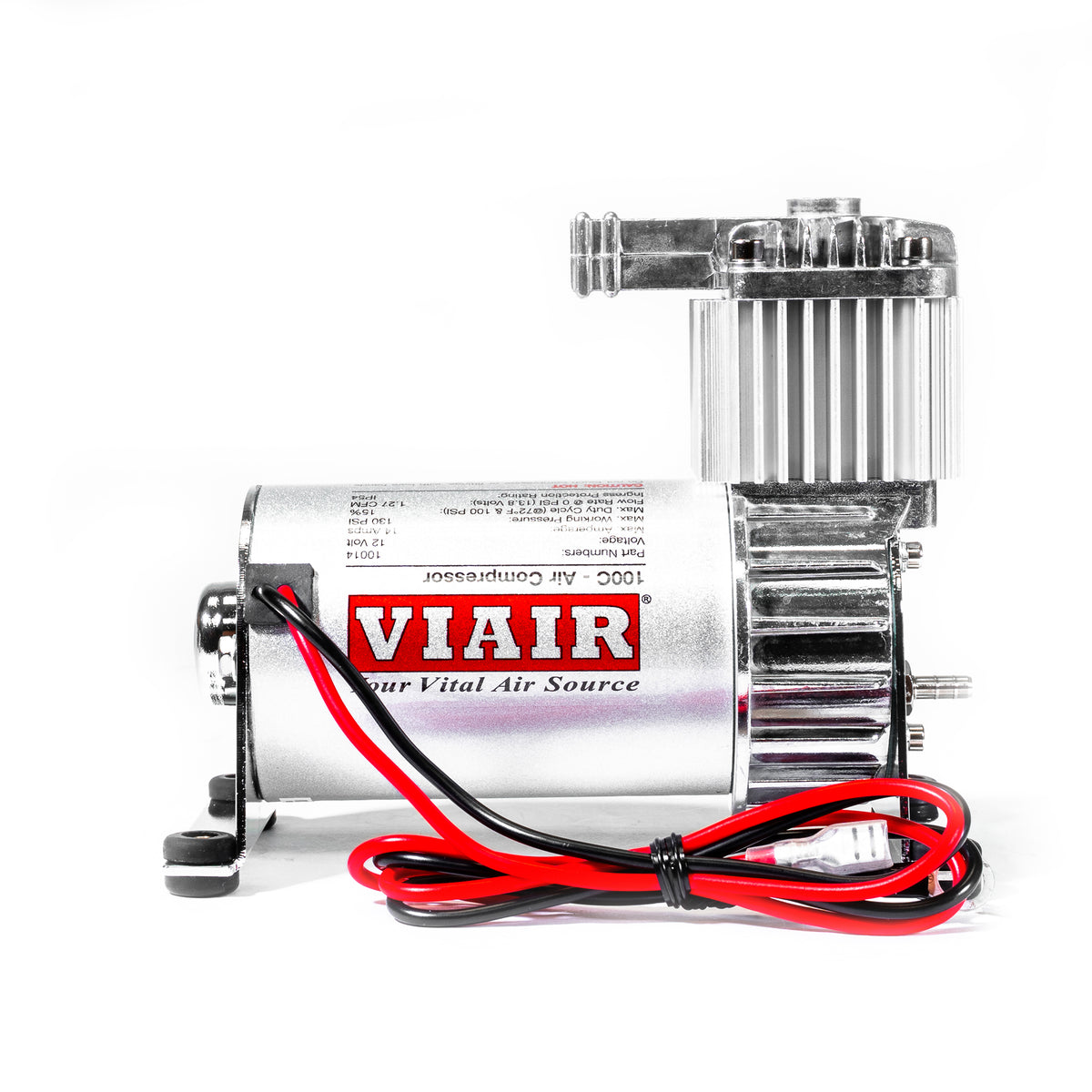

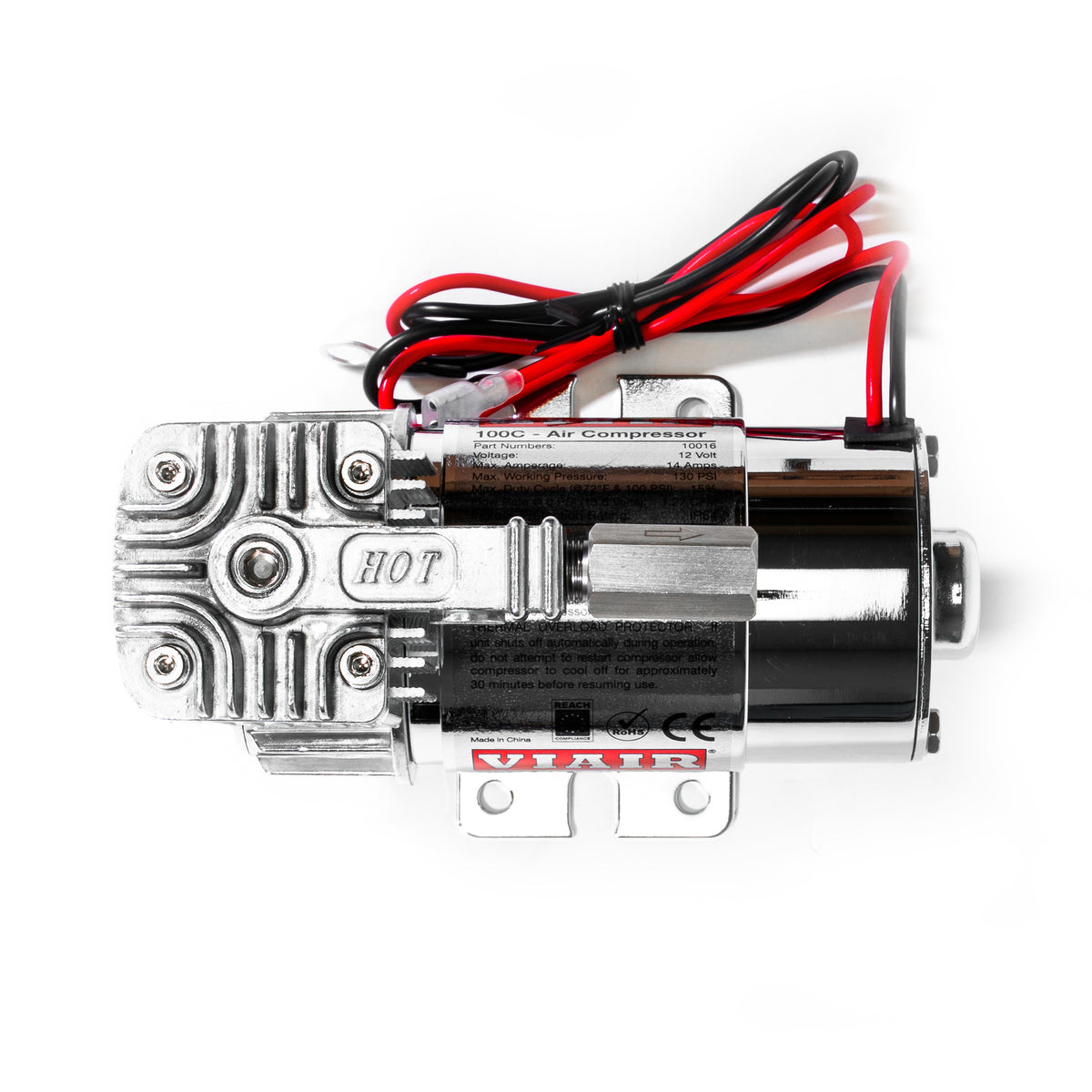

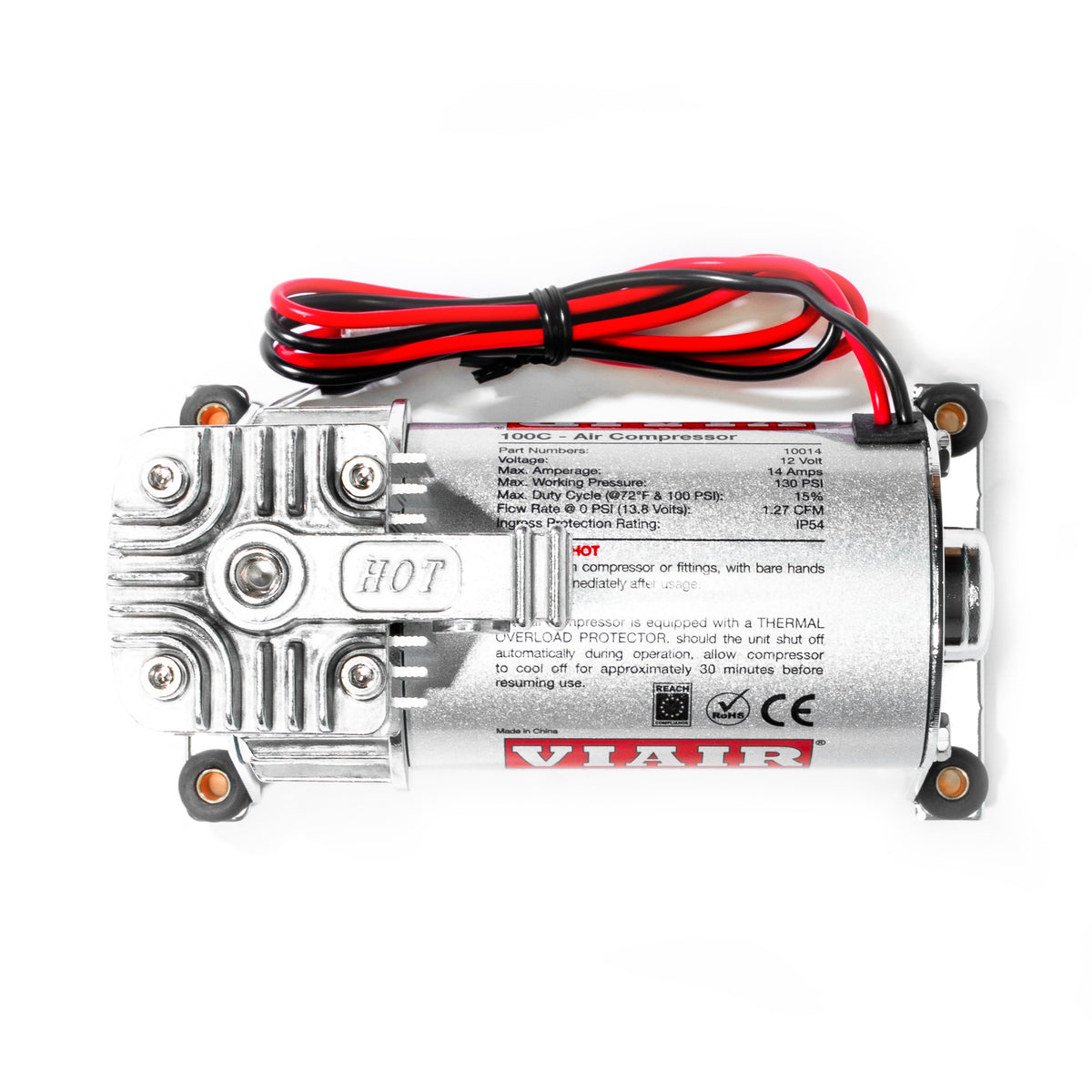

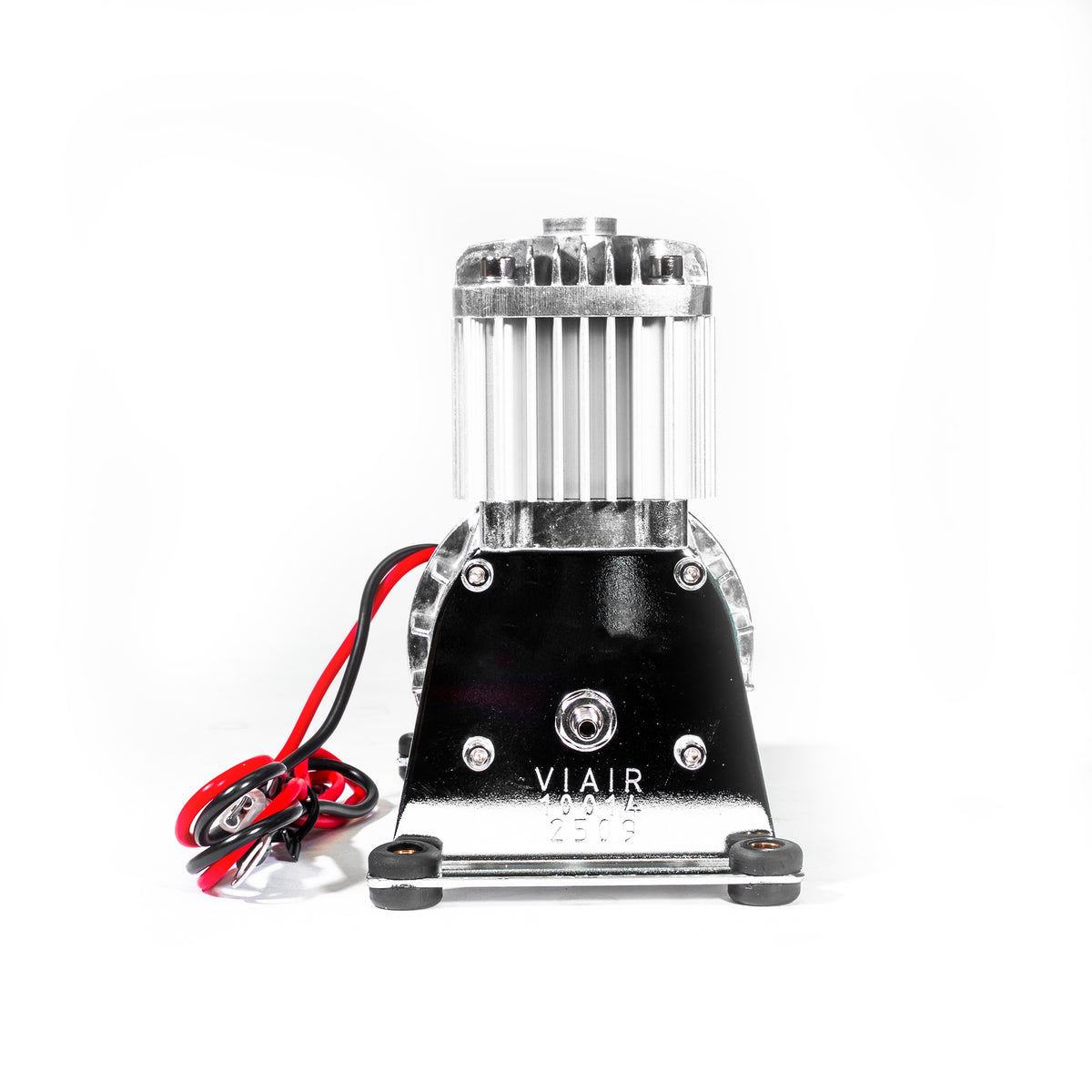

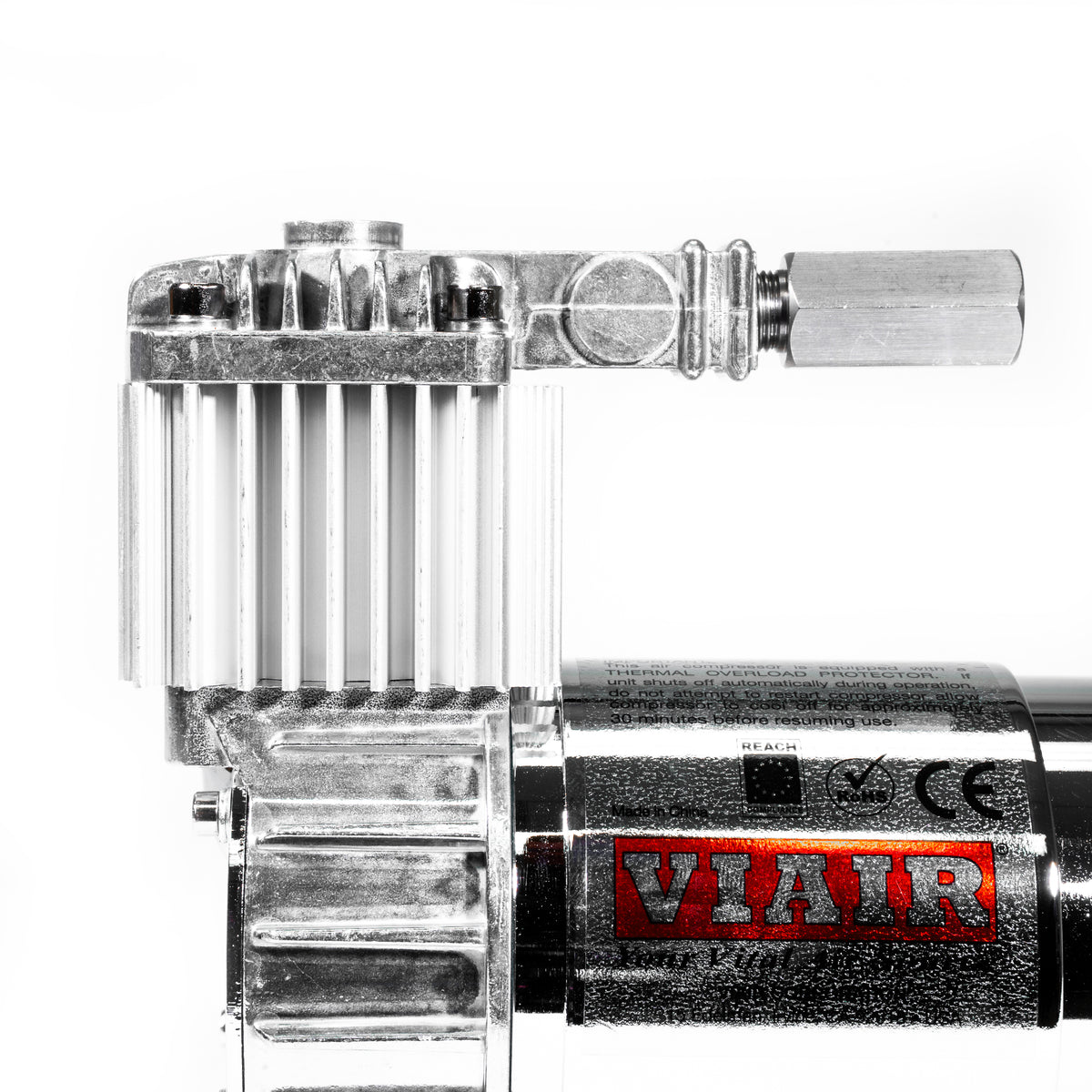

100C Compressor

Part Number: 10019
$143.95
$143.95
100C Compressor 100C Compressor 100C Compressor 100C Compressor
100C Compressor
100C Compressor
100C Compressor
100C Compressor
Best Seller

100C Compressor

Part Number: 10019
$143.95
$143.95

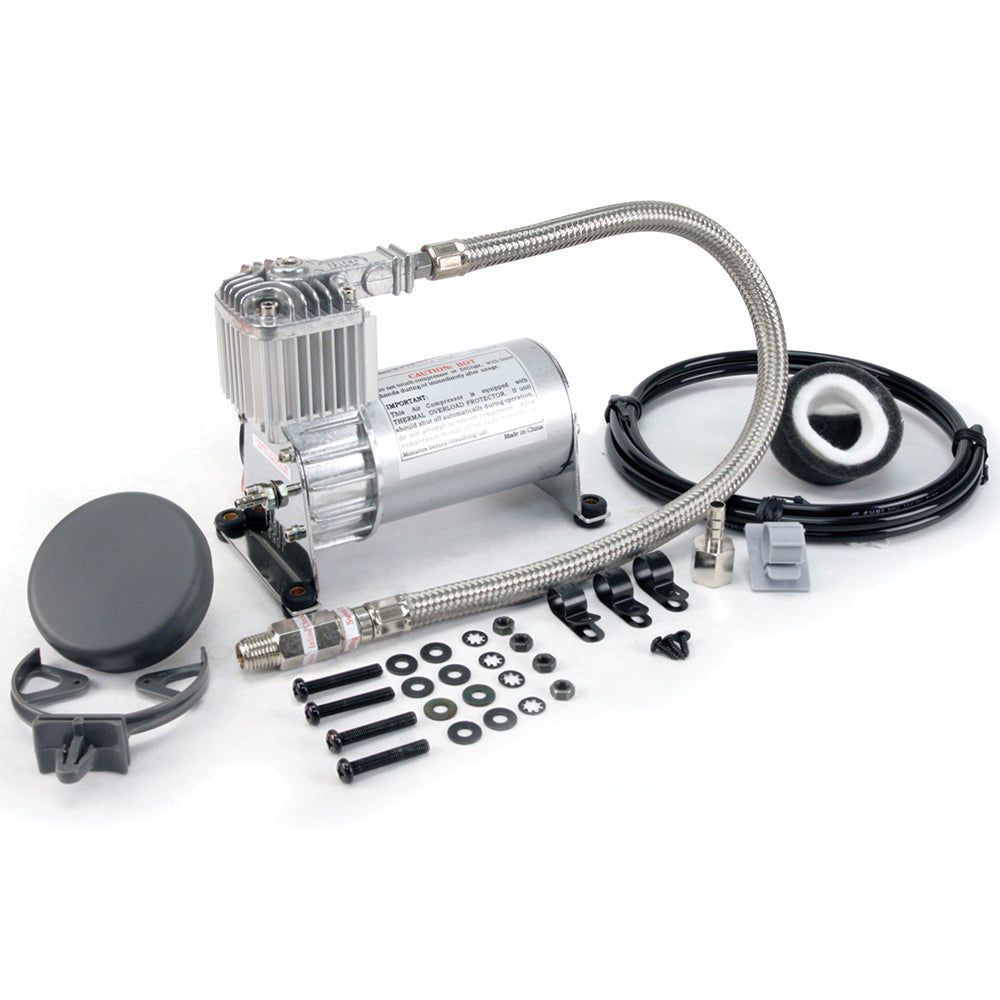

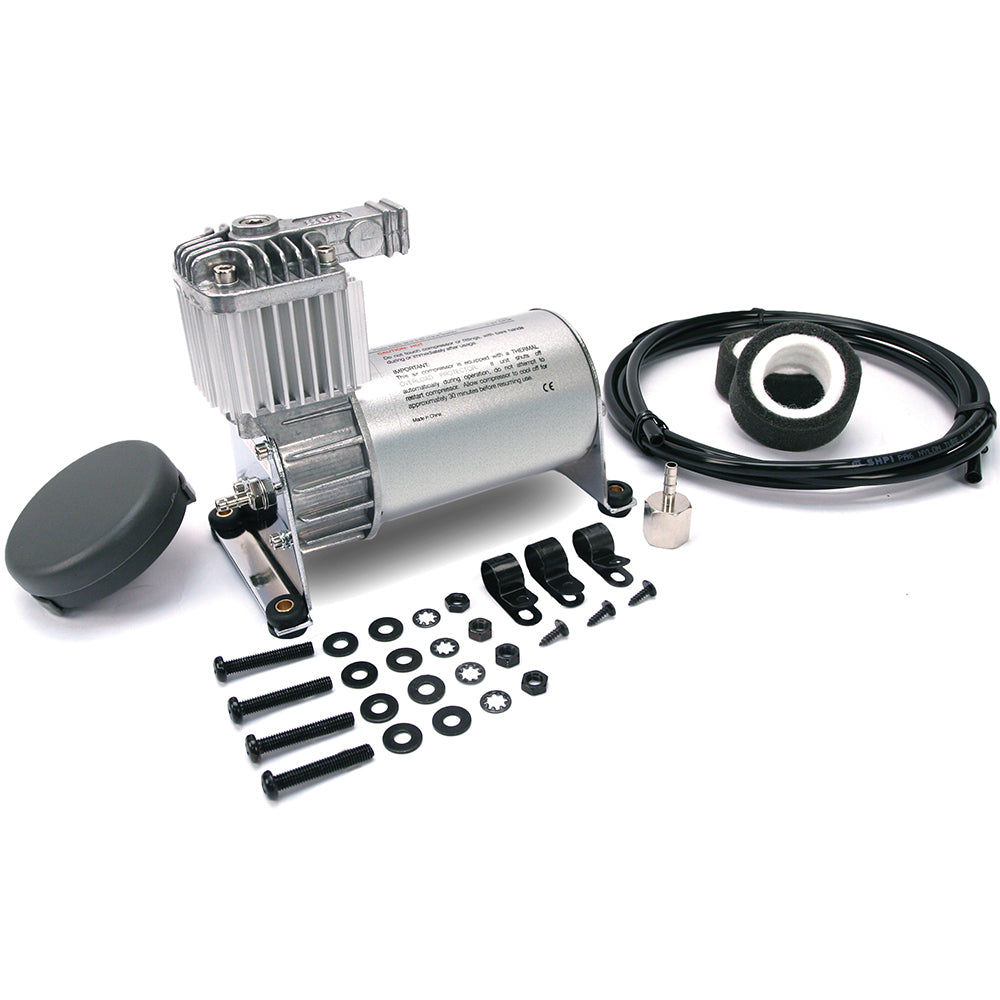

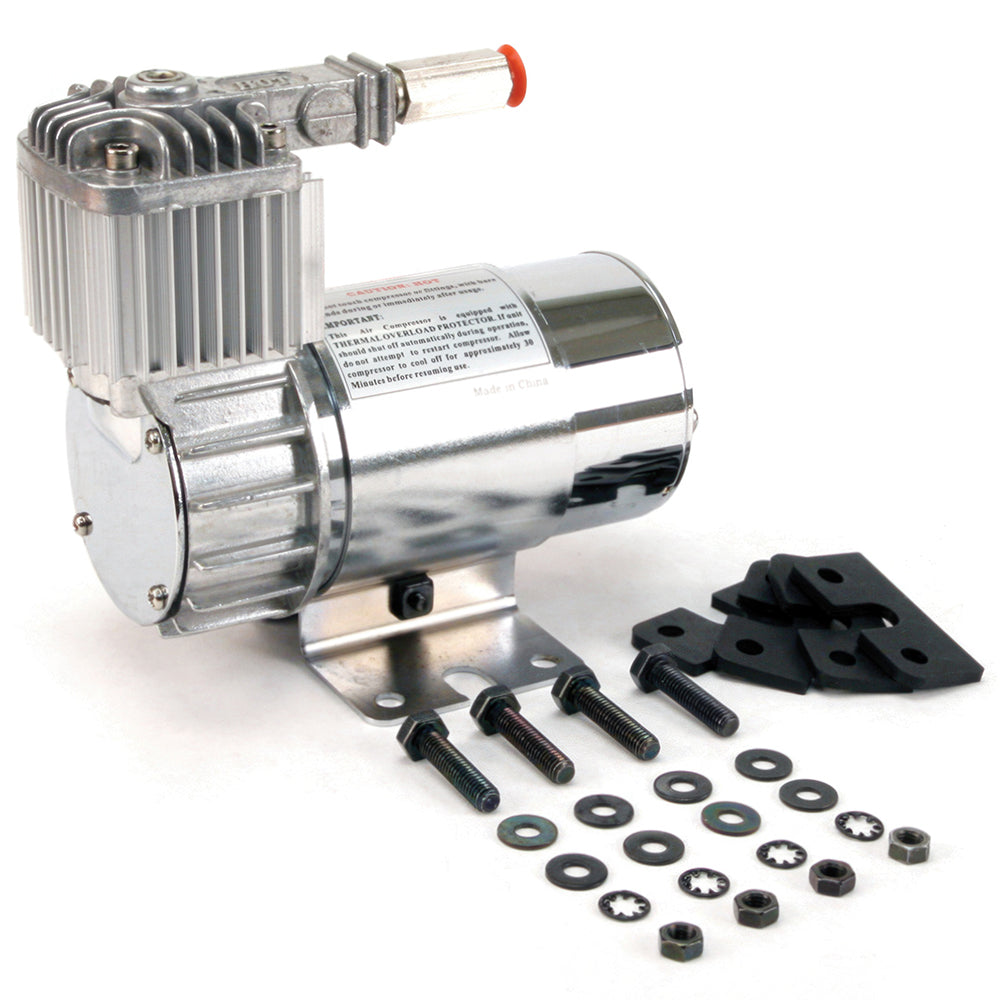

The 100C is our most powerful light duty air compressor. It's designed to fill no larger than a 1 gallon tank, has a max run time of 9 minutes and is offered in 3 different configurations.

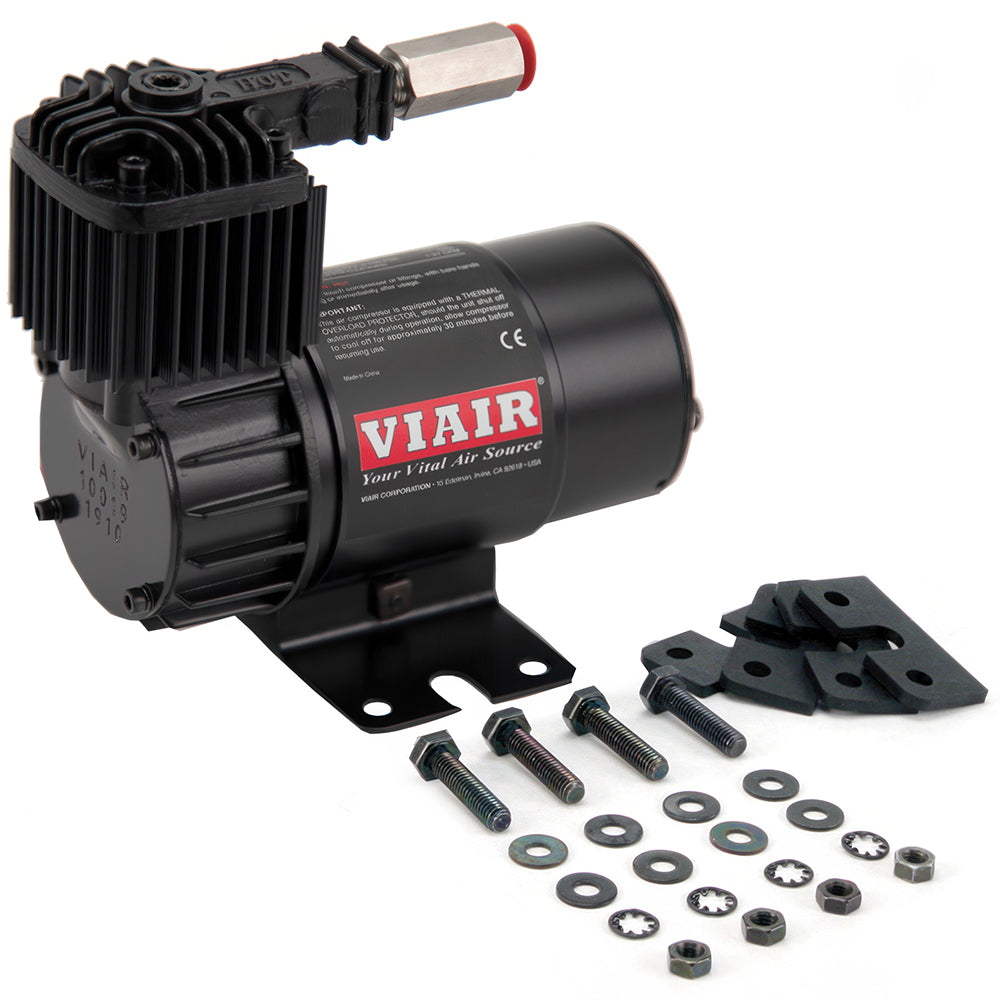

Stealth Black, Omega Bracket
Chrome, Omega Bracket
Silver, Leader Hose and Check Valve
Silver, No Leader Hose or Check Valve

100C Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Drive

Unmatched Testing

Aims for 0% failure rate

What’s in the Box

Related Accessories

0.5 Gallon Air Tank

$42.95

Add to Cart

1.0 Gallon Air Tank

$53.50

Add to Cart

Add All To Cart

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 1.27
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 15% @ 100 PSI
  • Max. Working Pressure: 130 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 16-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 6.35″L x 3.3″W x 4.9″H
  • Net Weight: 3.55 lbs.

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing Dimensional Drawing Dimensional Drawing
