98C Compressor

Part Number: 00091
Regular price $111.95
Regular price Sale price $111.95
98C Compressor 98C Compressor
98C Compressor
98C Compressor

98C Compressor

Part Number: 00091
Regular price $111.95
Regular price Sale price $111.95

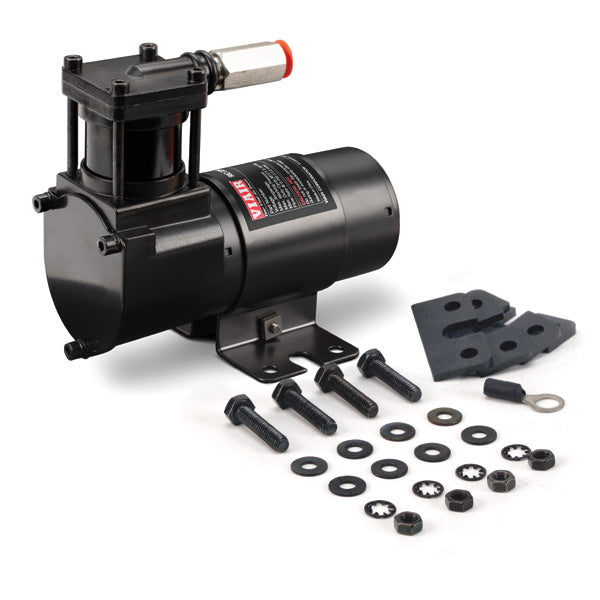

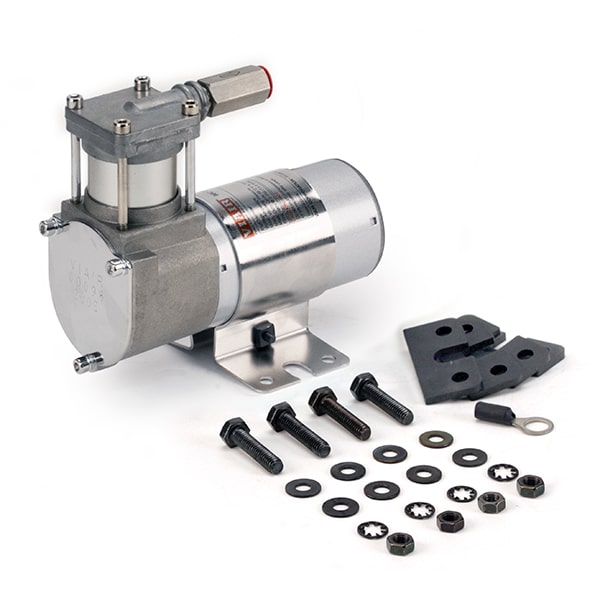

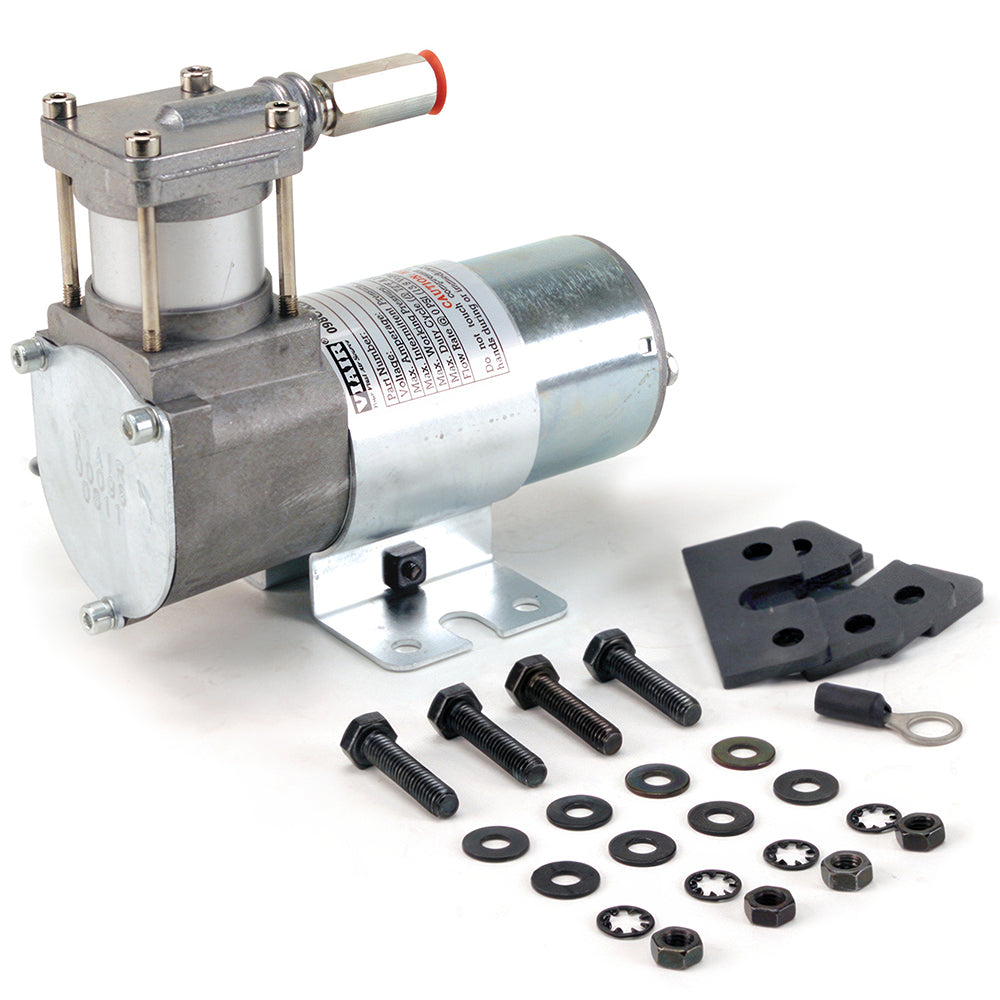

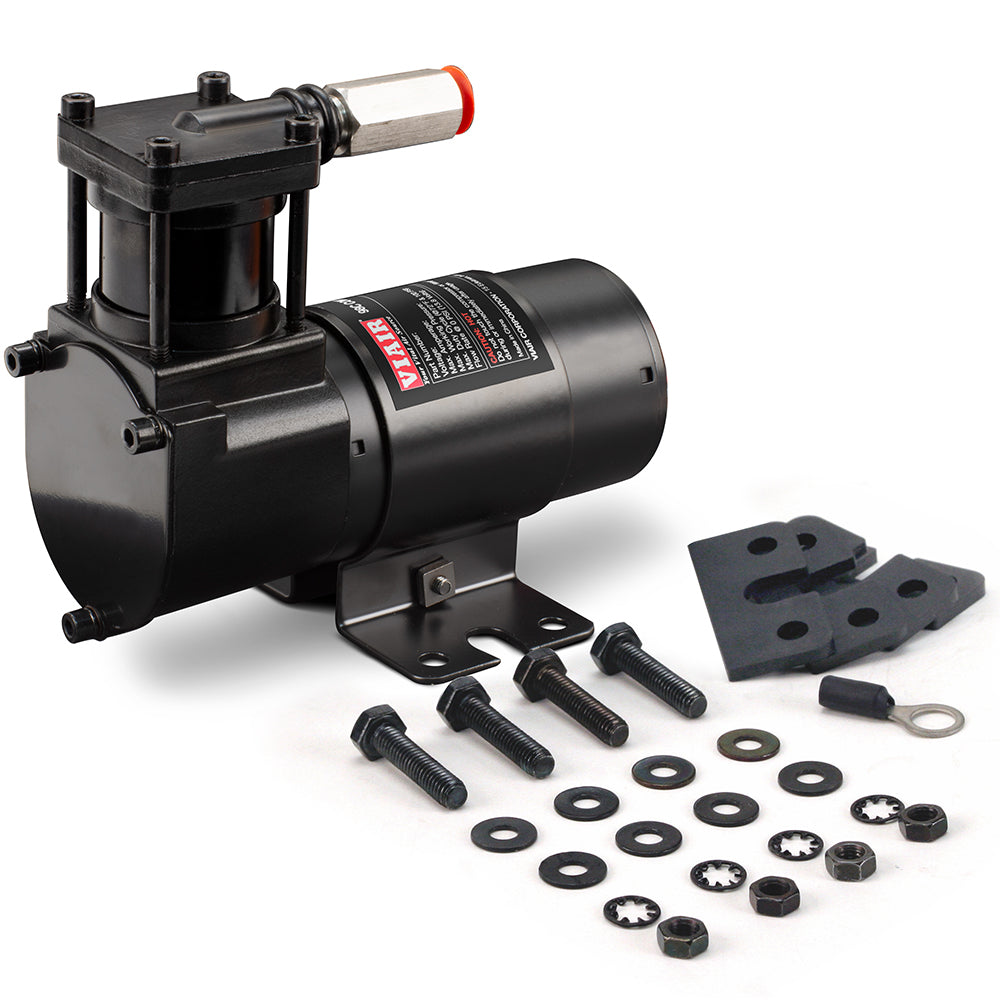

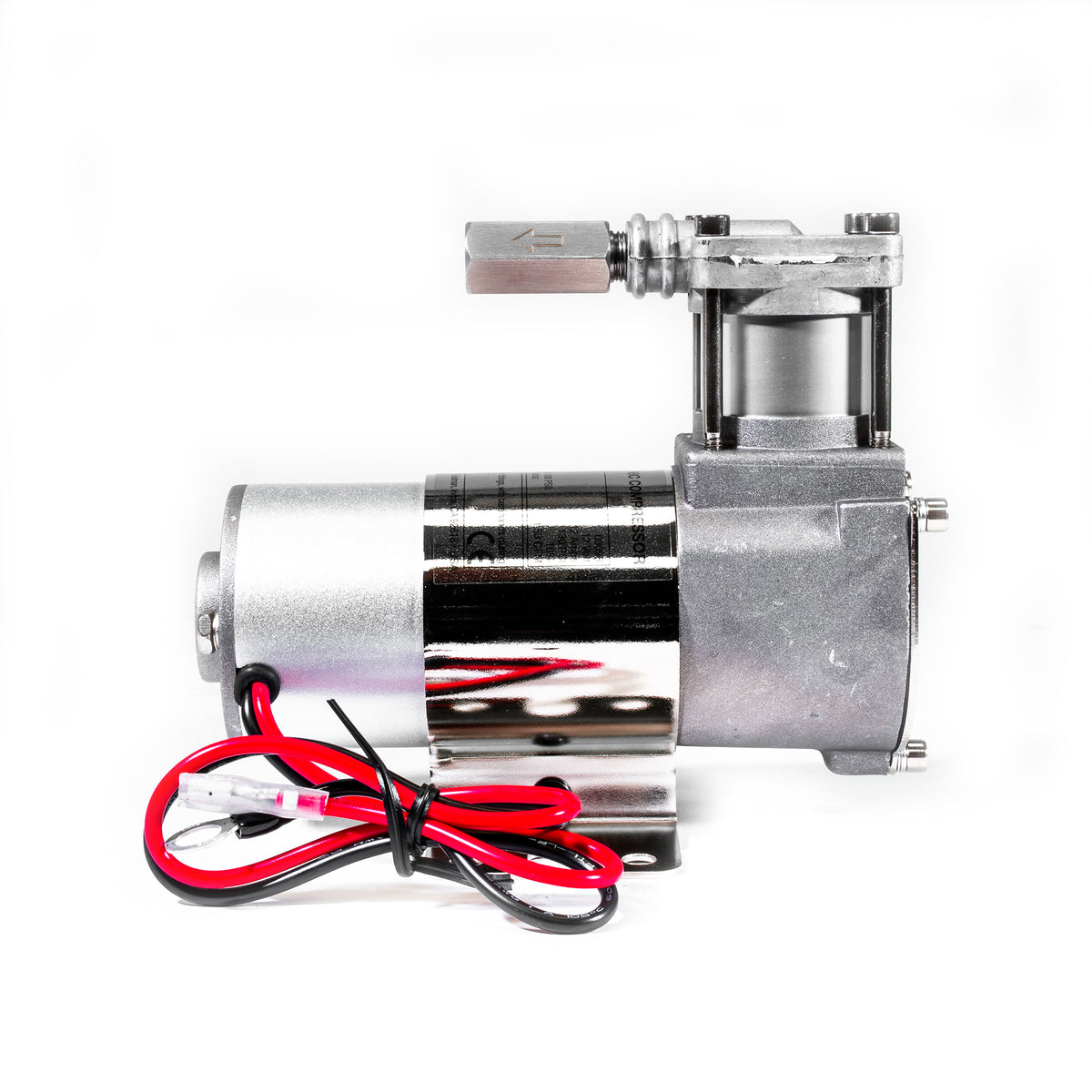

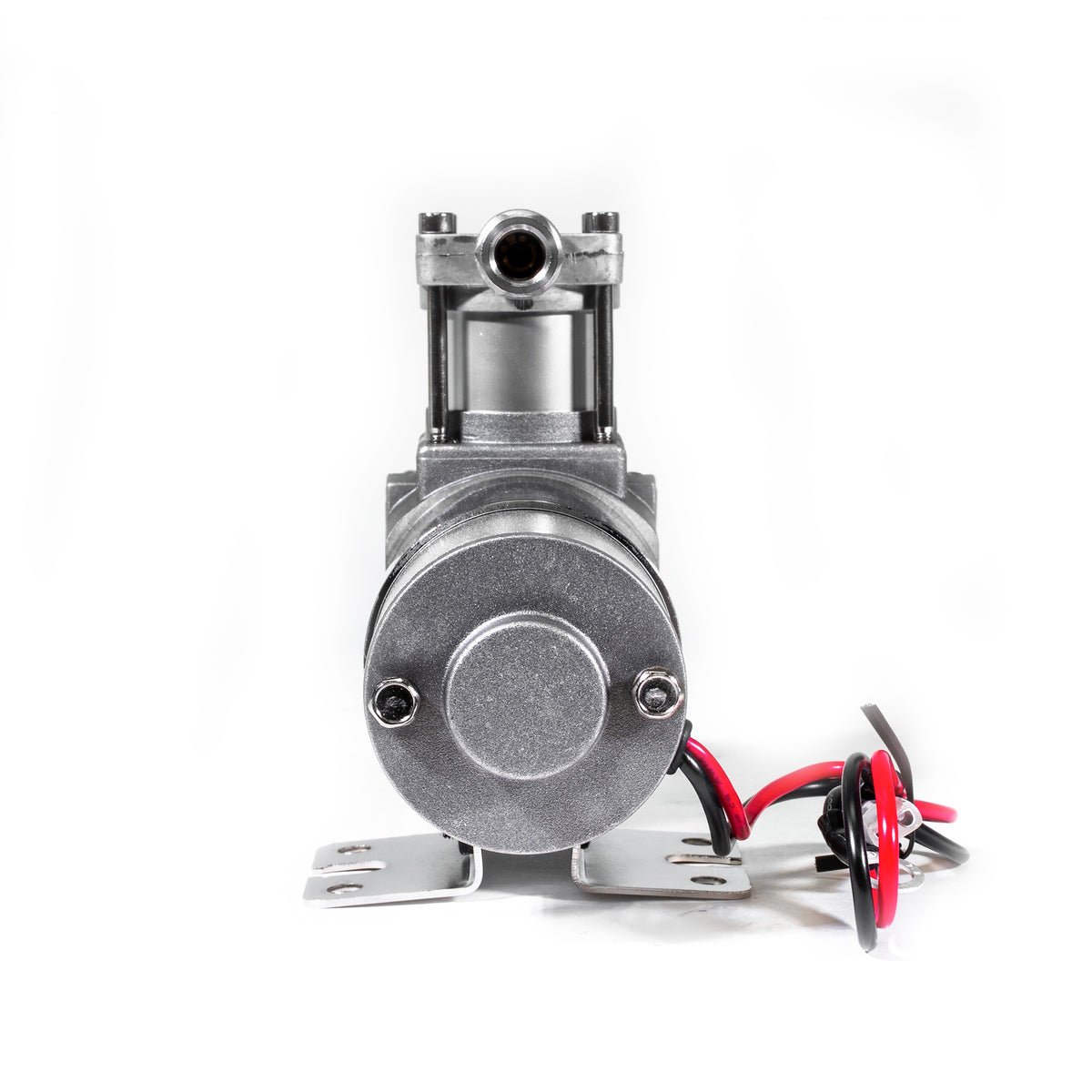

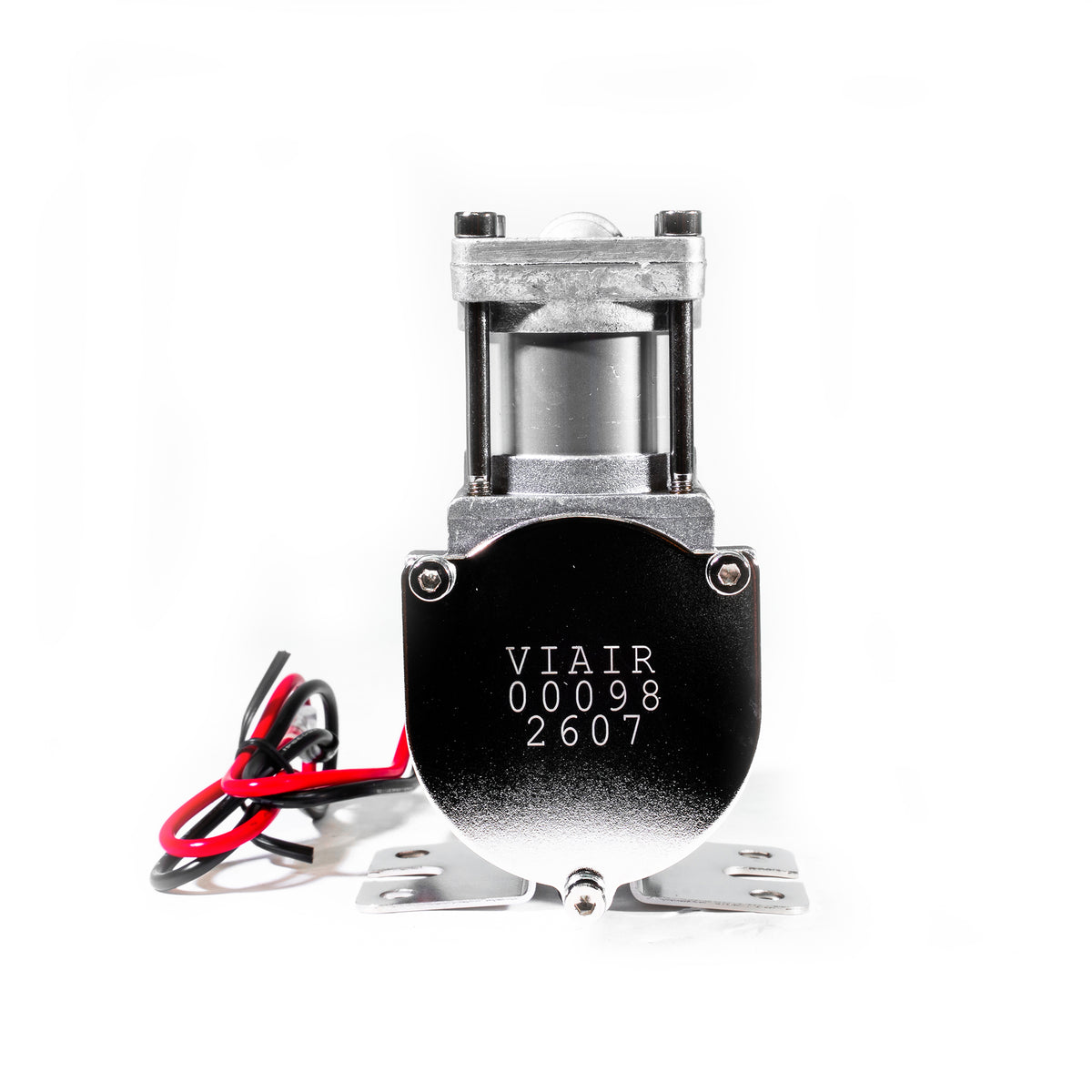

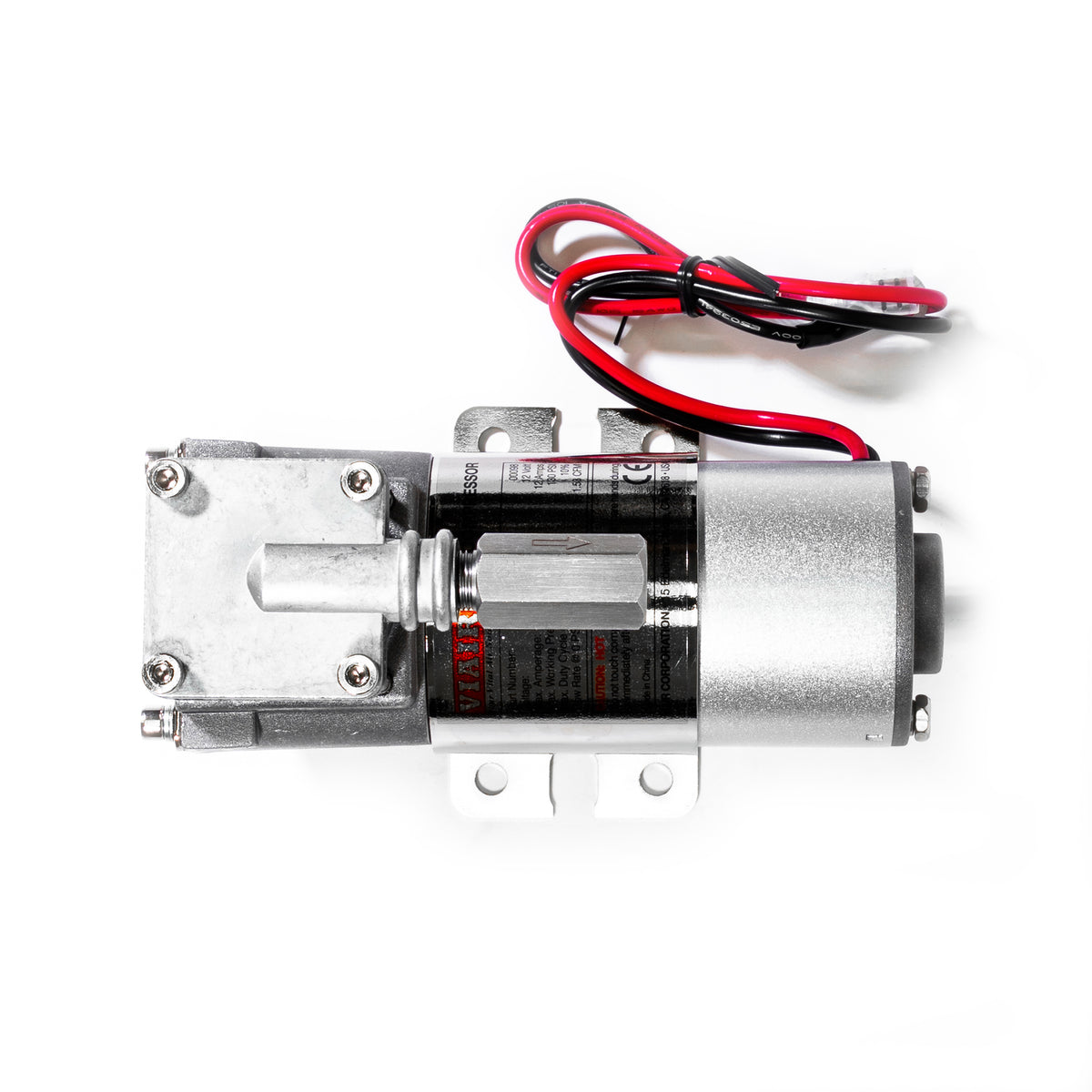

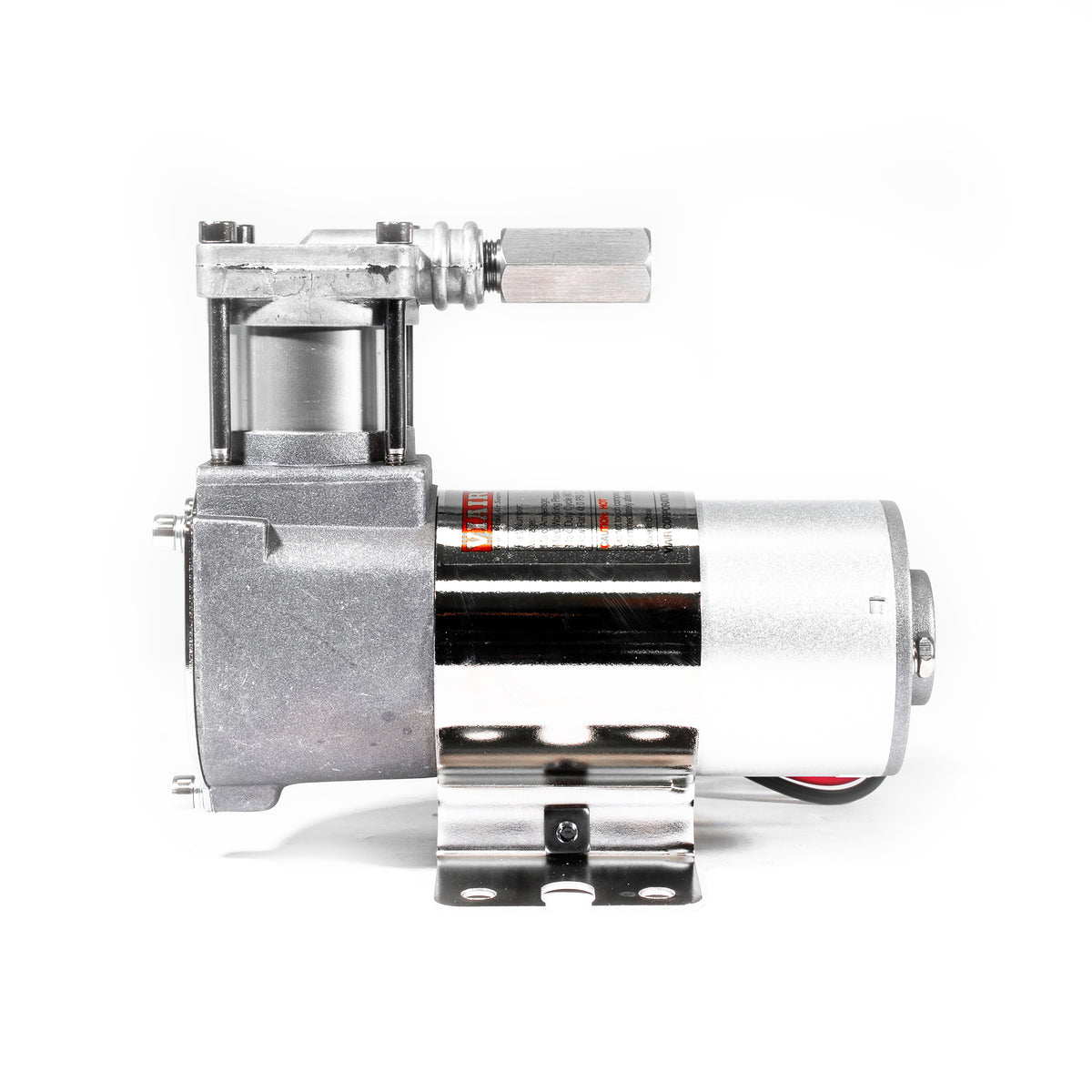

The 98C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features an omega bracket with mounting hardware and a check valve. Available in Stealth Black or Chrome.

Color: Stealth Black

98C Compressor

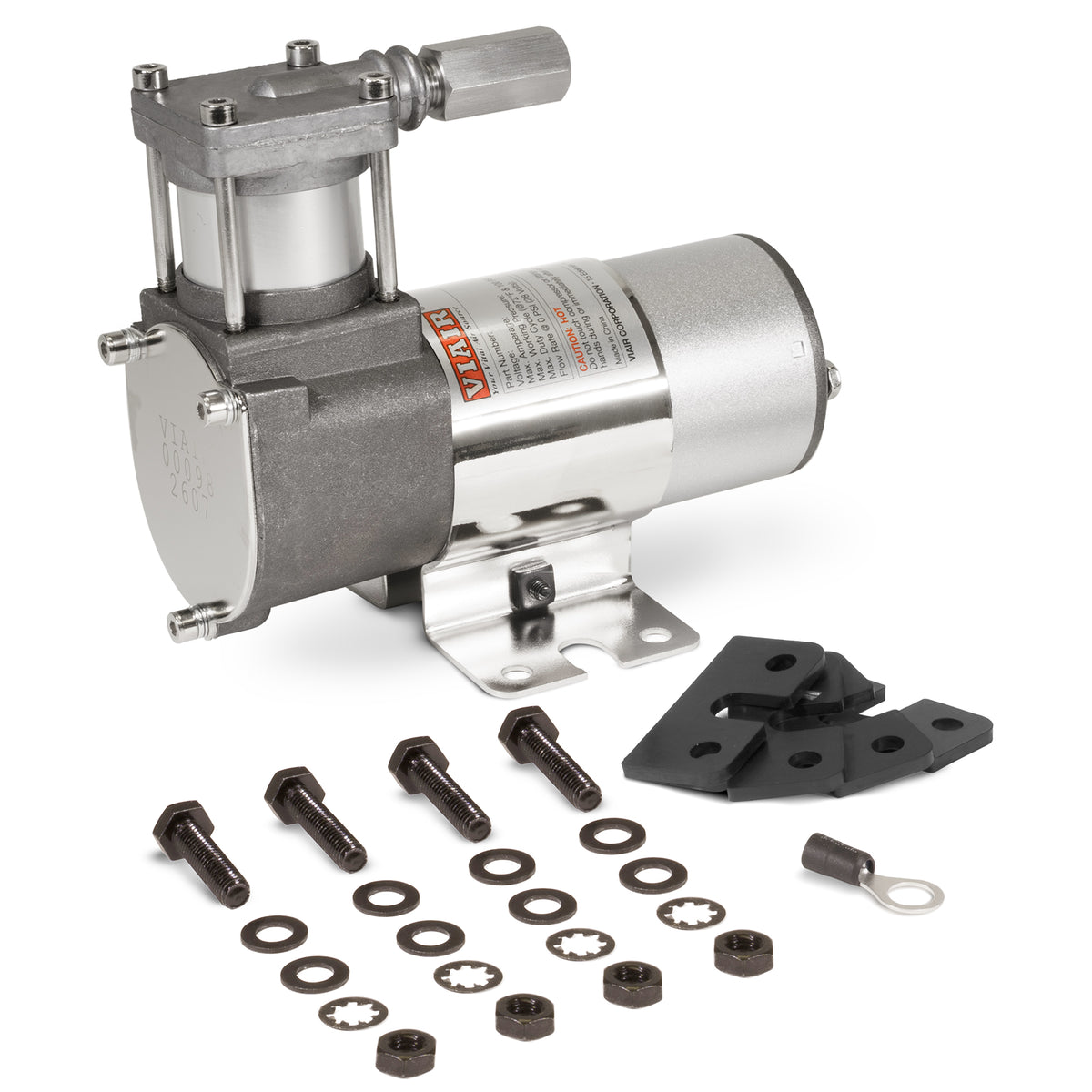

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 1.53 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 10% @ 100 PSI
  • Max. Working Pressure: 130 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 13-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 5.6″L x 3.1″W x 4.7″H
  • Net Weight: 2.55 lbs.

FEATURES:

  • Omega Bracket

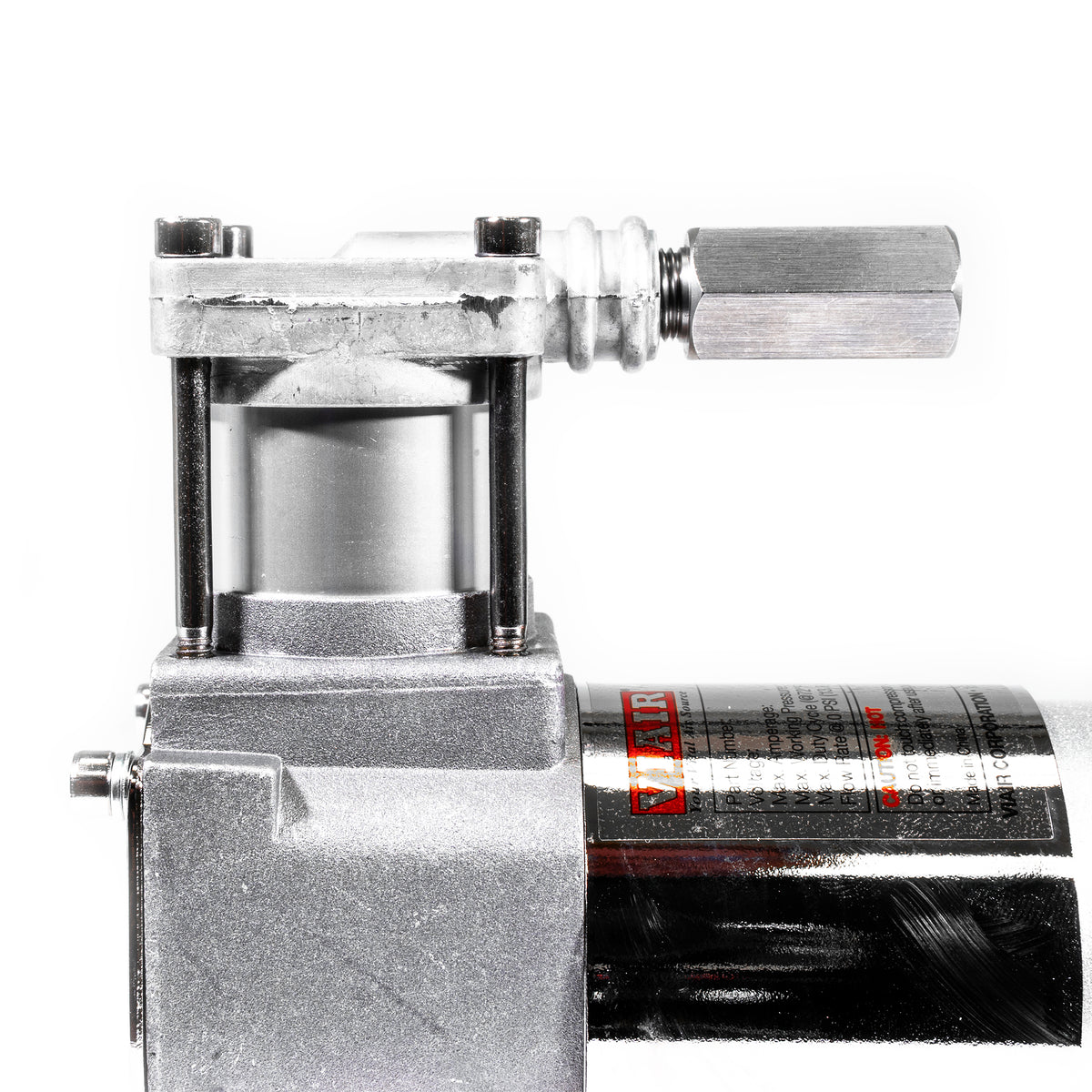

  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
