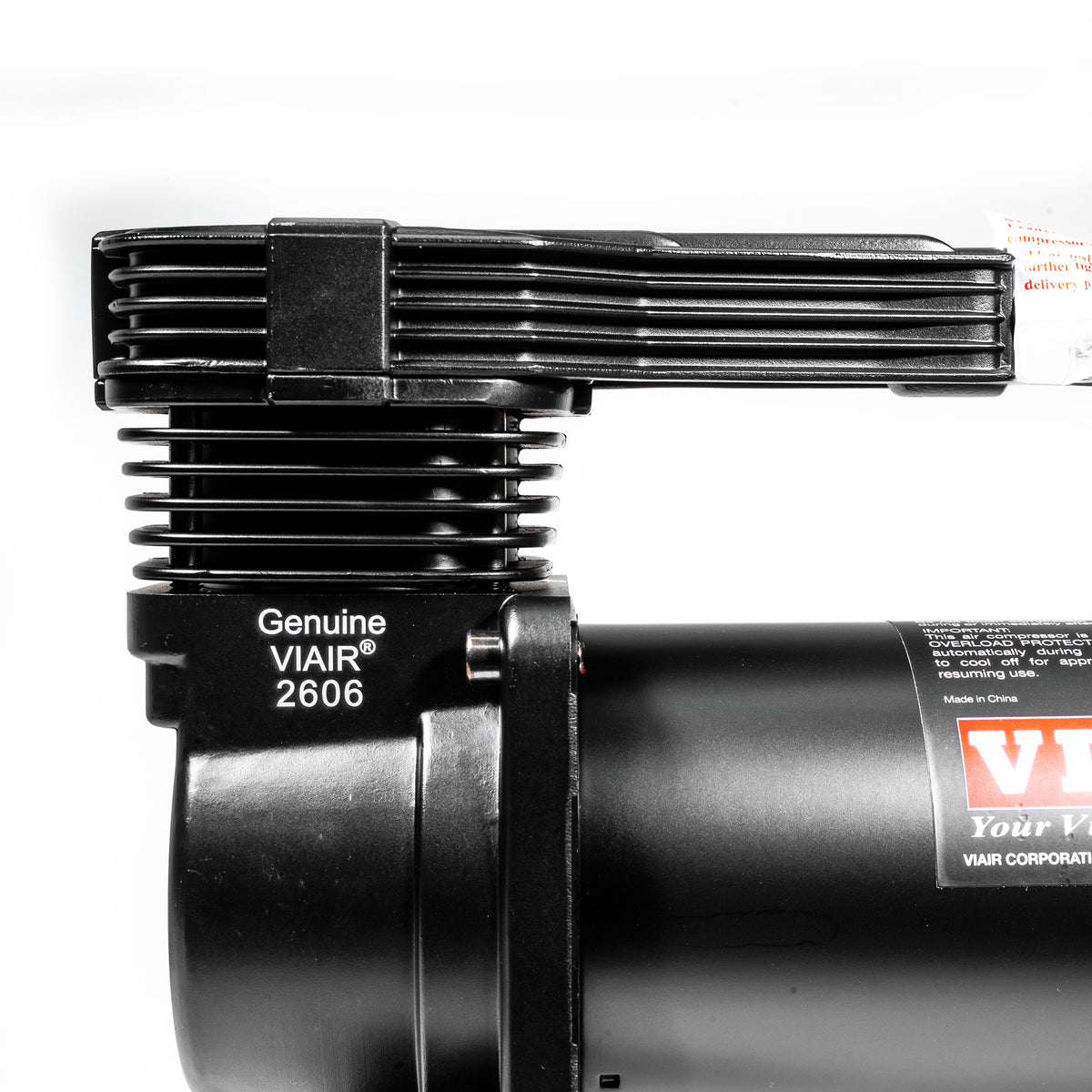

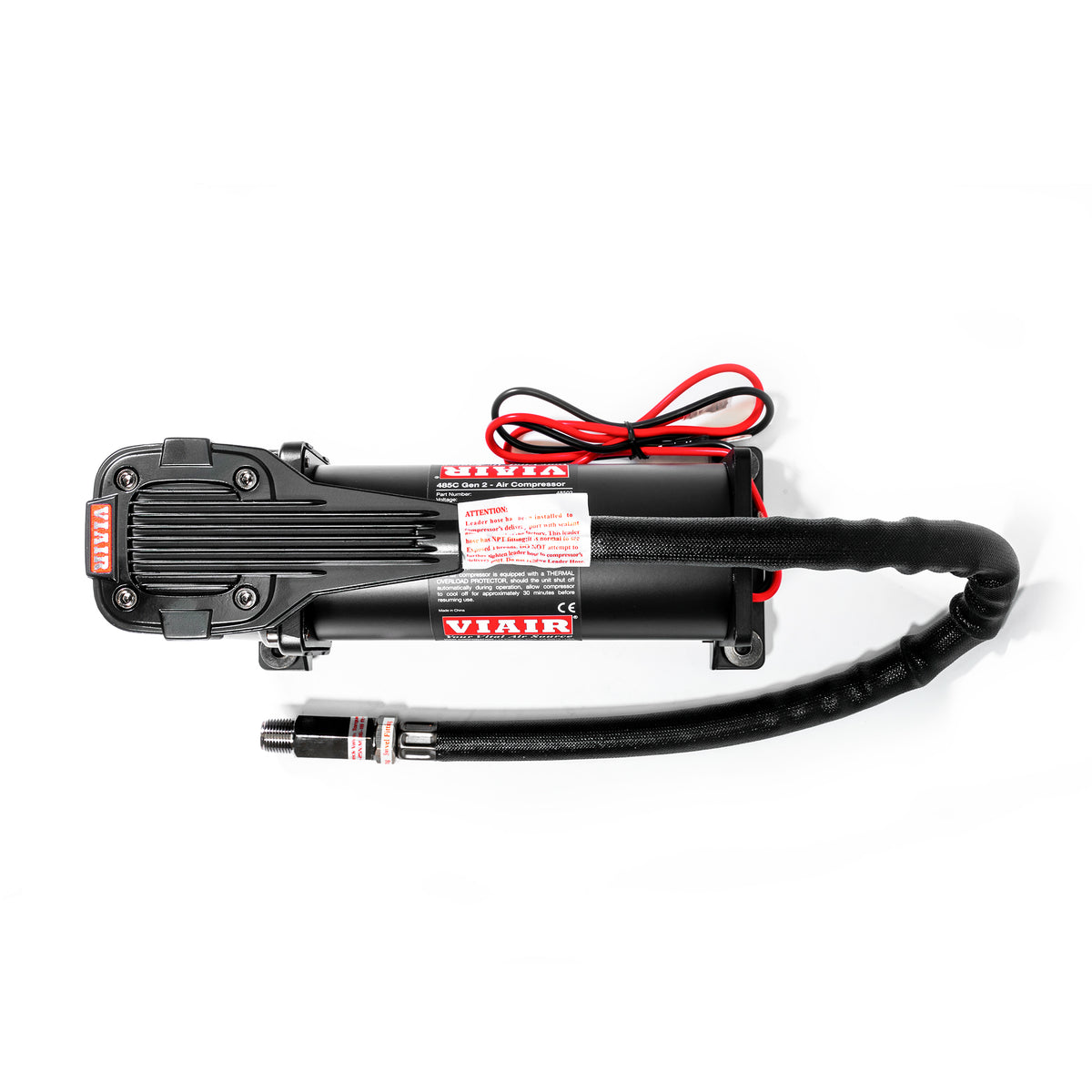

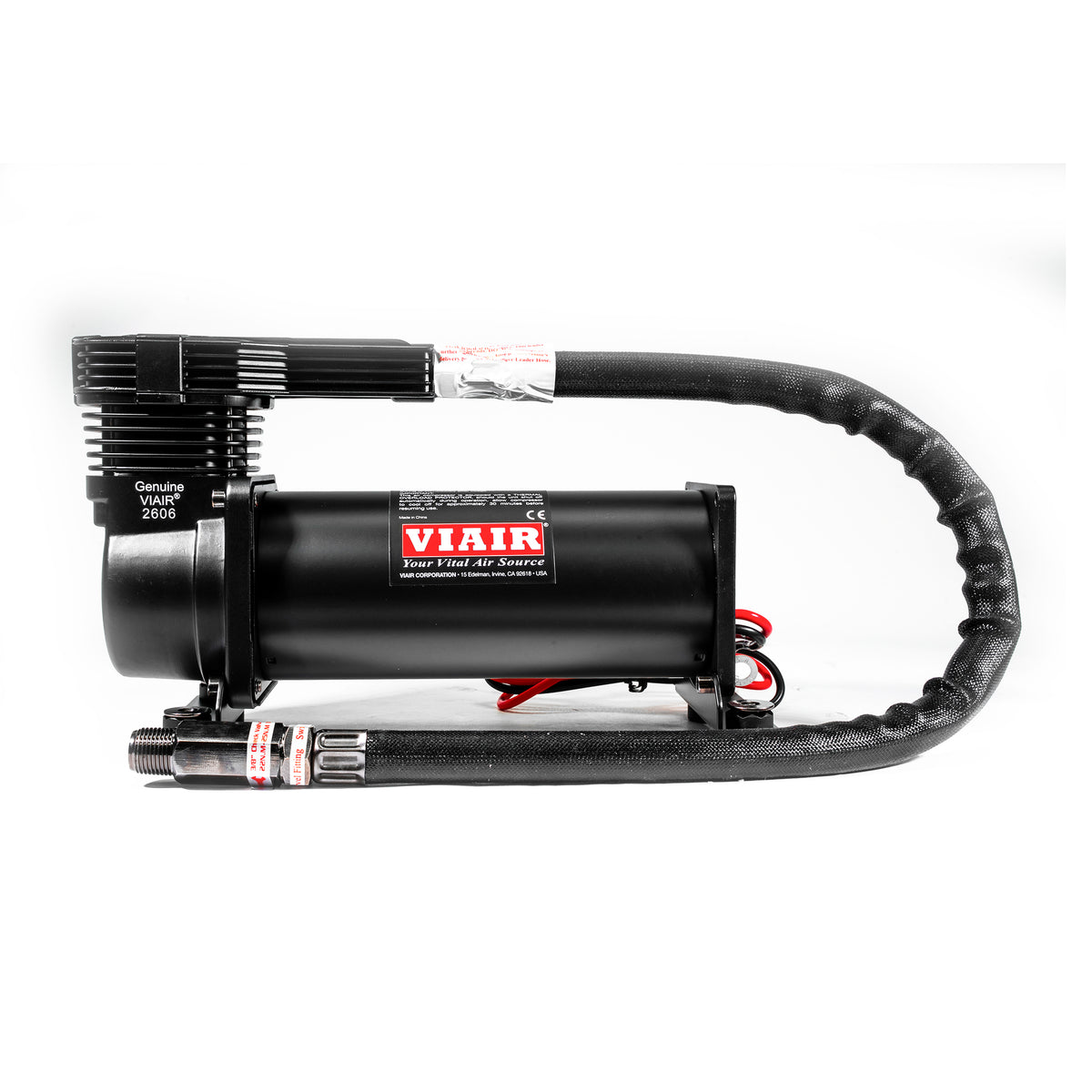

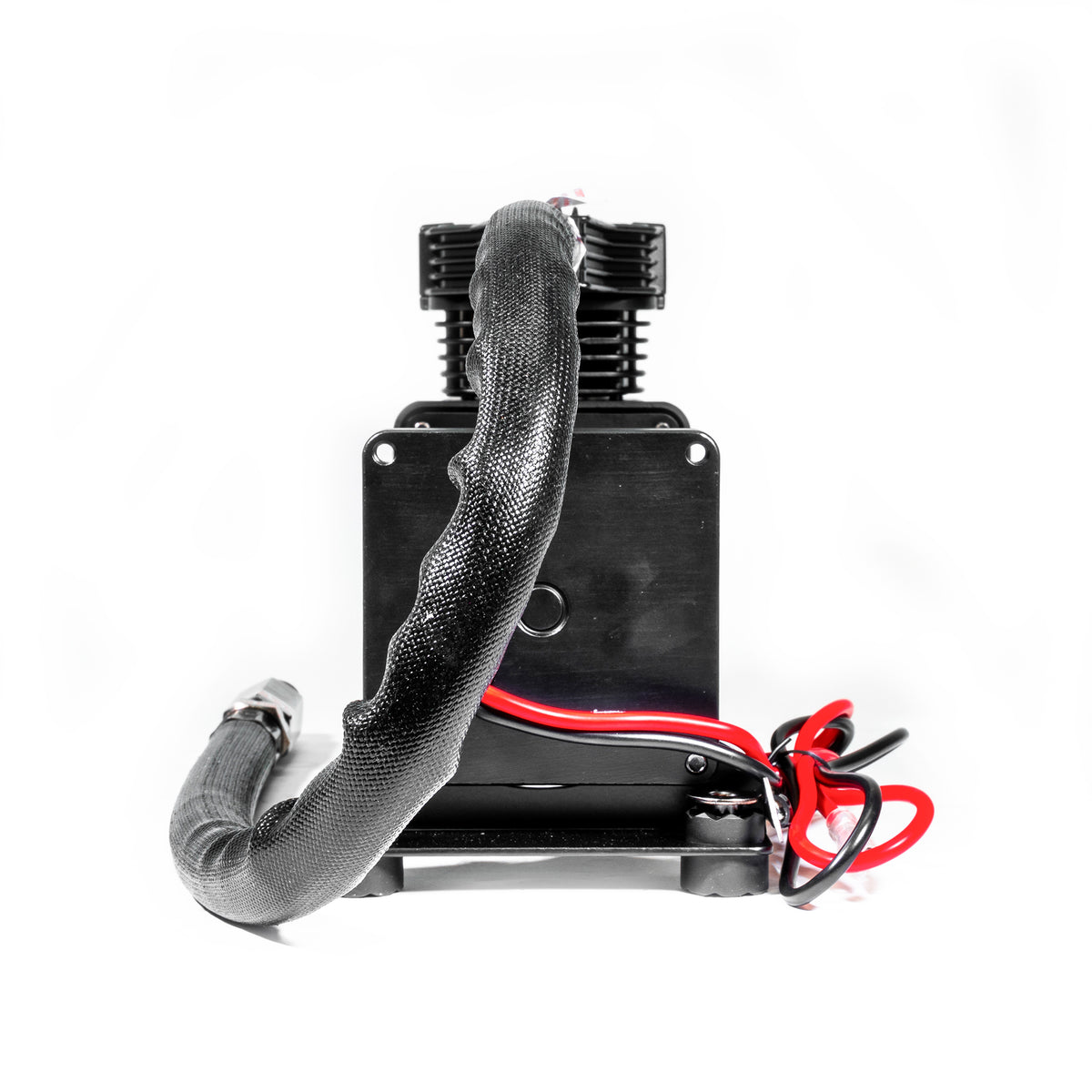

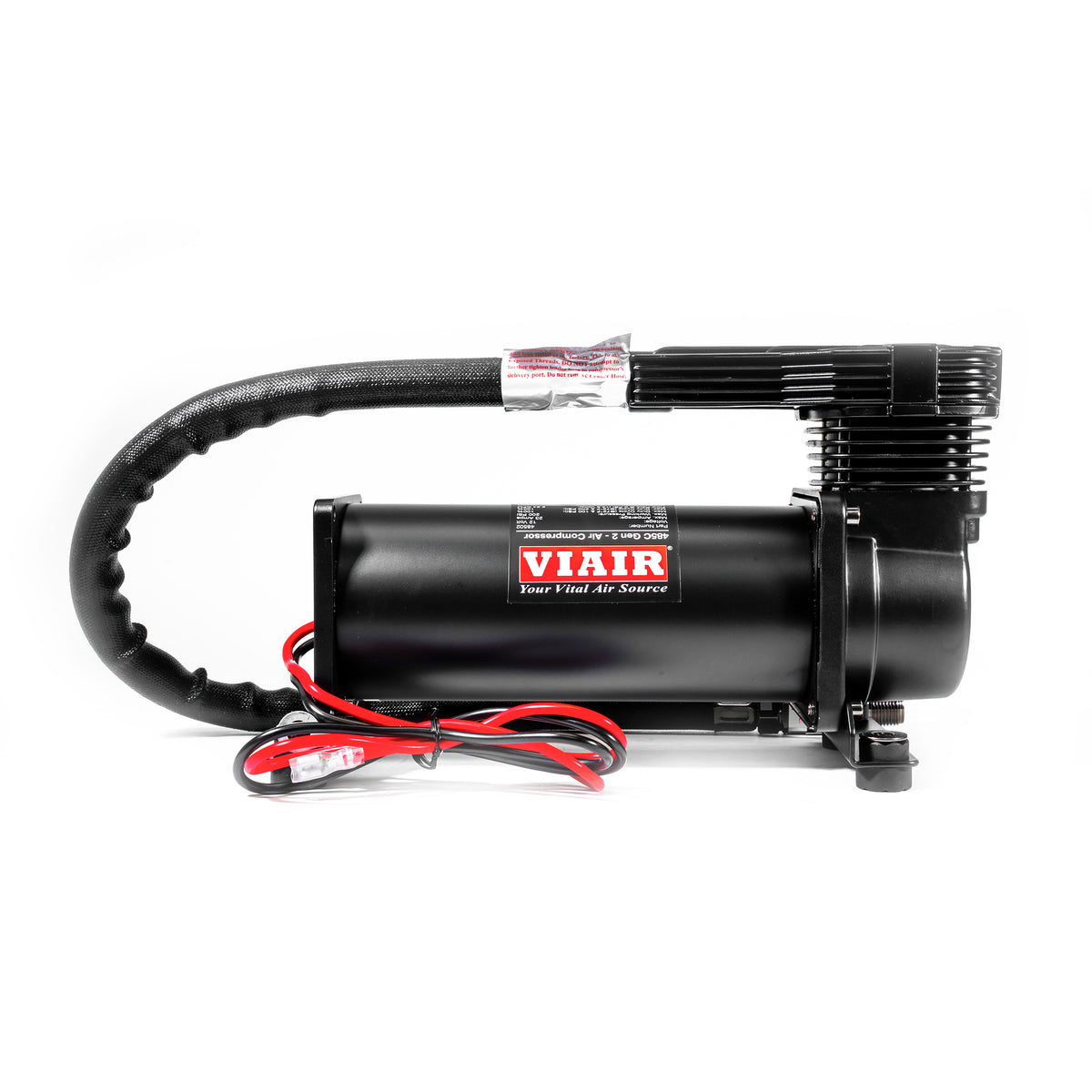

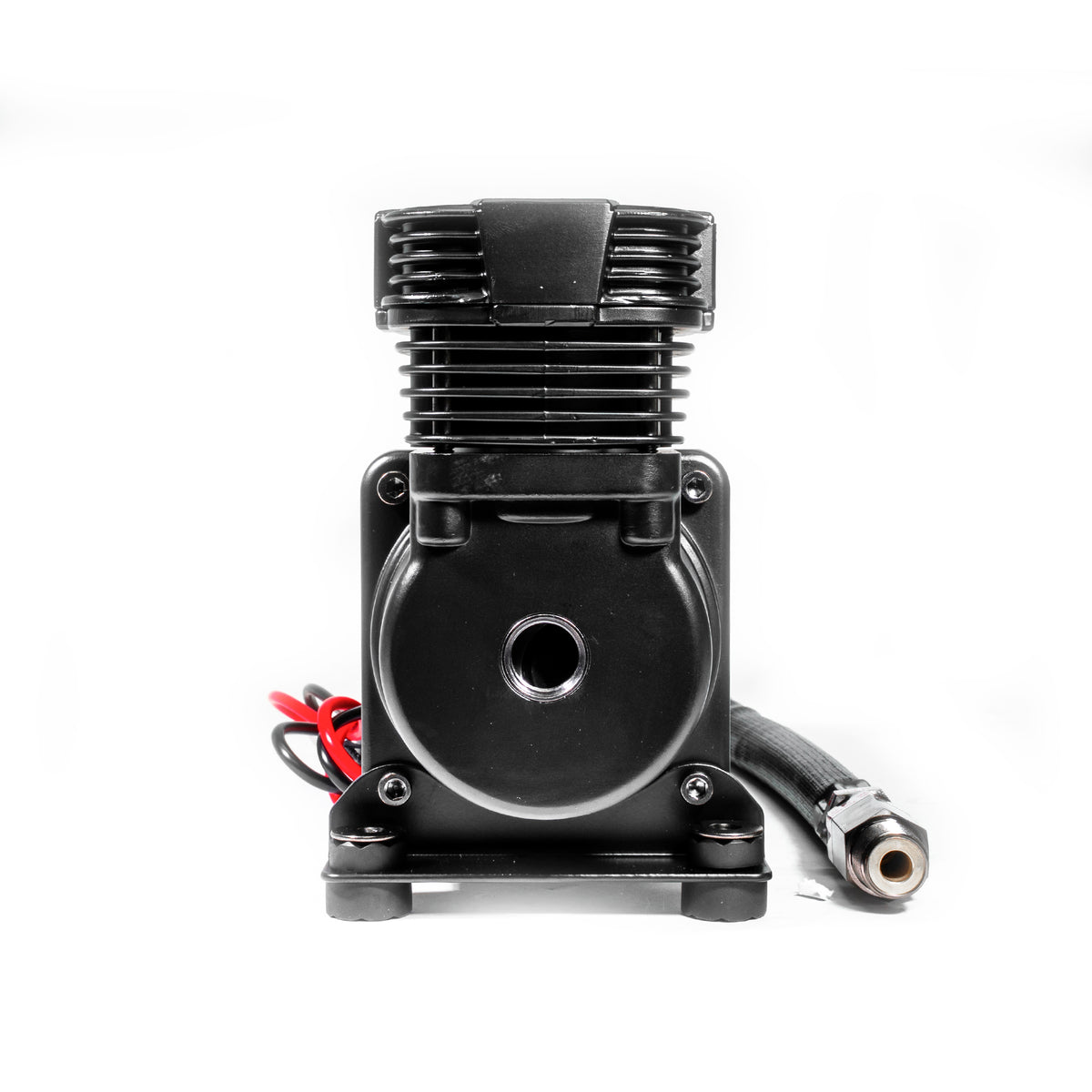

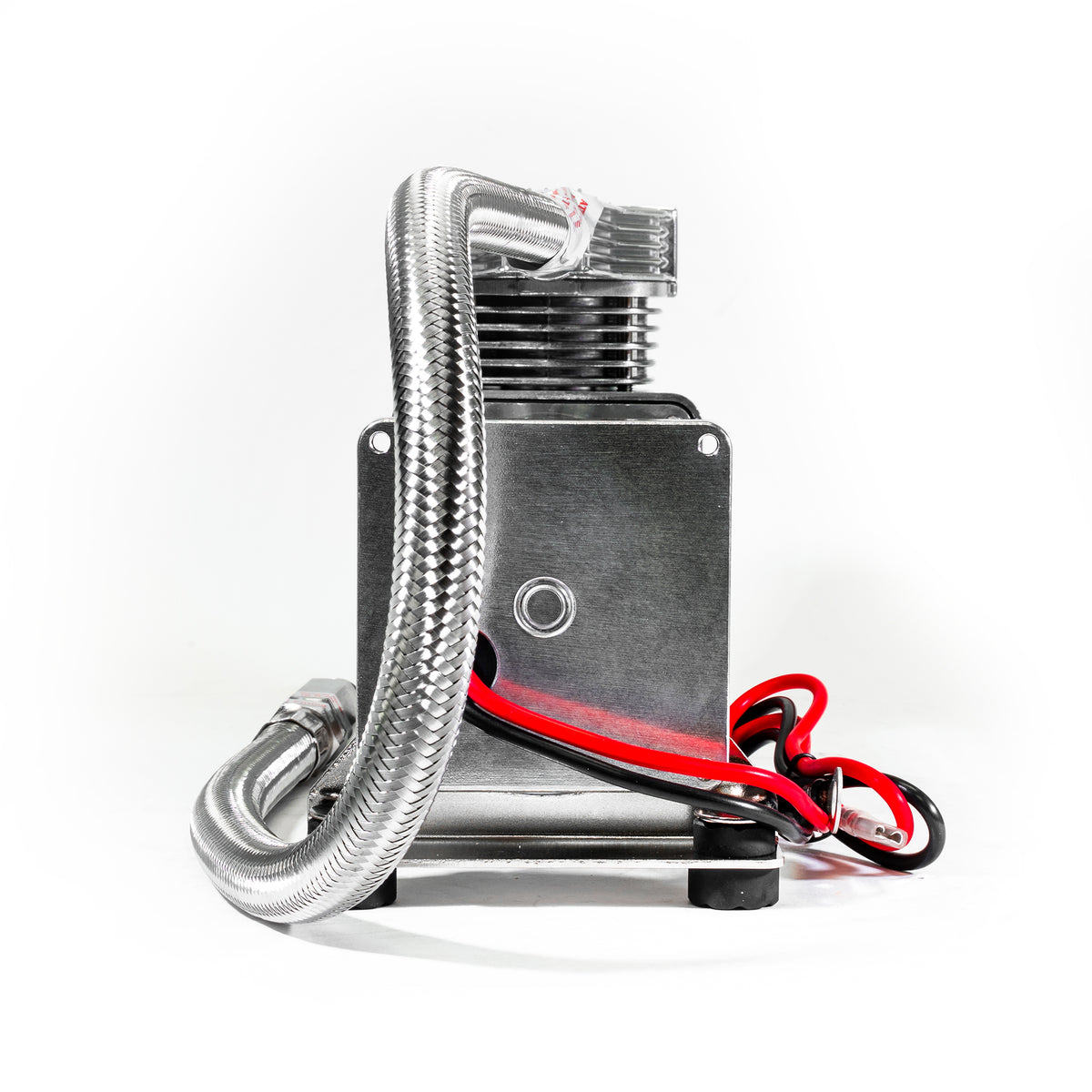

485C Gen 2 Compressor

485C Gen 2 Compressor

Part Number: 48500
Regular price $409.95
Regular price Sale price $409.95
485C Gen 2 Compressor 485C Gen 2 Compressor
485C Gen 2 Compressor
485C Gen 2 Compressor

485C Gen 2 Compressor

485C Gen 2 Compressor

Part Number: 48500
Regular price $409.95
Regular price Sale price $409.95

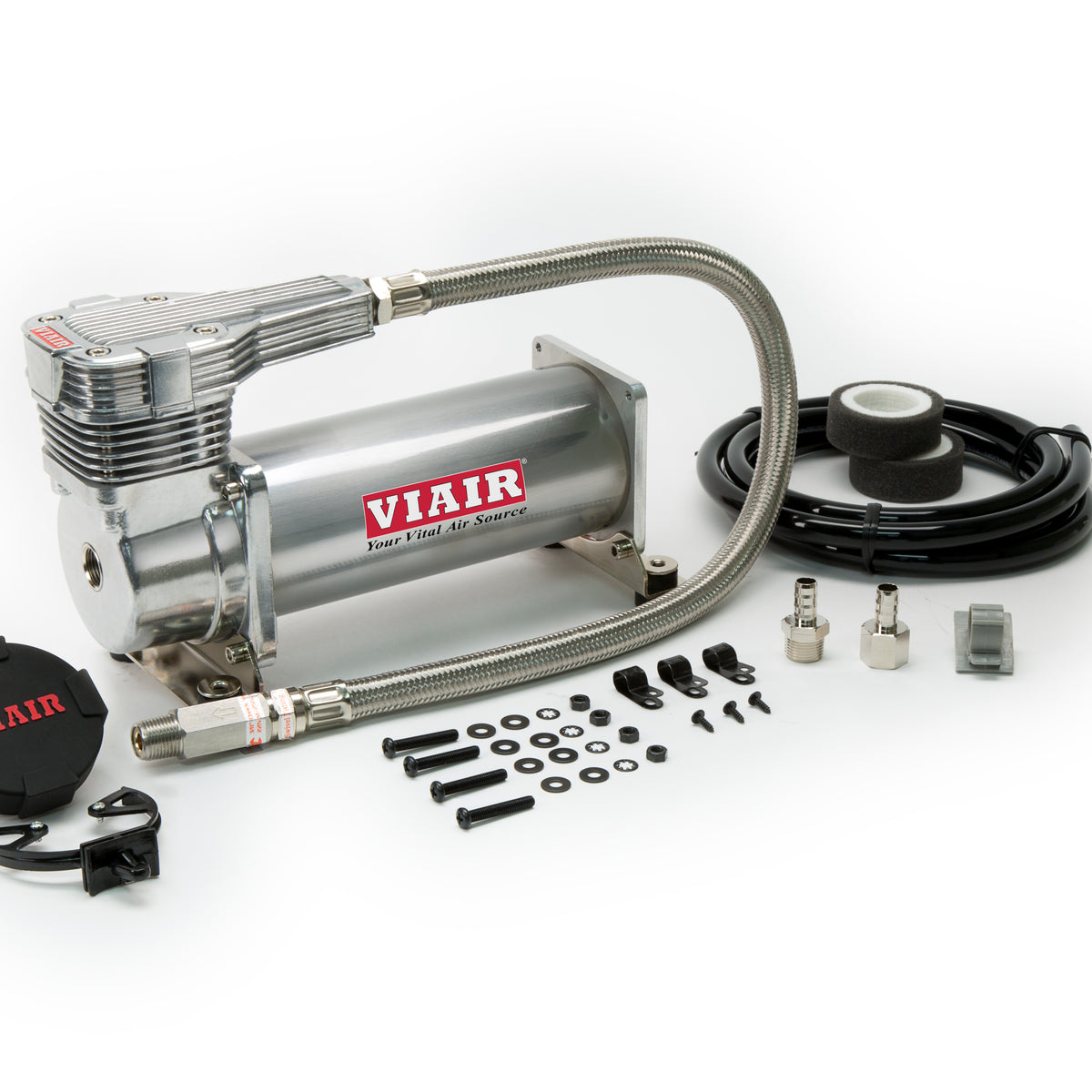

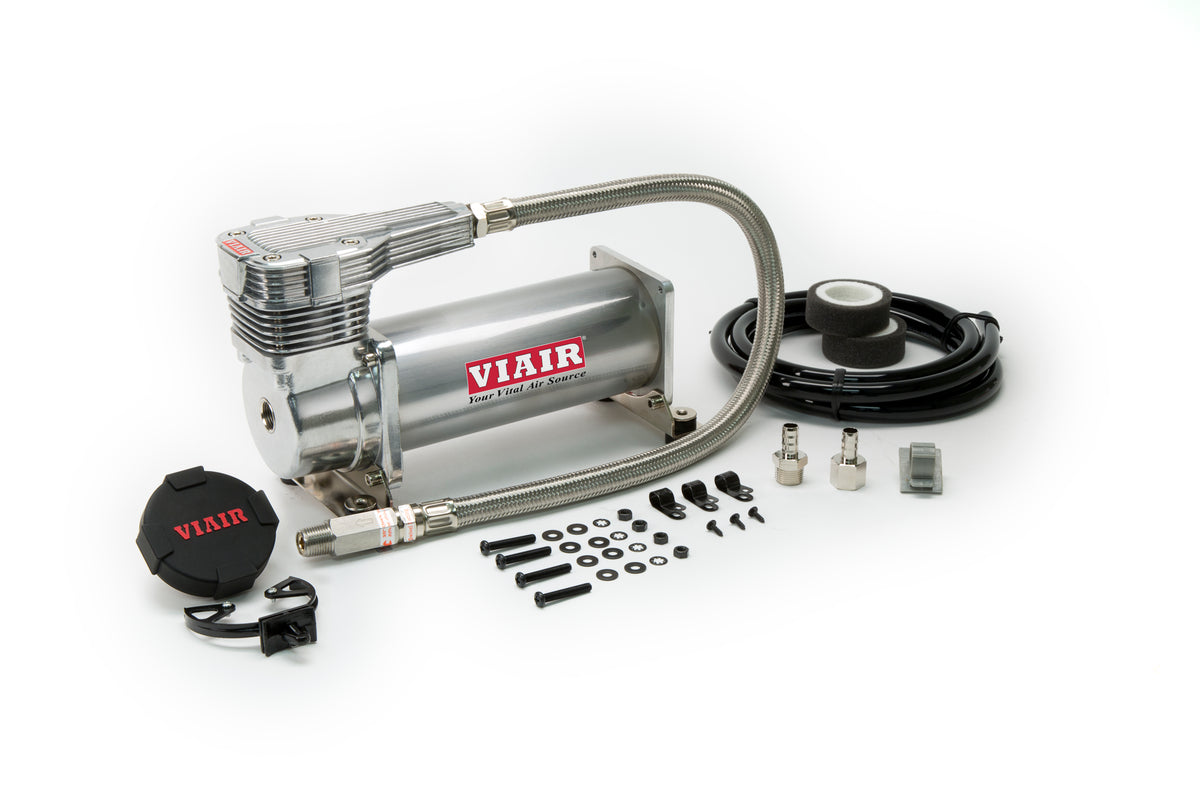

The 485C Gen 2 air compressors deliver game-changing performance, delivering 1-hour of performance at 200 PSI before needing rest. This unit is the premium choice for industrial and automotive applications.

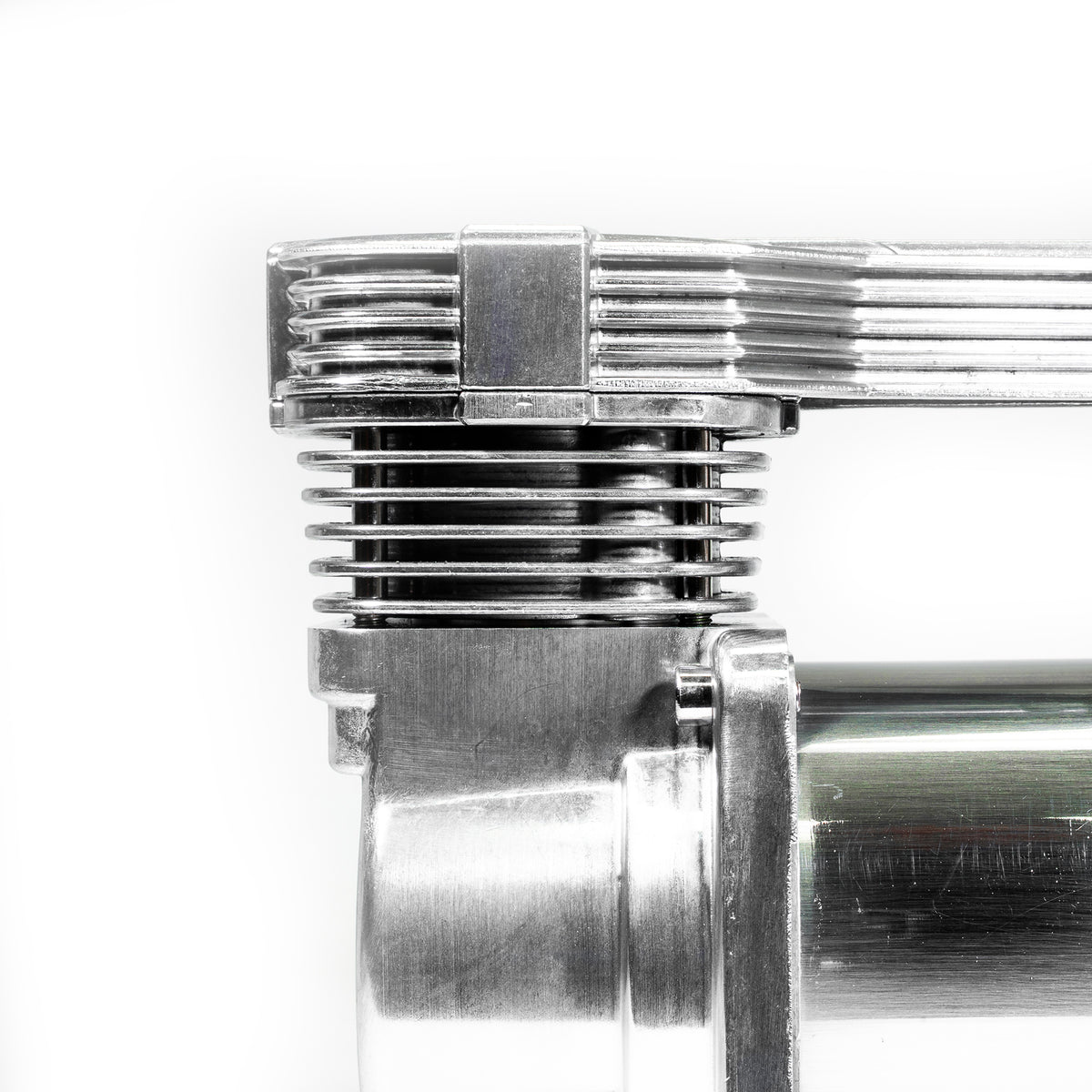

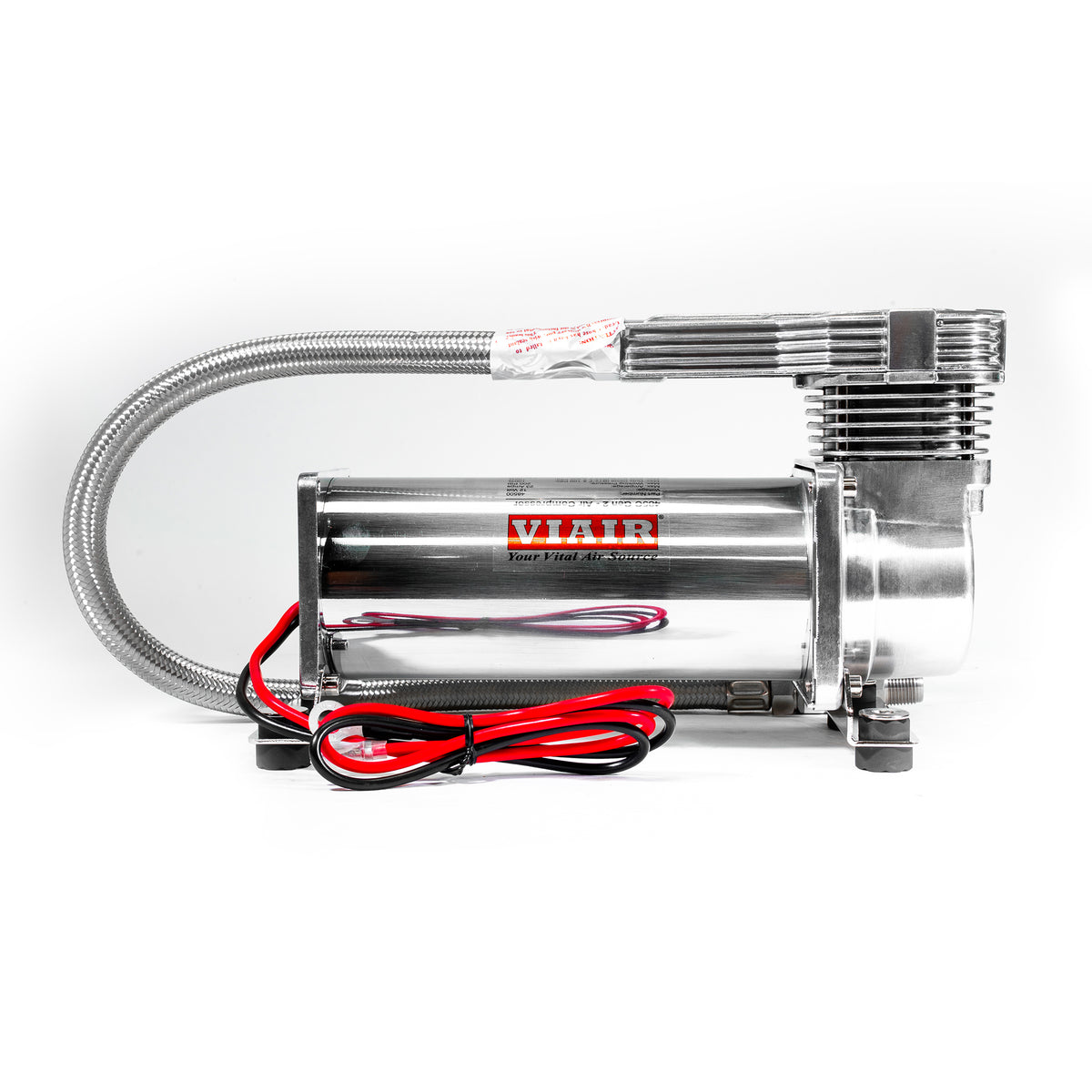

Color: Platinum

485C Gen 2 Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Driven

Unmatched Testing

Aims for 0% failure rate

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Combined Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.63″L x 4.1″W x 6.44″H
  • Net Weight: 11.10 lbs.

FEATURES:

  • Thermal Overload Protector

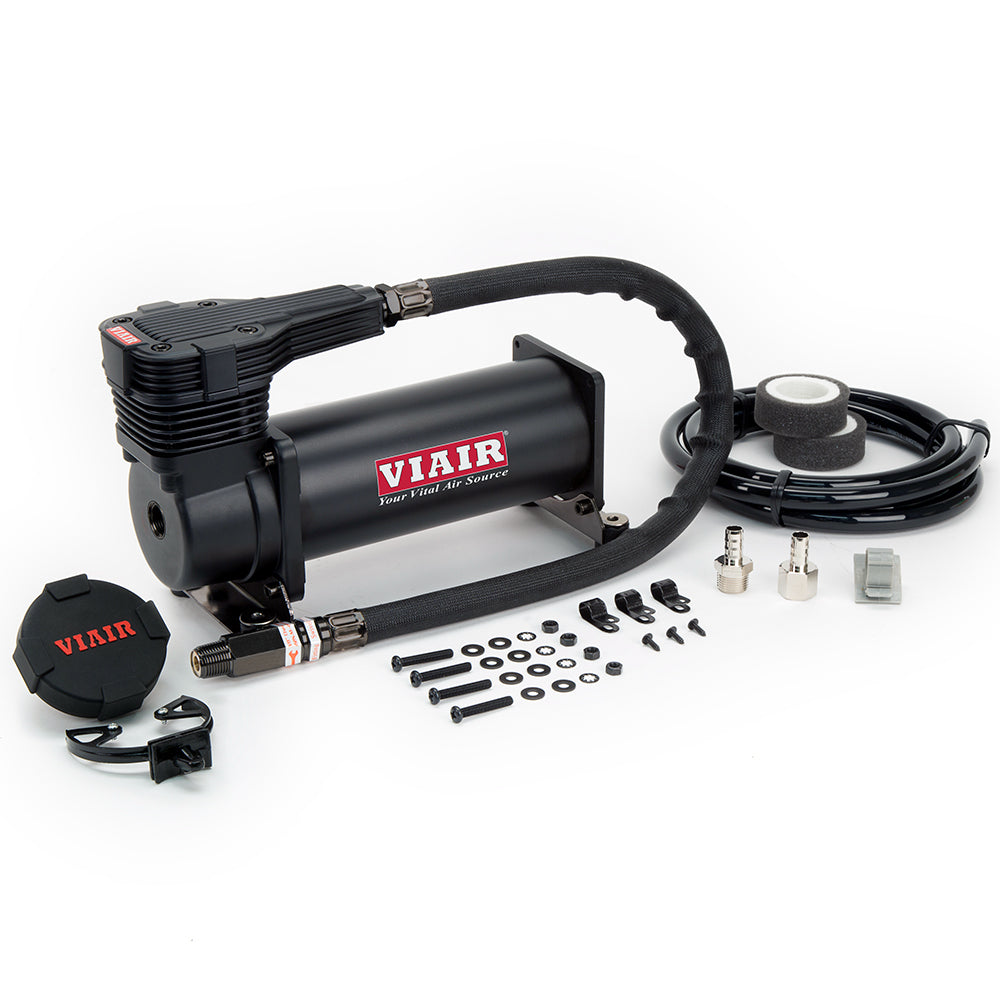

  • 485C (Platinum or Stealth Black) Compressor
  • Air Filter Assembly
  • VIAIR Removable Filter Cover
  • Replacement Air Filter Elements
  • Remote Mount Filter Assembly
  • Leader Hose Clip
  • Air Line Clip with Included Hardware
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
