400C Compressor

400C Compressor

Part Number: 40040
Regular price $279.95
Regular price Sale price $279.95
400C Compressor
400C Compressor

400C Compressor

400C Compressor

Part Number: 40040
Regular price $279.95
Regular price Sale price $279.95

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class. Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

12V
24V

400C Compressor

Designed By

VIAIR Corp

150 PSI

Working pressure

Proven Reliability

IP67 dust and waterproof

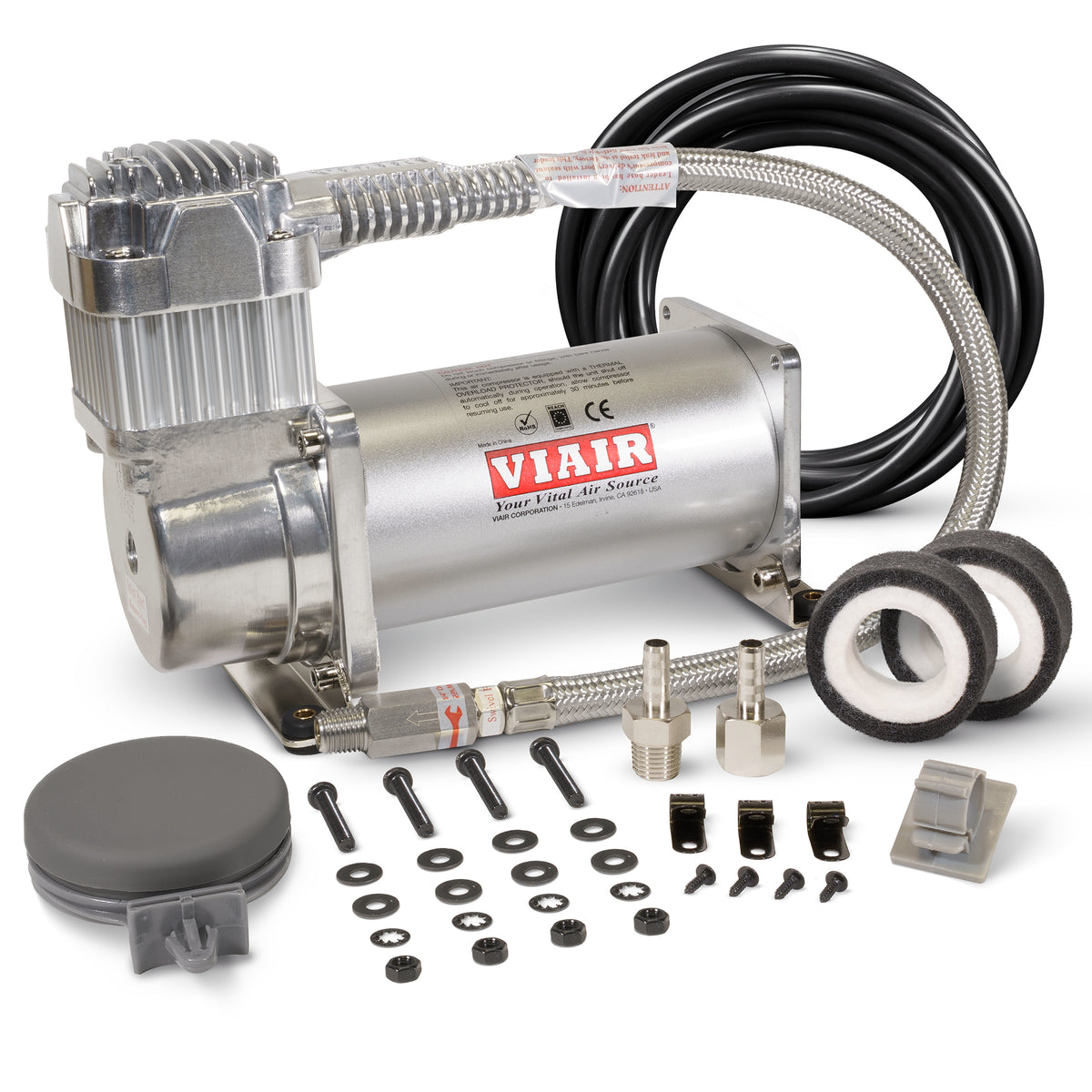

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 30-Amps
  • Max. 24V Amp Draw: 15 Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.65 lbs.

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

12-VOLT COMPRESSOR

24-VOLT COMPRESSOR

Product Resources

Find all the information available for this product

VIAIR in the wild
VIAIR in the wild
VIAIR in the wild
VIAIR in the wild

Recharge a 2.5-gallon tank in 48 seconds

Recharge 5-gallon tank in 1 minute and 40 seconds
