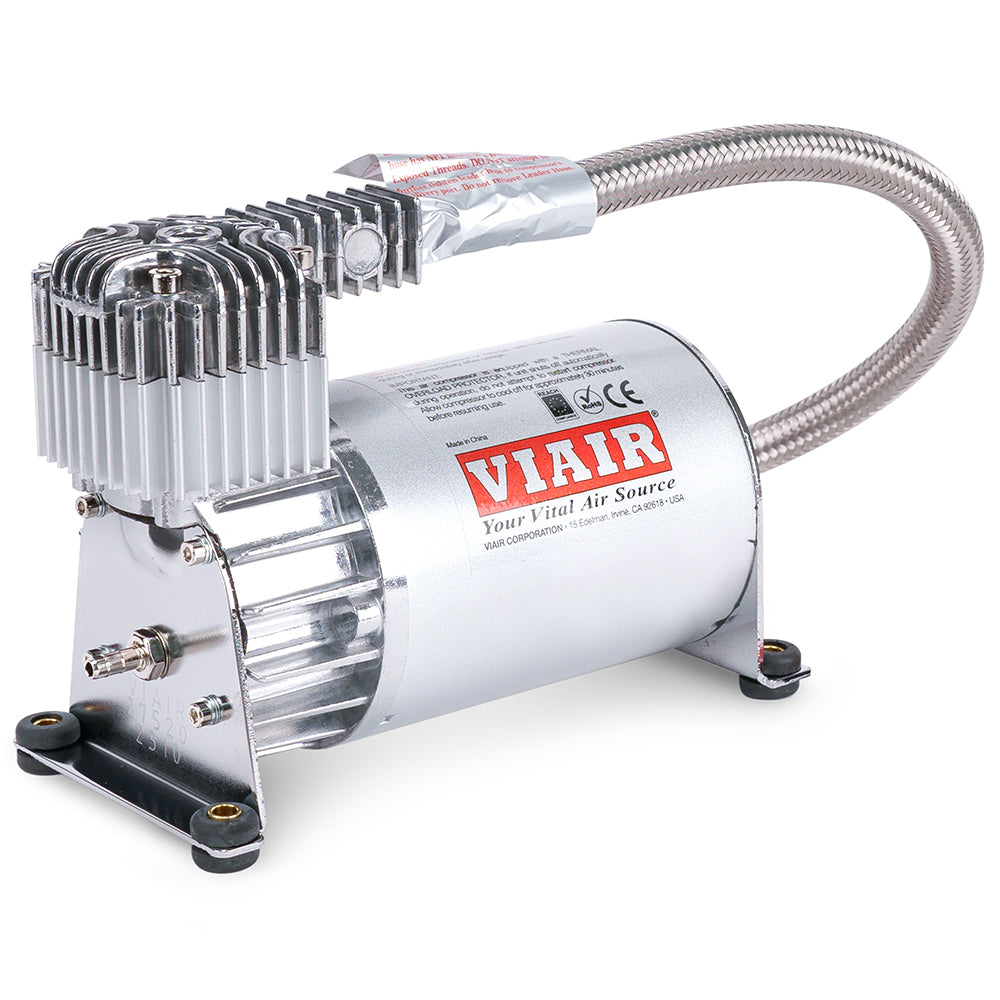

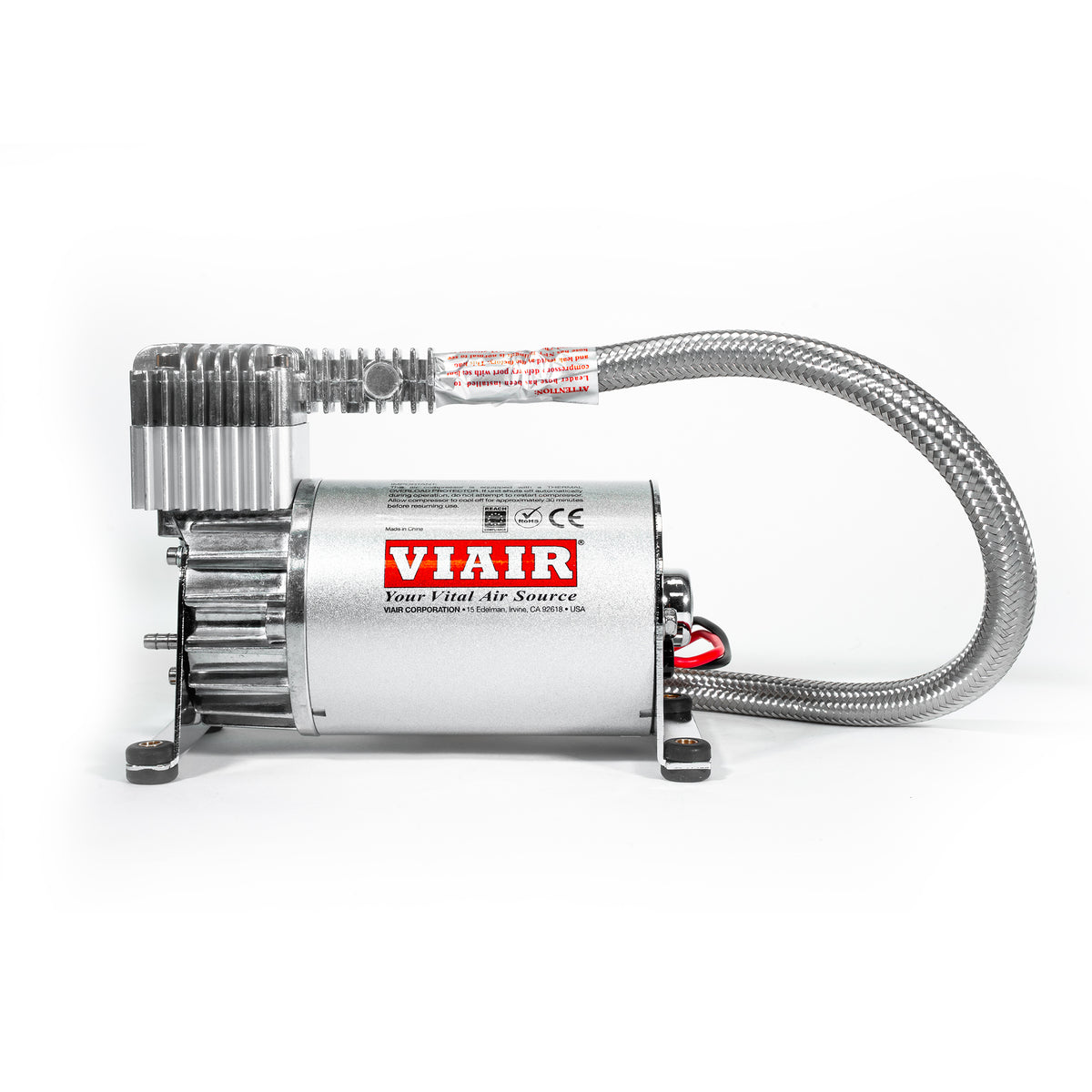

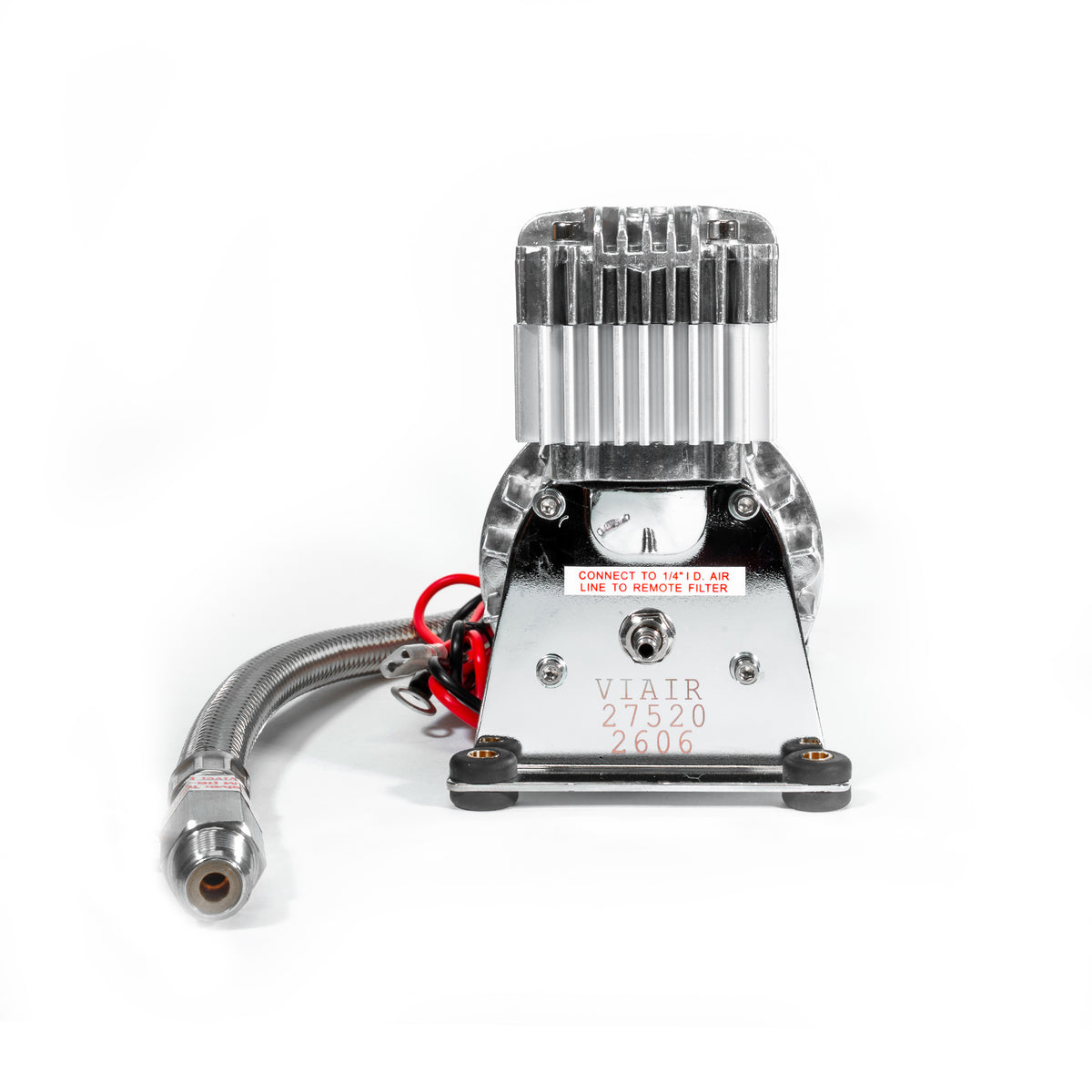

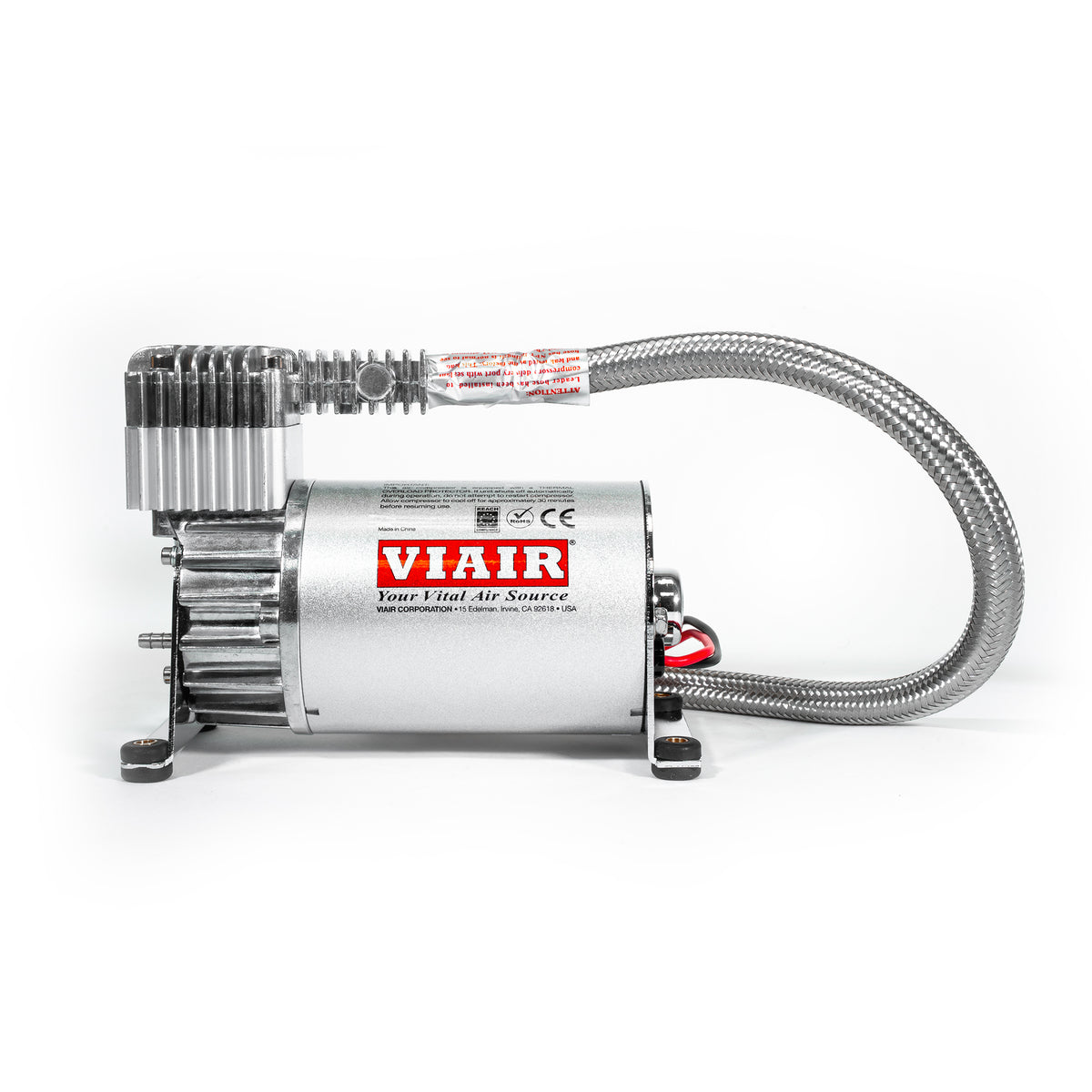

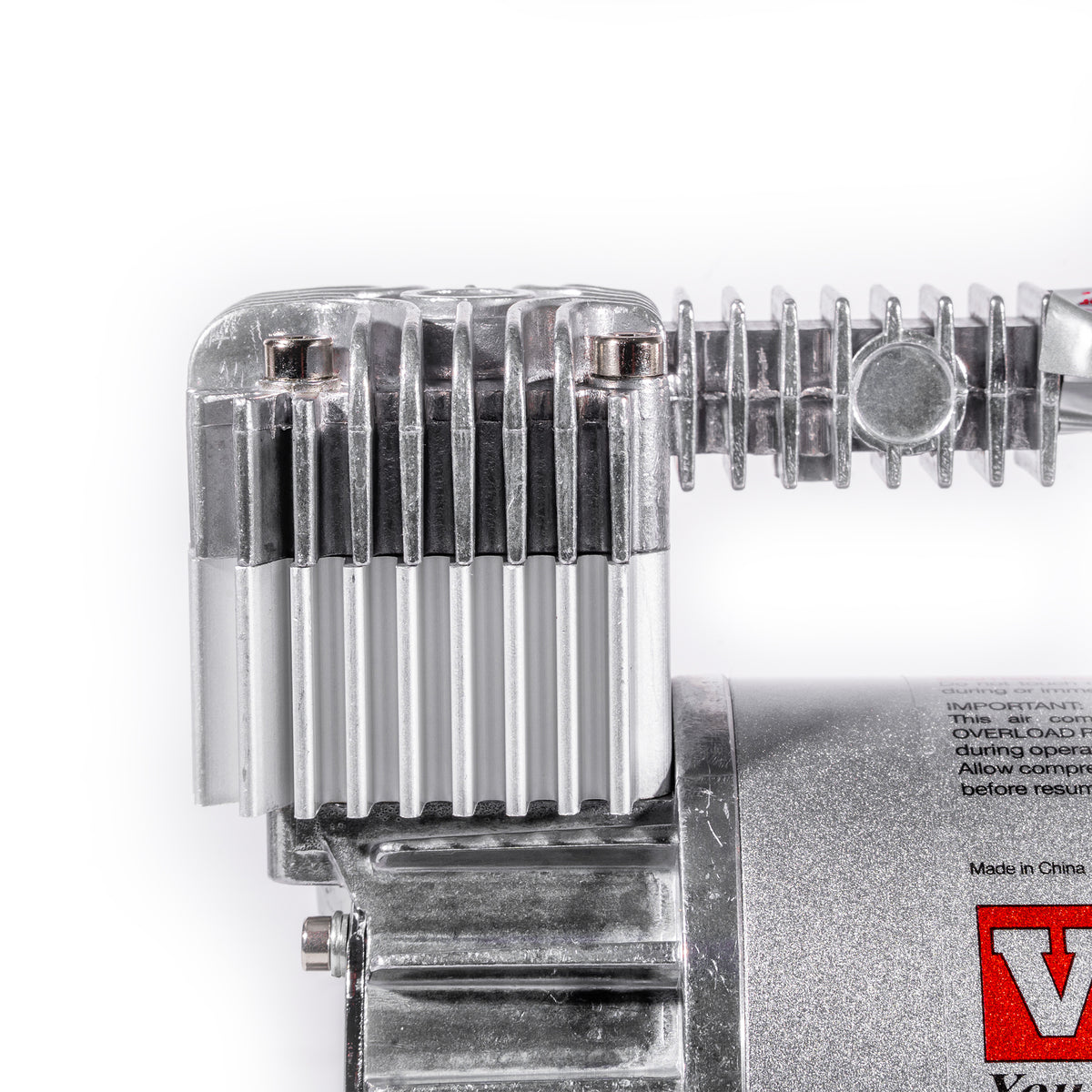

275C Compressor

Part Number: 27520
Regular price $231.25
Regular price Sale price $231.25
275C Compressor
275C Compressor

275C Compressor

Part Number: 27520
Regular price $231.25
Regular price Sale price $231.25

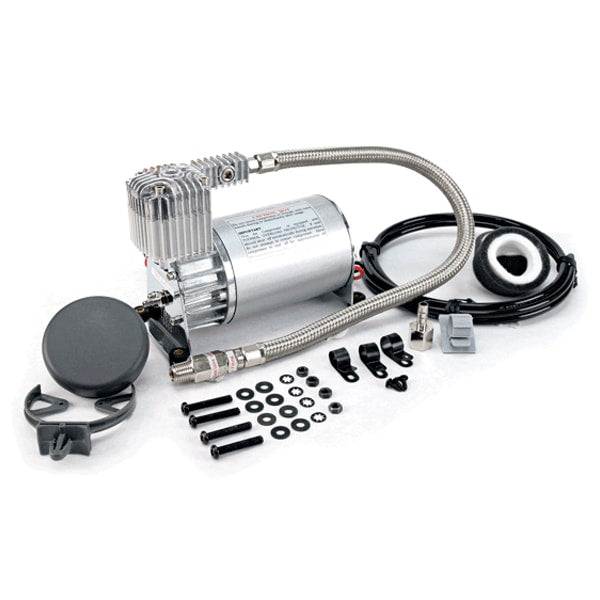

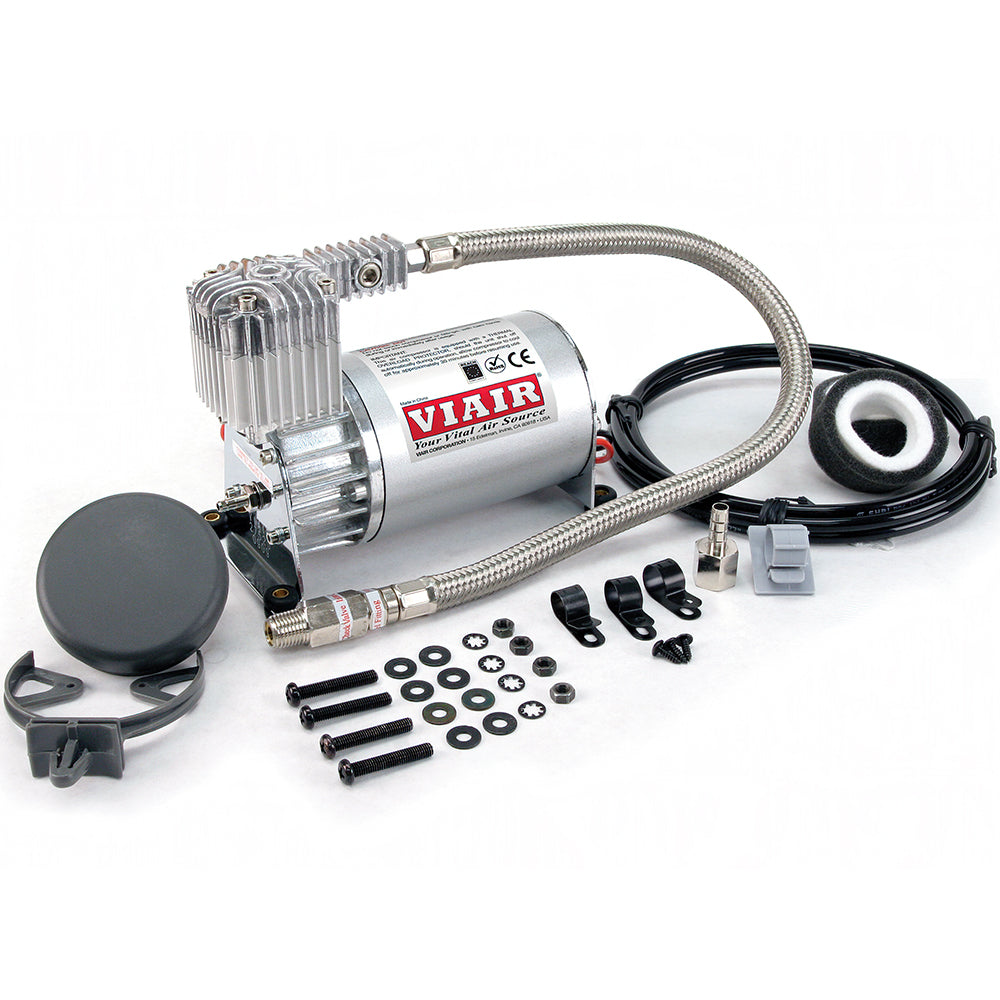

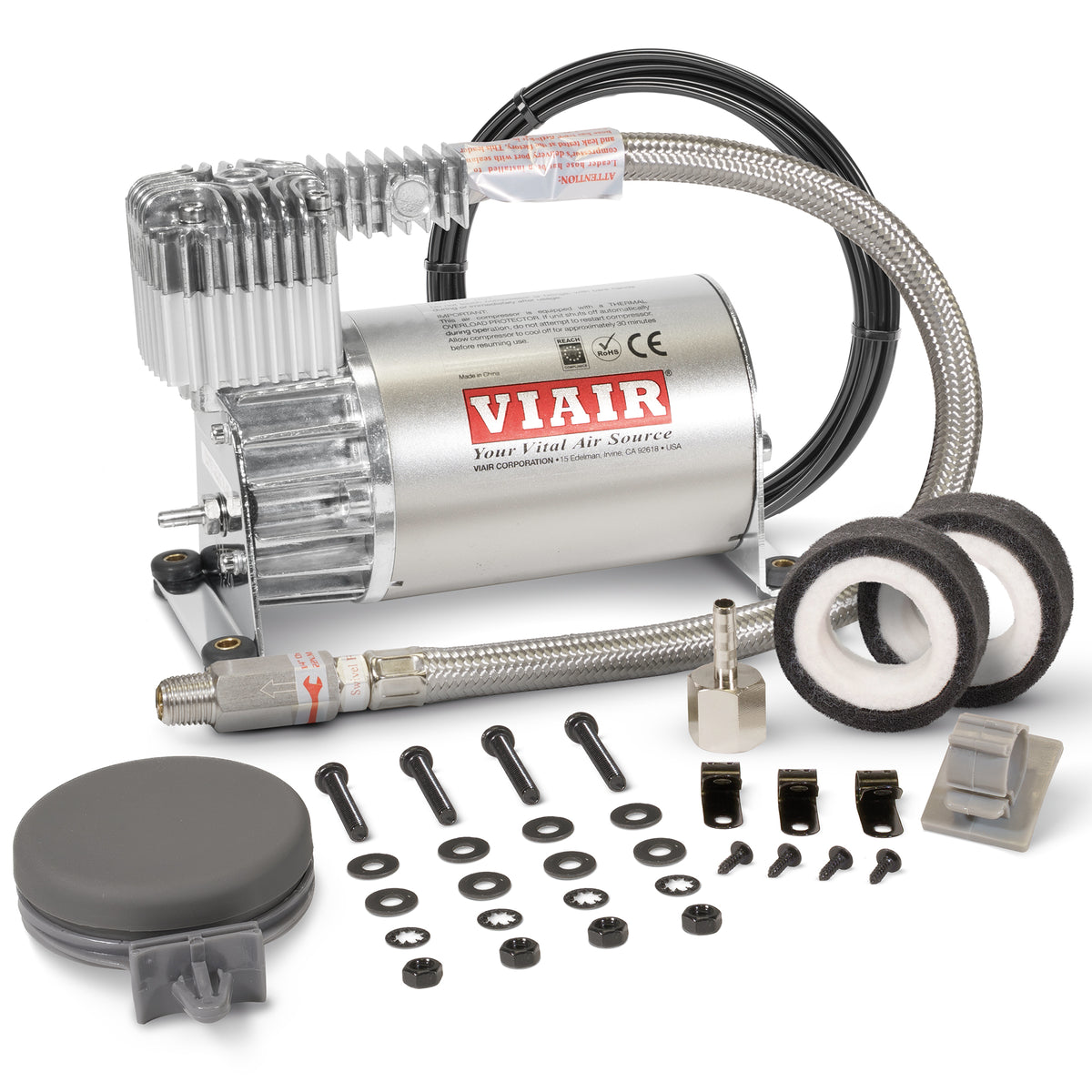

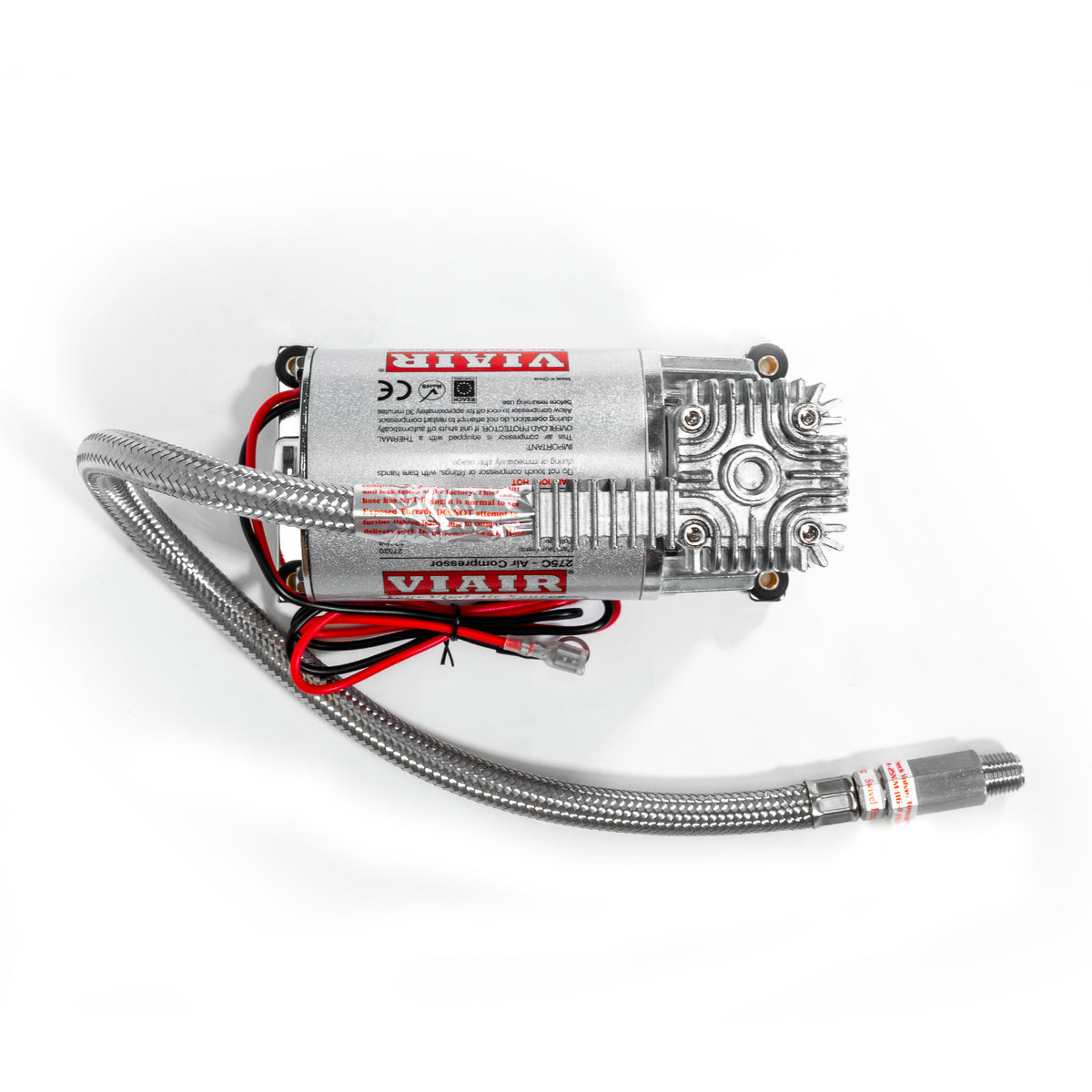

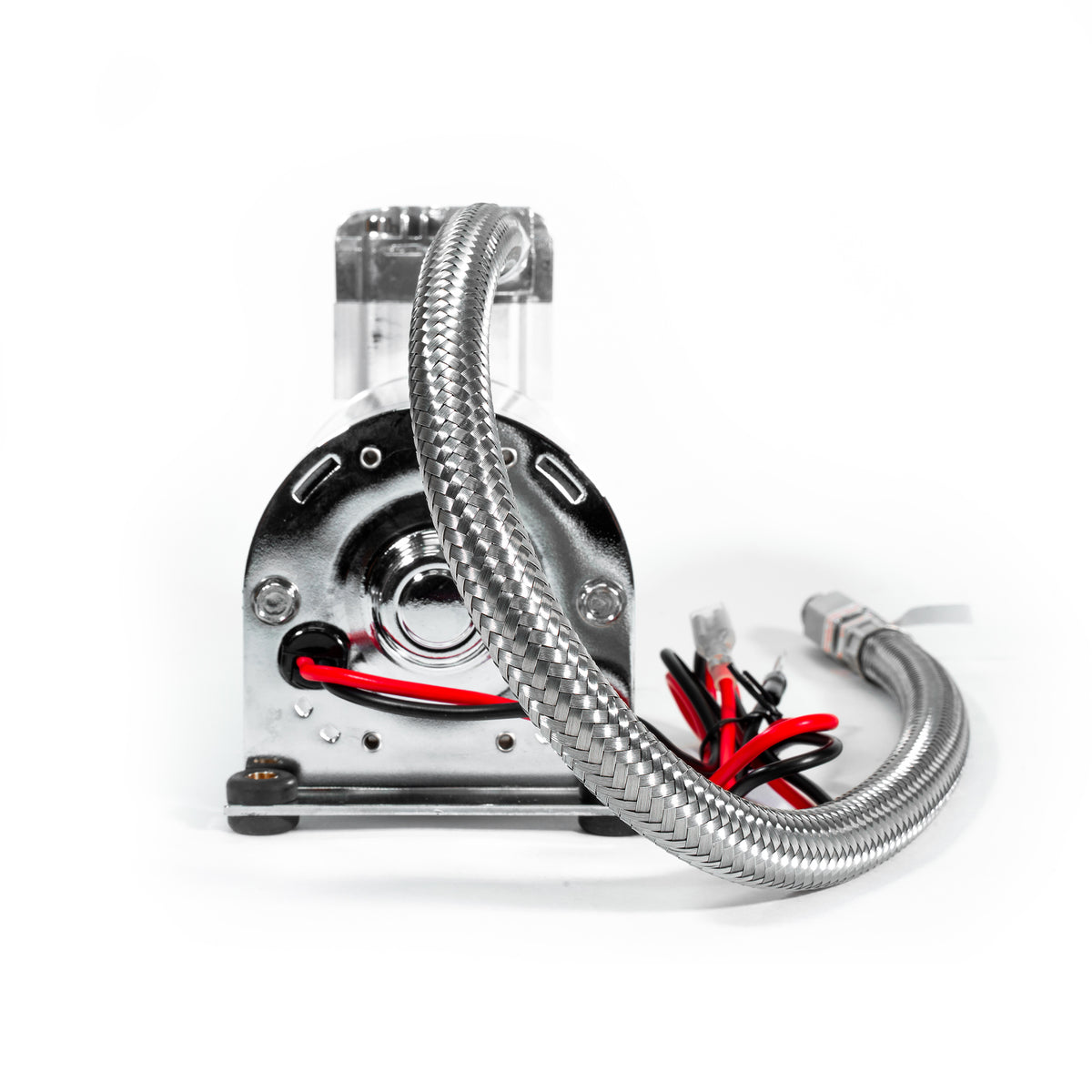

The 275C air compressor has a max run time of 15 minutes and comes equipped with a stainless steel braided leader hose, check valve and remote air filter assembly. Mounting hardware is included.

275C Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct-Drive

Unmatched Testing

Aims for 0% failure rate

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 2.5 Gallon
  • Max. 12V Amp Draw: 20-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 6.5″L x 3.5″W x 4.5″H
  • Net Weight: 5.20 lbs

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
