Sale

Dual 400C VMS System with Bracket - Sprinter Van

Part Number: SPRTR19-CHRM400
$605.66
$672.95 $605.66
Dual 400C VMS System with Bracket - Sprinter Van
Dual 400C VMS System with Bracket - Sprinter Van
Sale

Dual 400C VMS System with Bracket - Sprinter Van

Part Number: SPRTR19-CHRM400
$605.66
$672.95 $605.66

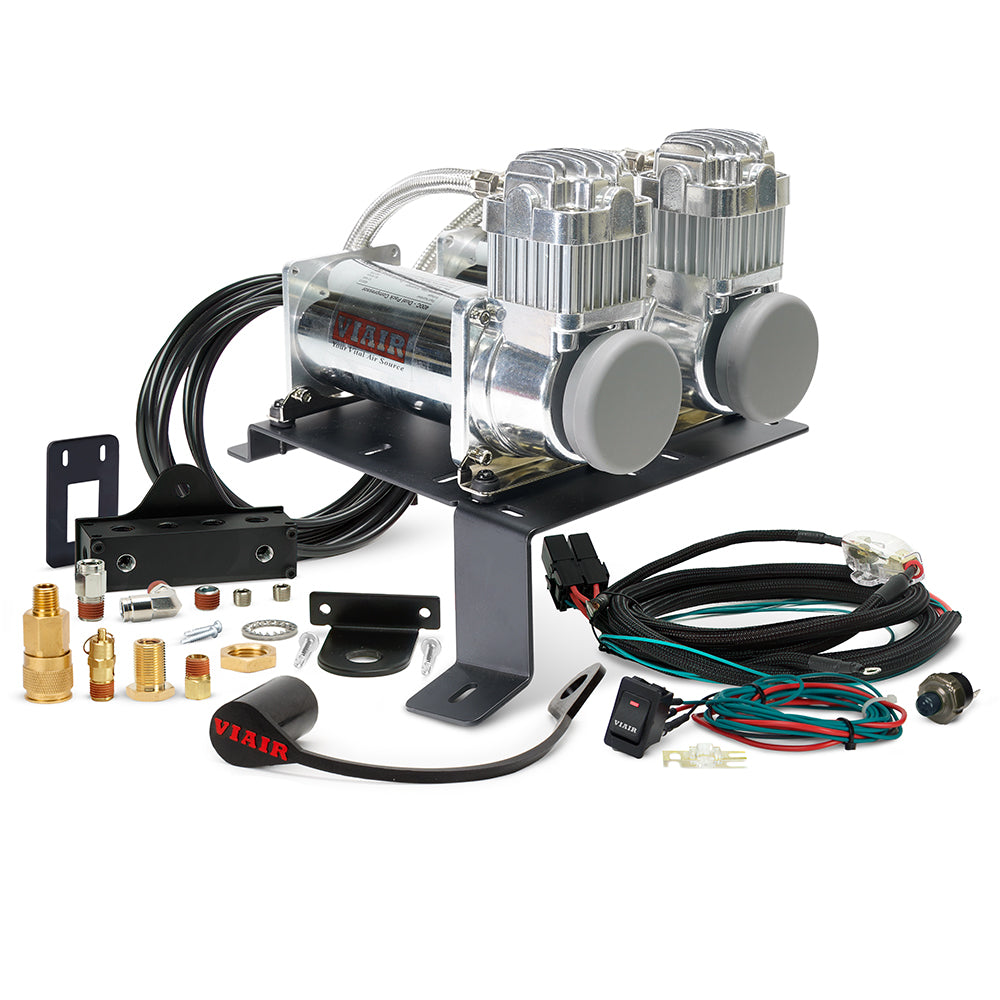

Dual 400C VMS System with bracket for 2019+ Sprinter Van!

VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. These kits come with all components necessary to install a fully functioning system. A vehicle-specific bracket provides an easy mounting platform in the engine bay of your Sprinter Van. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.



Color: Chrome

Dual 400C VMS System with Bracket - Sprinter Van

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 5.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60 Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 25 lbs.

FEATURES:

  • (2) 400C (Stealth Black or Chrome) Compressors
    w/ Thermal Overload Protectors
  • Complete dual wiring harness
    w/ 80A fuse holder
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67
    (Waterproof/Dustproof)
  • Designed to be air tank ready (Air tank optional)
  • 8-port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATES

TANK FILL RATES

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Plumbing Diagram Dimensional Drawing
