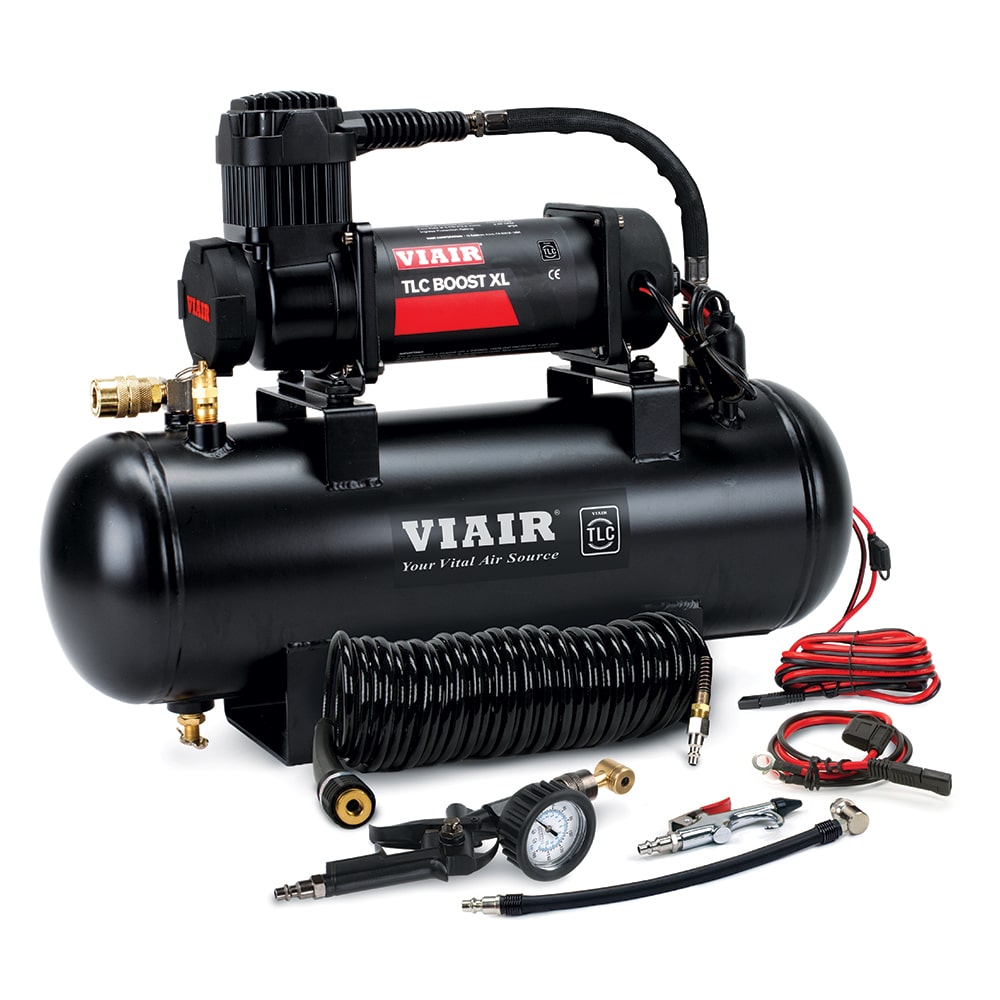

TLC® BOOST XL 150 PSI Air Source Kit

Part Number: 42041
$359.96
$479.95 $359.96
TLC® BOOST XL 150 PSI Air Source Kit TLC® BOOST XL 150 PSI Air Source Kit TLC® BOOST XL 150 PSI Air Source Kit TLC® BOOST XL 150 PSI Air Source Kit TLC® BOOST XL 150 PSI Air Source Kit TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
TLC® BOOST XL 150 PSI Air Source Kit
Sale

TLC® BOOST XL 150 PSI Air Source Kit

Part Number: 42041
$359.96
$479.95 $359.96

The TLC®BOOST, but on steroids. Equipped with a bigger motor, 2 Gallon tank and working pressure of 150PSI, this is the ultimate tool for pneumatic tasks. Meant to be hard mounted to your vehicle, the BOOST XL offers top performance to get the job done, whatever it is you’re aiming to do. More speed, more volume, same high quality.

TLC® BOOST XL 150 PSI Air Source Kit

Designed By

VIAIR Corp

Dual Function

For bikes and vehicles

Trusted by

World tour teams & privateers

What’s in the Box

Compressor And Tank

Coil Hose

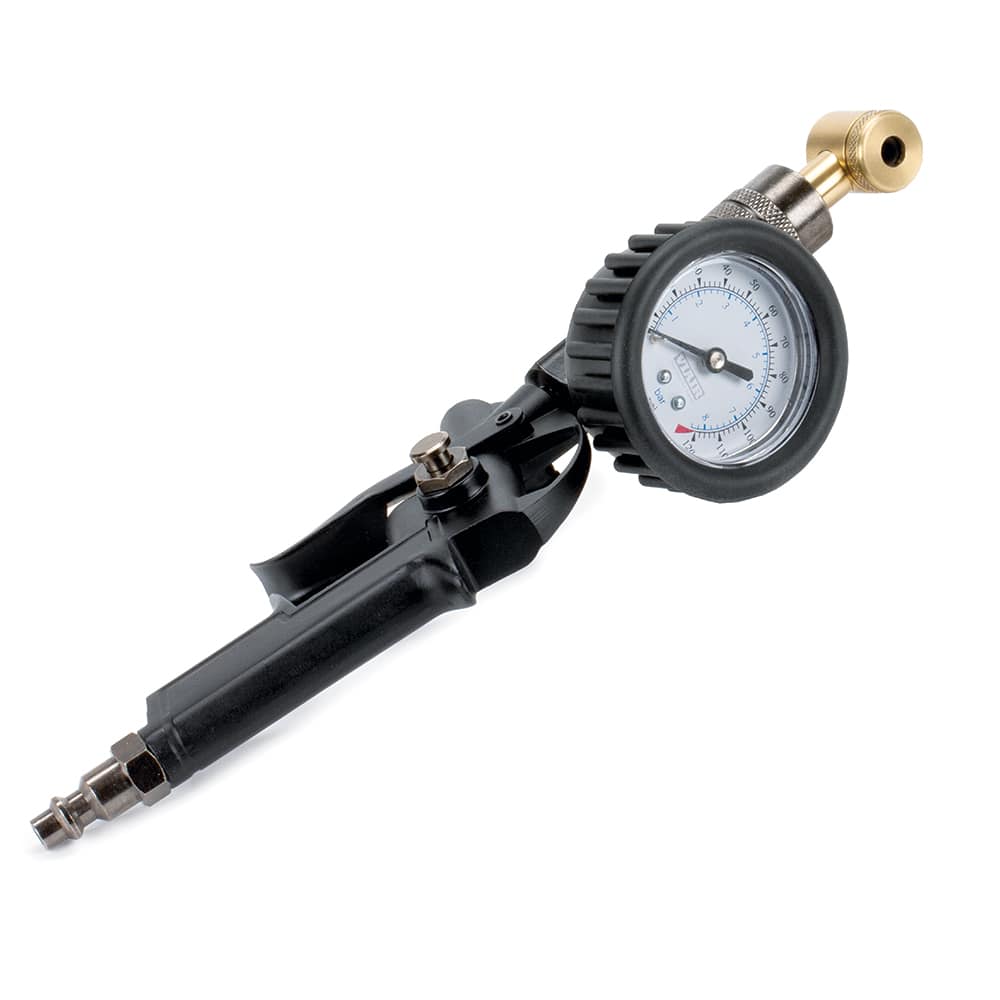

Inflation Gun

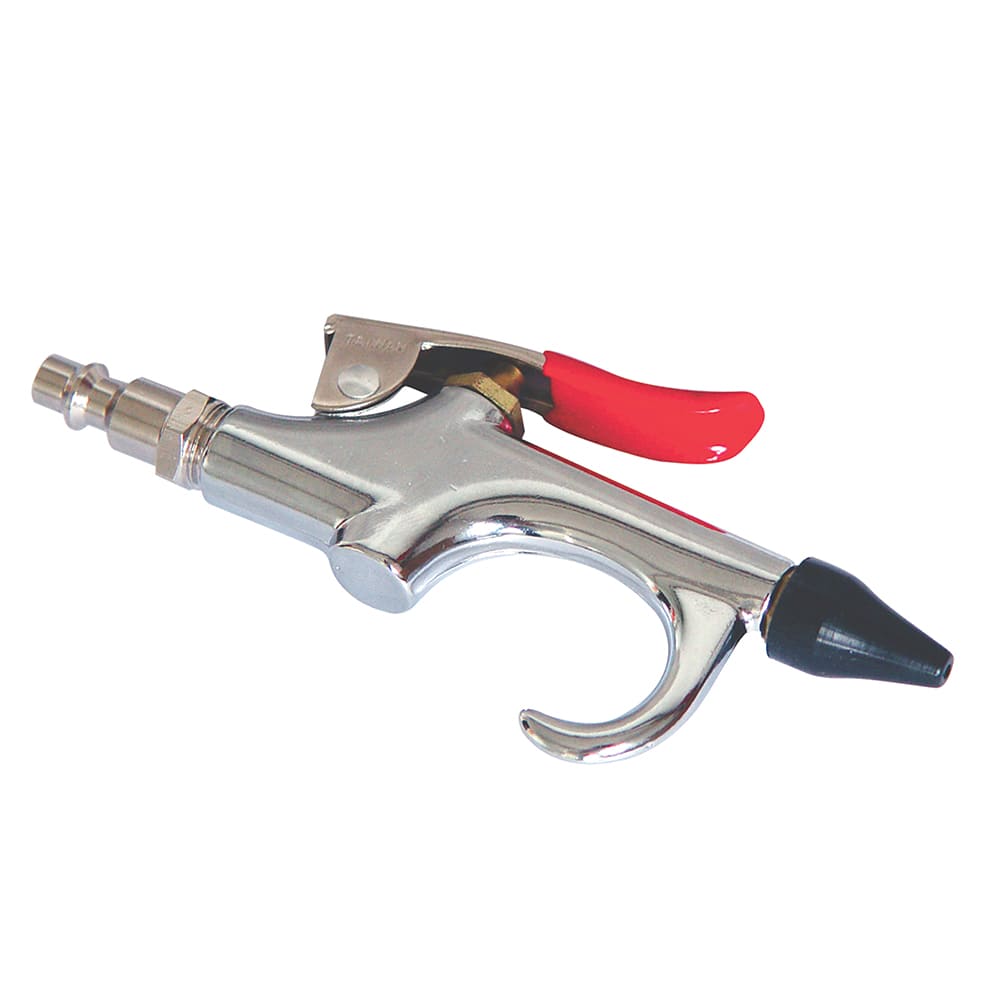

Blow Gun

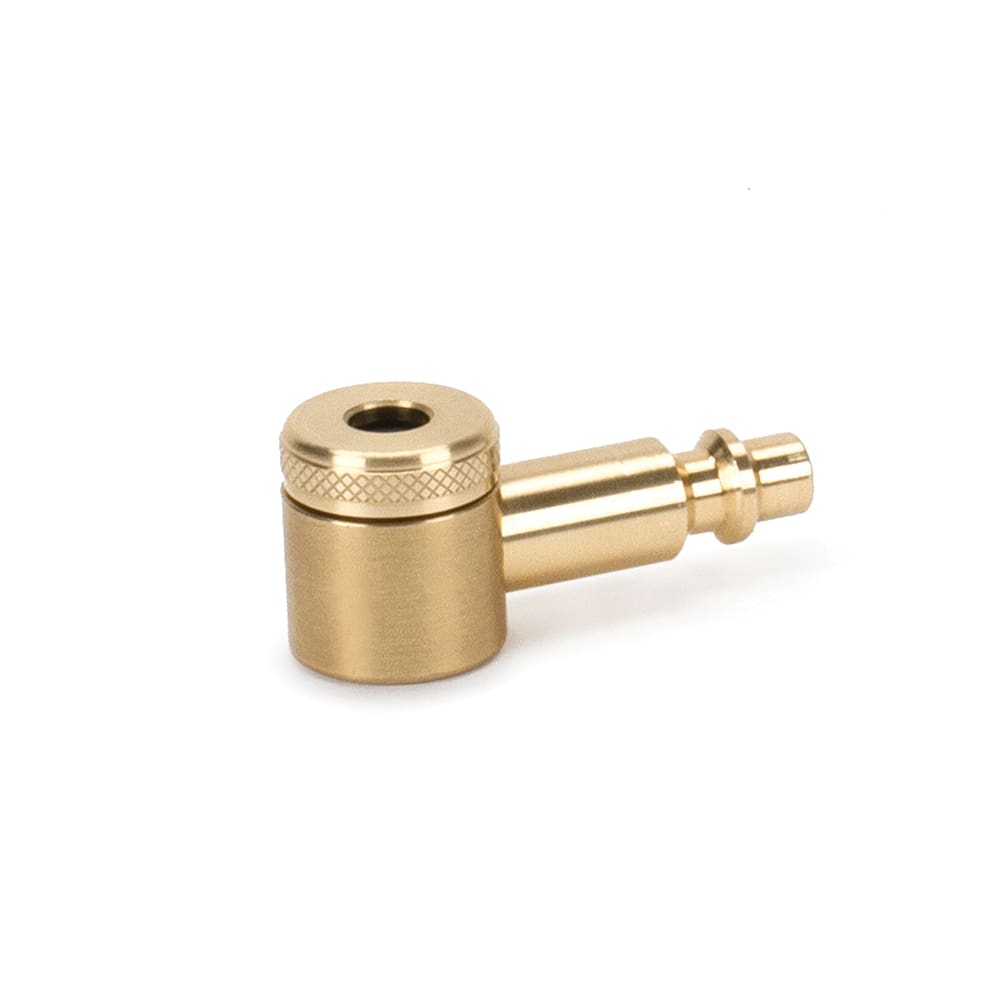

Presta Head

Inflation Tips Kit

Chuck Hose

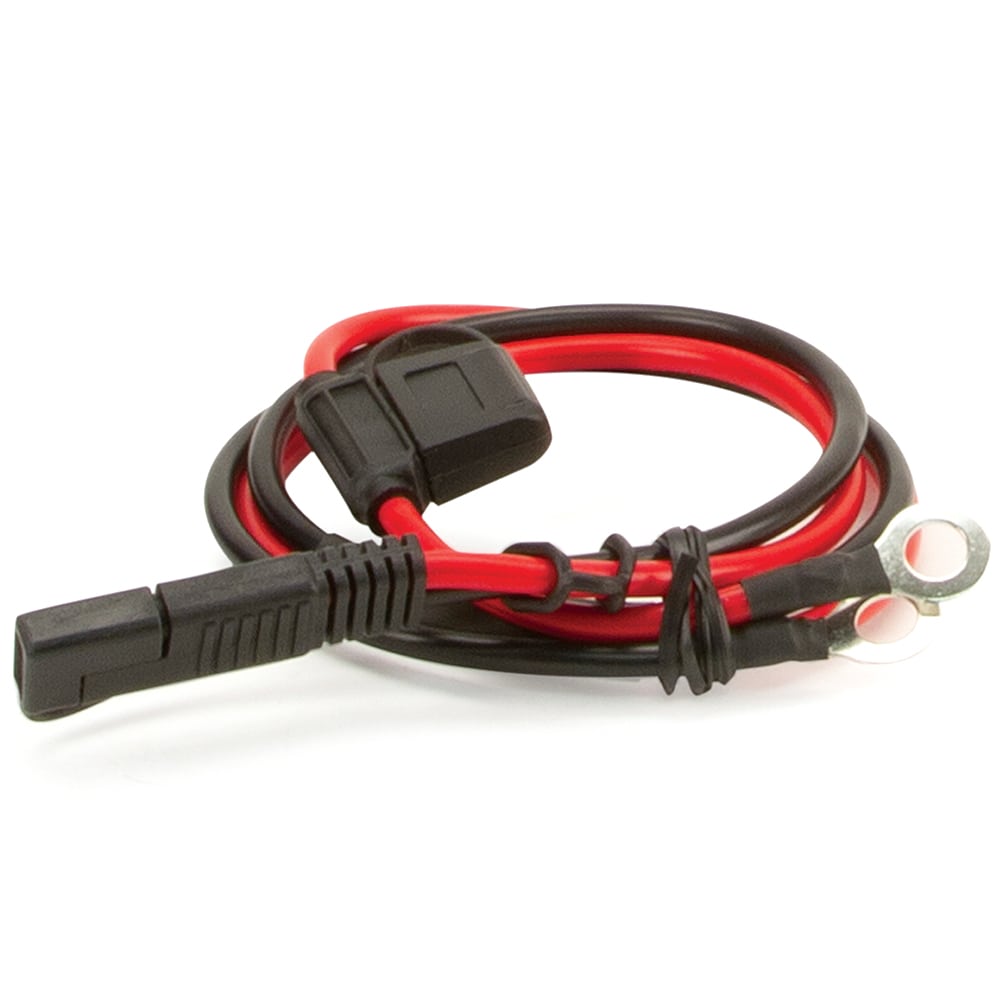

SAE to Battery Terminal Rings

Related Accessories

TLC® Tubeless Valve Stems

$23.95

Add to Cart

TLC® Tubeless Repair Kit

$18.95

Add to Cart

Add All To Cart

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -4°F
  • Dimensions: 19″L x 5.9″W x 14.79″H
  • Net Weight: 22.10 lbs.
  • Power Cord Length: 8 ft.
  • Air Hose Length: 30 ft.

FEATURES:

  • Shop-Style Inflator with 160 PSI Gauge
  • Fully Rebuildable Presta Head Attachment
  • 90° Twist-on Schrader Attachment
  • 30ft. Inside Braided Coil Hose
  • Blow Gun
  • 2.0-Gallon Air Tank
  • 2-Pin SAE Connector Attachment with Terminal Rings
  • 40-Amp Inline Fuse Holder
  • Mounting Hardware
  • Deluxe Carry Bag

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATE

TANK FILL RATE

ROAD BIKE TIRE FILL RATE - * For 12V Only

GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

Product Resources

Find all the information available for this product

User Manual Dimensional Drawing
