Sale

Single VMS Systems

Part Number: 400SB01
$369.95
$428.50 $369.95
Single VMS Systems Single VMS Systems Single VMS Systems Single VMS Systems Single VMS Systems Single VMS Systems
Single VMS Systems
Single VMS Systems
Single VMS Systems
Single VMS Systems
Single VMS Systems
Single VMS Systems
Sale

Single VMS Systems

Part Number: 400SB01
$369.95
$428.50 $369.95
Shipping calculated at checkout.

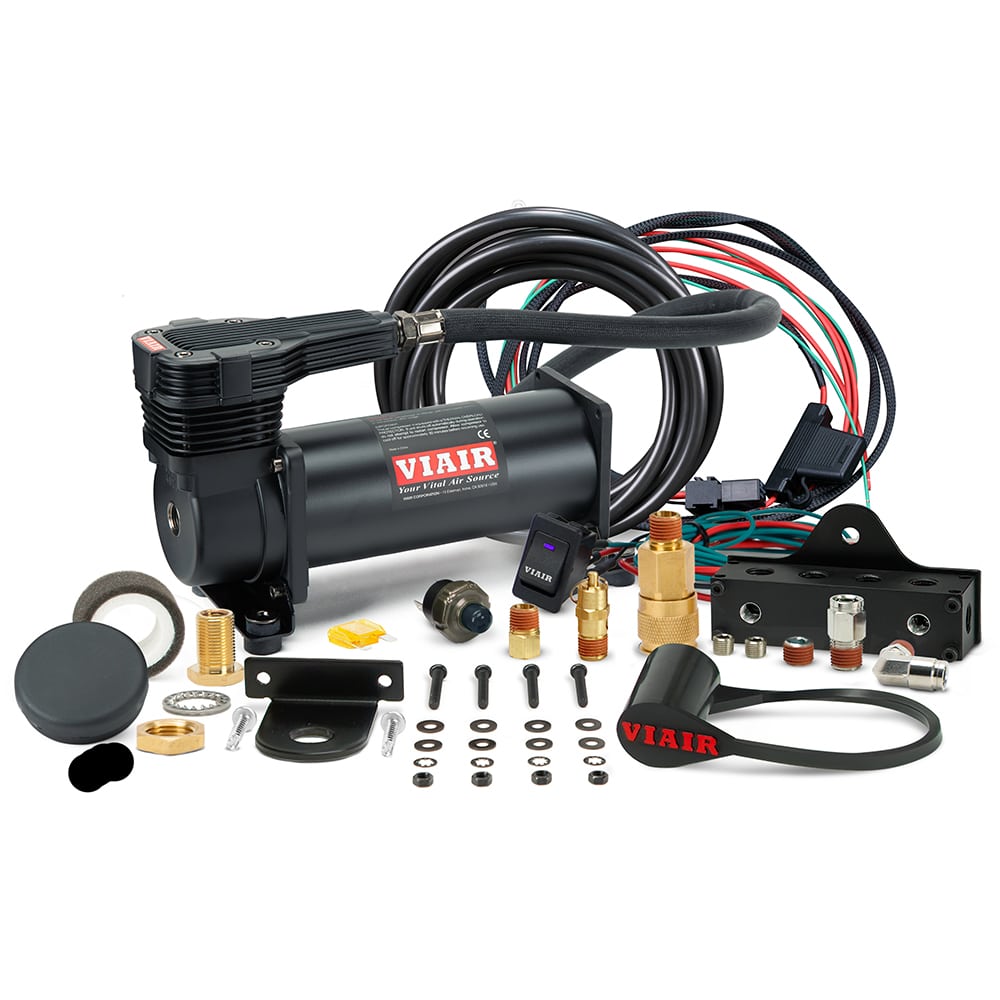

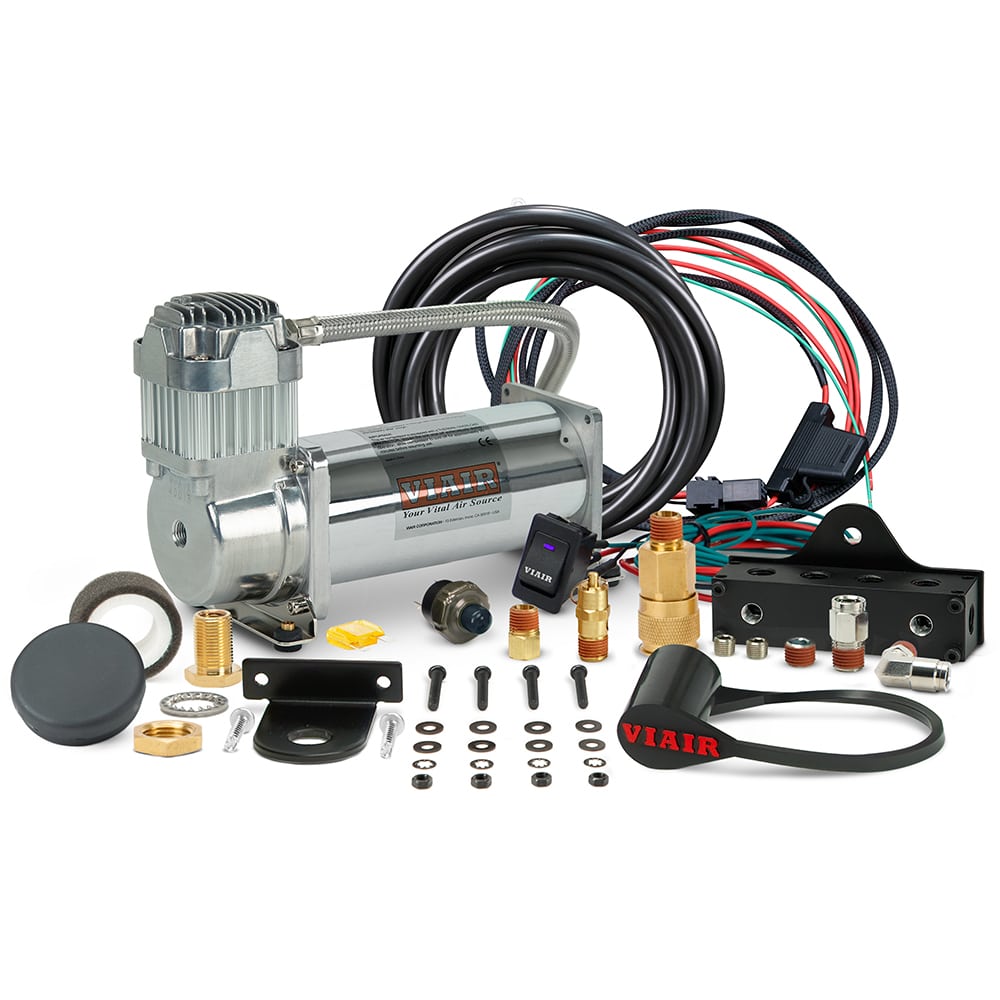

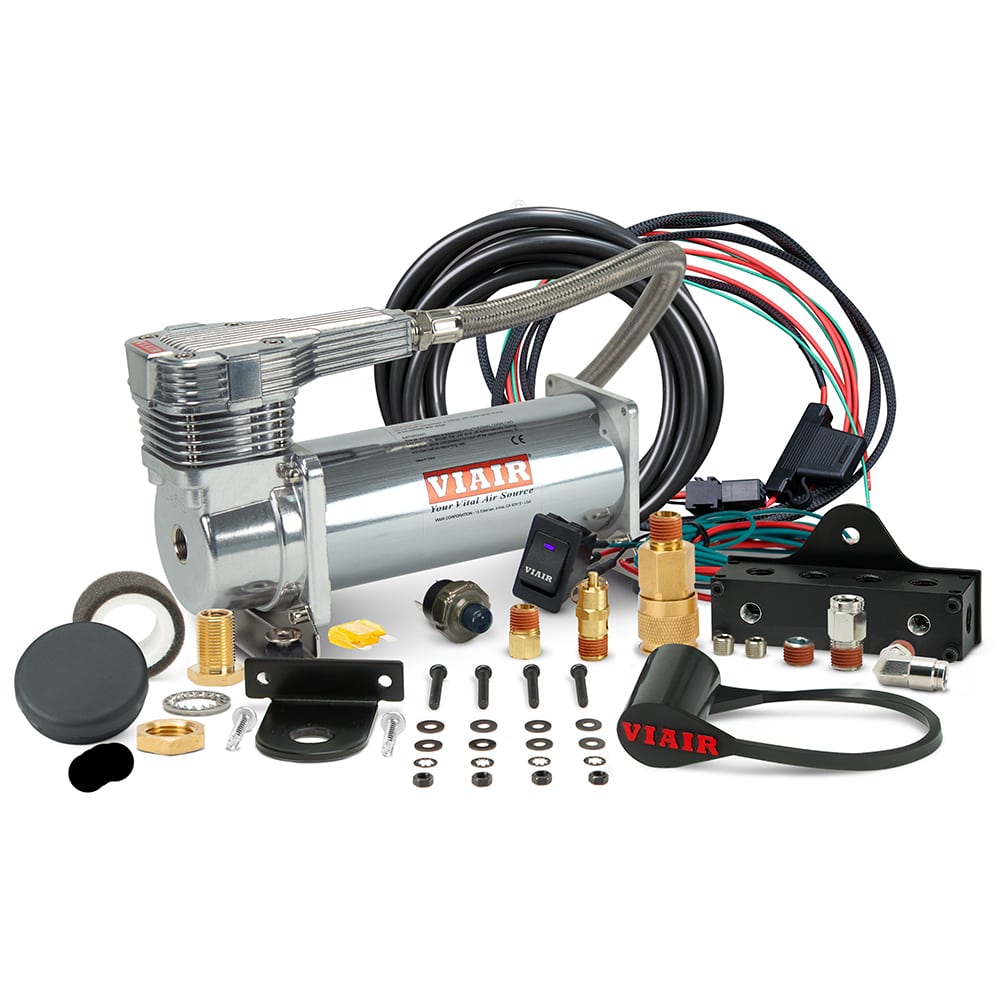

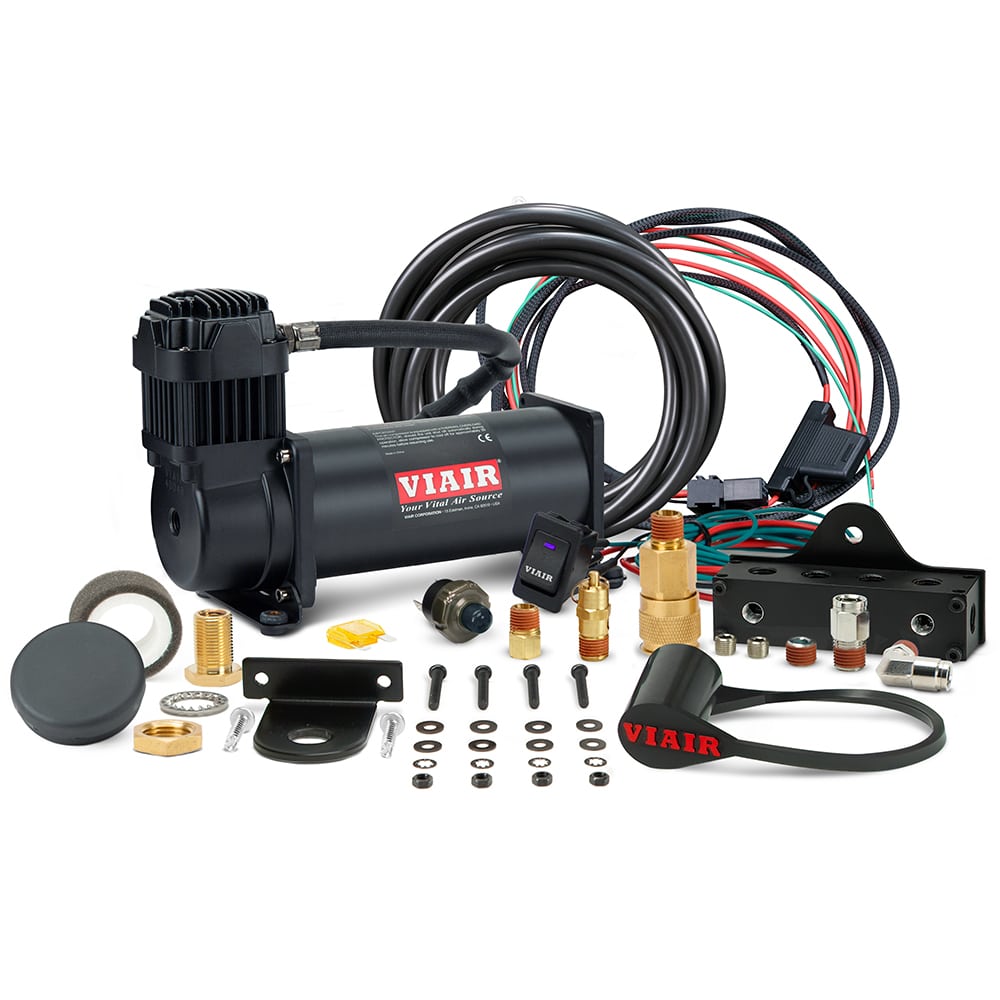

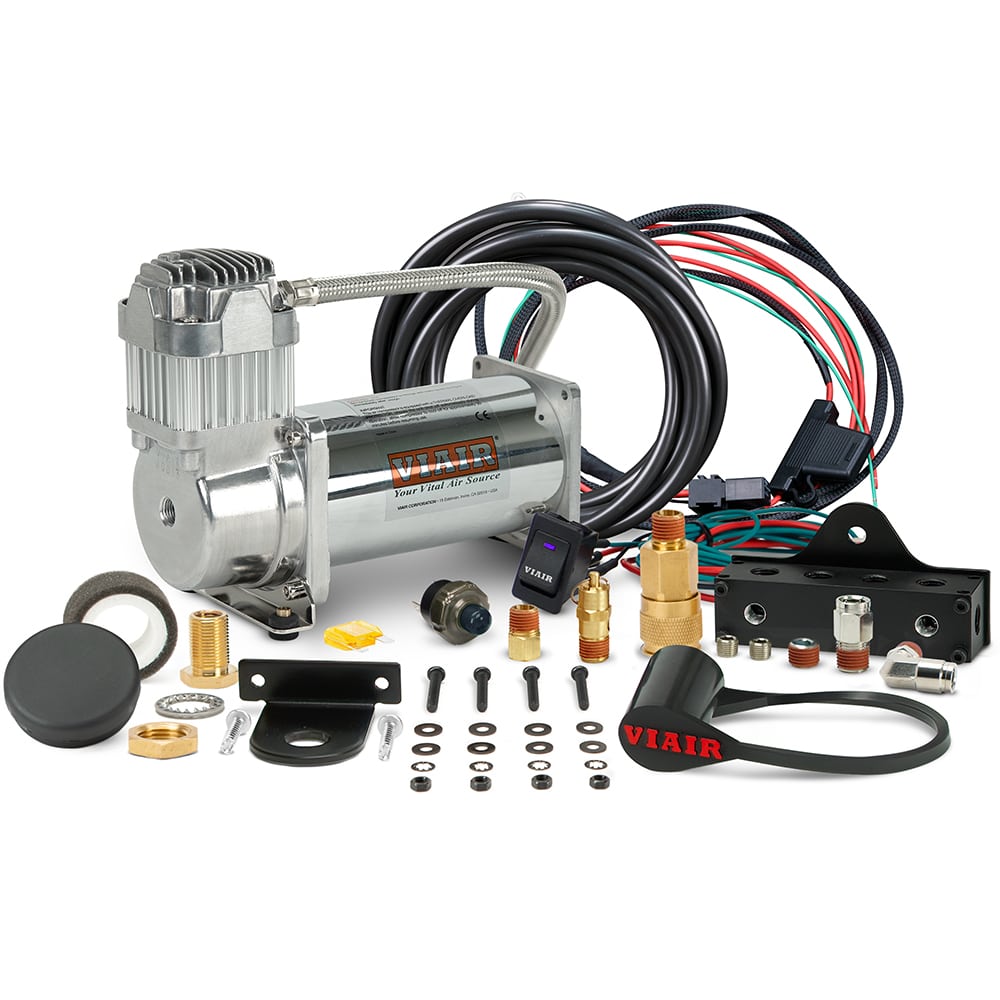

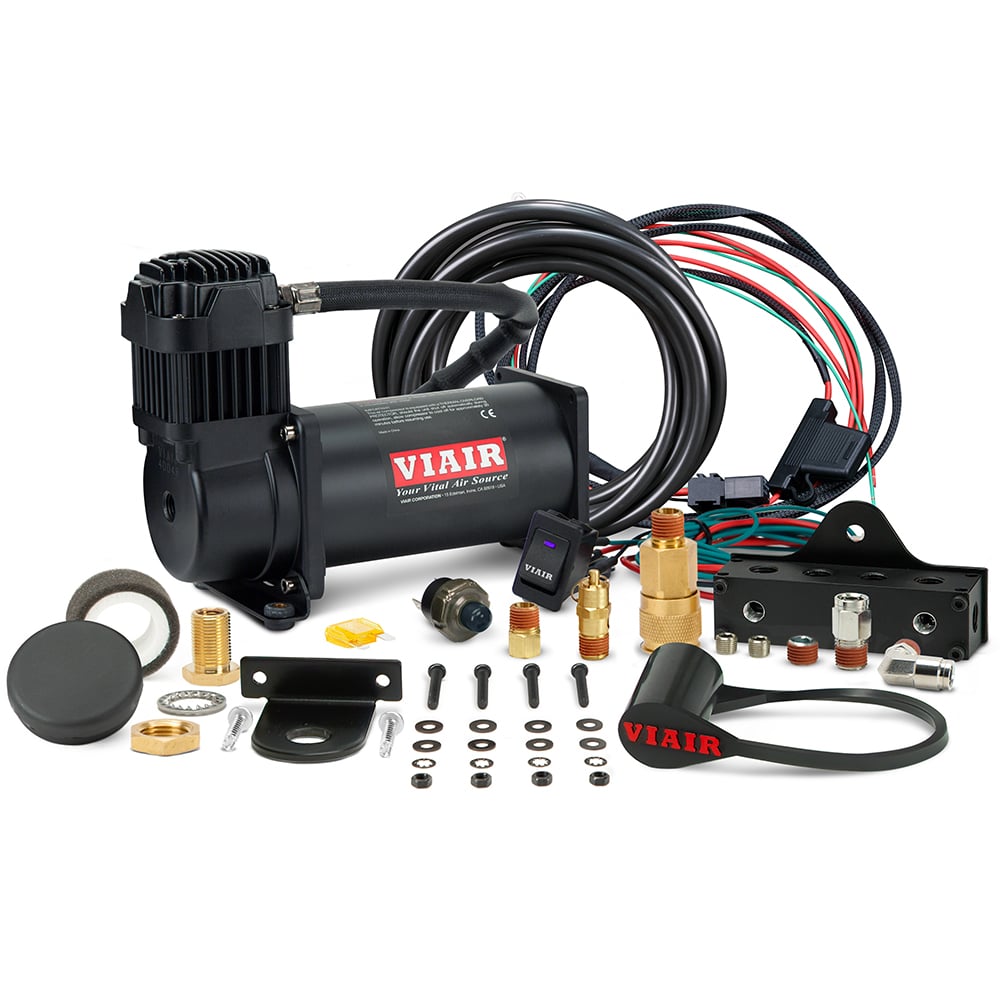

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability. These kits come with a single compressor, wiring harness, a high-quality remote air chuck kit, and all necessary hardware and components to install a fully functioning system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds. Kits are also available in a dual configuration.

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.

400C
444C
485C
Color: Stealth Black

Single VMS Systems

What’s in the Box

Specifications

Performance

Fill Rates

Resources

400C SPECS
  • CFM: 2.62 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H
  • Net Weight: 8.65 lbs.
444C SPECS
  • CFM: 2.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:10.87″L x 4.2″W x 7.06″H
  • Net Weight: 10.80 lbs.
485C SPECS
  • CFM: 2.24 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Compressor Dimensions:10.63″L x 4.1″W x 6.44″H
  • Compressor’s Net Weight: 11.10 lbs.

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

400C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

485C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

400C

TIRE FILL RATE

400C

TANK FILL RATE

444C

TIRE FILL RATE

444C

TANK FILL RATE

485C

TIRE FILL RATE

485C

TANK FILL RATE

Product Resources

Dimensional-Drawing 400DB-400DC-400DB01-400DC01 Dimensional-Drawing 444DB-444DC-444DB01-444DC01 User-Manual 444DB-444DC User-Manual 485DB-485DP
