Sale

Single VMS Compressor

Part Number: 400SB
Regular price $197.55
Regular price $219.50 Sale price $197.55
Single VMS Compressor Single VMS Compressor Single VMS Compressor Single VMS Compressor Single VMS Compressor Single VMS Compressor
Single VMS Compressor
Single VMS Compressor
Single VMS Compressor
Single VMS Compressor
Single VMS Compressor
Single VMS Compressor
Sale

Single VMS Compressor

Part Number: 400SB
Regular price $197.55
Regular price $219.50 Sale price $197.55
Shipping calculated at checkout.

The Single VMS Compressor offers flexibility to build an onboard air system however you'd like. Sold individually without any accessories, this compressor is the ideal choice for those looking for an upgrade or needing the finishing piece for a new build.

Available in three configurations:

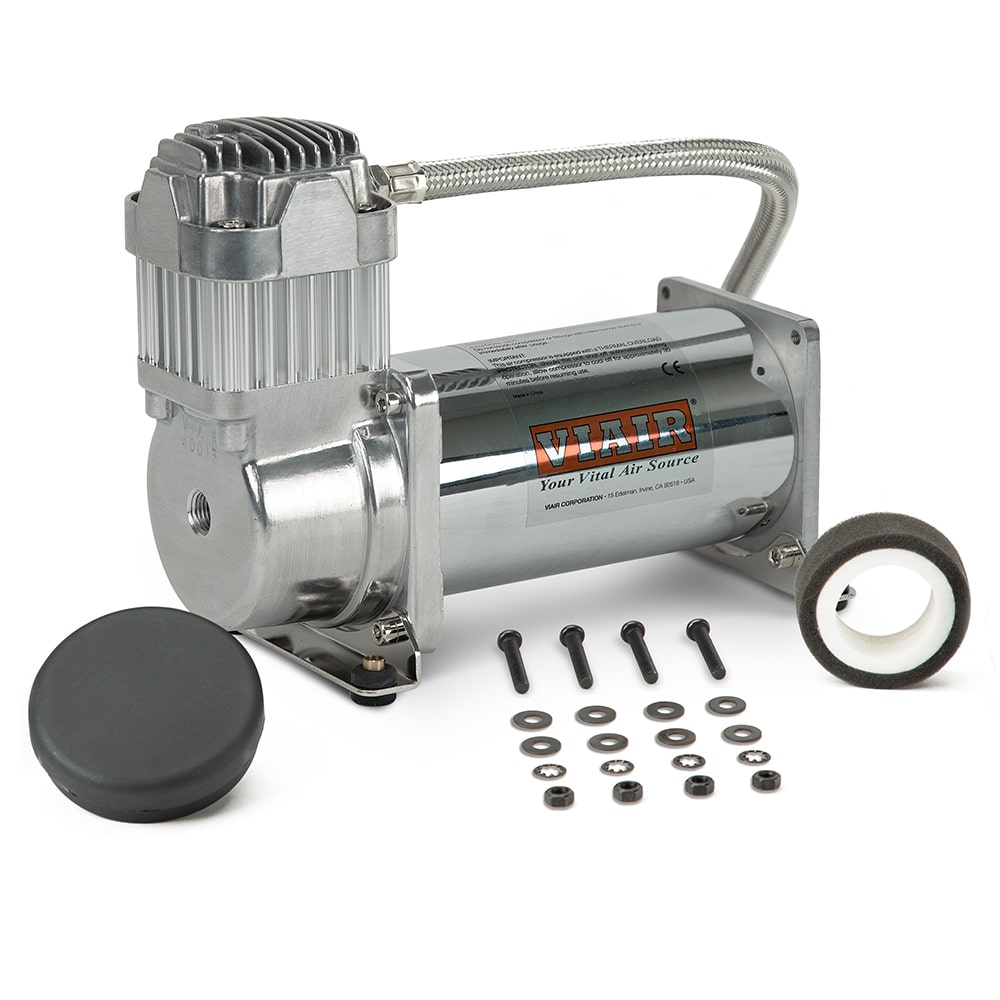

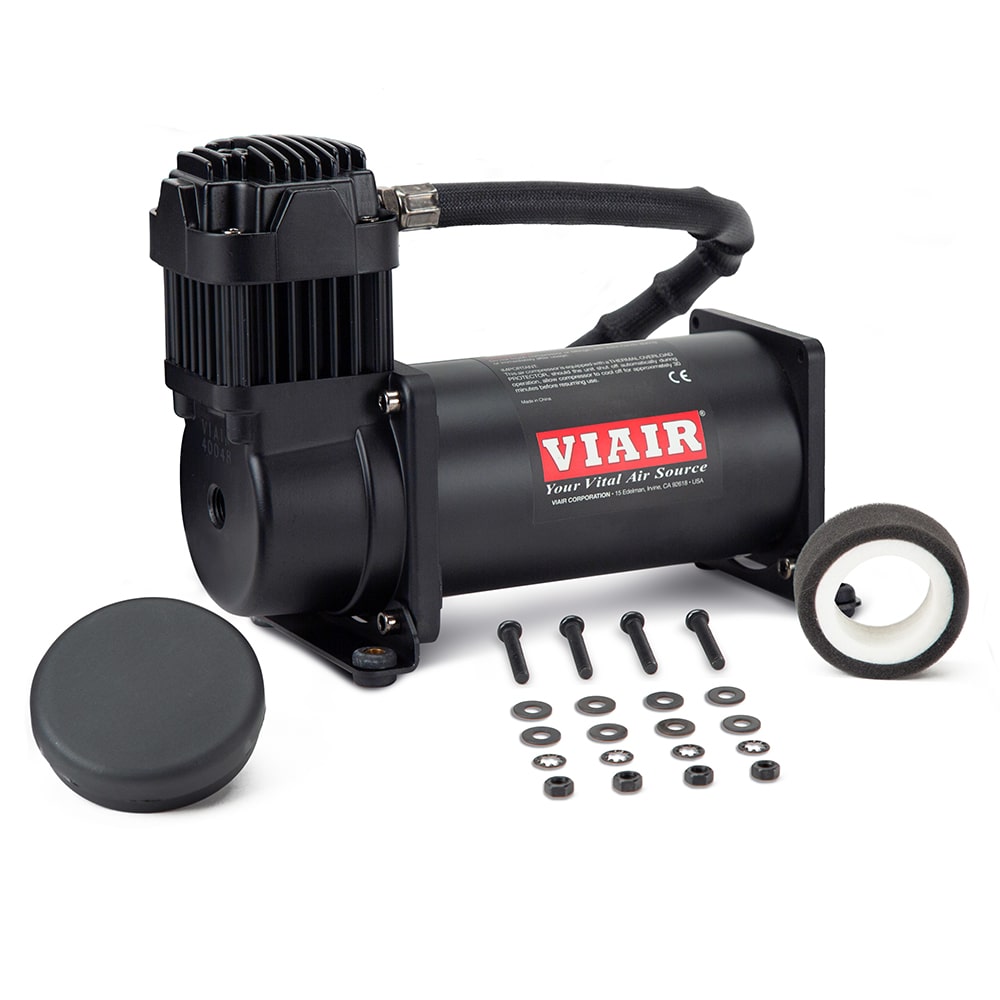

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

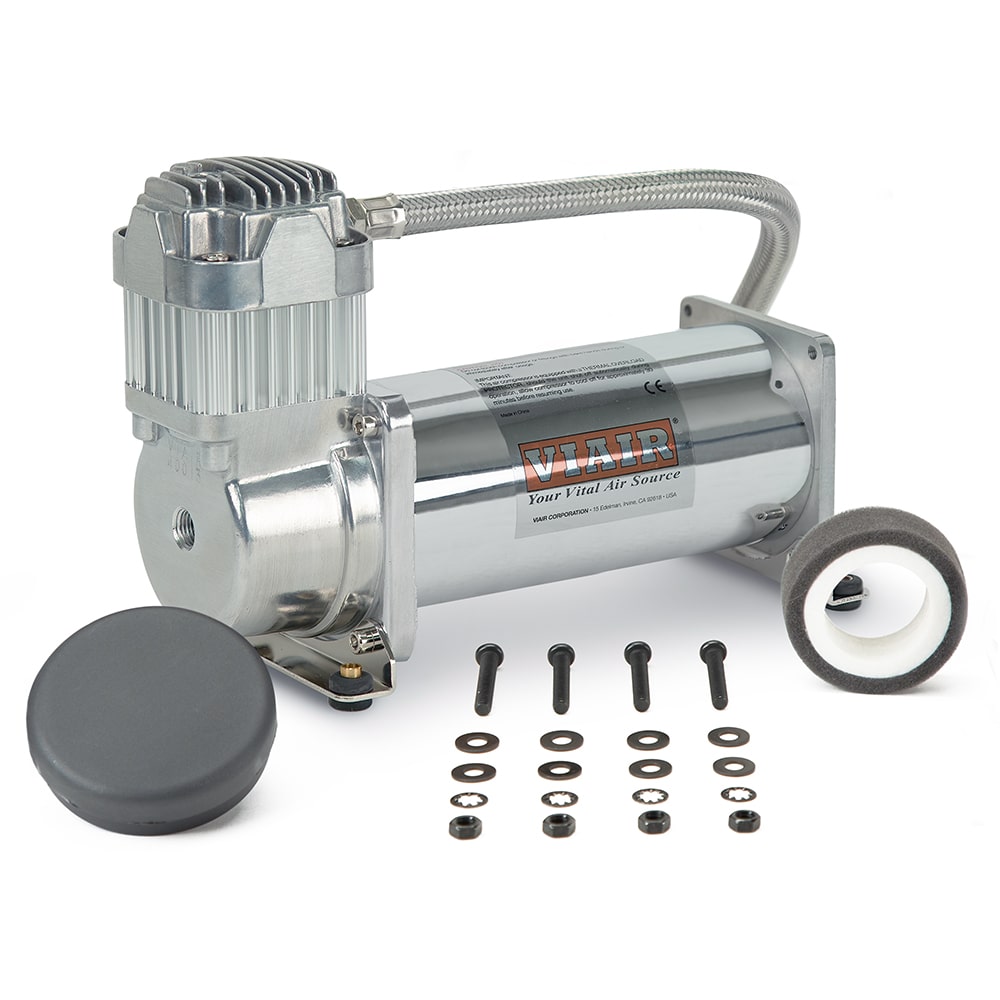

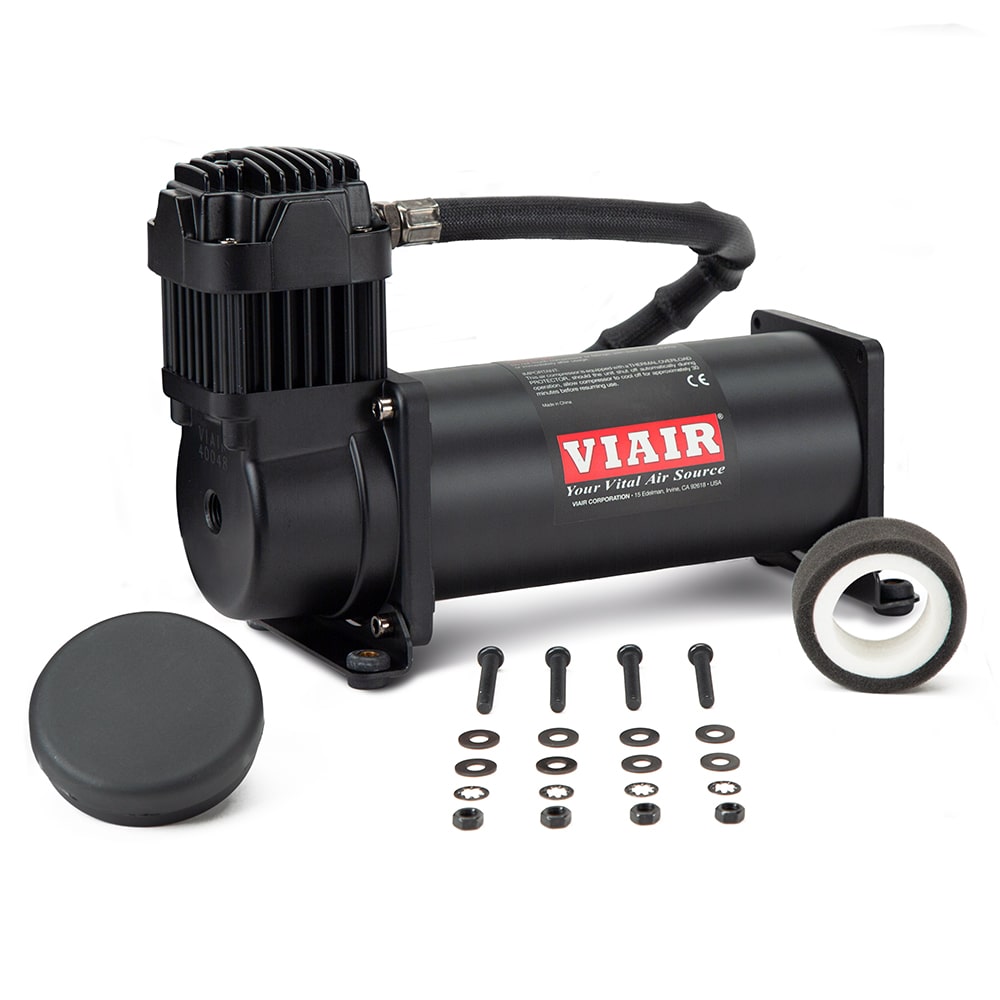

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

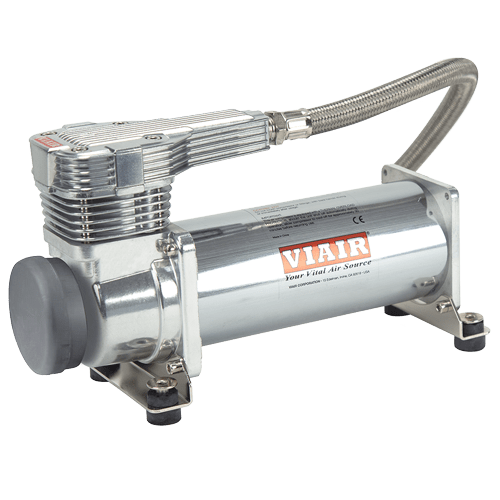

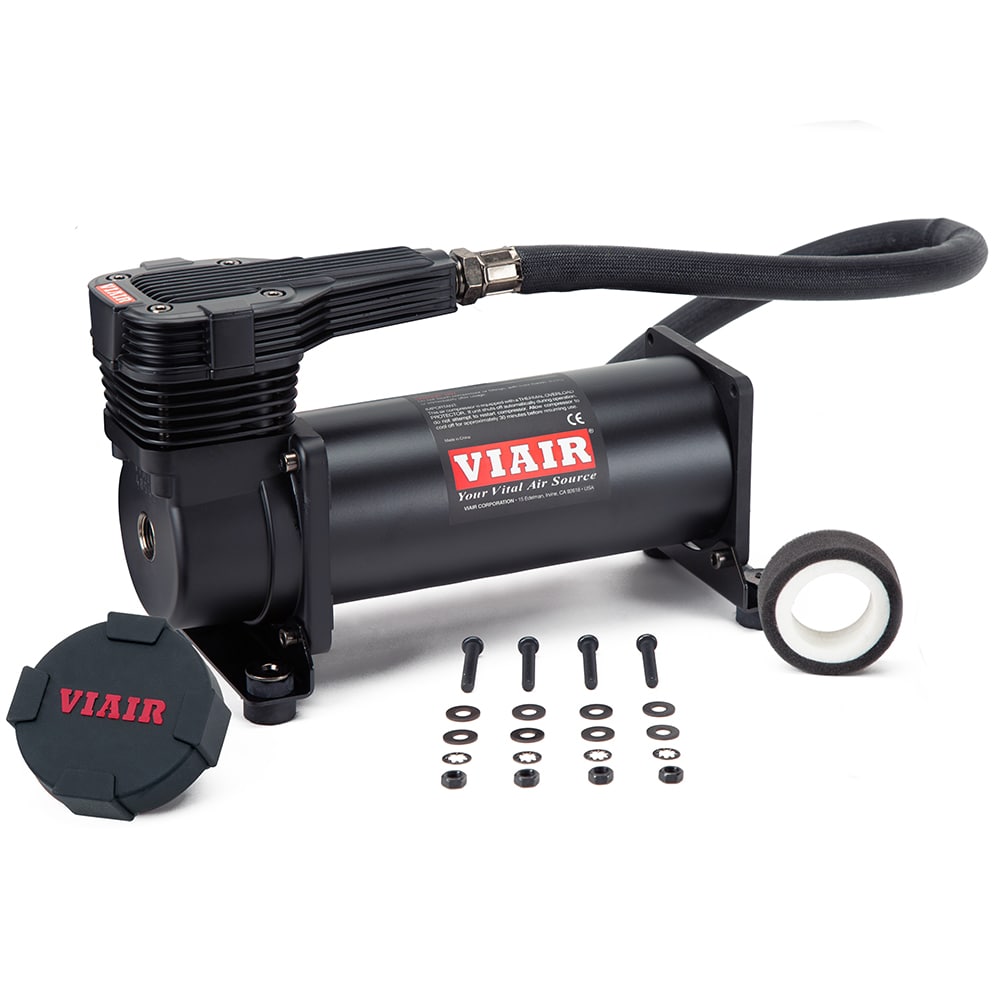

485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.

Single 400 VMS
Single 444 VMS
Single 485 VMS
Color: Stealth Black

Single VMS Compressor

What’s in the Box

Compressor

Air Filter and Mounting Hardware

Specifications

Performance

Fill Rates

400C SPECS
  • CFM: 2.62 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H
  • Net Weight: 8.65 lbs.

400C FEATURES
  • (1) 400C (Stealth Black or Chrome) Compressor
    w/ Thermal Overload Protector
  • (1) Stainless Steel Braided Leader Hose
    w/ Inline Check Valve
  • (1) Air Filter Assembly
  • (1) Spare Air Filter Element
  • (1) Set of Nuts, Bolts, Washers and
    Lock Washers
444C SPECS
  • CFM: 2.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:10.87″L x 4.2″W x 7.06″H
  • Net Weight: 10.80 lbs.

444C FEATURES
  • (1) 444C (Stealth Black or Chrome) Compressor
    w/ Thermal Overload Protector
  • (1) Stainless Steel Braided Leader Hose
    w/ Inline Check Valve
  • (1) Air Filter Assembly
  • (1) Spare Air Filter Element
  • (1) Set of Nuts, Bolts, Washers and
    Lock Washers
485C SPECS
  • CFM: 2.50 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Compressor Dimensions:10.63″L x 4.1″W x 6.44″H
  • Compressor’s Net Weight: 11.10 lbs.

485C FEATURES
  • 1) 485C (Stealth Black or Platinum) Compressor
    w/ Thermal Overload Protector
  • (1) Stainless Steel Braided Leader Hose
    w/ Inline Check Valve
  • (1) Air Filter Assembly
  • (1) Spare Air Filter Element
  • (1) Set of Nuts, Bolts, Washers and
    Lock Washers

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. 444SB/SC

400C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

485C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

400C

TIRE FILL RATE

400C

TANK FILL RATE

444C

TIRE FILL RATE

444C

TANK FILL RATE

485C

TIRE FILL RATE

485C

TANK FILL RATE
