10% off

Single VMS EF Plus System - Single 400C EF VMS

Part Number: 80310-EF
Regular price $449.96
Regular price $499.95 Sale price $449.96
Single VMS EF Plus System Single VMS EF Plus System Single VMS EF Plus System Single VMS EF Plus System Single VMS EF Plus System Single VMS EF Plus System
Single VMS EF Plus System
Single VMS EF Plus System
Single VMS EF Plus System
Single VMS EF Plus System
Single VMS EF Plus System
Single VMS EF Plus System
10% off

Single VMS EF Plus System - Single 400C EF VMS

Part Number: 80310-EF
Regular price $449.96
Regular price $499.95 Sale price $449.96
Shipping calculated at checkout.

Our High performance VIAIR Single VMS Plus Systems are now available with EF (Enhanced Flow) technology. EF technology started life with our portables and is now integrated into our VMS Plus systems. It's designed to provide high CFM and fast tire fill with unsurpassed durability. Delivering up to 21% faster fills and 36% more performance on Single 400C-EF and up to 32% faster fills and 27% more performance on Single 444C-EF. The Single VMS Lock Mount Bracket allows you to integrate all system components, creating a modular mounting solution for your vehicle. Bracket includes a surface for manifold placement and 2 mounting surfaces with multiple threaded hole positions for mounting flexibility. VMS Systems are ideal for tire inflation, air tools, air horns, air lockers, air bags and inflatables. Lock Mount Brackets are electroplated for corrosion protection. Kits come available for 400C-EF and 444C-EF models. All necessary compressor mounting hardware is included.

400C-EF (150 PSI/2.62 CFM), Ideal for tire inflation management and and all applications where 150PSI is needed. Very reliable, and fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C-EF (200 PSI/2.24 CFM) Ideal for tire inflation management, air suspension and general applications where 200PSI is needed. Very reliable and affordable for how well it performs. 100% Duty Cycle @ 100PSI.

**Allow an additional couple of days for kit assembly prior to shipping

Choose your product options

Single VMS EF Plus System

What’s in the Box

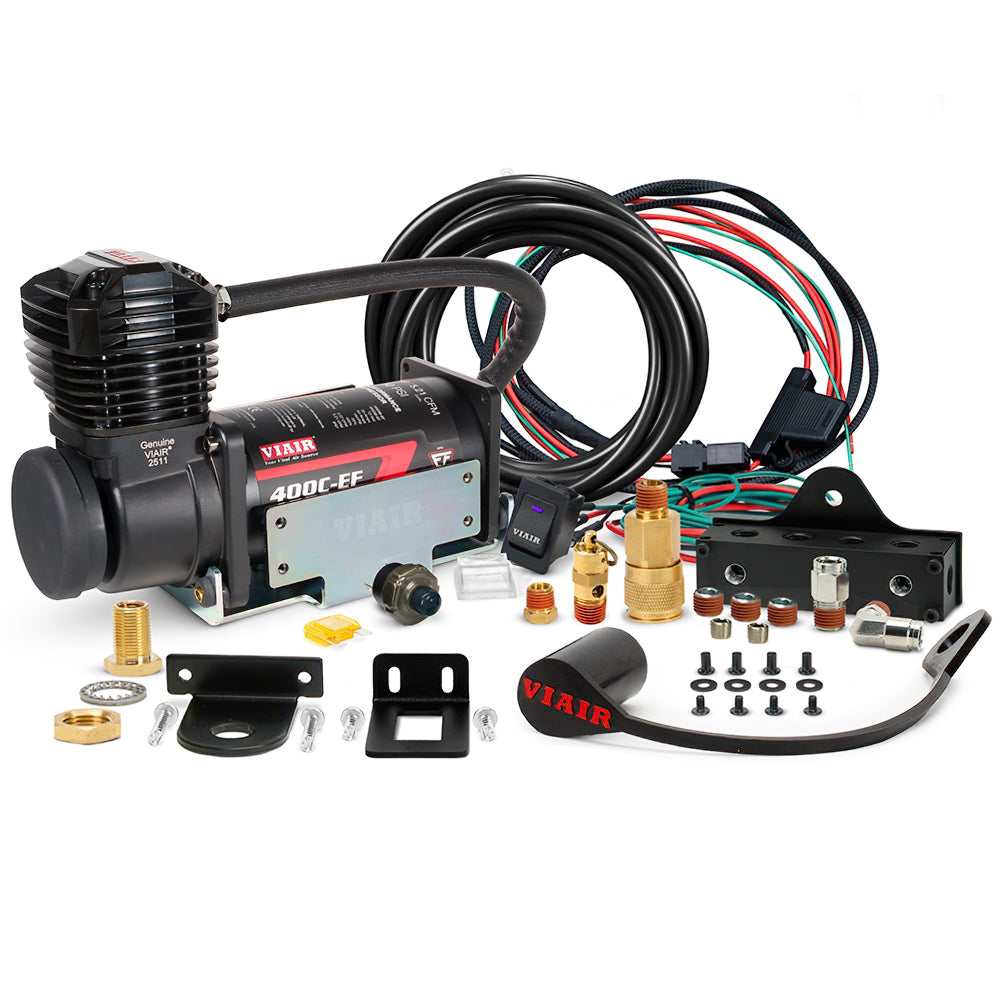

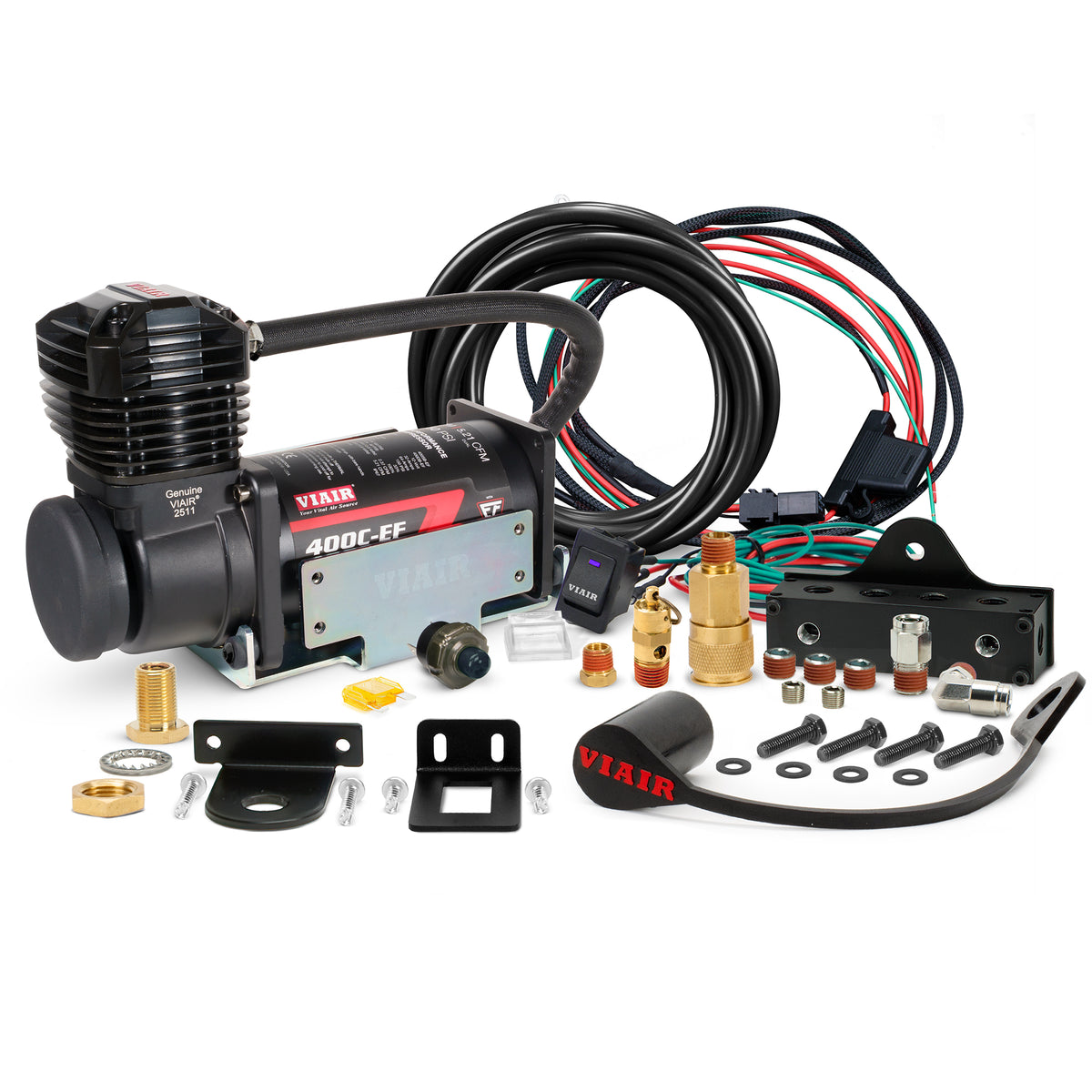

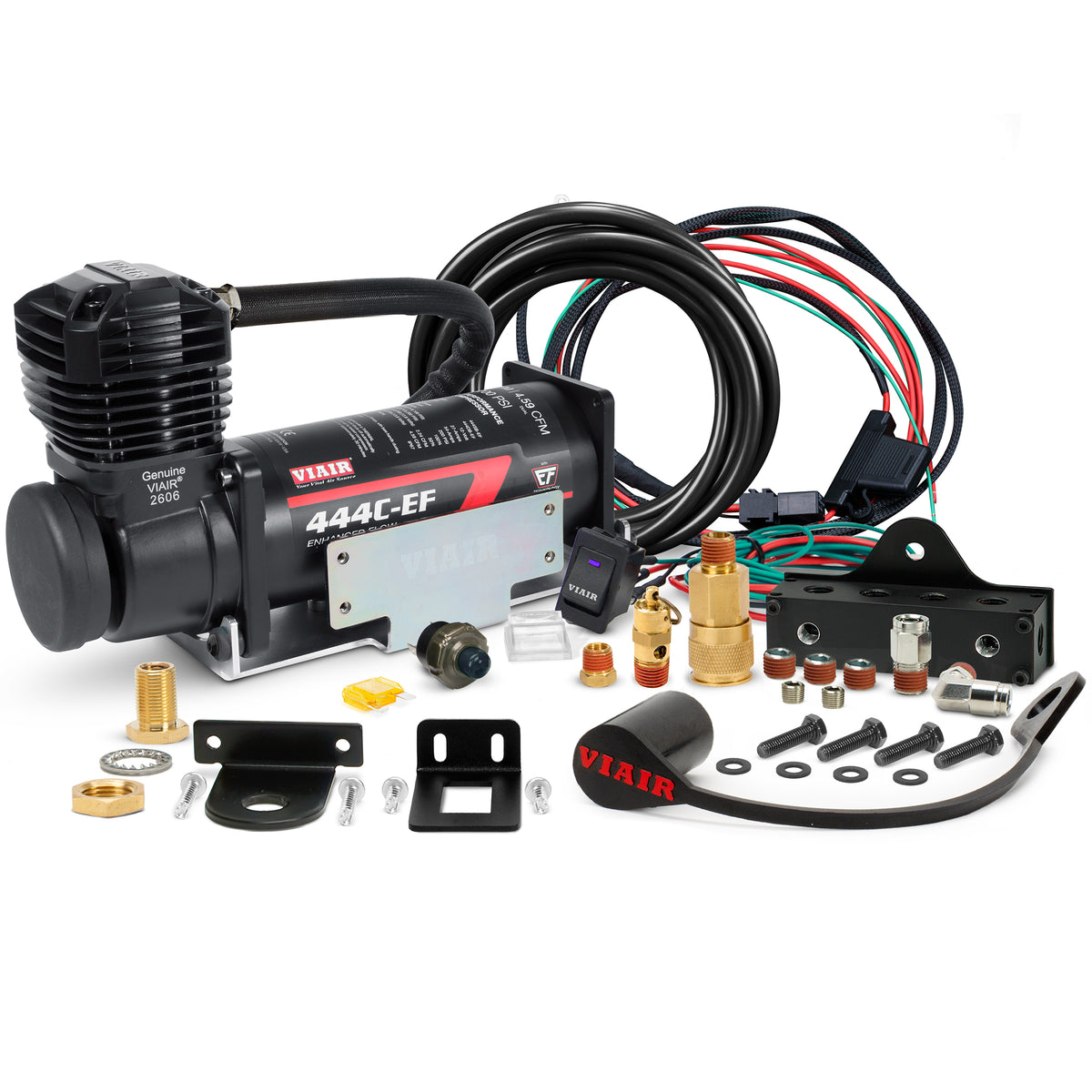

Compressor with Bracket & Filter

Compressor with Bracket & Filter

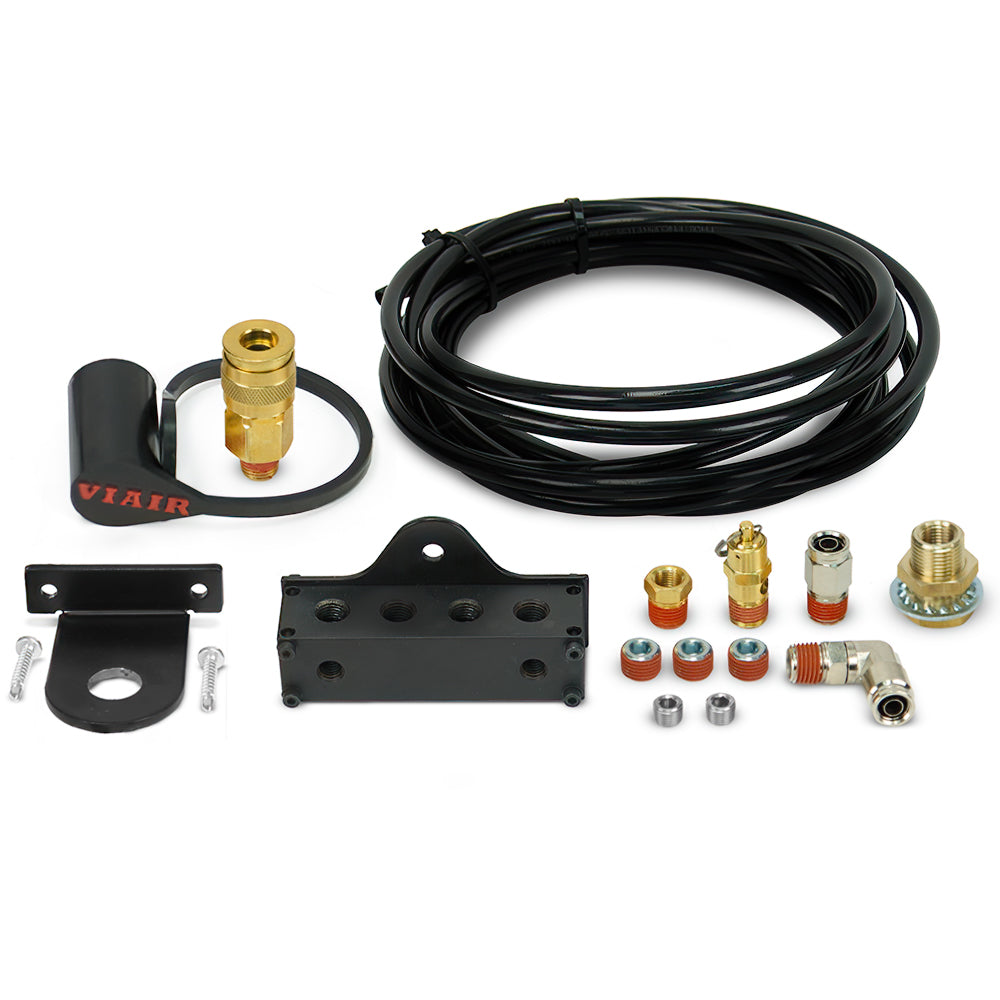

Air Components

Air Components

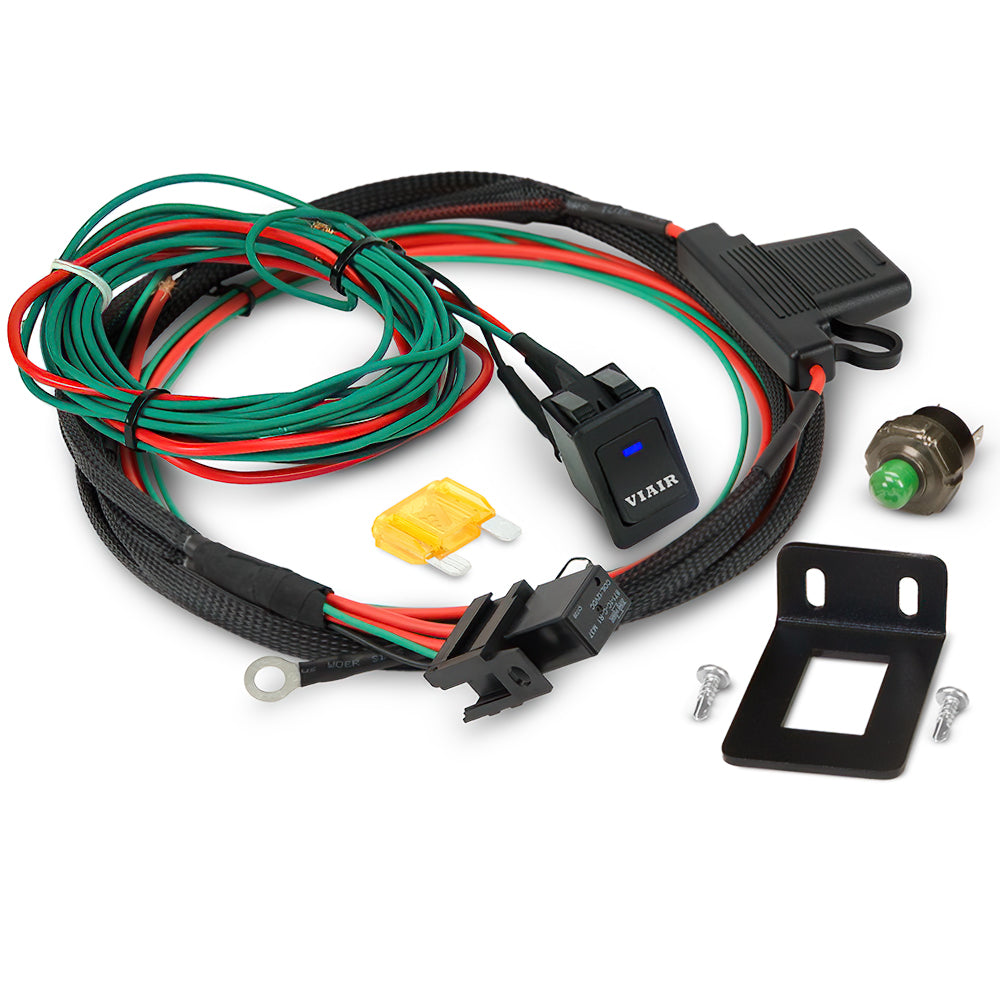

Wiring Harness

Wiring Harness

Specifications

Performance

Fill Rates

SPECIFICATIONS

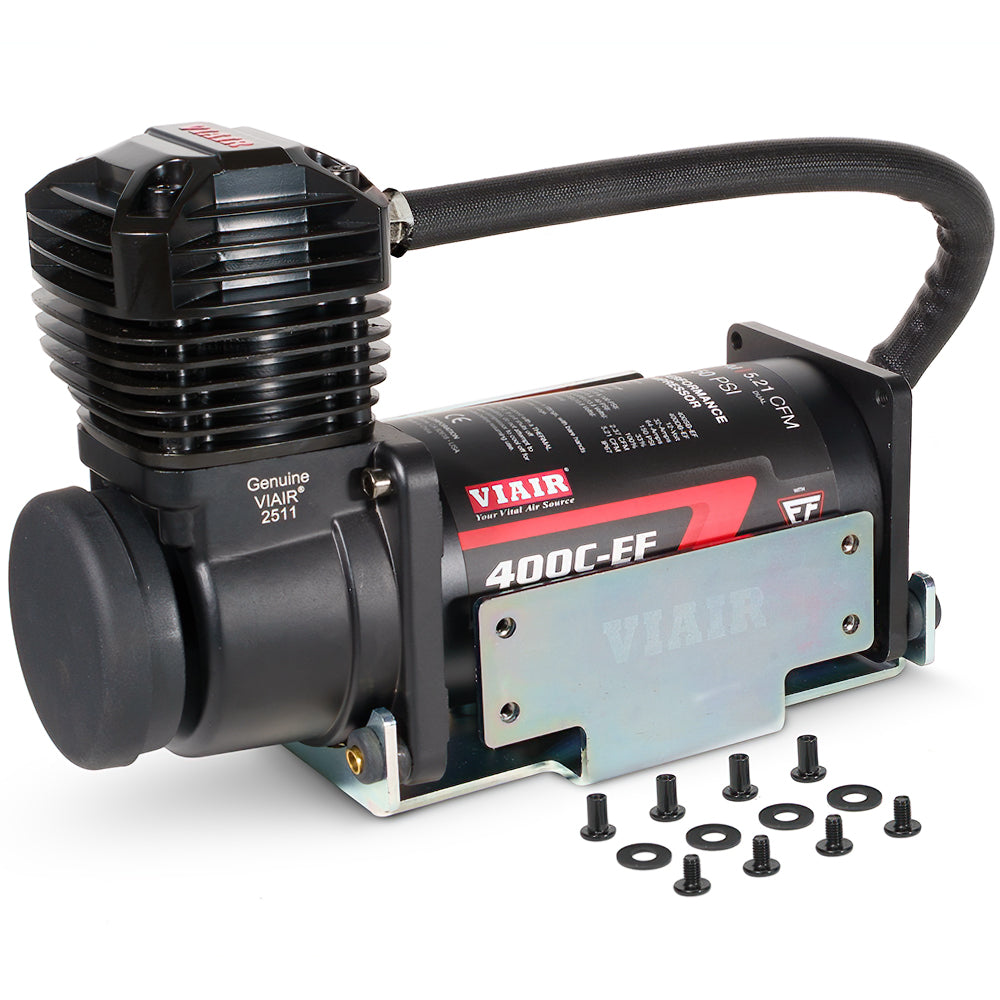

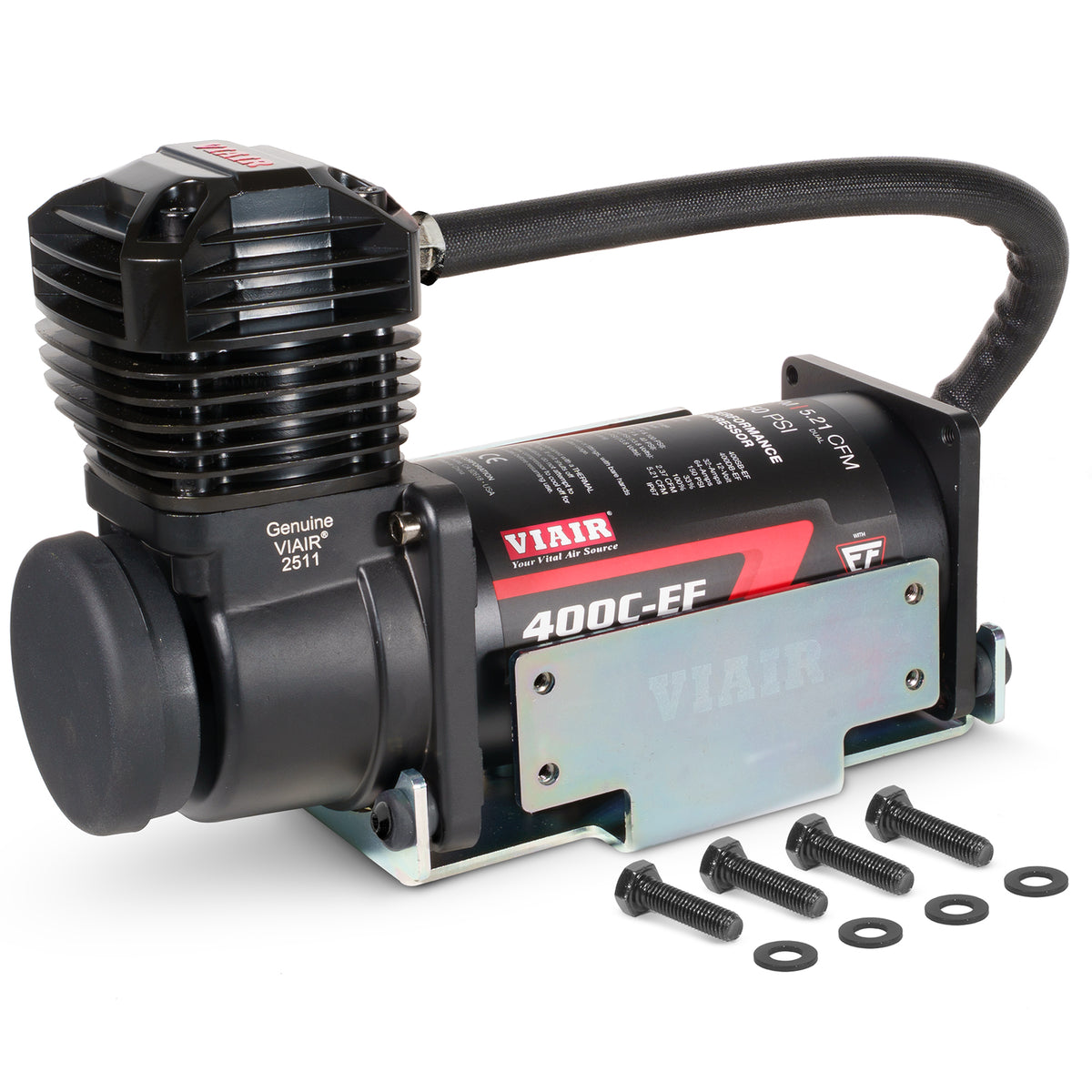

400C-EF

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI / 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 32-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 9.5" x 3.9" x 6.8" (Each Unit)
  • Net Weight: 8.80 lbs.

400C-EF FEATURES

  • 400C-EF Stealth Black Air Compressor
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Improved vibration isolators for better vibration resistance and easier installation
  • Optimized leader hose length for better routing
  • Air filter assemblies w/ spare air filter elements
  • Mounting hardware

SPECIFICATIONS

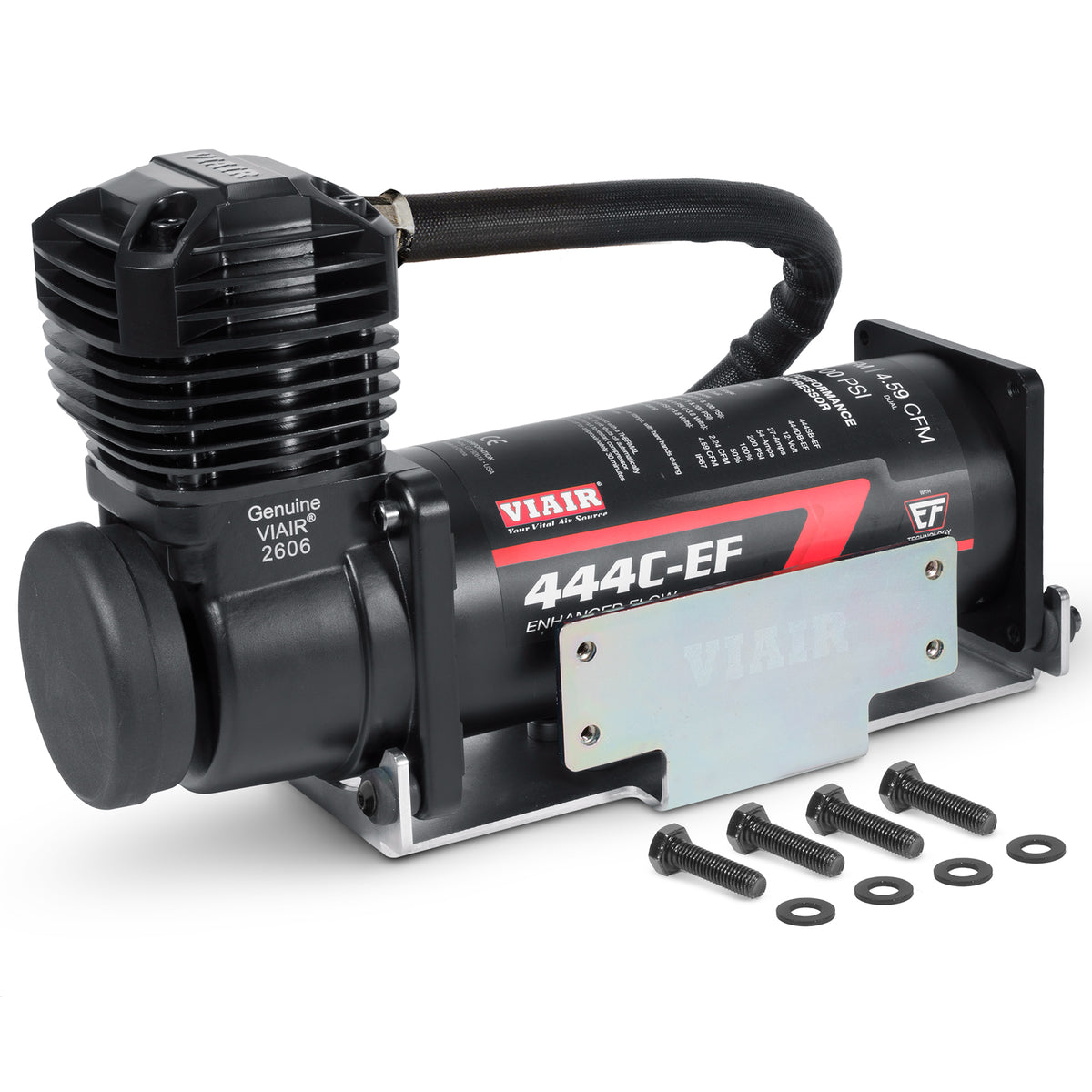

444C-EF

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI / 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Amp Draw: 27-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 11.4" x 4.1" x 6.8" (Each Unit)
  • Net Weight: 10.85 lbs.

444C-EF FEATURES

  • 444C-EF Stealth Black or Chrome Air Compressor
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Improved vibration isolators for better vibration resistance and easier installation
  • Optimized leader hose length for better routing
  • Air filter assemblies w/ spare air filter elements
  • Mounting hardware

400C-EF / 12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C-EF / 12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

400C-EF / Tire Fill Rate

400C-EF / Tank Fill Rate

444C-EF / Tire Fill Rate

444C-EF / Tank Fill Rate
