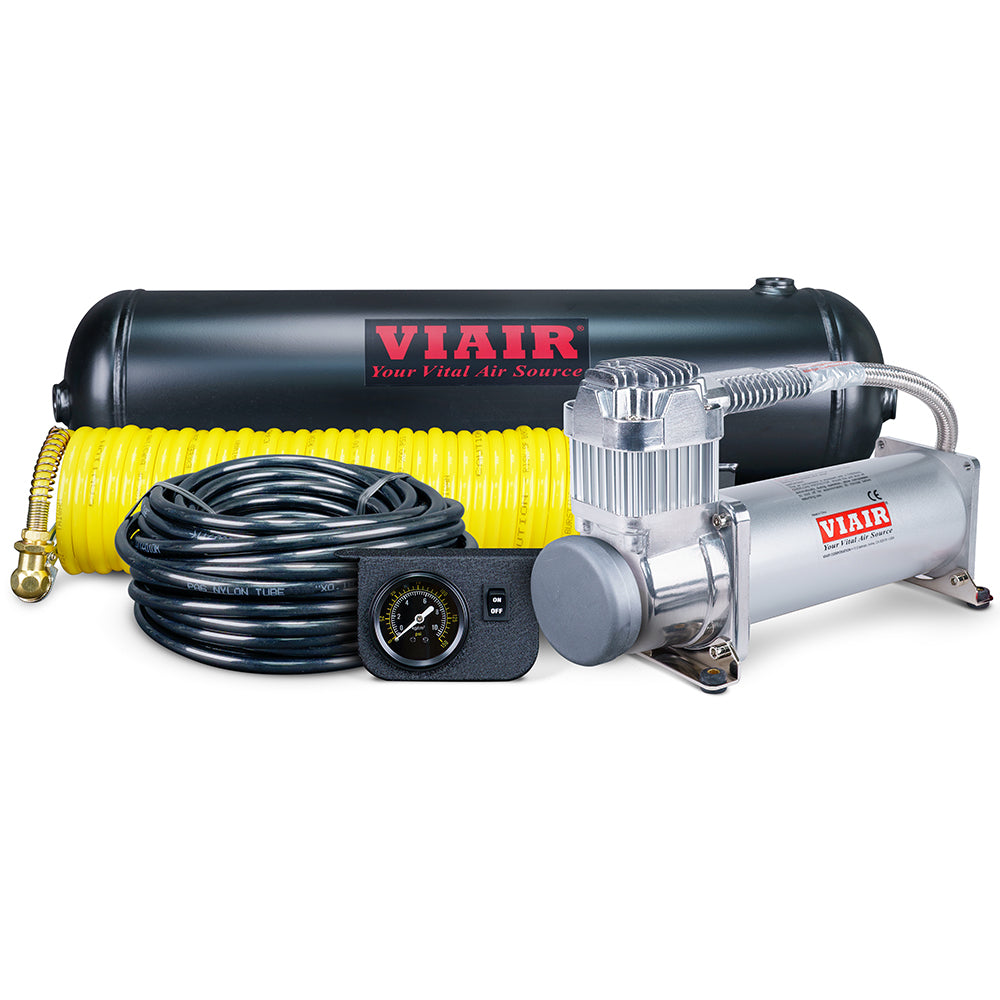

VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.

Constant Duty Onboard Air System

Designed By

VIAIR Corp

Faster Fills

For large off-road tires

IP-Rated

Dust and waterproof

What’s in the Box

Compressor

Tank and Airlines

Mounting Kit

Electrical

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 1.80 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F

FEATURES:

  • 2.5 Gallon VIAIR Air Tank
  • 450C VIAIR Compressor w/Thermal Overload Protector
  • 35ft. Coil Hose with Tire Chuck
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 145 PSI off)
  • Reducer: 1/8” (F) to 1/4” (M)
  • 1/4” Quick Connect Stud (F)
  • 1/4” Quick Connect Coupler (F)
  • 1/4” 175 PSI Safety Valve
  • 1/4” Drain Cock
  • (3) 1/4” Compression Fittings
  • 20ft. 12-Gauge Wire with Inline Fuse Holder
  • 4” Strip of Continuous Grommet Material
  • Accessory Airline
  • Electrical Connections

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATE

TANK FILL RATE

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Plumbing Diagram Dimensional Drawing
