VMS Dual Compressors & Bracket System

Part Number: 80301
Regular price $728.95
Regular price Sale price $728.95
VMS Dual Compressors & Bracket System VMS Dual Compressors & Bracket System
VMS Dual Compressors & Bracket System
VMS Dual Compressors & Bracket System

VMS Dual Compressors & Bracket System

Part Number: 80301
Regular price $728.95
Regular price Sale price $728.95
Shipping calculated at checkout.

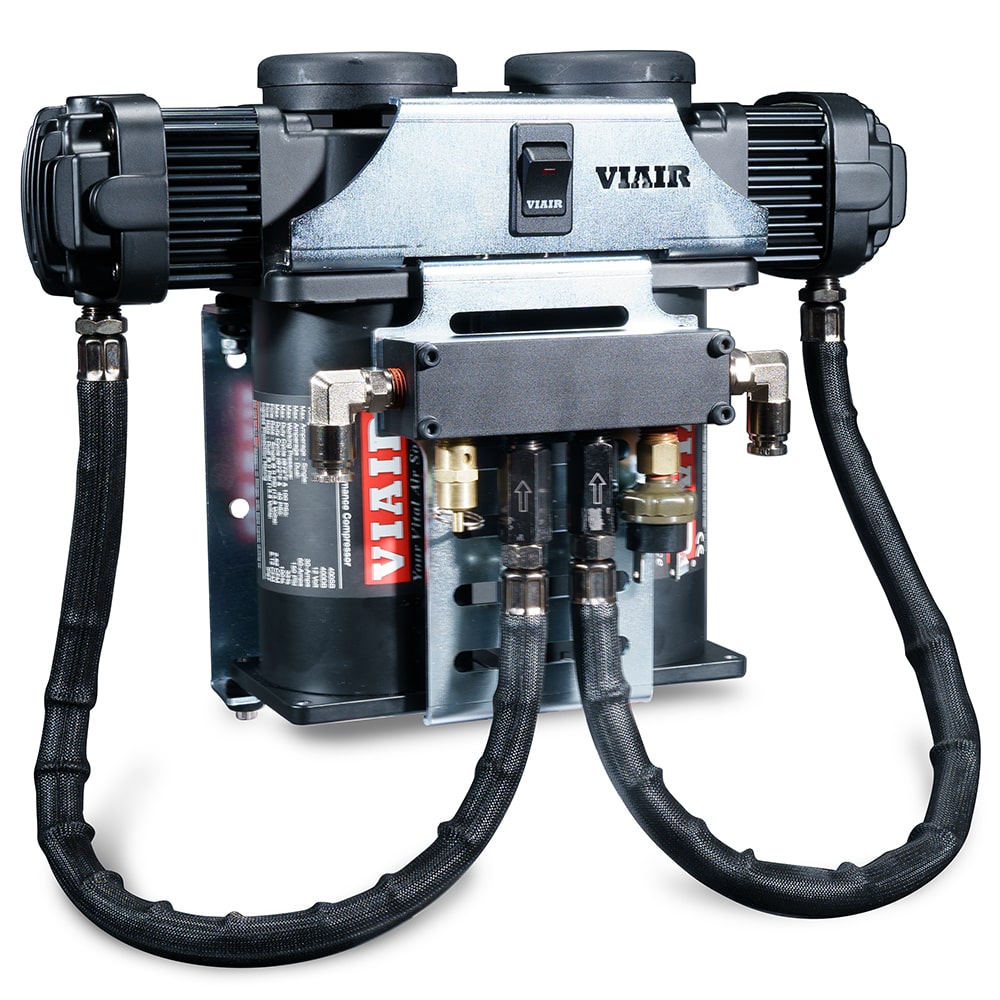

VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. The Dual VMS Bracket allows you to integrate two compressors and all system components, creating a modular mounting solution for your vehicle. Brackets include 3 positions for manifold placement and base plate with multiple threaded hole positions for mounting flexibility. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables.  Brackets are electroplated for corrosion protection. Kits available for 400C, 444C and 485C models. All necessary compressor mounting hardware is included.

**Allow an additional couple of days for kit assembly**

Dual 400C Compressors
Dual 444C Compressors
Dual 485C Compressors
Stealth Black
Chrome

VMS Dual Compressors & Bracket System

Designed By

VIAIR Corp

Fastest Inflation

For large off-road tires

Life Expectancy

Lasts 4X longer

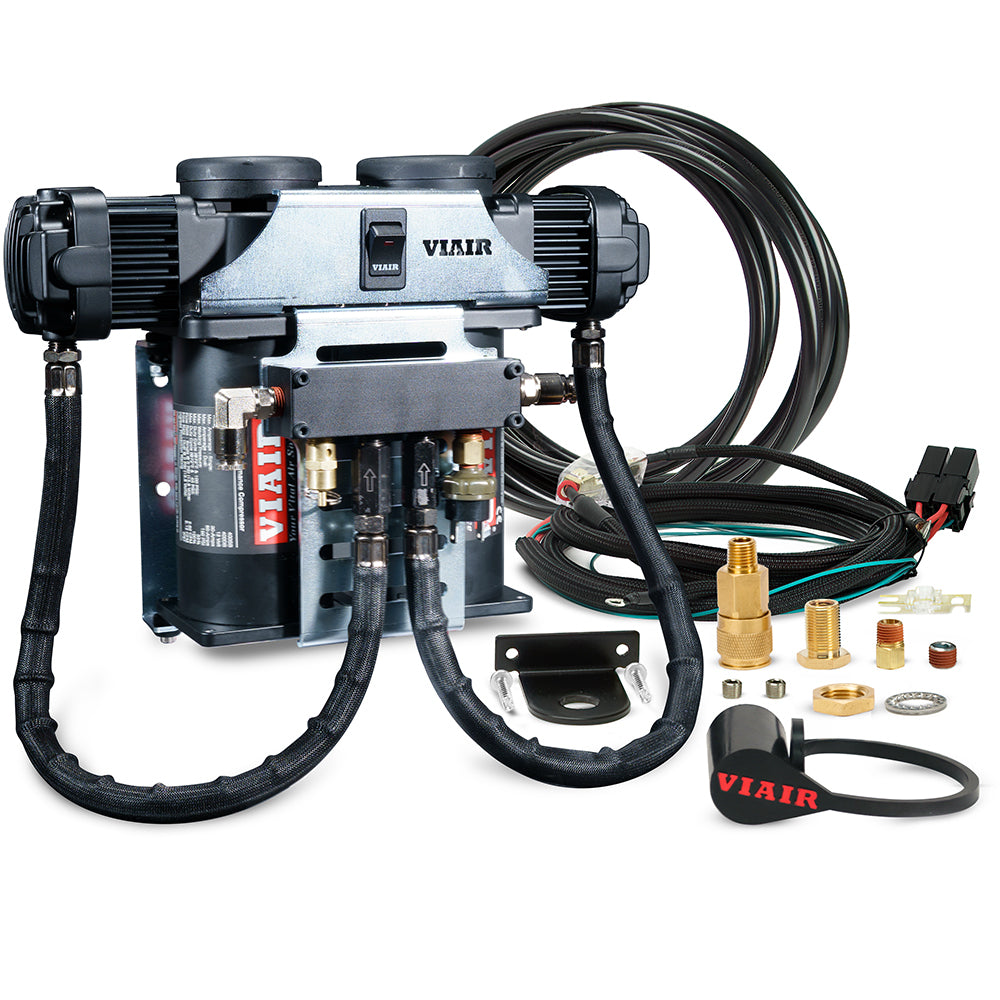

What’s in the Box

Compressor

Mounting Hardware and Air Filter

Manifold and Air Fittings

Wiring Harness and Pressure Switch

Air Line

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 5.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60 Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 25 lbs.

FEATURES:

  • (2) 400C (Stealth Black or Chrome) Compressors
    w/ Thermal Overload Protectors
  • Complete dual wiring harness
    w/ 80A fuse holder
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67
    (Waterproof/Dustproof)
  • Designed to be air tank ready (Air tank optional)
  • 8-port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATES

TANK FILL RATES
