Dual VMS Base System

Part Number: 400DB01
Regular price $641.50
Regular price Sale price $641.50
Shipping calculated at checkout.

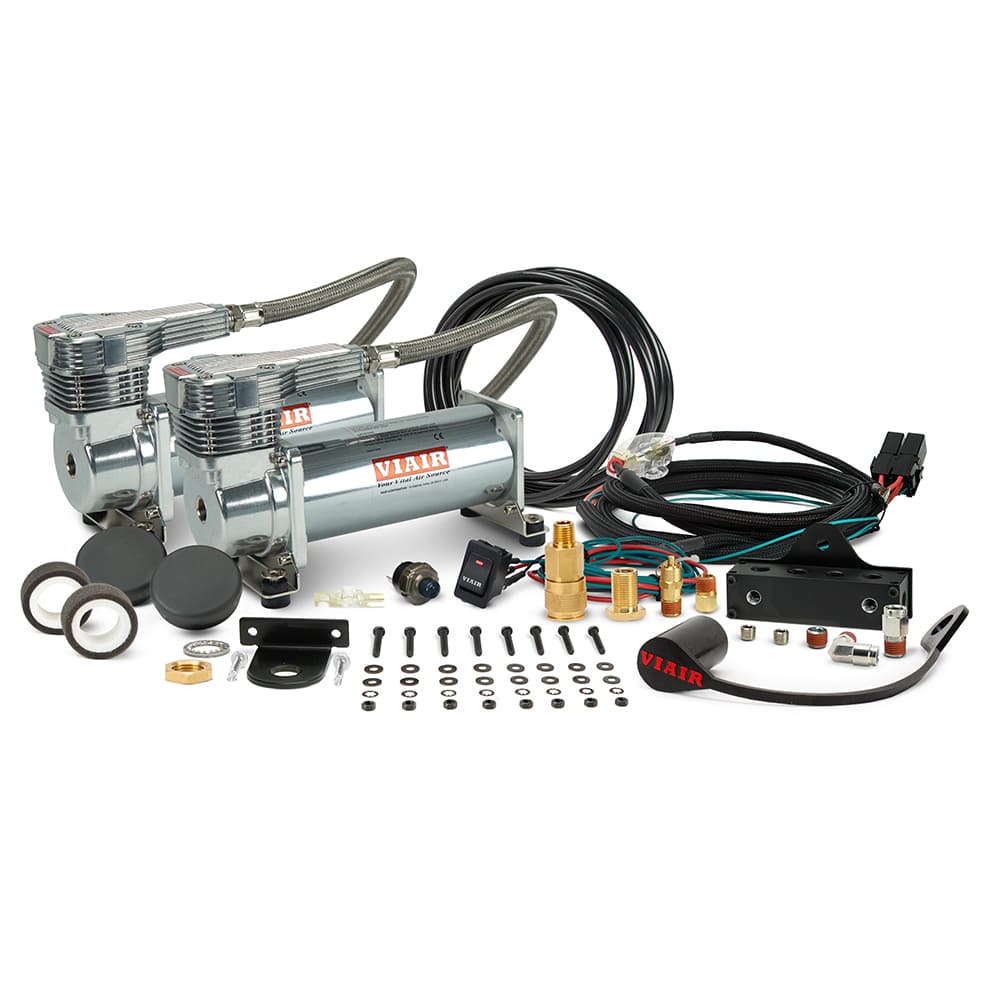

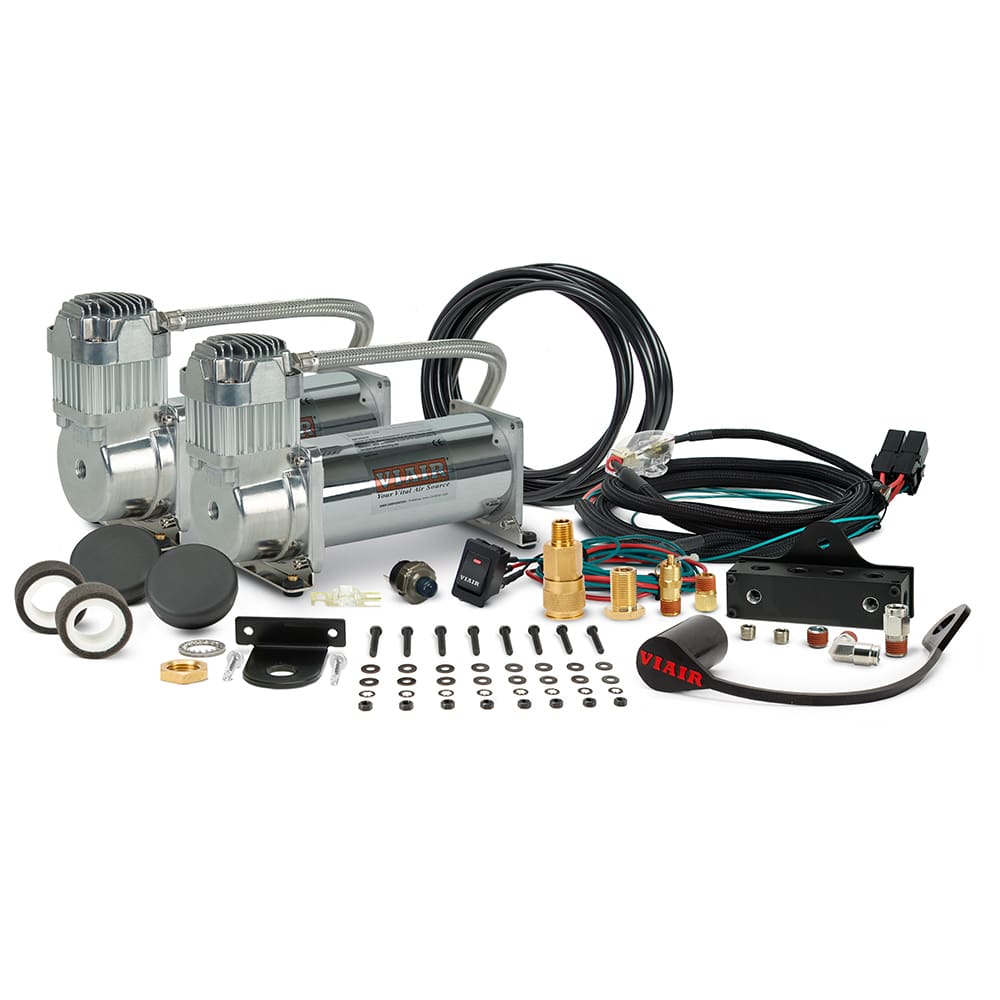

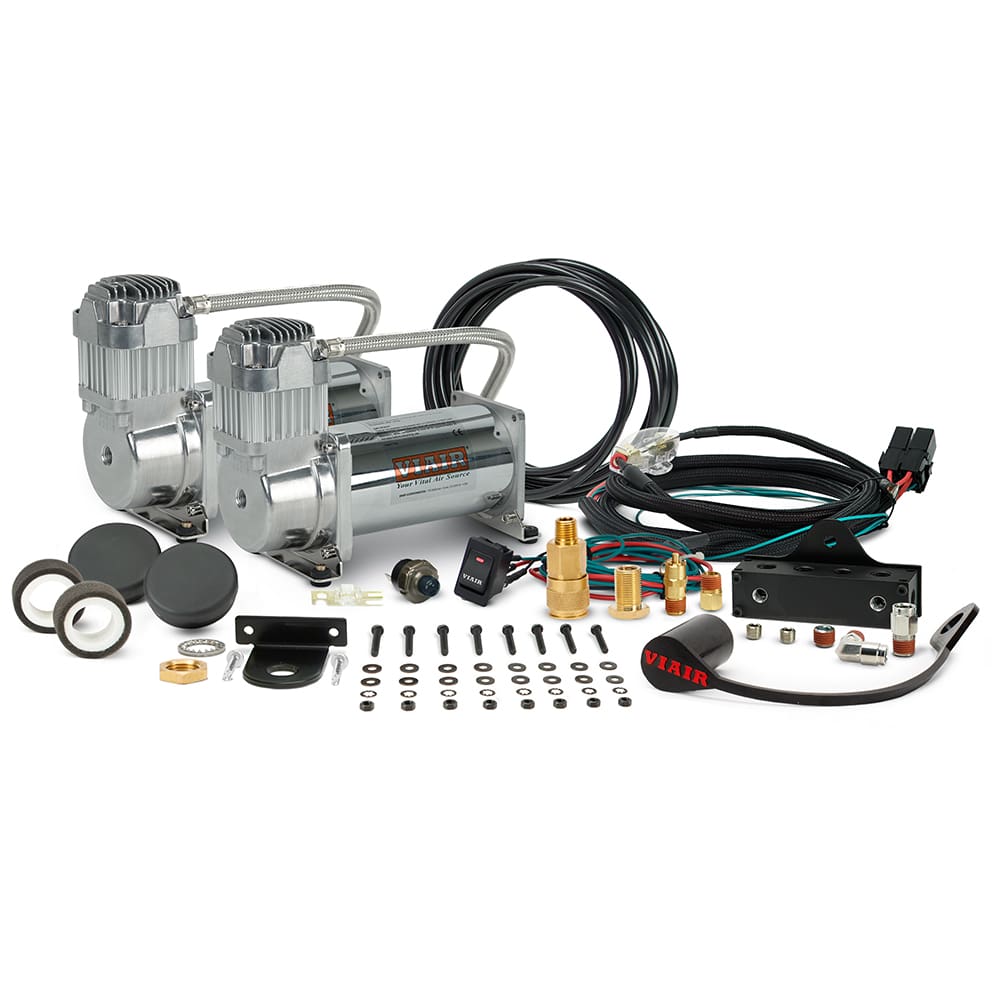

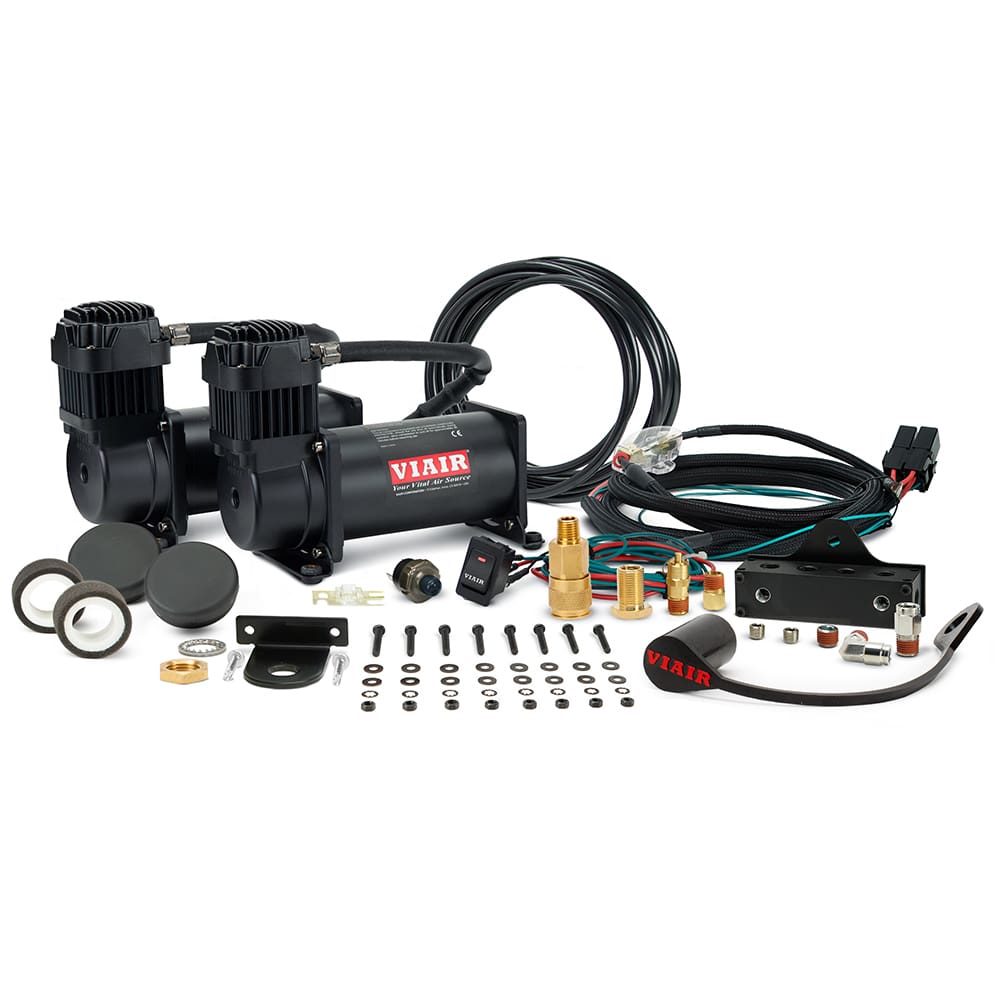

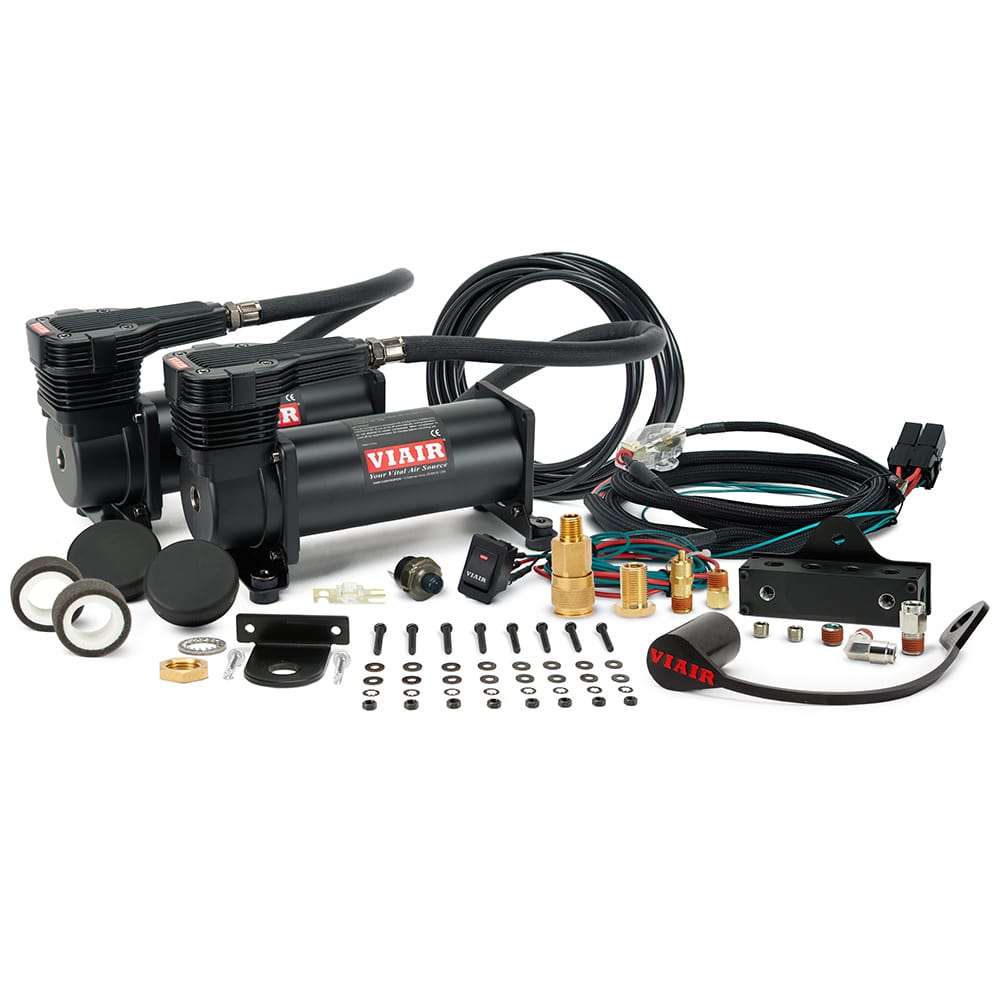

The Dual VMS BASE System includes all the essentials to get an onboard dual compressor system up and running. The kits include two compressors, a high-quality remote mounted air chuck, a pre-made wiring harness tailored for dual compressors, and all the fittings and hardware needed. It’s a solid entry point for anyone seeking a serious onboard air system. Clean and compact, and built to deliver trail-ready performance. Also available in a single compressor configuration.

Each Dual VMS BASE System is designed to provide high CFM and fast tire fill with unsurpassed durability. These systems can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds.

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.

Choose your product options
Color:

Dual VMS Base System

What’s in the Box

Compressors

Compressors

Mounting Hardware and Air Filters

Mounting Hardware and Air Filters

Manifold and Air Fittings

Manifold and Air Fittings

Wiring Harness and Pressure Switch

Wiring Harness and Pressure Switch

Air Lines

Air Lines

Specifications

Performance

Fill Rates

Resources

400C SPECS:

  • CFM: 5.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60 Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 25 lbs.

400C FEATURES:
  • (2) 400C (Stealth Black or Chrome) Compressors
    w/ Thermal Overload Protectors
  • Complete dual wiring harness
    w/ 80A fuse holder
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67
    (Waterproof/Dustproof)
  • Designed to be air tank ready (Air tank optional)
  • 8-port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

444C SPECS:

  • CFM: 3.88 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
  • Net Weight: 29lbs.

444C FEATURES:
  • (2) 444C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
  • Complete dual wiring harness w/ 80A fuse holder.
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67(Waterproof/Dustproof)
  • Designed to be air tank ready (Air tank optional)
  • 8-Port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

485C SPECS:

  • CFM: 3.92 @ 0 PSI
  • (2) 485C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
  • Complete dual wiring harness w/ 80A fuse holder
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67(Waterproof/Dustproof)Designed to be air tank ready (Air tank optional)
  • 8-Port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

485C FEATURES:
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:
    10.63″L x 4.1″W x 6.44″H (Each Unit)
  • Net Weight: 30 lbs.

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

400C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

485C

- 12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
