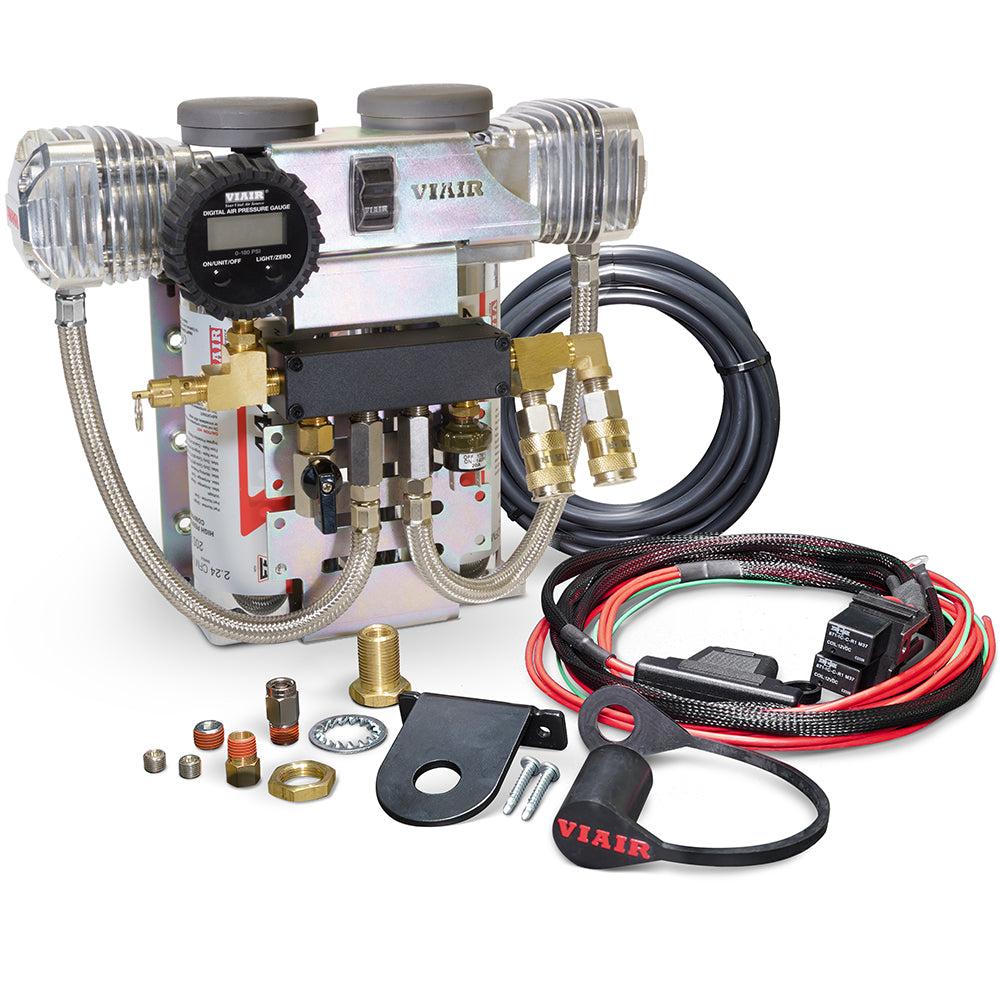

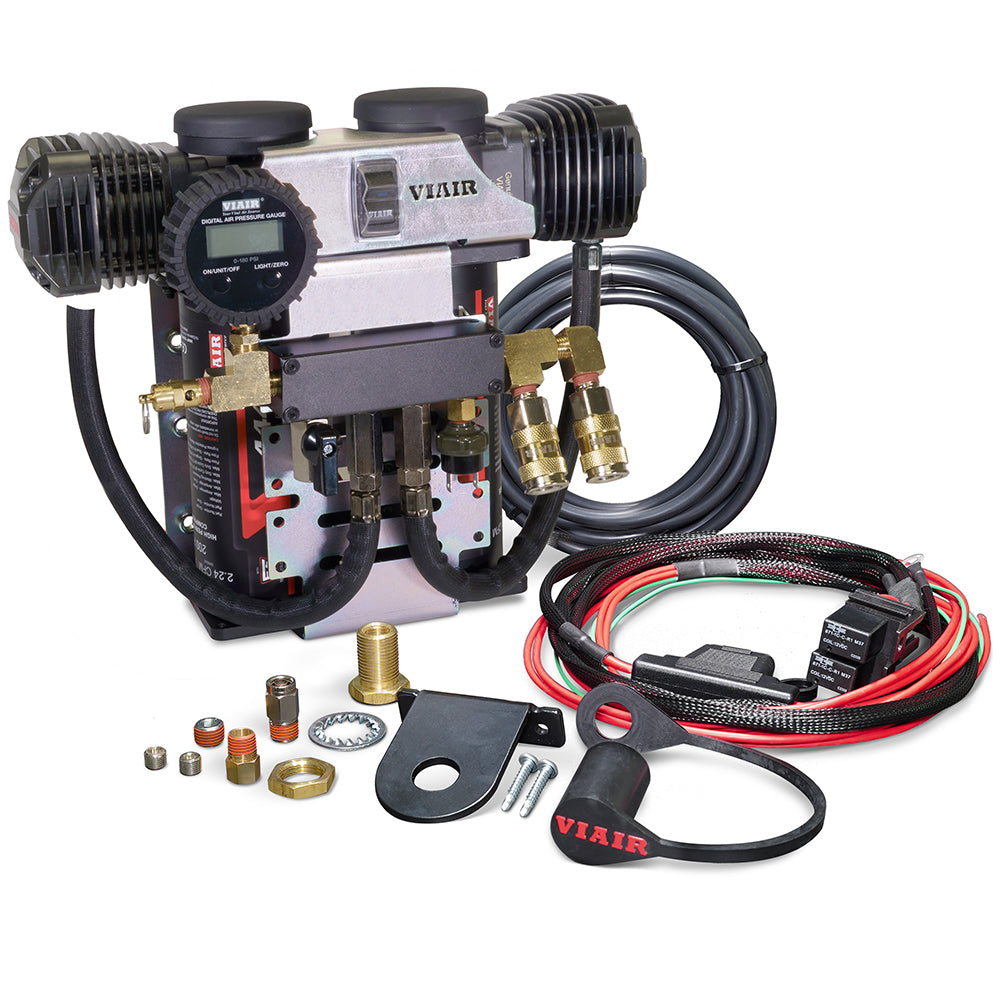

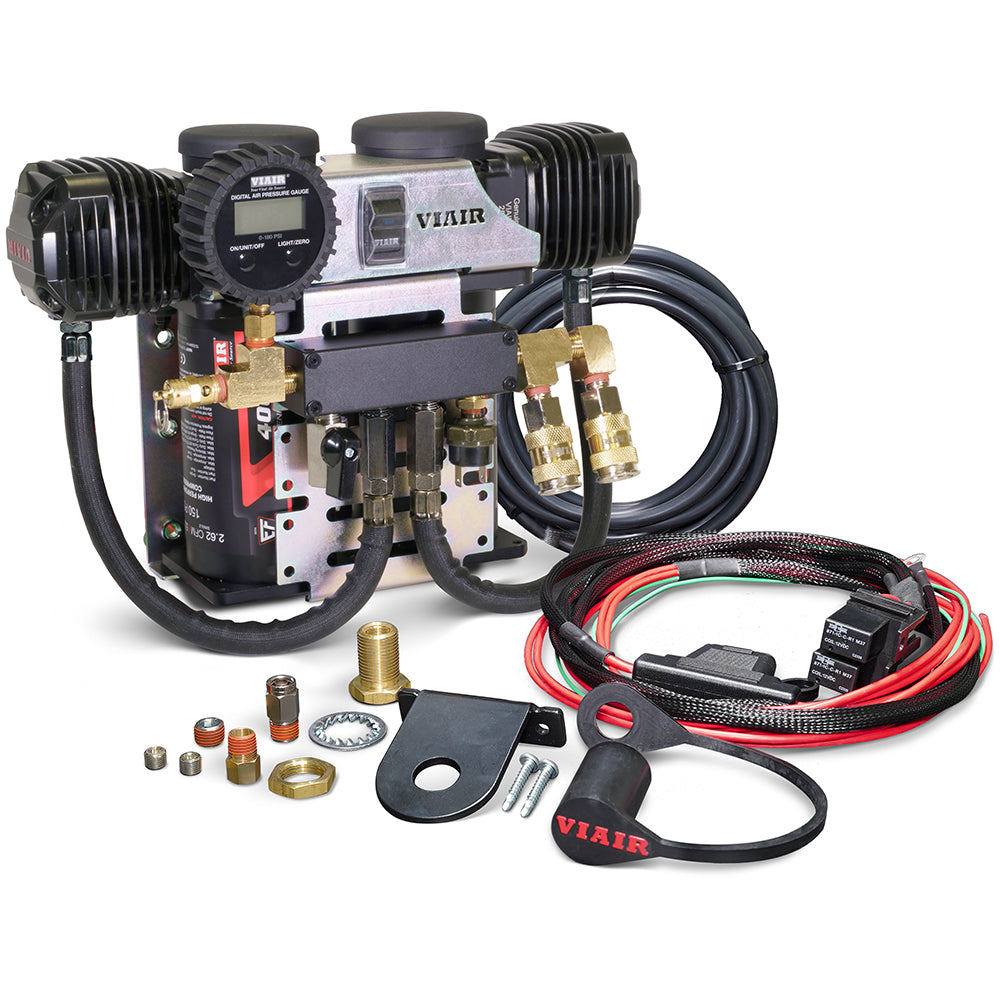

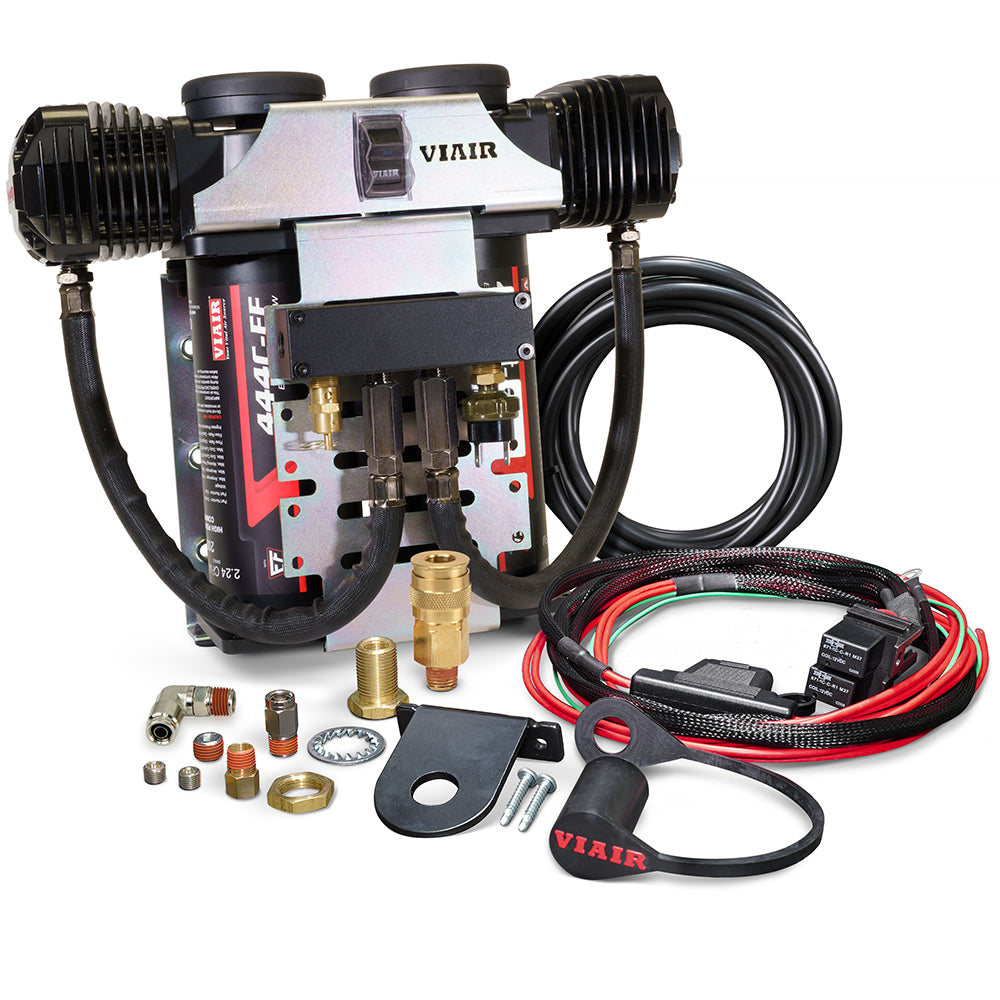

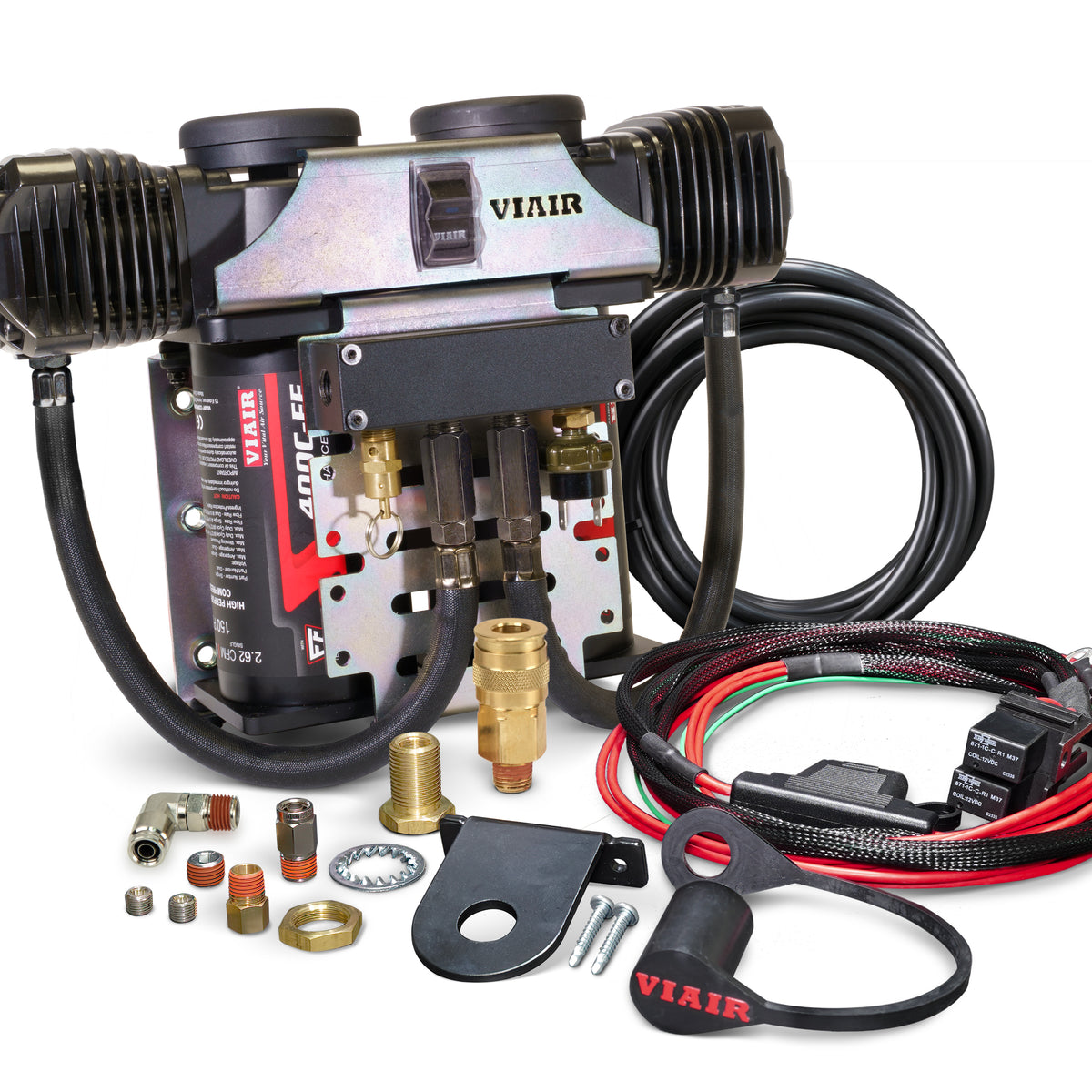

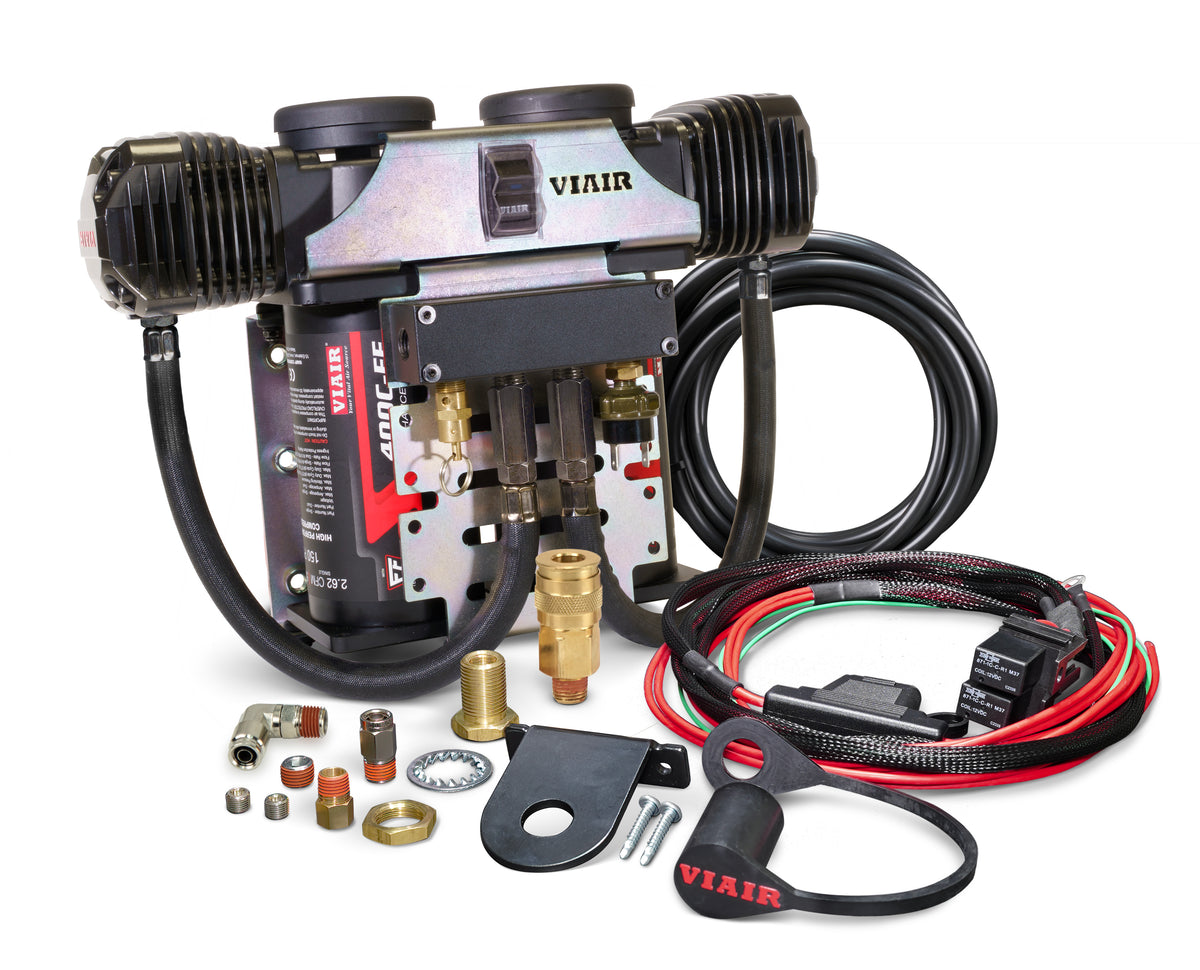

Dual VMS EF Plus System - Dual 400C EF VMS / Stealth Black

Part Number: 80301-EF
$781.50
$781.50
Dual VMS EF Plus System Dual VMS EF Plus System Dual VMS EF Plus System
Dual VMS EF Plus System
Dual VMS EF Plus System
Dual VMS EF Plus System
New

Dual VMS EF Plus System - Dual 400C EF VMS / Stealth Black

Part Number: 80301-EF
$781.50
$781.50
Shipping calculated at checkout.

Our High performance VIAIR Dual VMS Plus Systems are now available with EF (Enhanced Flow) technology. EF technology started life with our portables and is now integrated into our VMS Plus systems. It's designed to provide high CFM and fast tire fill with unsurpassed durability. Delivering up to 21% faster fills and 36% more performance on Dual 400C-EF and up to 32% faster fills and 27% more performance on Dual 444C-EF. The VMS Dual Lock Mount Bracket allows you to integrate two compressors and all system components, creating a modular mounting solution for your vehicle. Brackets include 3 positions for manifold placement and base plate with multiple threaded hole positions for mounting flexibility. VMS Systems are ideal for tire inflation, air tools, air horns, air lockers, air bags and inflatables. Lock Mount Brackets are electroplated for corrosion protection. Kits come available for 400C-EF and 444C-EF models. All necessary compressor mounting hardware is included. Single Compressor Mount Bracket Systems also available.

400C-EF Dual (150 PSI/5.30CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI.

444C-EF Dual (200 PSI/4.59 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

**Allow an additional couple of days for kit assembly prior to shipping**

Color:

Dual VMS EF Plus System

What’s in the Box

Specifications

Performance

SPECS - DUAL 400C-EF VMS Plus System

  • 5.30 CFM @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI / 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 64-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 9.5" x 3.9" x 6.8" (each unit)
  • Net Weight: 17.60 Lbs. (compressors only)

FEATURES - DUAL 400C-EF VMS Plus System

  • VMS Plus Dual Compressors & Lock Mount Bracket System
  • (2) 400C-EF Stealth Black Air Compressors
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Complete dual wiring harness w/ 70A fuse holder and 35A micro relays
  • Improved vibration isolators for better vibration resistance and easier installation
  • Air Locker compatible
  • Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
  • Designed to be air tank ready (Air Tank Optional)
  • 8-port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

SPECS - DUAL 444C-EF VMS Plus System

  • 4.59 CFM @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI / 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Amp Draw: 54-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 11.4" x 4.1" x 6.8" (each unit)
  • Net Weight: 21.70 Lbs. (compressors only)

FEATURES - DUAL 444C-EF VMS Plus System

  • VMS Plus Dual Compressors & Lock Mount Bracket System
  • (2) 444C-EF Stealth Black or Chrome Air Compressors
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Complete dual wiring harness w/ 70A fuse holder and 35A micro relay
  • Improved vibration isolators for better vibration resistance and easier installation
  • Air locker compatible
  • Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
  • Designed to be air tank ready (Air Tank Optional)
  • 8-port Billet Manifold
  • Pro Series Air Source Relocation Kit
  • Illuminated Rocker Switch

DUAL 400C-EF / 12-VOLT COMPRESSORS - Supply Voltage 13.8 Volts

DUAL 444C-EF / 12-VOLT COMPRESSORS - Supply Voltage 13.8 Volts
