Dual VMS Compressors

Part Number: 400DB
$384.95
$384.95
Dual VMS Compressors Dual VMS Compressors Dual VMS Compressors Dual VMS Compressors Dual VMS Compressors Dual VMS Compressors Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Dual VMS Compressors
Sale

Dual VMS Compressors

Part Number: 400DB
$384.95
$384.95
Shipping calculated at checkout.

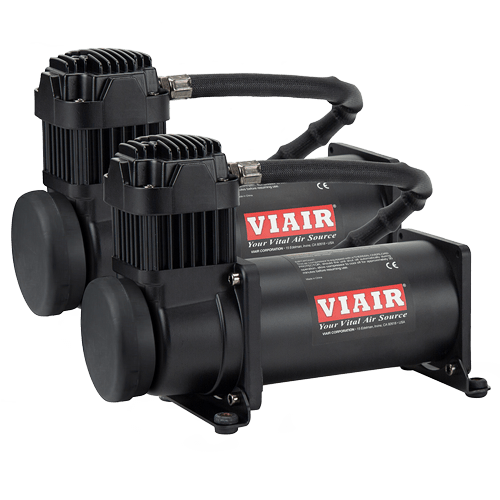

The Dual VMS air compressors are the core components of a system, sold as pairs to give you the flexibility to build your onboard air system however you'd like. These compressors-only options are also an ideal choice for those who need to upgrade their compressors or complete their build. Each kit comes with air intake filters, mounting hardware, and PTFE leader hoses wrapped in stainless braid.  Single Configuration is also available.

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.

400C
444C
485C
Color: Stealth Black

Dual VMS Compressors

What’s in the Box

Compressor

Air Filter and Mounting Hardware

Specifications

Performance

Fill Rates

Resources

400C SPECS:
  • CFM: 5.12 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Duty Cycle: 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 19 lbs.
FEATURES:
  • (2) 400C (Stealth Black or Chrome) Compressors
    w/ Thermal Overload Protectors
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) Sets of Spare Air Filter Elements
  • (2) Sets of Nuts, Bolts, Washers and Lock Washers

444C SPECS:
  • CFM: 3.88 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:10.87″L x 4.2″W x 7.06″H (Each Unit)
  • Net Weight: 23 lbs.
FEATURES:
  • (2) 444C (Stealth Black or Chrome) Compressors
    w/ Thermal Overload Protectors
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) Sets of Spare Air Filter Elements
  • (2) Sets of Nuts, Bolts, Washers and Lock Washers
485C SPECS:
  • CFM: 3.92 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions:10.63″L x 4.1″W x 6.44″H (Each Unit)
  • Net Weight: 24 lbs.
FEATURES:
  • (2) 485C (Stealth Black or Platinum) Compressors
    w/ Thermal Overload Protectors
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) Sets of Spare Air Filter Elements
  • (2) Sets of Nuts, Bolts, Washers and Lock Washers

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

400C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

485C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested without Check Valve

485C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested with Check Valve

400C

TIRE FILL RATE

400C

TANK FILL RATE

444C

TIRE FILL RATE

444C

TANK FILL RATE

485C

TIRE FILL RATE

485C

TANK FILL RATE

Product Resources

User-Manual 400DB-400DC User-Manual 444DB-444DC User-Manual 485DB-485DP Dimensional-Drawing 400DB-400DC-400DB01-400DC01 Dimensional-Drawing 444DB-444DC-444DB01-444DC01
