200 PSI Ultra Duty Onboard Air System

Part Number: 20001
$539.80
$674.75 $539.80
200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System 200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
200 PSI Ultra Duty Onboard Air System
20% off

200 PSI Ultra Duty Onboard Air System

Part Number: 20001
$539.80
$674.75 $539.80
Shipping calculated at checkout.

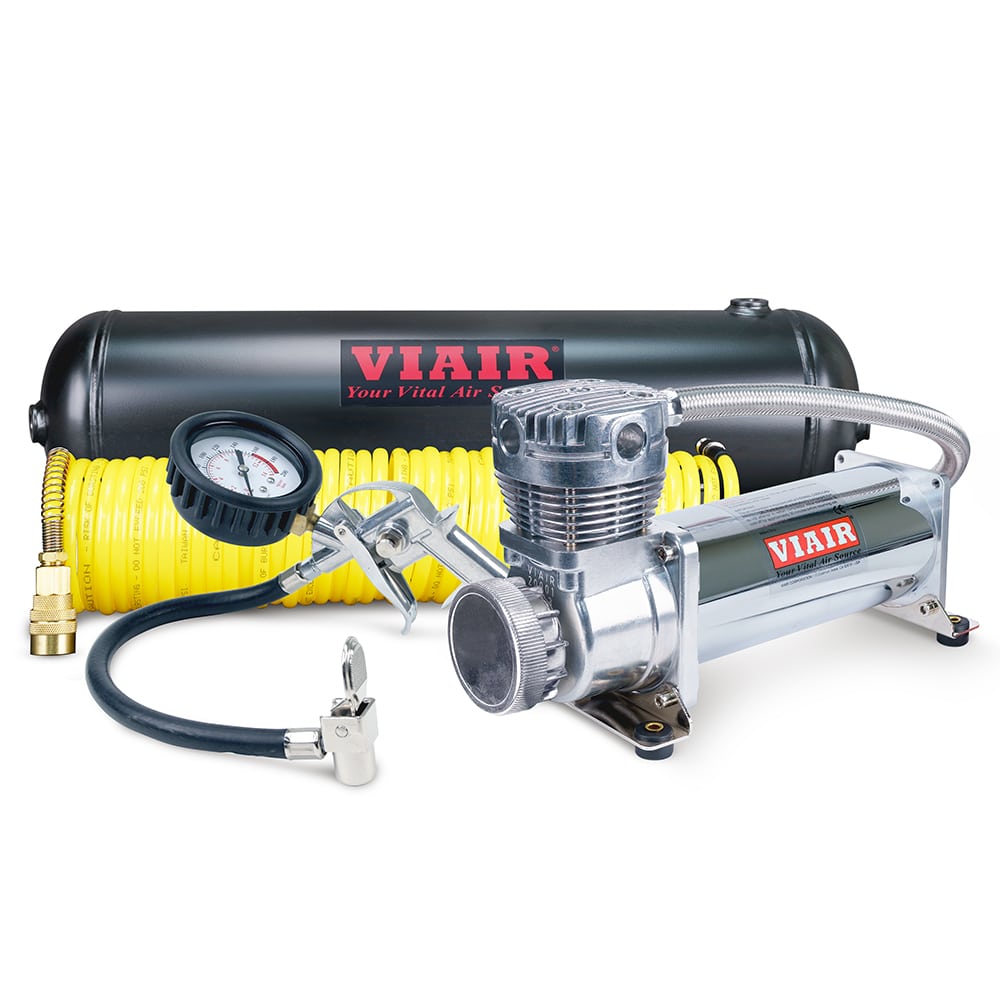

VIAIR’s Dual 280C Onboard Air System is a pre-packaged compressed air solution that provides two 280C, 30% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

200 PSI Ultra Duty Onboard Air System

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 33-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F

FEATURES

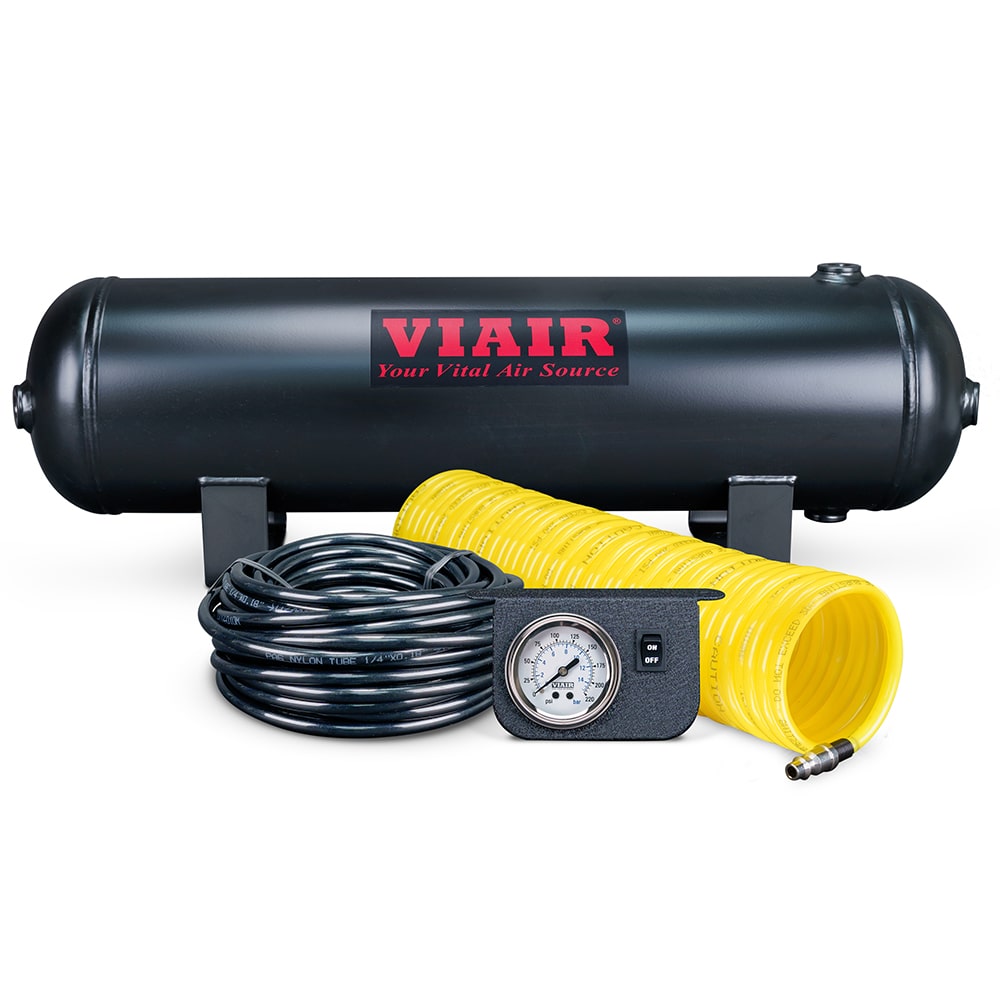

  • 2.5 Gallon 150 PSI VIAIR Air Tank

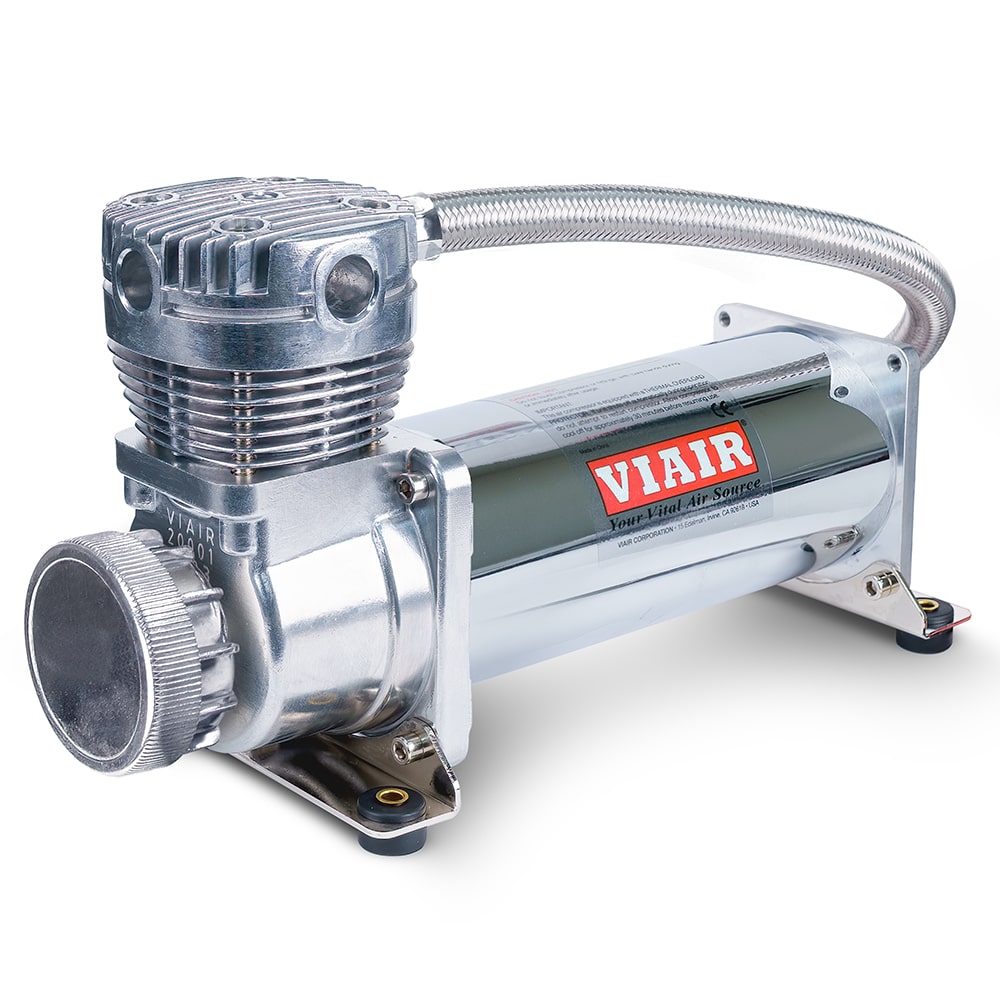

  • (2) 280C VIAIR Compressors w/Thermal Overload Protectors
  • 30ft. Coil Hose with Quick Connects

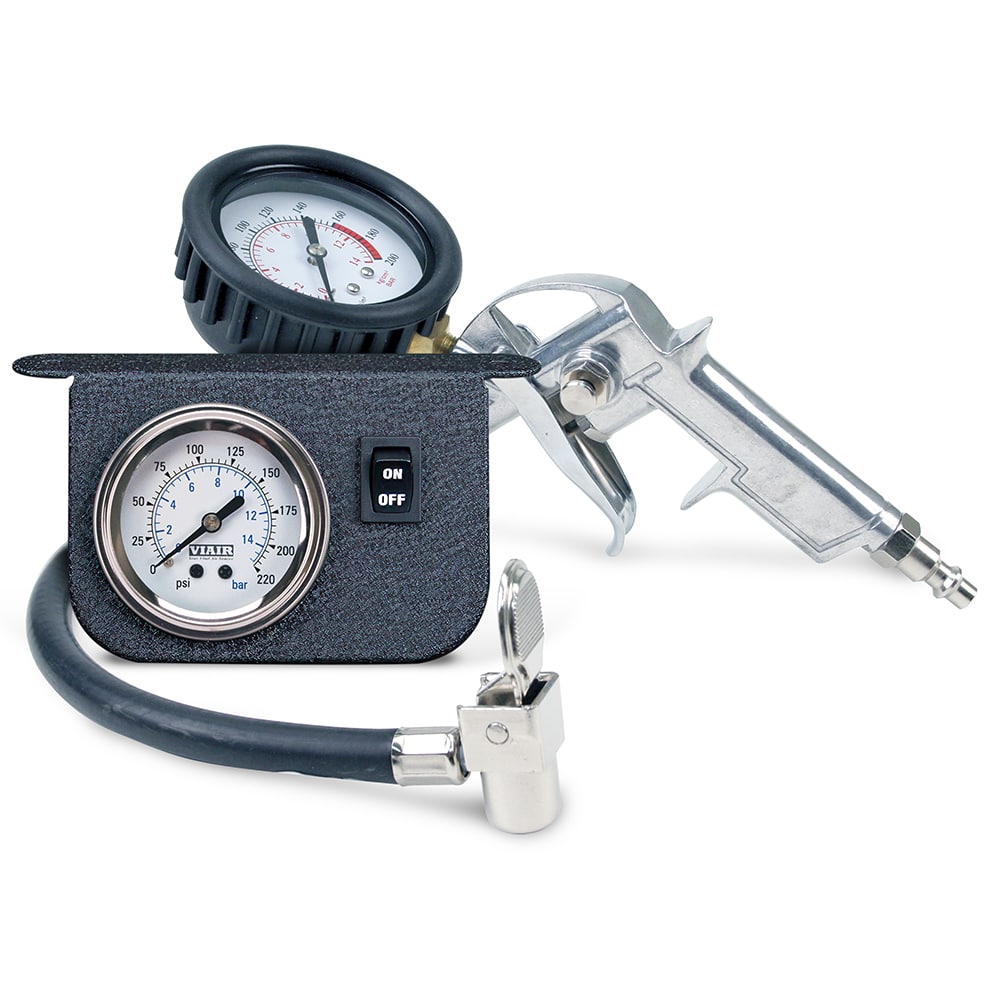

  • Tire Inflation Gun with 200 PSI Gauge
  • 0-220 PSI Pressure Regulator

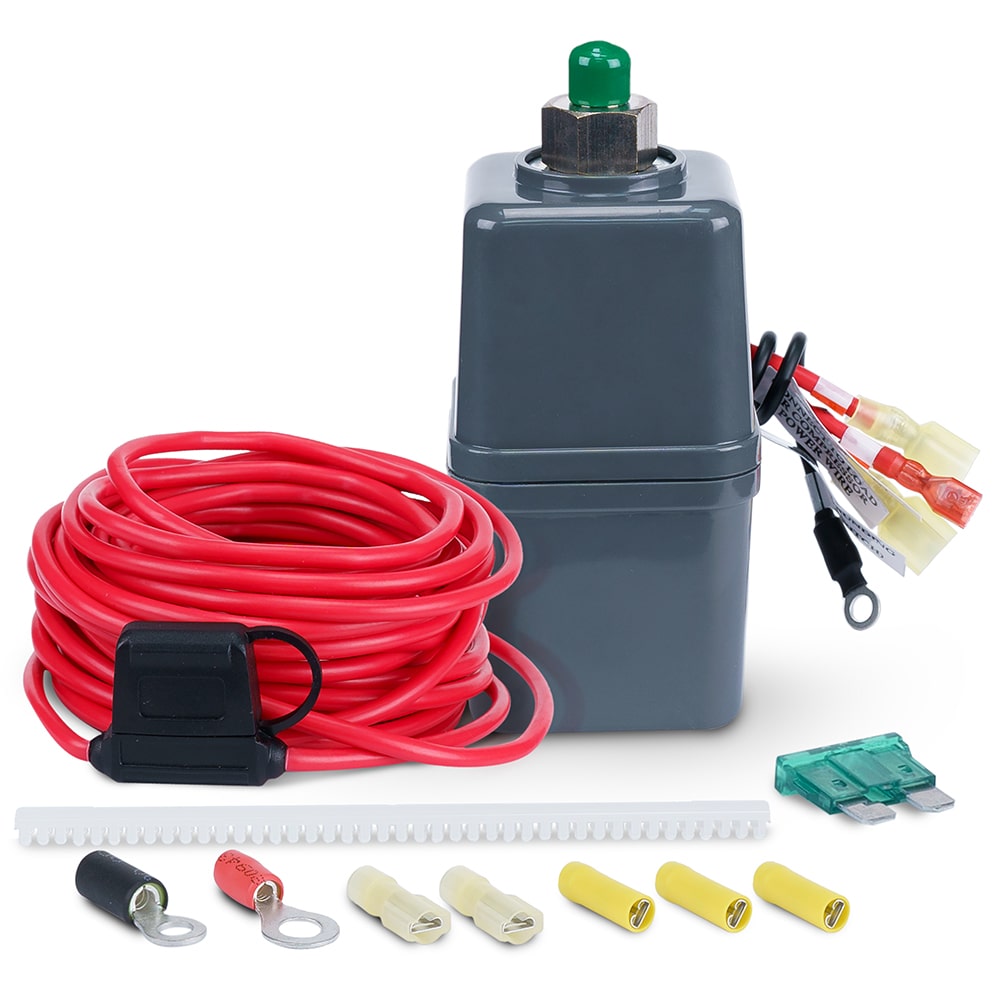

  • Sealed Pressure Switch (110 PSI on, 145 PSI off)
  • 150 PSI Illuminated Dash Panel Gauge
  • (2) 40-Amp Relays
  • Inline Fuse Holder

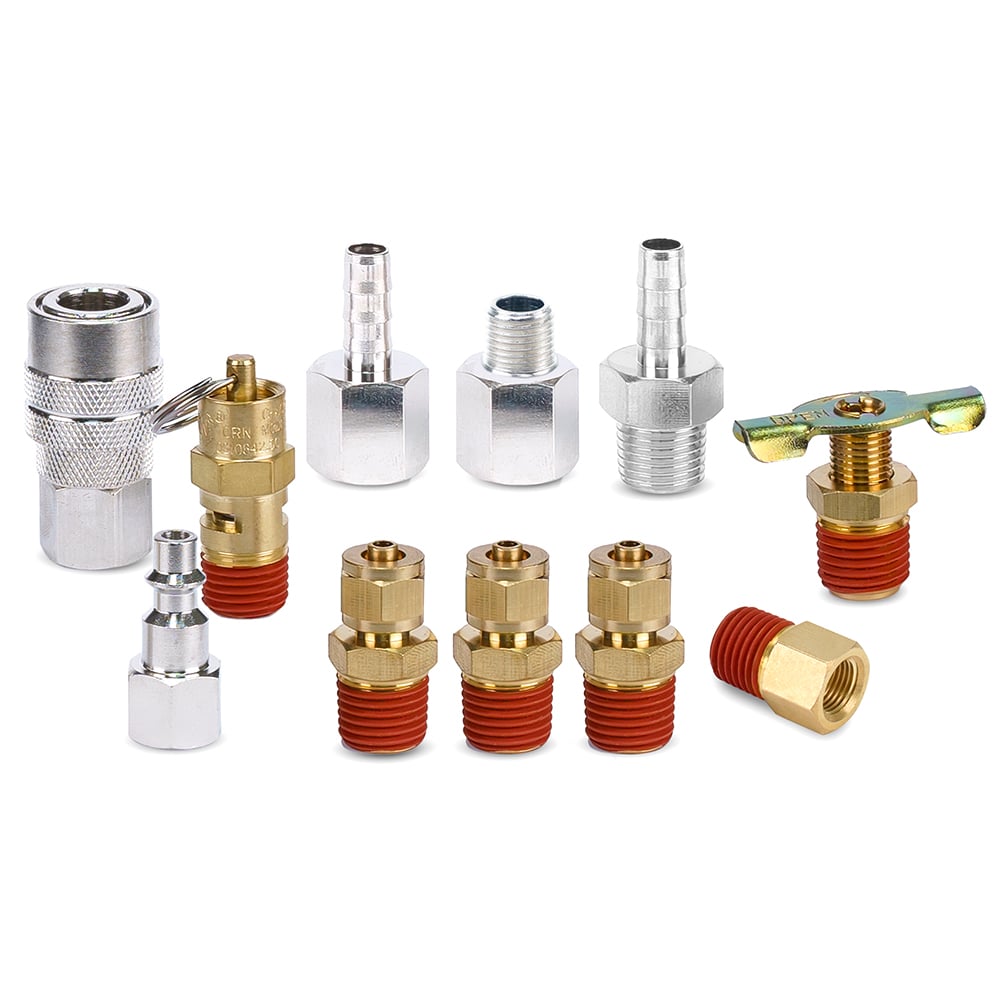

  • 1/4” Quick Connect Coupler (M)
  • 1/4” 175 PSI Safety Valve
  • 1/4” Drain Cock
  • (2) 1/8” BSP to 1/4” NPT
  • (4) 1/4” Compression Fittings
  • 5pc. 1/4” NPT Plugs Kit
  • 6-Port Billet Manifold with Mounting Bracket (1/4”)
  • (2) 20ft. 1/4” Air Line Included
  • Electrical Connections

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATES

TANK FILL RATE

Product Resources

User Manual Dimensional Drawing Wiring Diagram Plumbing Diagram
