Dual Gen 2 485C Onboard Air System - Stealth Black

Part Number: 20185
$1,172.50
$1,172.50
Dual Gen 2 485C Onboard Air System Dual Gen 2 485C Onboard Air System
Dual Gen 2 485C Onboard Air System
Dual Gen 2 485C Onboard Air System

Dual Gen 2 485C Onboard Air System - Stealth Black

Part Number: 20185
$1,172.50
$1,172.50
Shipping calculated at checkout.

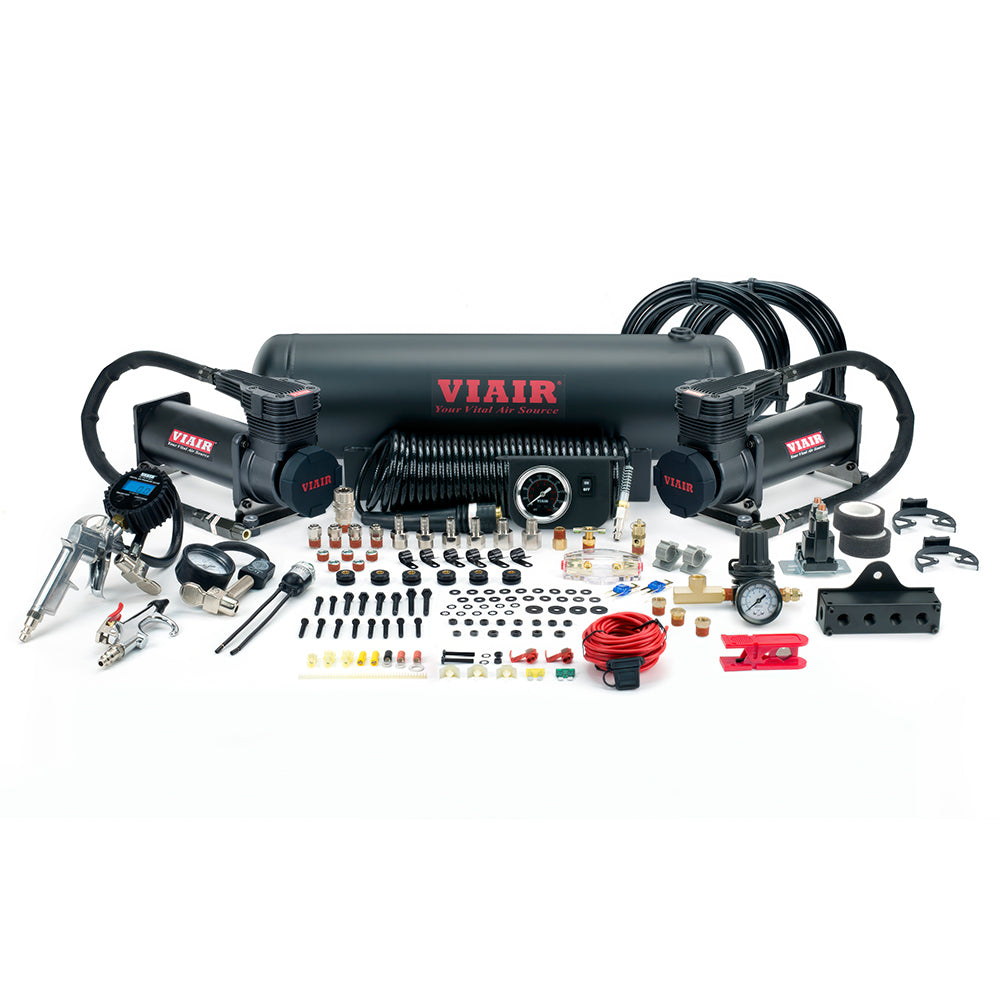

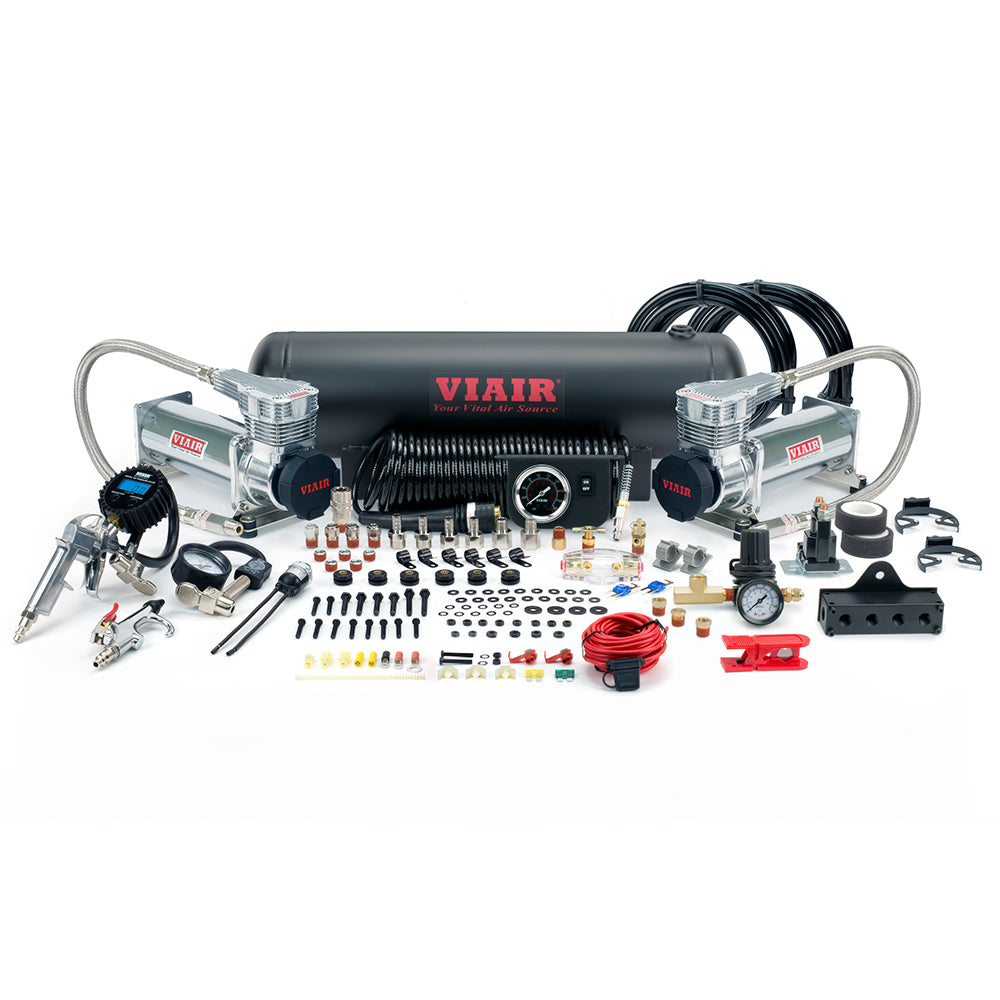

VIAIR’s Dual Gen2 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The Gen2 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Color:

Dual Gen 2 485C Onboard Air System

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
  • Net Weight: 22.10 lbs.

FEATURES

  • 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
  • (2) 485C VIAIR (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors
  • Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
  • Digital Tire Inflation Gun (180PSI)
  • 0-220 PSI Pressure Regulator
  • Sealed Pressure Switch (165 PSI on, 200 PSI off)
  • 1/4” Drain Cock
  • Heavy Duty 80-Amp Relay
  • Mini ANL Fuse Holder with 60-Amp Fuse
  • 1/4” Quick Connect Coupler (M)
  • 1/4” 250 PSI Safety Valve
  • (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
  • 6-Port Billet Manifold with Mounting Bracket (1/4”)
  • (2) 20ft. 1/4” Air Line Included
  • 5pc. 1/4” NPT Plugs Kit
  • Extension Braided Black Coil Hose
  • Rubber Tip Blow Gun
  • 3-in-1 Air Down Gauge
  • Stainless Steel Air Line Cutter

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested with Check Valve

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested without Check Valve

TIRE FILL RATE

TANK FILL RATE

Product Resources

Dimensional Drawing Wiring Diagram
