480C Dual Performance Value Pack

Part Number: 48012
$486.10
$486.10
480C Dual Performance Value Pack 480C Dual Performance Value Pack 480C Dual Performance Value Pack
480C Dual Performance Value Pack
480C Dual Performance Value Pack
480C Dual Performance Value Pack

480C Dual Performance Value Pack

Part Number: 48012
$486.10
$486.10

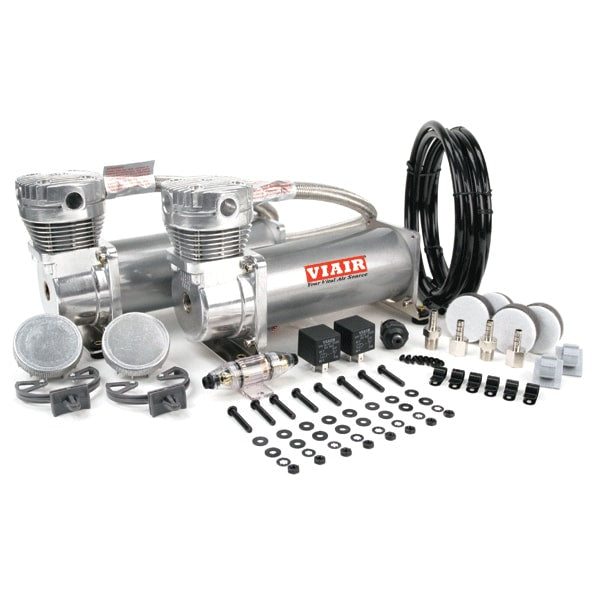

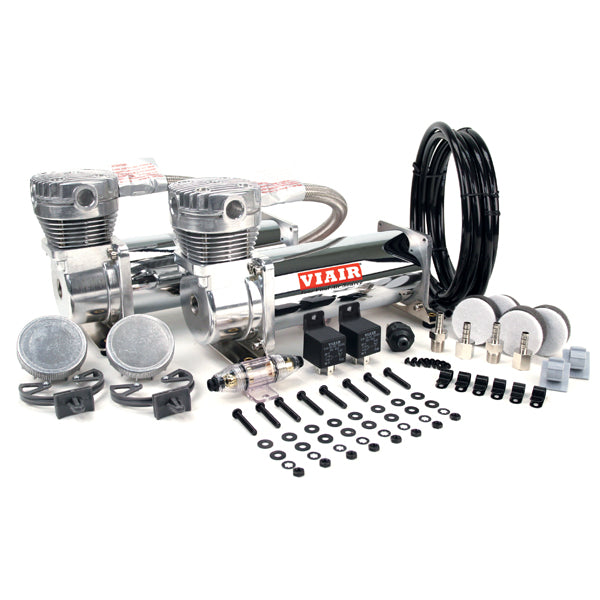

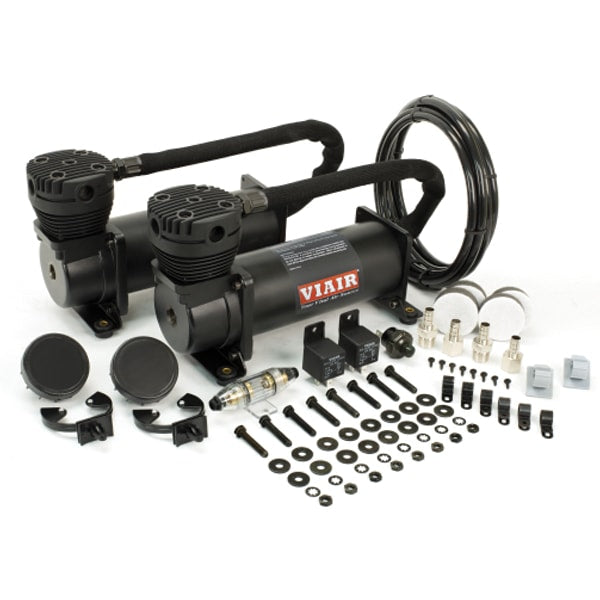

Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter, Chrome, or Stealth Black air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.

Color: Pewter

480C Dual Performance Value Pack

Designed by

VIAIR Corp

Unmatched Performance

High Pressure & Duty Cycle

Innovative Design

Up to 50% quieter

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 3.53 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
  • Net Weight: 22.10 lbs.

FEATURES:

  • (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing
