Sold Out

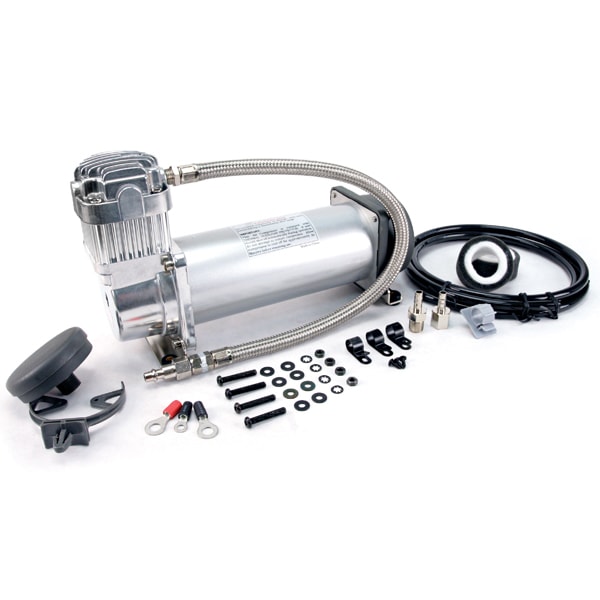

450H Hardmount Compressor

Part Number: 45042
$322.95
$322.95
450H Hardmount Compressor
450H Hardmount Compressor
Sold Out

450H Hardmount Compressor

Part Number: 45042
$322.95
$322.95

The 450H Hard-Mount comes with a built-in, moisture resistant ON/OFF power switch. It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.



**P/N 45042 - Backorder, ships after Nov 29th, 2024

450H Hardmount Compressor

Designed By

VIAIR Corp

Faster Fills

For large off-road tires

IP-Rated

Dust and waterproof

What’s in the Box

Related Accessories

5-in-1 Inflator/Deflator Coil Hose

$56.95

Add to Cart

Extension Coil Hose

$32.95

Add to Cart

Add All To Cart

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 1.80 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 11.63″L x 3.94″W x 6.75″H
  • Net Weight: 11.05 lbs.

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • 1/4″ Quick Connect Stud
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing
