425C Gen 2 Dual Performance Value Pack

Part Number: 42513
$410.50
$410.50
425C Gen 2 Dual Performance Value Pack 425C Gen 2 Dual Performance Value Pack
425C Gen 2 Dual Performance Value Pack
425C Gen 2 Dual Performance Value Pack

425C Gen 2 Dual Performance Value Pack

Part Number: 42513
$410.50
$410.50

The 425C dual pack air compressors have a duty cycle of 33% at 175 PSI, and 50% at 100 PSI. It features upgraded internal components that make it a true 175 PSI-rated working pressure unit. An updated head design increases duty cycle while decreasing decibel levels. Available in Platinum or Stealth Black, it comes equipped with a stainless steel braided leader hose and inline check valve.

Color: Platinum

425C Gen 2 Dual Performance Value Pack

Designed by

VIAIR Corp

Unmatched Performance

High Pressure & Duty Cycle

Innovative Design

Up to 50% quieter

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 4.94 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 50% @ 100 PSI
  • Duty Cycle: 33% @ 175 PSI
  • Max. Working Pressure: 175 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9.25″L x 3.31″W x 6.59″H
  • Net Weight: 11.10 lbs.

FEATURES:

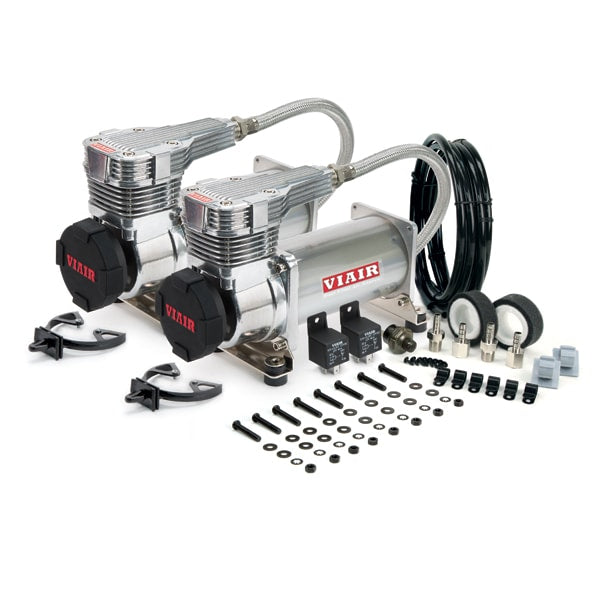

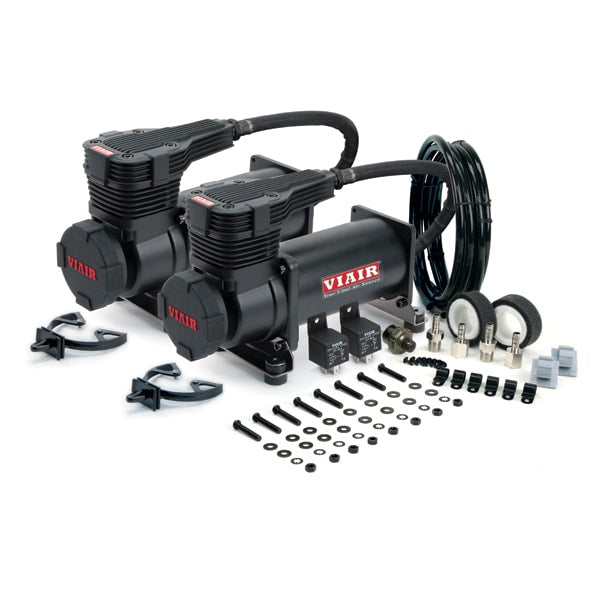

  • (2) 425C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors
  • Stainless Steel Braided Leader Hose with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) VIAIR Removable Filter Covers
  • (2) Replacement Air Filter Elements
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • Set of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers, and Lock Washers
  • (2) Heavy Duty 40-Amp Relays
  • (1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)
  • Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TANK FILL RATE

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing
