400C & 444C Single EF Compressors

Part Number: 400SB-EF
$237.82
$258.50 $237.82
400C & 444C Single EF Compressors 400C & 444C Single EF Compressors
400C & 444C Single EF Compressors
400C & 444C Single EF Compressors
8% off

400C & 444C Single EF Compressors

Part Number: 400SB-EF
$237.82
$258.50 $237.82
Shipping calculated at checkout.

Our Single EF 400C & 444C compressors provide you the flexibility to tailor your onboard air system however you'd like. They include the same advanced technology that is found in our Dual EF compressors. This single compressor kit is also an ideal choice for those who need a compressor to upgrade or complete their build. Available configurations:

400C-EF (150 PSI), Ideal for tire inflation management and and all needs where 150PSI is needed. Very reliable, and fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C-EF (200 PSI) Ideal for tire inflation management, air suspension and general needs where 200PSI is needed. Very reliable and affordable for how well it performs. 100% Duty Cycle @ 100PSI.

See EF VMS Base, Plus and or Pro Systems if you're looking to upgrade your system.

**Allow an additional couple of days for kit assembly

Color:

400C & 444C Single EF Compressors

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECIFICATIONS

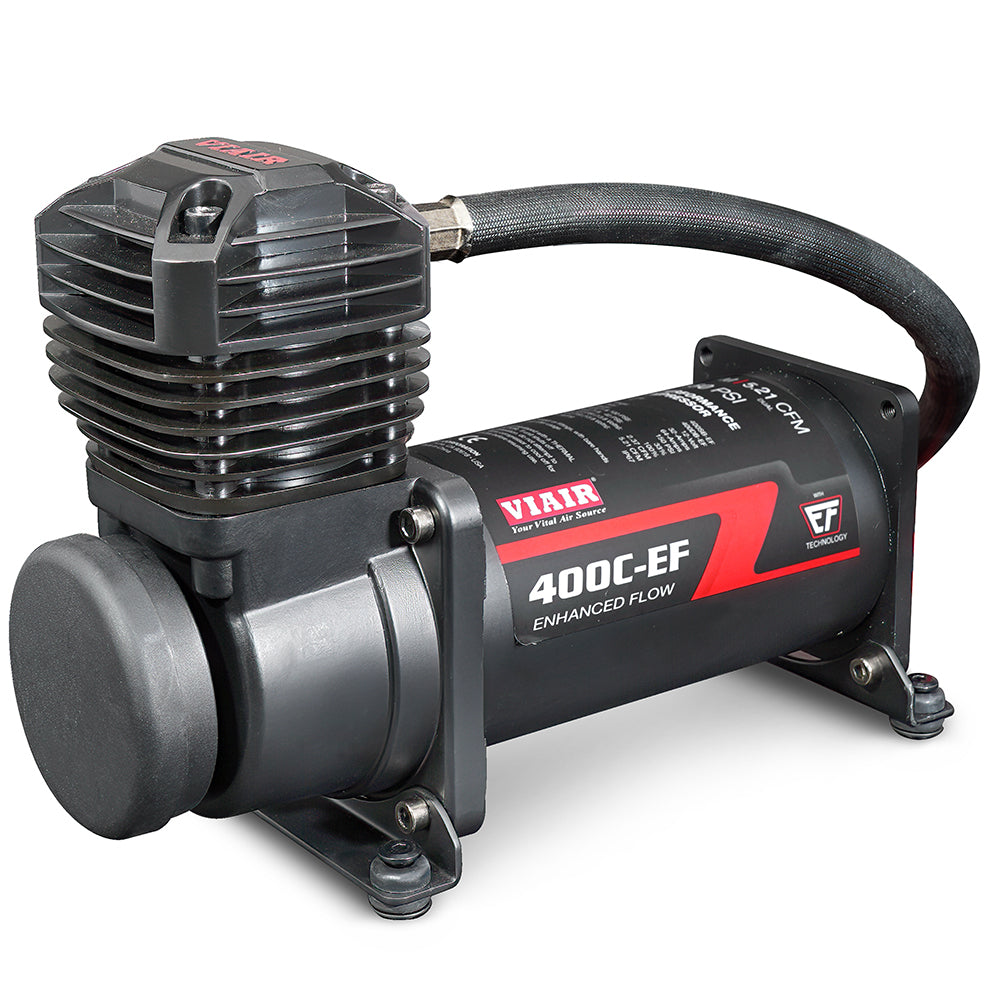

400C-EF

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI / 100% @ 40 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 32-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 9.5" x 3.9" x 6.8" (Each Unit)
  • Net Weight: 8.80 lbs.

FEATURES

  • 400C-EF Stealth Black Air Compressor
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Improved vibration isolators for better vibration resistance and easier installation
  • Optimized leader hose length for better routing
  • Air filter assemblies w/ spare air filter elements
  • Mounting hardware

SPECIFICATIONS

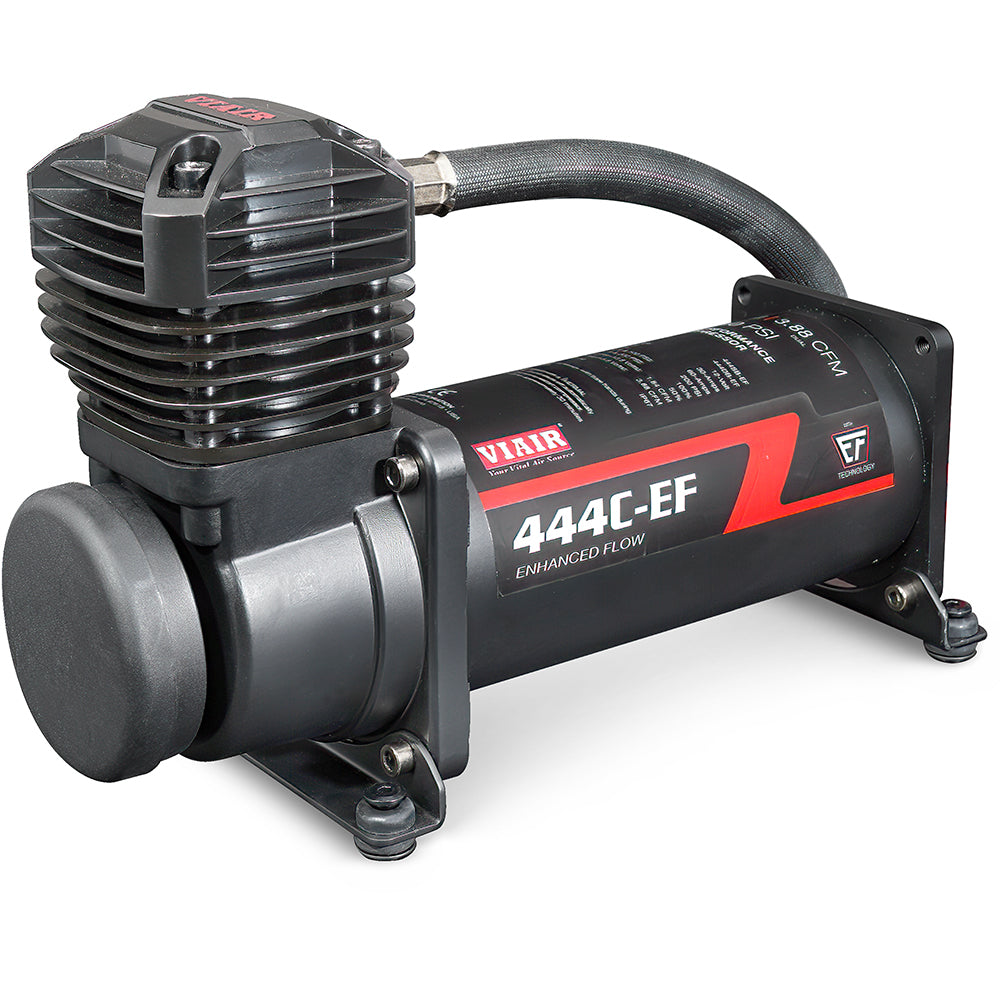

444C-EF

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI / 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Amp Draw: 27-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158F
  • Max. Ambient Temp: -40F
  • Dimensions: 11.4" x 4.1" x 6.8" (Each Unit)
  • Net Weight: 10.85 lbs.

FEATURES

  • 444C-EF Stealth Black or Chrome Air Compressor
  • Redesigned EF head improves airflow and heat management
  • Upgraded internals for increased flow and durability
  • Improved vibration isolators for better vibration resistance and easier installation
  • Optimized leader hose length for better routing
  • Air filter assemblies w/ spare air filter elements
  • Mounting hardware

400C-EF / 12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

444C-EF / 12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

400C-EF / Tank Fill Rate

444C-EF / Tank Fill Rate

Product Resources

400SB-EF Manual 444SB-EF 444SC-EF
