280C Dual Performance Value Pack

Part Number: 28002
$315.74
$315.74
280C Dual Performance Value Pack
280C Dual Performance Value Pack

280C Dual Performance Value Pack

Part Number: 28002
$315.74
$315.74

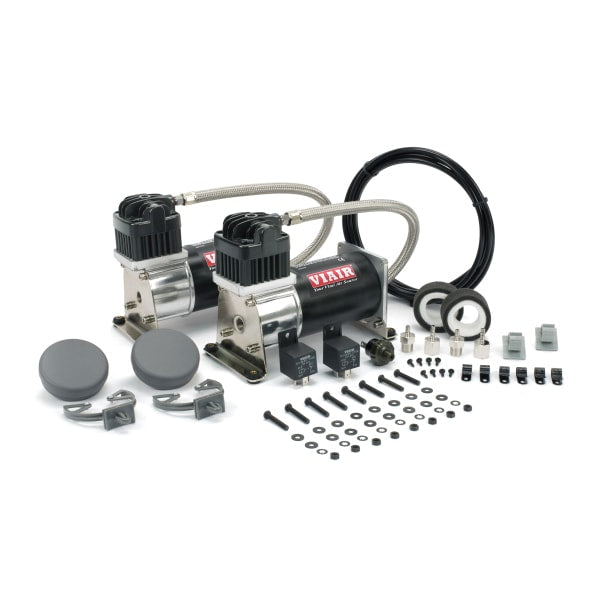

The VIAIR 280C Dual Pack is ideal for lighter air suspension systems, capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

280C Dual Performance Value Pack

Designed by

VIAIR Corp

Unmatched Performance

High Pressure & Duty Cycle

Innovative Design

Up to 50% quieter

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • CFM: 2.96 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Combined Max. Amp Draw: 38-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 7.13″L x 3.95″W x 6.35″H (Each Unit)
  • Net Weight: 17.50 lbs.

FEATURES:

  • (2) 280C (Black on Silver) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing
