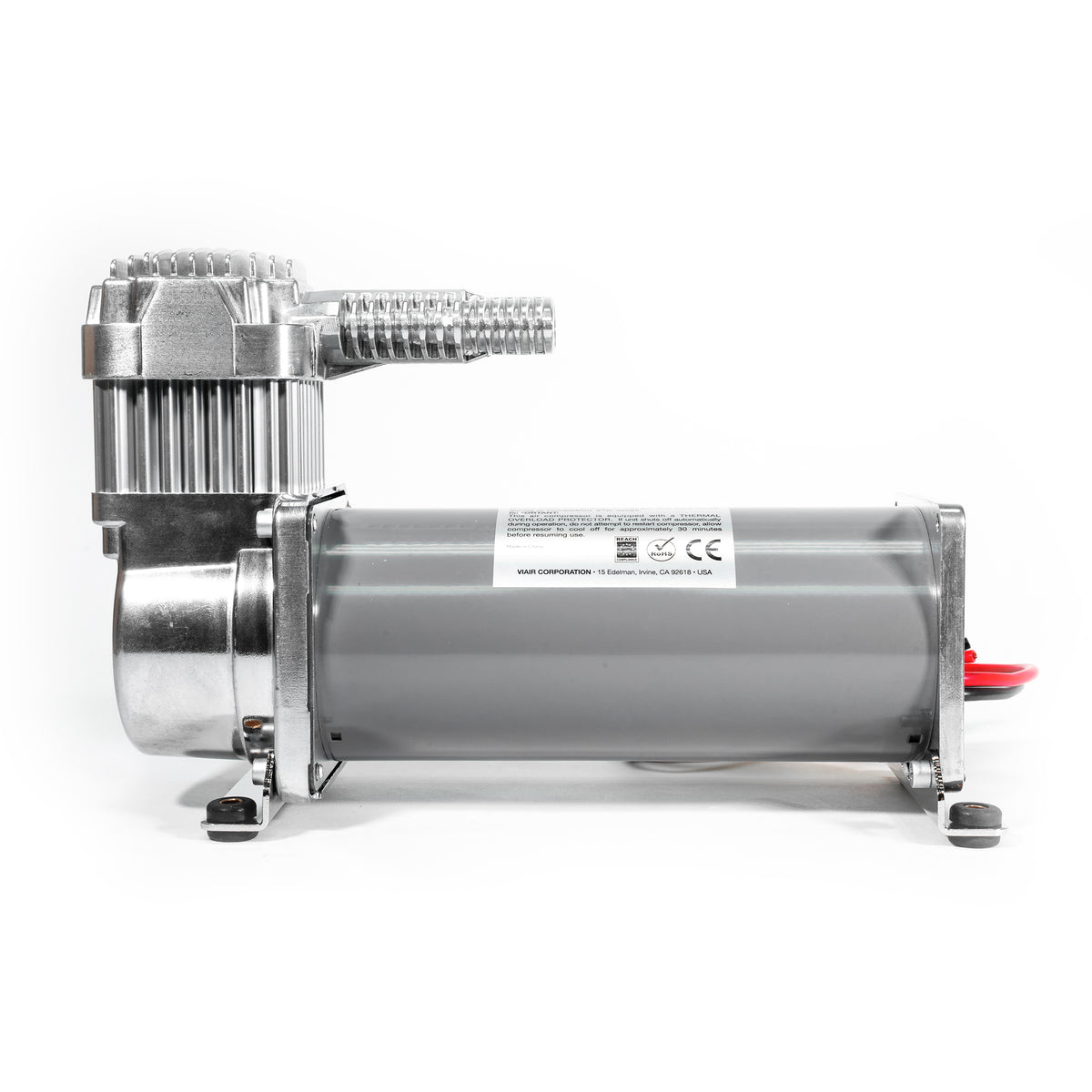

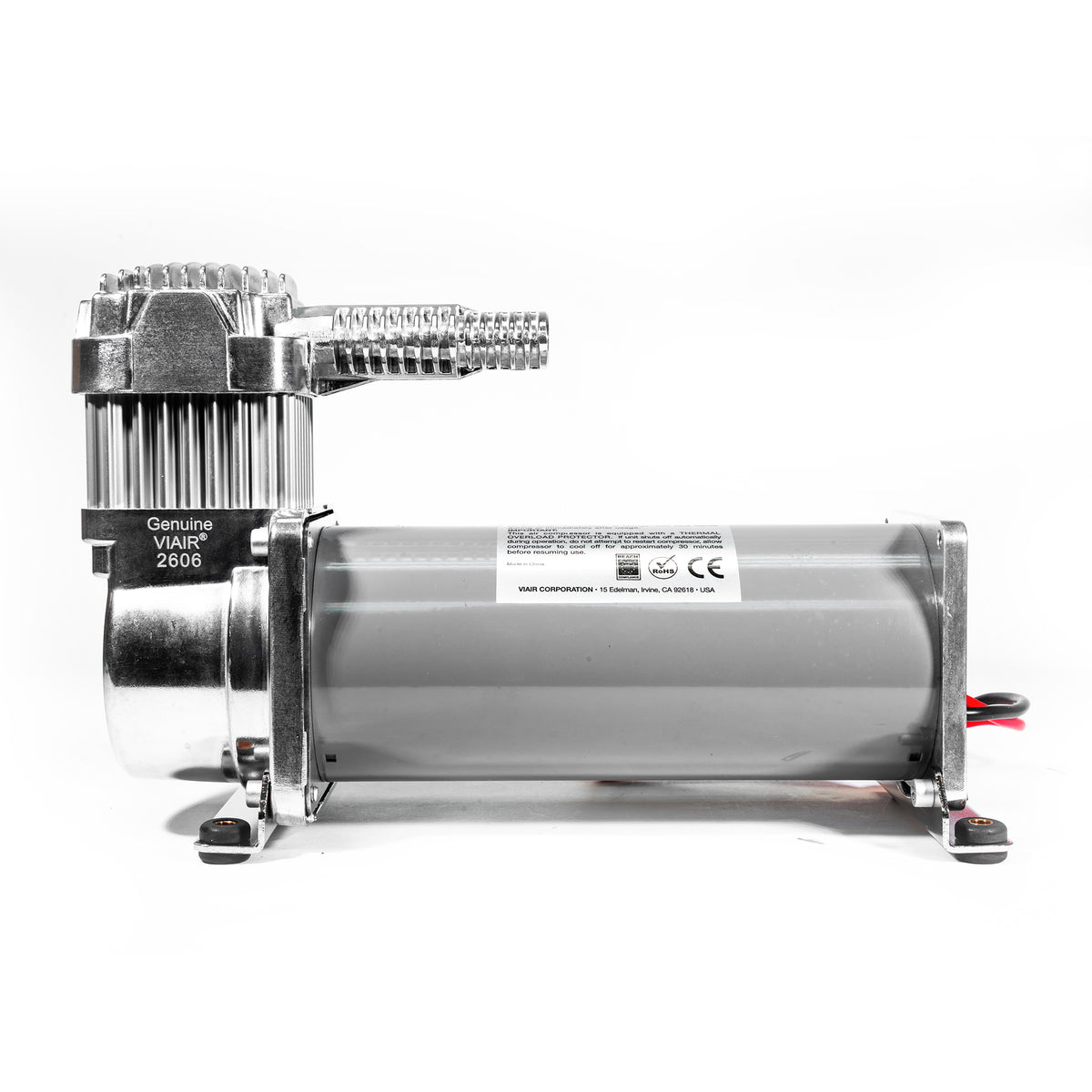

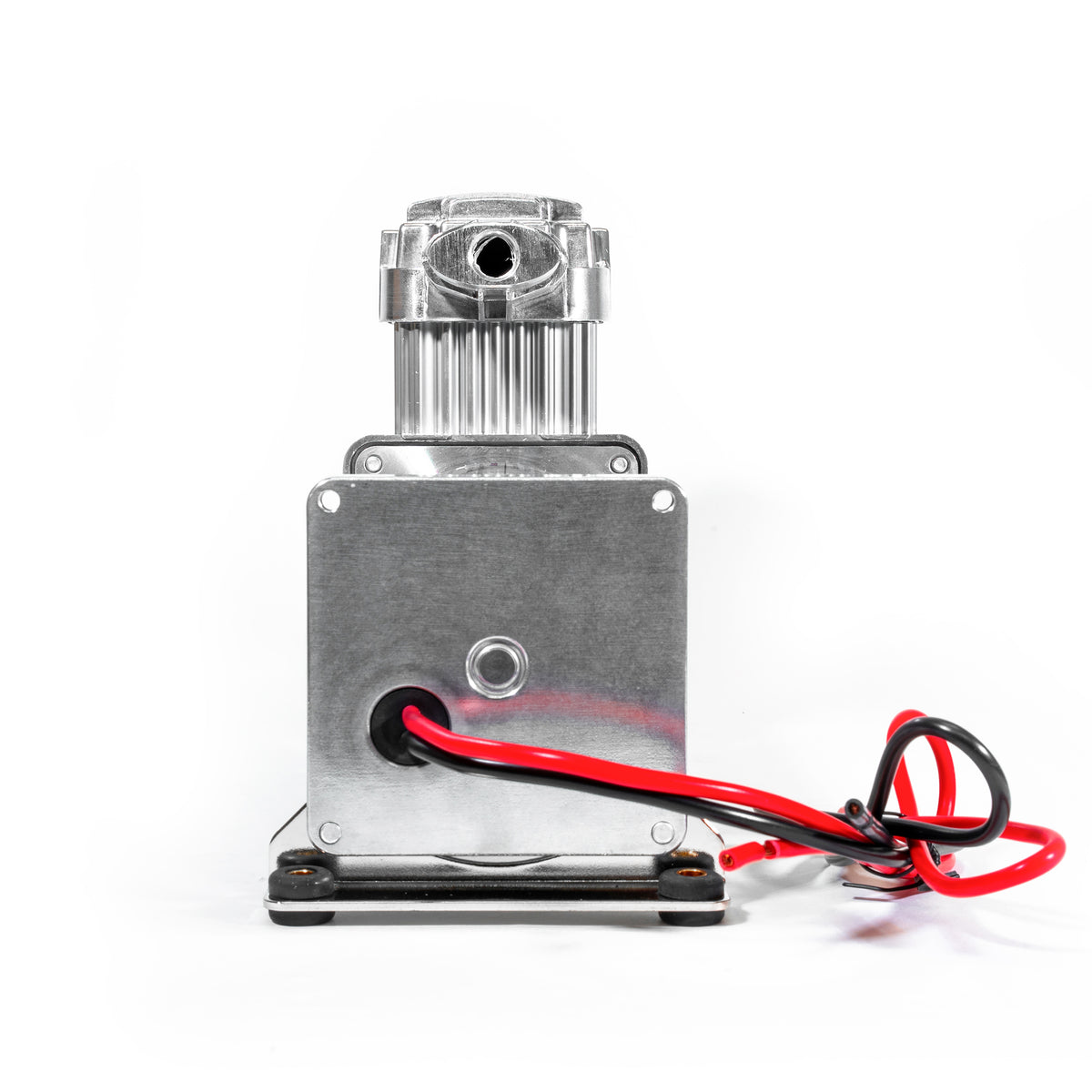

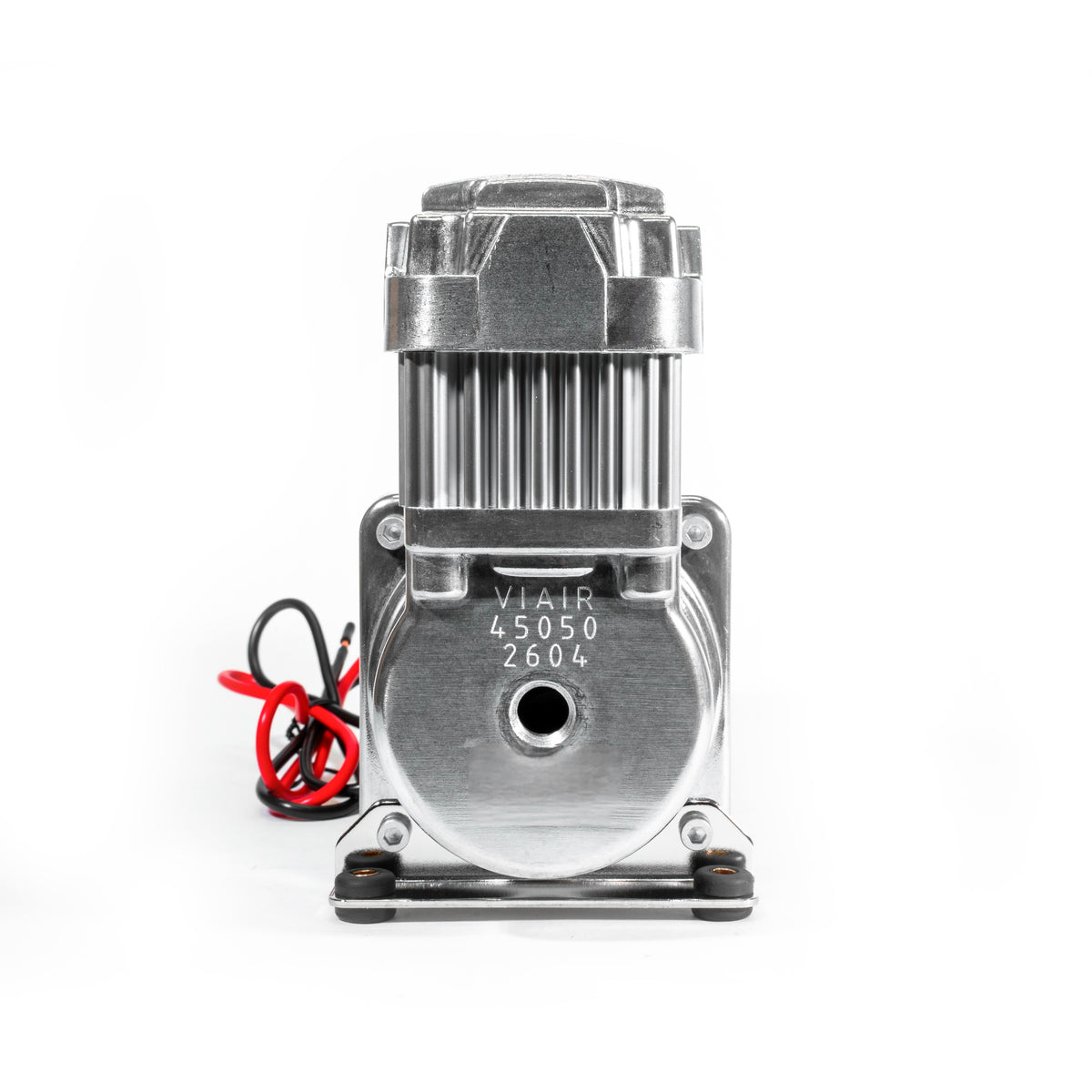

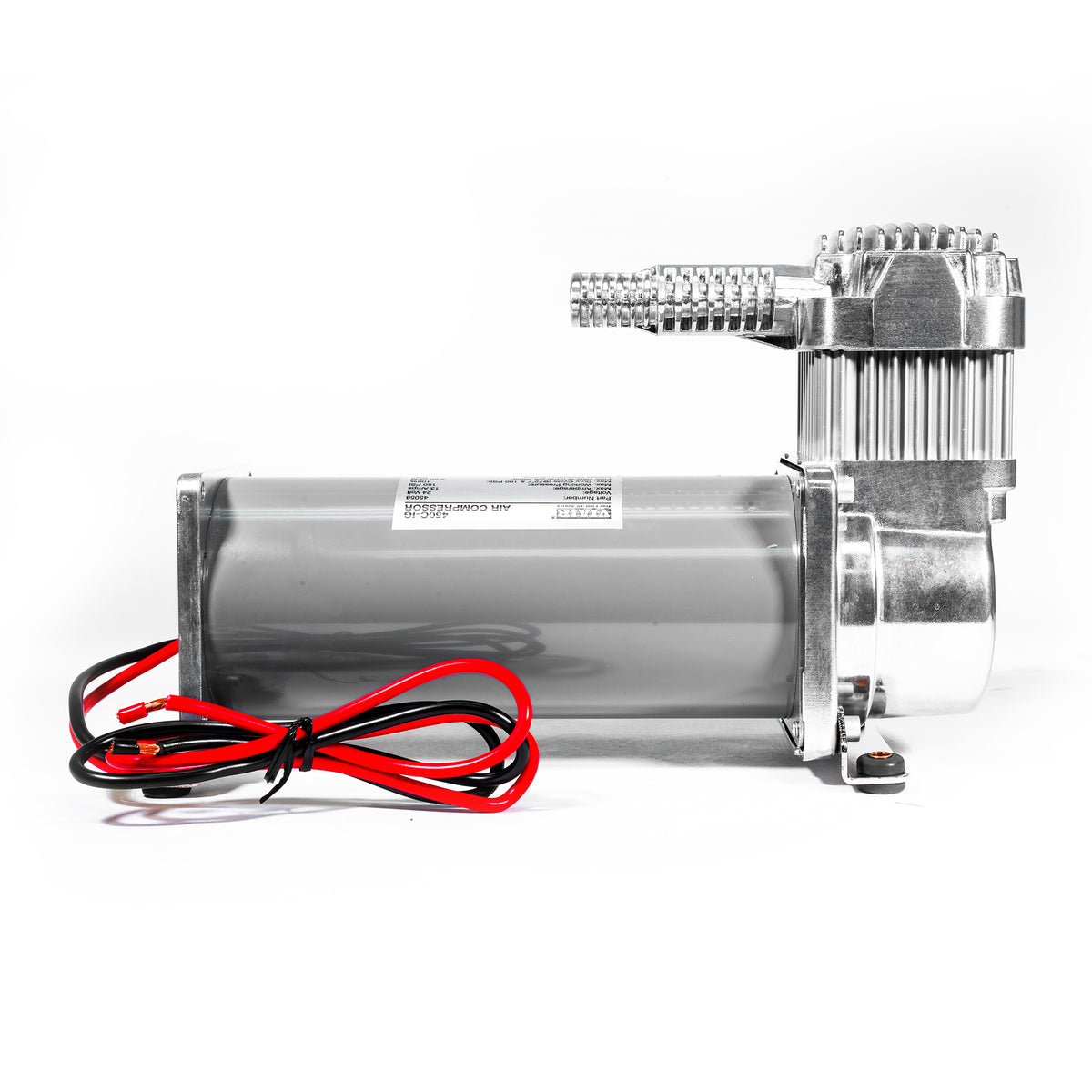

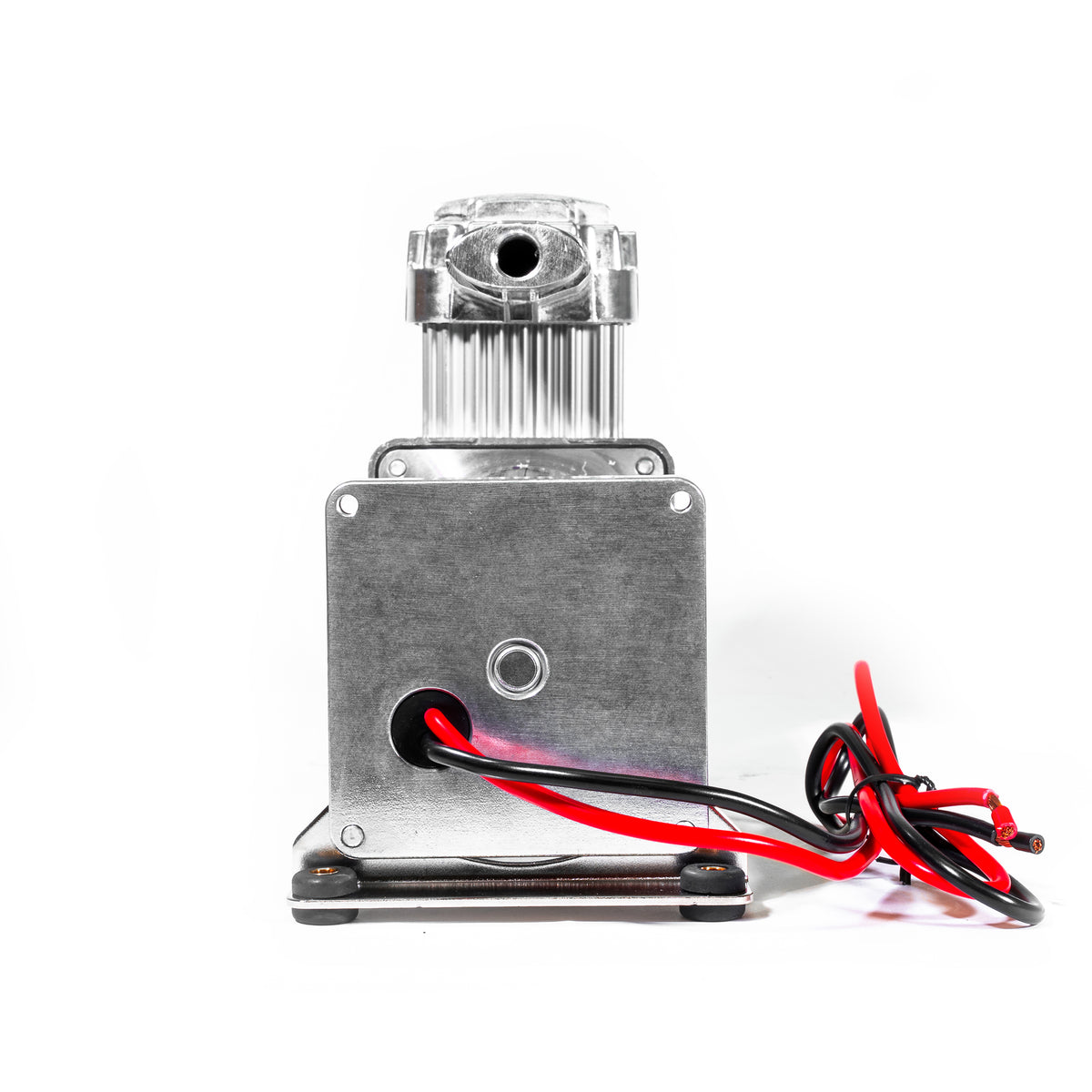

450C Industrial-Grade Compressor

450C Industrial-Grade Compressor

Part Number: 45050
Regular price $432.95
Regular price Sale price $432.95
450C Industrial-Grade Compressor
450C Industrial-Grade Compressor

450C Industrial-Grade Compressor

450C Industrial-Grade Compressor

Part Number: 45050
Regular price $432.95
Regular price Sale price $432.95

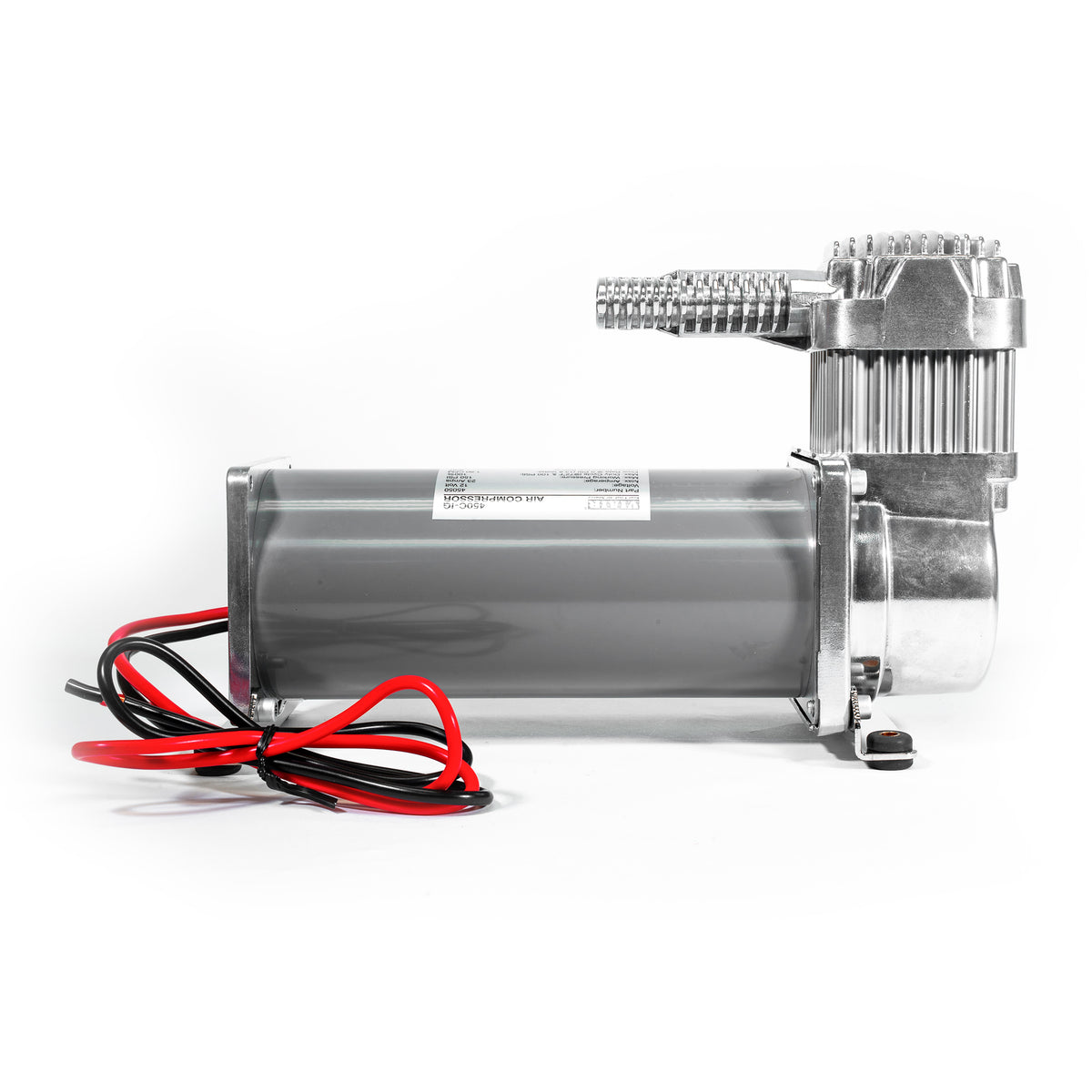

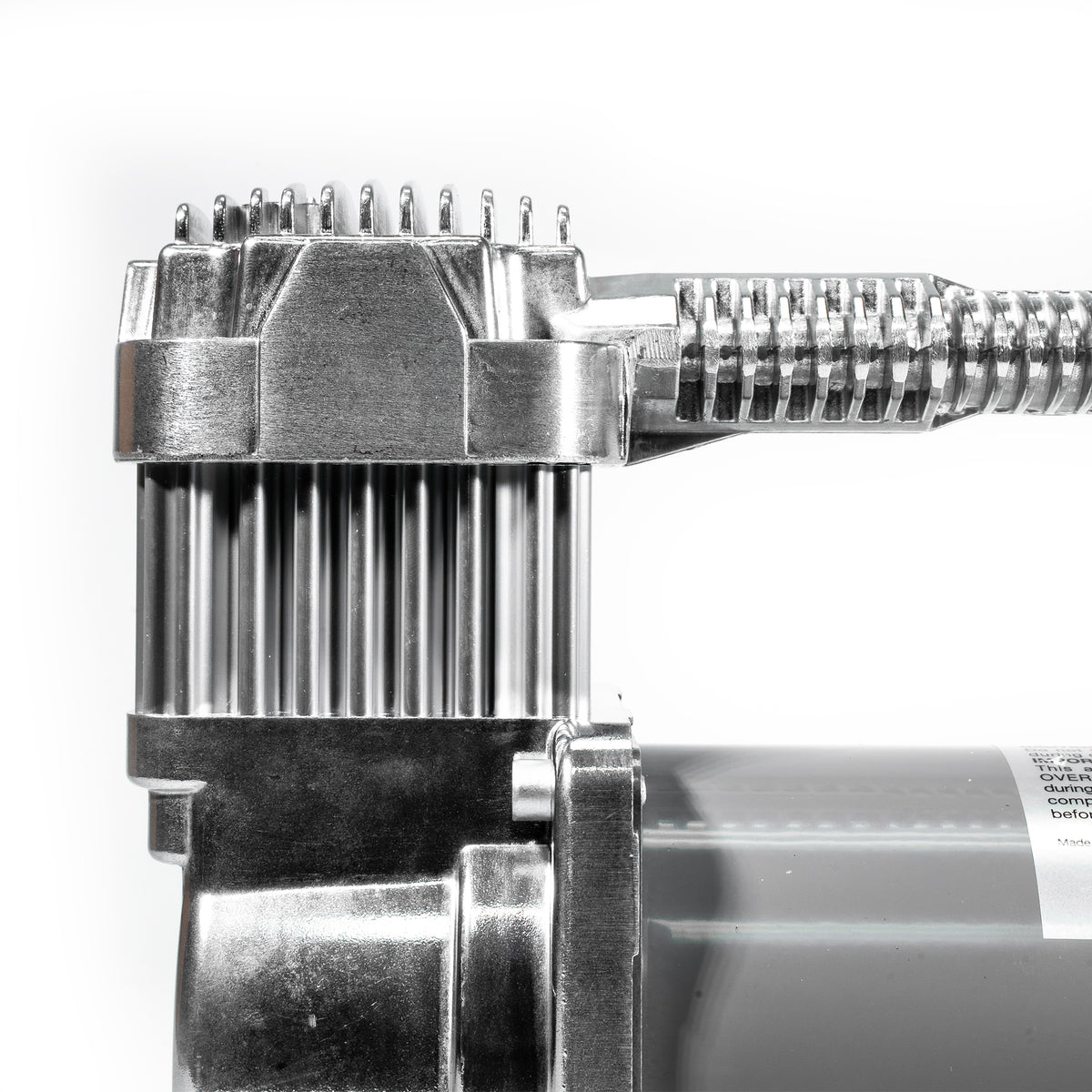

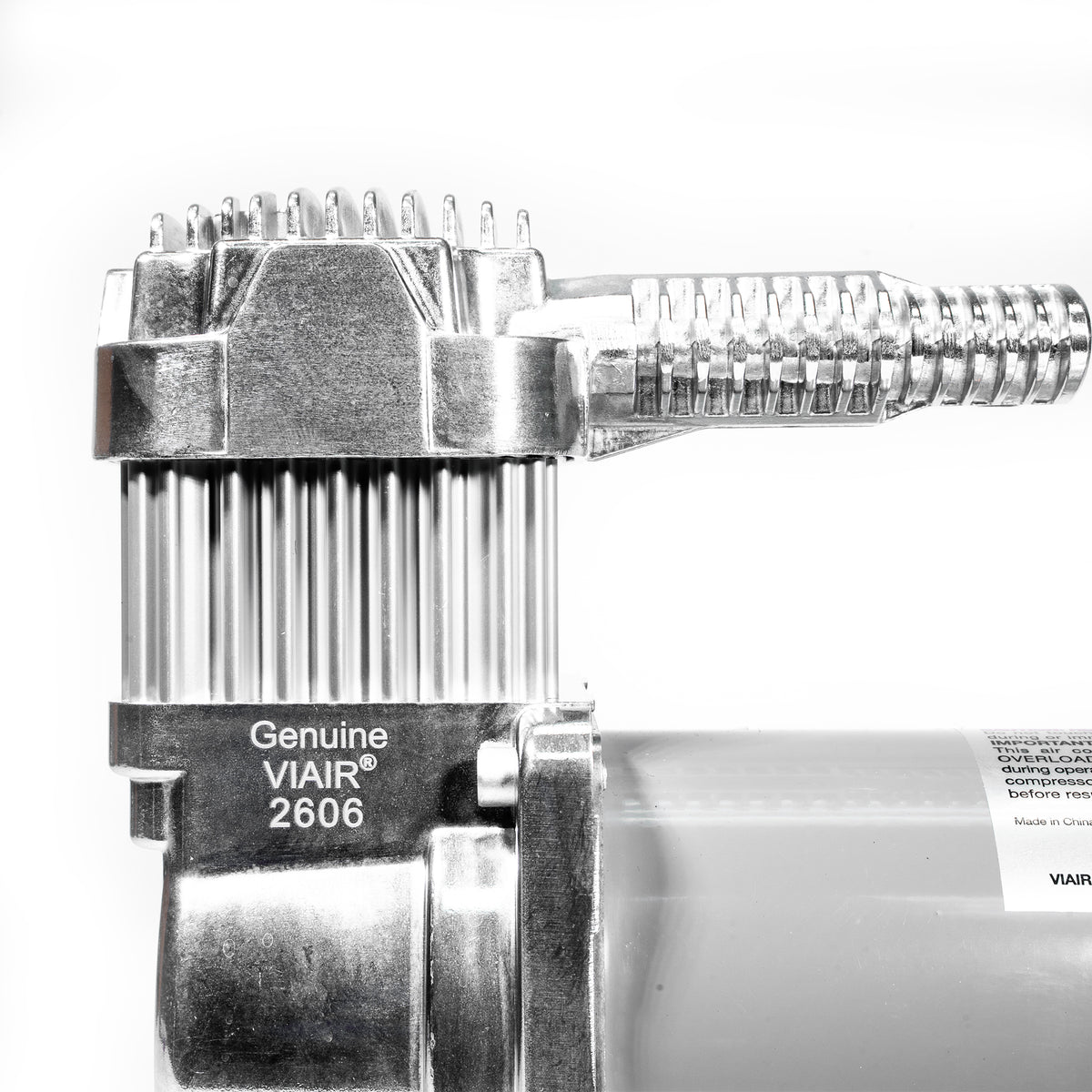

The 450 IG air compressors are heavy-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

12V
24V

450C Industrial-Grade Compressor

Quality Standard

ISO 9001

12V & 24V

Oil-less & Direct Driven

Unmatched Testing

Aims for 0% failure rate

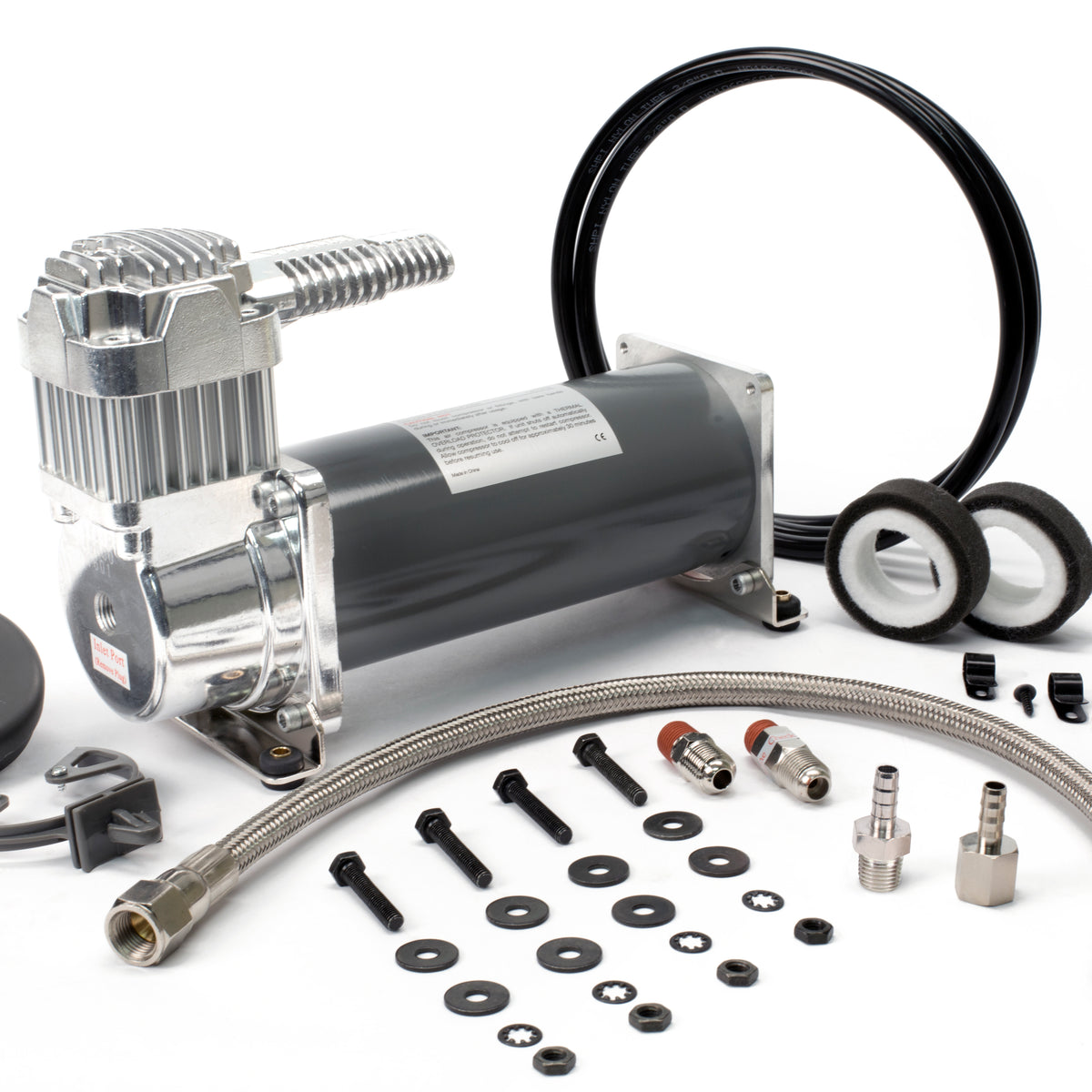

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 23-Amps
  • Max. 24V Amp Draw: 13-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 11.25″L x 4″W x 6.75″H
  • Net Weight: 10.40 lbs.

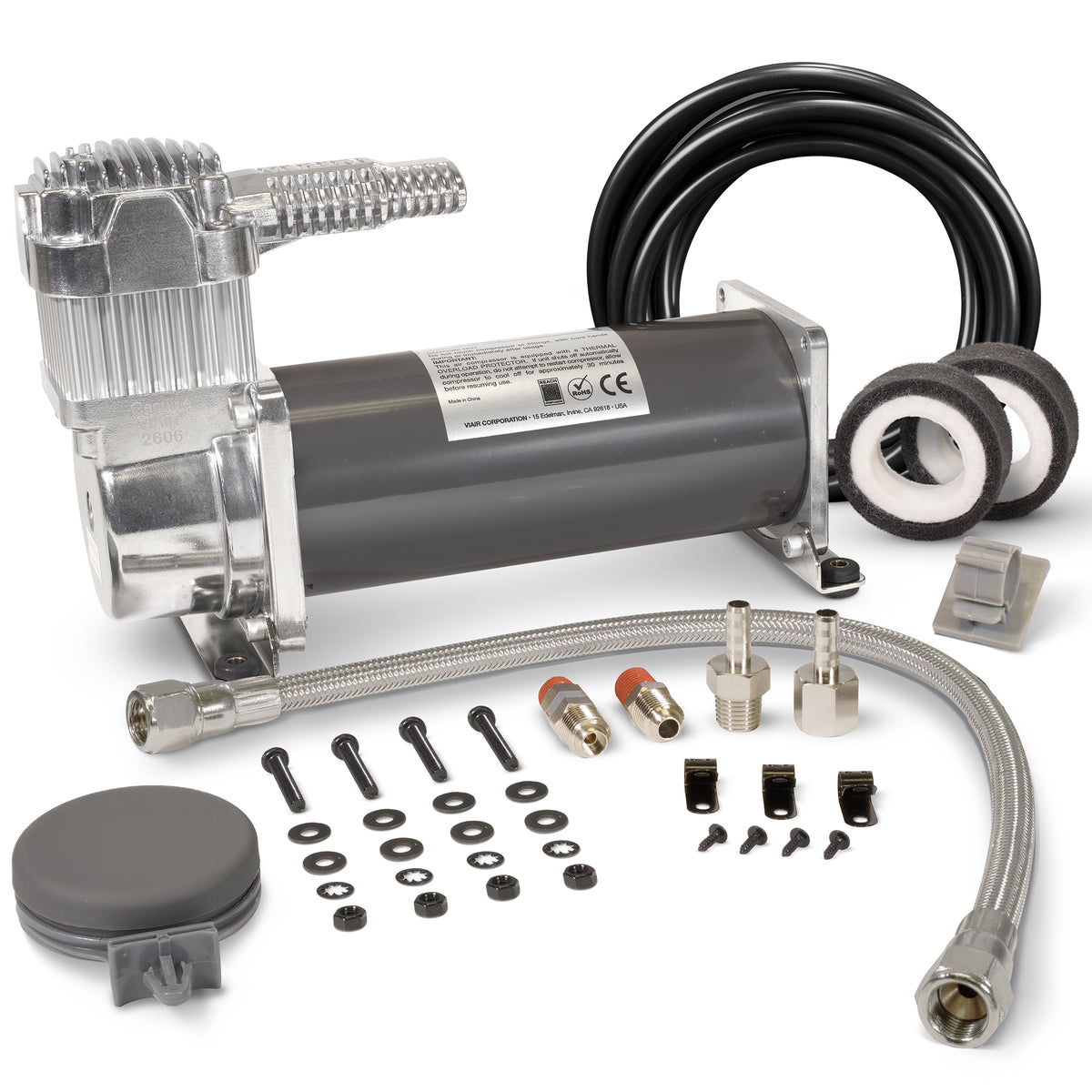

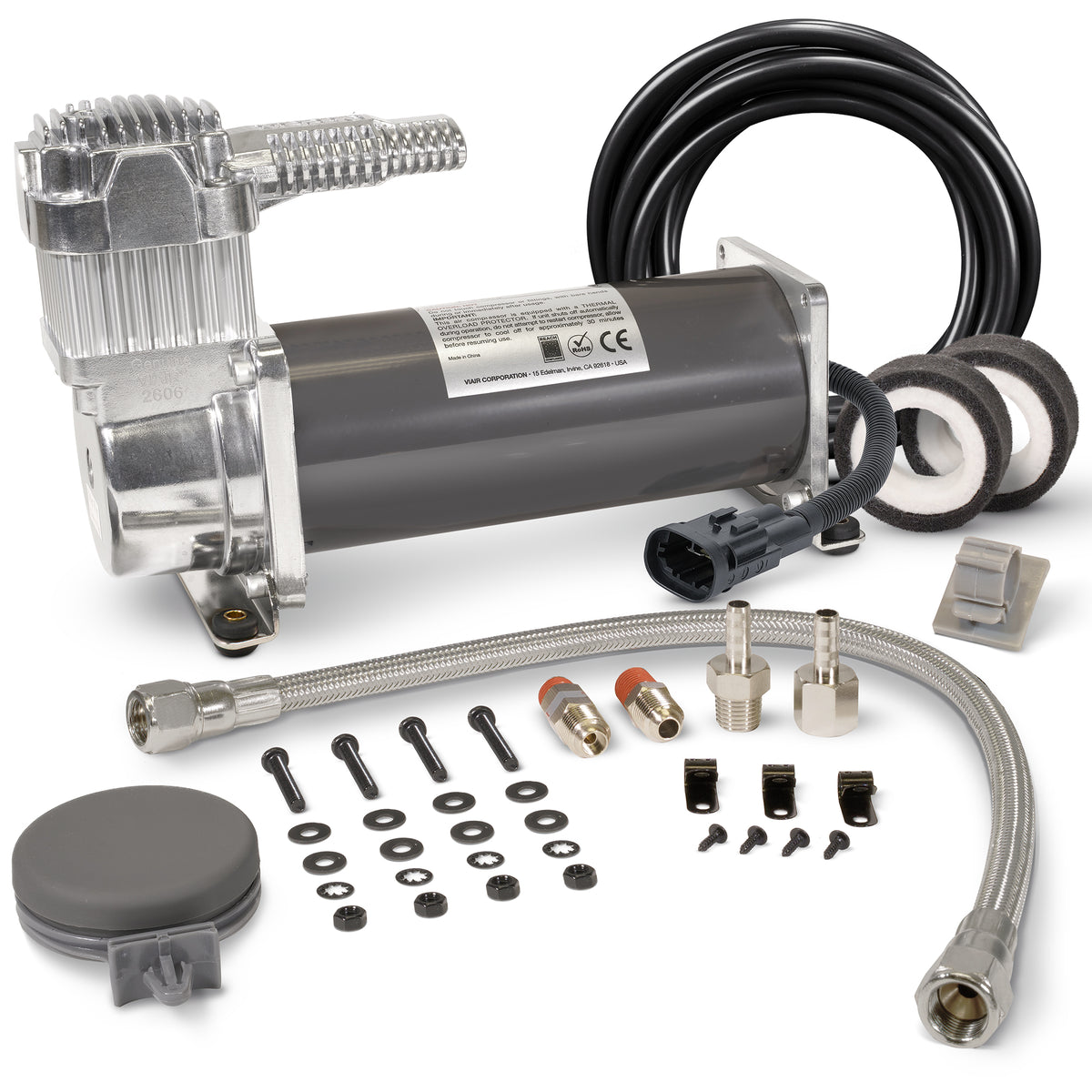

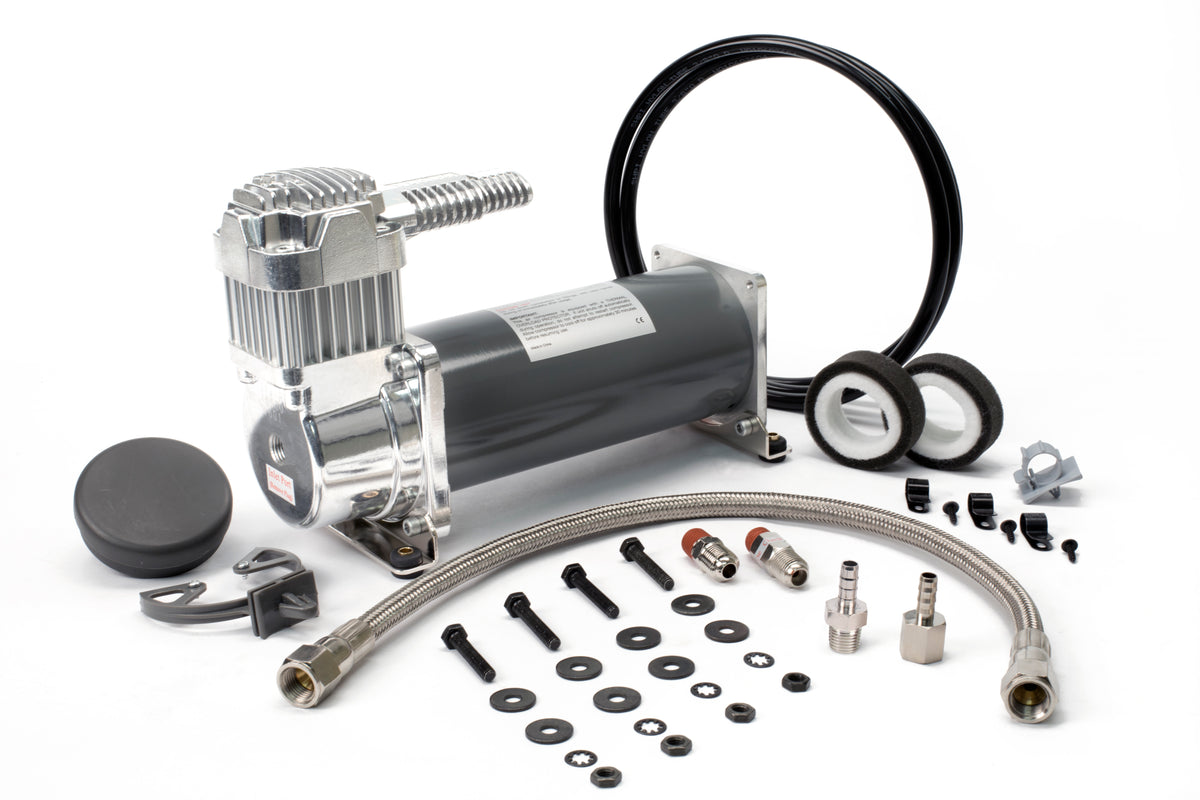

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

12-VOLT COMPRESSOR

24-VOLT COMPRESSOR
